Color Properties of Transition Metal Complexes

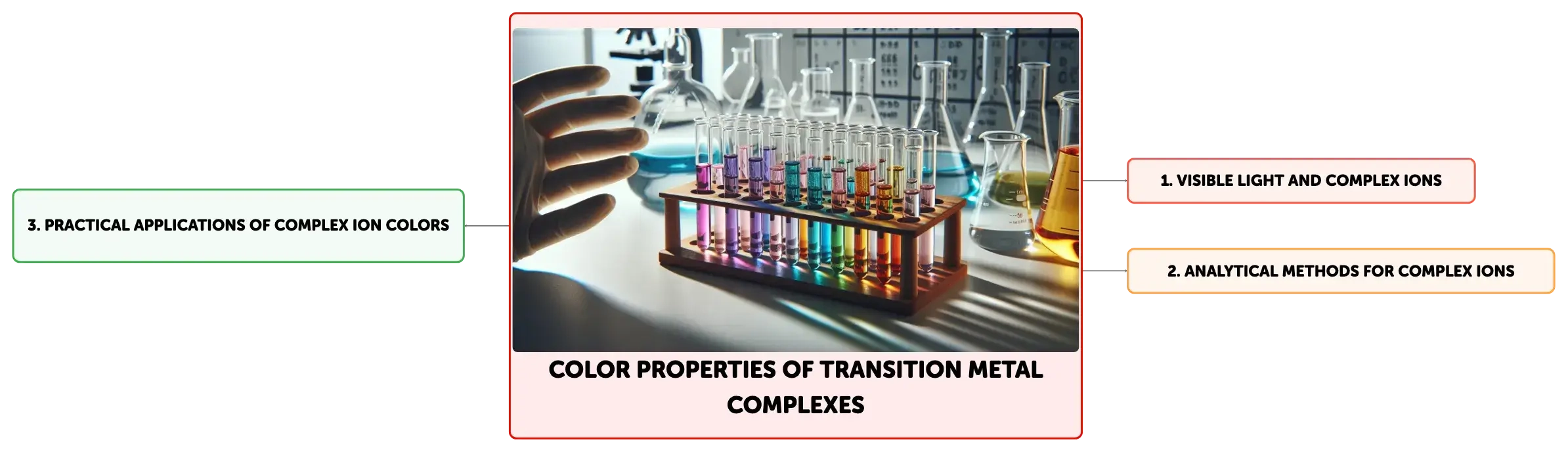

Concept Map
Explore the fascinating world of transition metal complexes, where vivid colors arise from d-d electron transitions within their d subshells. These complexes absorb specific wavelengths of light, resulting in their characteristic hues, which are used in qualitative analysis and have practical applications in various fields, including art and industry. Factors such as oxidation state, ligand nature, and coordination number influence the color of these ions, while spectroscopy techniques enable their study.
Summary
Outline
The Vibrant World of Transition Metal Complexes
Transition metal complexes captivate with their vivid colors, a result of d-d electron transitions within their incomplete d subshells. When white light interacts with these complexes, specific wavelengths are absorbed due to these electron transitions, while others are reflected or transmitted. The observed color is the complement of the absorbed light. For example, copper(II) sulfate appears blue because it absorbs light in the red region of the visible spectrum. This property is not only visually striking but also instrumental in the qualitative analysis of transition metal ions.Understanding the Electromagnetic Spectrum and Light Absorption
Grasping the coloration of complex ions requires knowledge of the electromagnetic spectrum, particularly the visible light portion. Visible light spans from red light, with the longest wavelength at approximately 700 nm, to violet, with the shortest at around 400 nm. Complex ions absorb light at specific wavelengths, and the color seen is the complementary color on the color wheel. This selective absorption is central to the unique hues displayed by complex ions.Electron Arrangement and Energy Levels in Complex Ions
The color phenomena in complex ions are also influenced by the electron configuration in their 3d orbitals. In a free transition metal ion, the five d-orbitals are degenerate, meaning they have the same energy. However, when ligands coordinate to the metal ion, they split the d-orbitals into two energy levels, lifting the degeneracy. This splitting, and the resulting energy difference, depends on the complex's geometry, such as octahedral or tetrahedral, and is a key factor in determining the observed color.Electron Promotion and the Role of Partially Filled d Subshells
The presence of a partially filled d subshell is essential for the color properties of transition metal complexes. Absorption of light promotes an electron from a lower to a higher energy d-orbital, a phenomenon known as d-d transition. The energy difference between these orbitals corresponds to the energy of the absorbed light, which dictates the color of the transmitted or reflected light. For instance, copper(II) sulfate absorbs red light, which gives it a blue appearance, while zinc sulfate is colorless because its d subshell is full, precluding such electron transitions.Factors Influencing the Color of Complex Ions
The color of complex ions is influenced by several factors, including the metal's oxidation state, the nature of the ligands, and the coordination number. Different oxidation states can modify the energy levels of the d orbitals, changing the color. Ligands affect the color by altering the crystal field strength, which changes the energy gap between the d orbitals. The coordination number, or the number of ligands attached to the metal ion, can also affect the color by changing the extent of d-orbital splitting.Visible Light Spectroscopy and Colorimetry in Analyzing Complex Ions
Visible light spectroscopy and colorimetry are analytical methods used to quantify the concentration of colored ions in solution. These techniques involve measuring the light absorbance of a sample, which correlates with ion concentration. A colorimeter, which quantifies absorbance, requires a calibration curve to relate absorbance to concentration. The colorimeter's filter must correspond to the wavelength absorbed by the ion complex for precise measurements. These methods are valuable for rapid and sensitive analysis of ion concentrations in various samples.The Significance of Complex Ion Colors in Everyday Life
The colors of complex ions enrich our daily experiences and serve practical functions. For instance, the patina formed on copper due to oxidation is valued for its aesthetic appeal in architecture and art. The distinctive colors of ions such as ferric, permanganate, and chromium play significant roles in biological systems, industrial processes, and contribute to the beauty of gemstones. An understanding of the underlying science of these colors deepens our appreciation for both natural phenomena and human-made innovations.
Show More

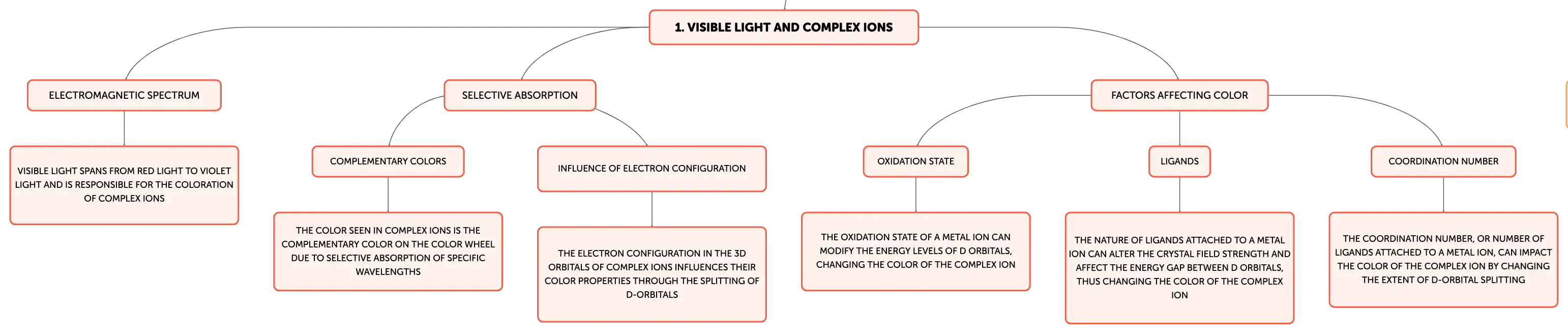

Visible Light and Complex Ions
Electromagnetic Spectrum
Visible light spans from red light to violet light and is responsible for the coloration of complex ions
Selective Absorption
Complementary Colors
The color seen in complex ions is the complementary color on the color wheel due to selective absorption of specific wavelengths
Influence of Electron Configuration
The electron configuration in the 3d orbitals of complex ions influences their color properties through the splitting of d-orbitals
Factors Affecting Color
Oxidation State
The oxidation state of a metal ion can modify the energy levels of d orbitals, changing the color of the complex ion
Ligands
The nature of ligands attached to a metal ion can alter the crystal field strength and affect the energy gap between d orbitals, thus changing the color of the complex ion
Coordination Number
The coordination number, or number of ligands attached to a metal ion, can impact the color of the complex ion by changing the extent of d-orbital splitting

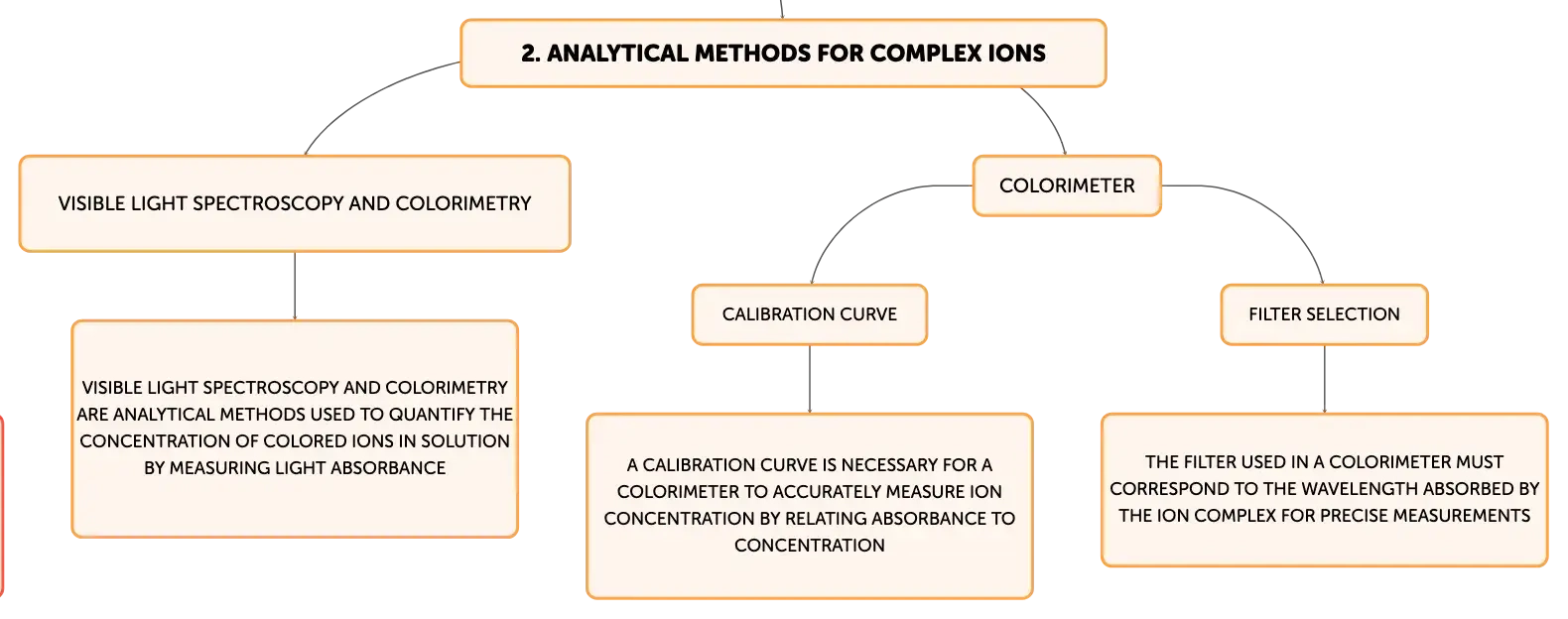

Analytical Methods for Complex Ions
Visible Light Spectroscopy and Colorimetry
Visible light spectroscopy and colorimetry are analytical methods used to quantify the concentration of colored ions in solution by measuring light absorbance
Colorimeter
Calibration Curve
A calibration curve is necessary for a colorimeter to accurately measure ion concentration by relating absorbance to concentration
Filter Selection
The filter used in a colorimeter must correspond to the wavelength absorbed by the ion complex for precise measurements

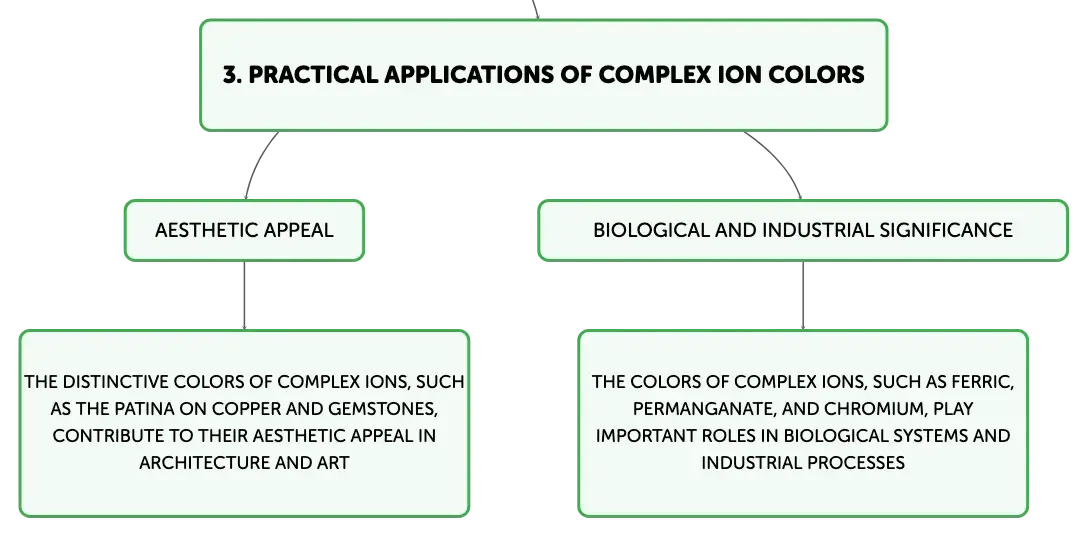

Practical Applications of Complex Ion Colors
Aesthetic Appeal
The distinctive colors of complex ions, such as the patina on copper and gemstones, contribute to their aesthetic appeal in architecture and art
Biological and Industrial Significance
The colors of complex ions, such as ferric, permanganate, and chromium, play important roles in biological systems and industrial processes
Color Properties of Transition Metal Complexes
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Interaction of white light with transition metal complexes
White light absorption and specific wavelength reflection/transmission by complexes.
01
Color observation in transition metal complexes
Complementary color of absorbed light is observed; not the absorbed wavelength.
02
Role of copper(II) sulfate color in qualitative analysis
Blue appearance indicates absorption in red region, used for identifying metal ions.
