Absolute Configuration and Stereochemistry

Concept Map

Exploring the concept of absolute configuration in chemistry, this overview discusses the R and S nomenclature of chiral centers and their importance in organic chemistry. It highlights the role of stereocenters in determining molecular chirality and the profound implications of stereochemistry in biological systems, such as the selectivity of enzymes and receptors. The text also delves into the practical applications of absolute configuration in the synthesis of pharmaceuticals and the study of amino acids.

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

In stereochemistry, the precise spatial arrangement of atoms around a ______ is known as absolute configuration.

chiral center

The Cahn-Ingold-Prelog priority rules are used to assign the 'R' or 'S' ______ to a molecule's chiral center.

configuration

Define absolute configuration.

Exact 3D orientation of atoms in a molecule, unchanged by rotation, altered by reflection.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Glass flask on laboratory bench with layered liquids in blue, yellow and red, dropper with green liquid on top, beaker and glassware in background.

Cycloaddition Reactions in Organic Chemistry

Transparent glass vial with colorless liquid and black cap on reflective laboratory bench, empty test tubes in wooden rack and blurry green leaves on background.

Alkene Nomenclature

Glass bottle with green liquid on laboratory bench, colored test tubes in rack, lit Bunsen burner and tweezers next to an empty petri dish.

Heteroatoms in Organic Chemistry

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Exploring the Concept of Absolute Configuration in Chemistry

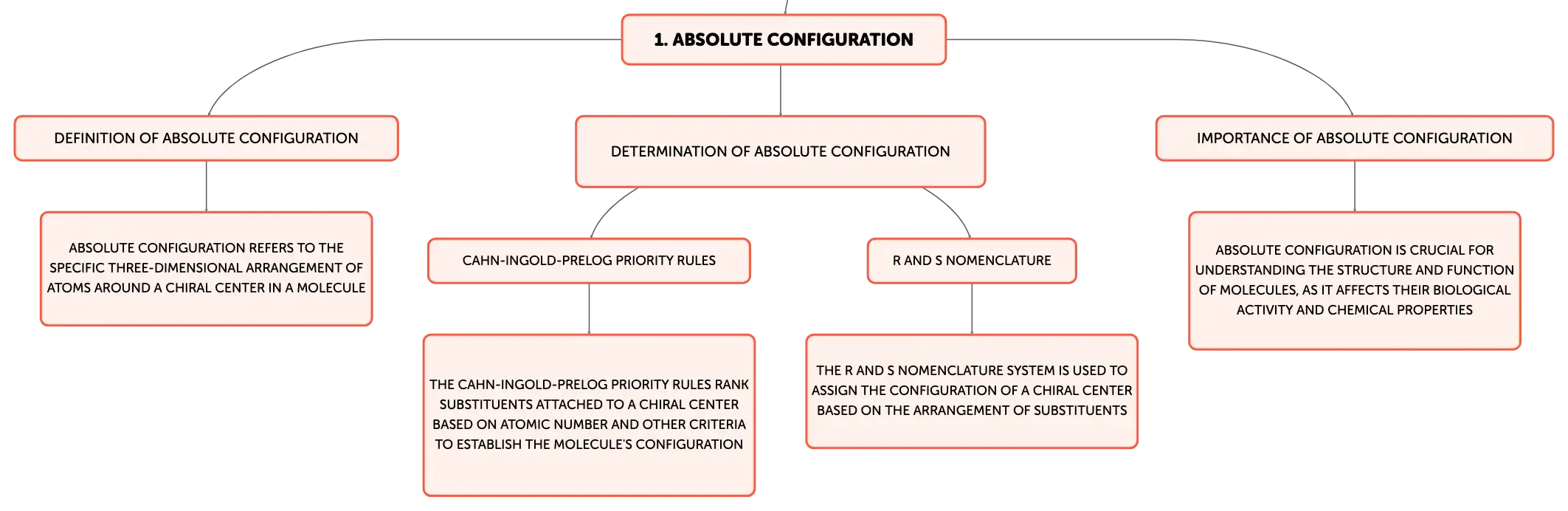

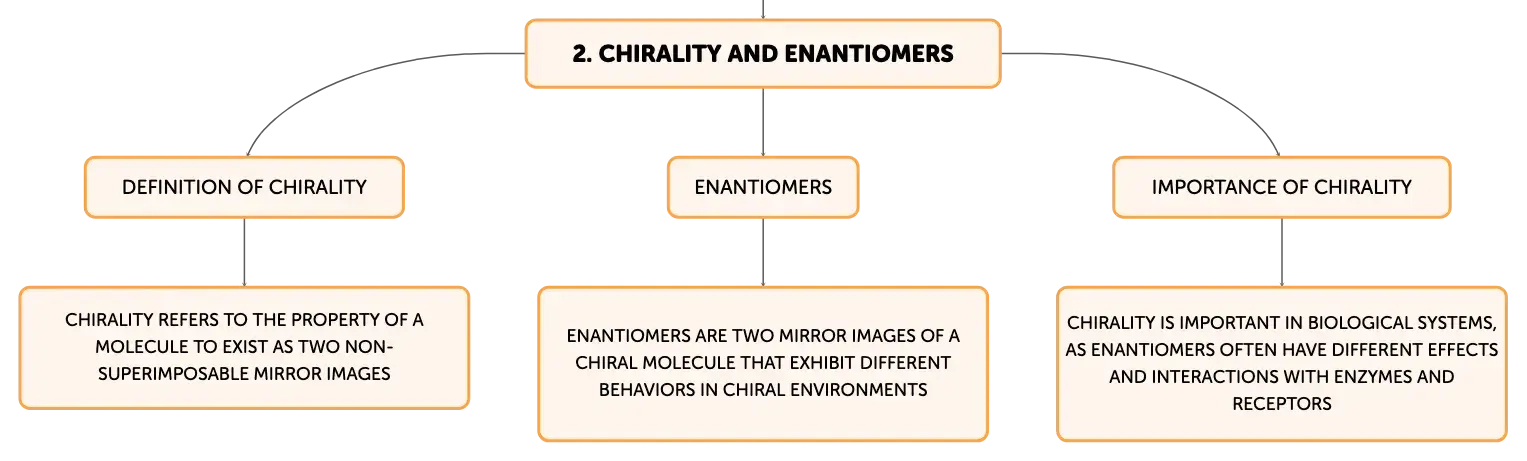

Absolute configuration is a key concept in stereochemistry, referring to the specific three-dimensional arrangement of atoms around a chiral center in a molecule. Chiral molecules are unique in that they exist as two non-superimposable mirror images, known as enantiomers. These enantiomers often exhibit different behaviors in chiral environments, such as biological systems. The absolute configuration of a chiral center is denoted by 'R' (from the Latin rectus, meaning right) or 'S' (from the Latin sinister, meaning left), determined by the Cahn-Ingold-Prelog (CIP) priority rules. These rules rank the substituents attached to the chiral center based on atomic number and other criteria to establish the molecule's configuration.

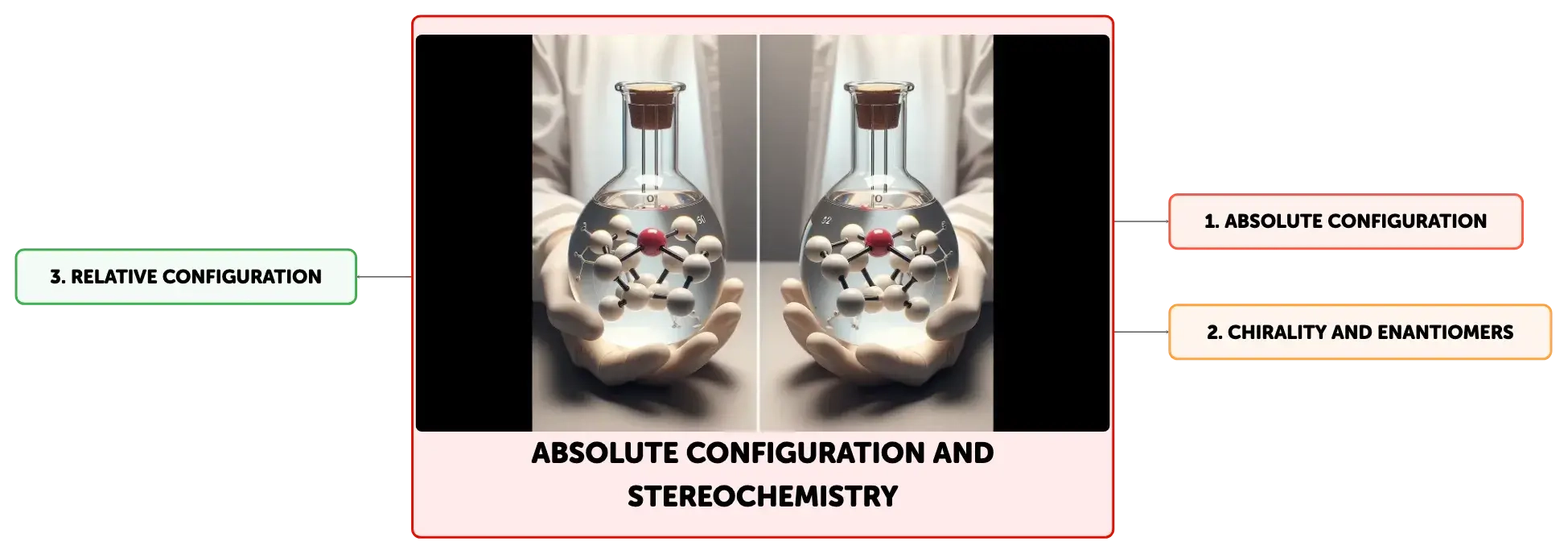

Hands in protective gloves hold two glass flasks with colorless liquid and mirrored molecular models, one with white and red spheres.

Distinguishing Between Absolute and Relative Configuration

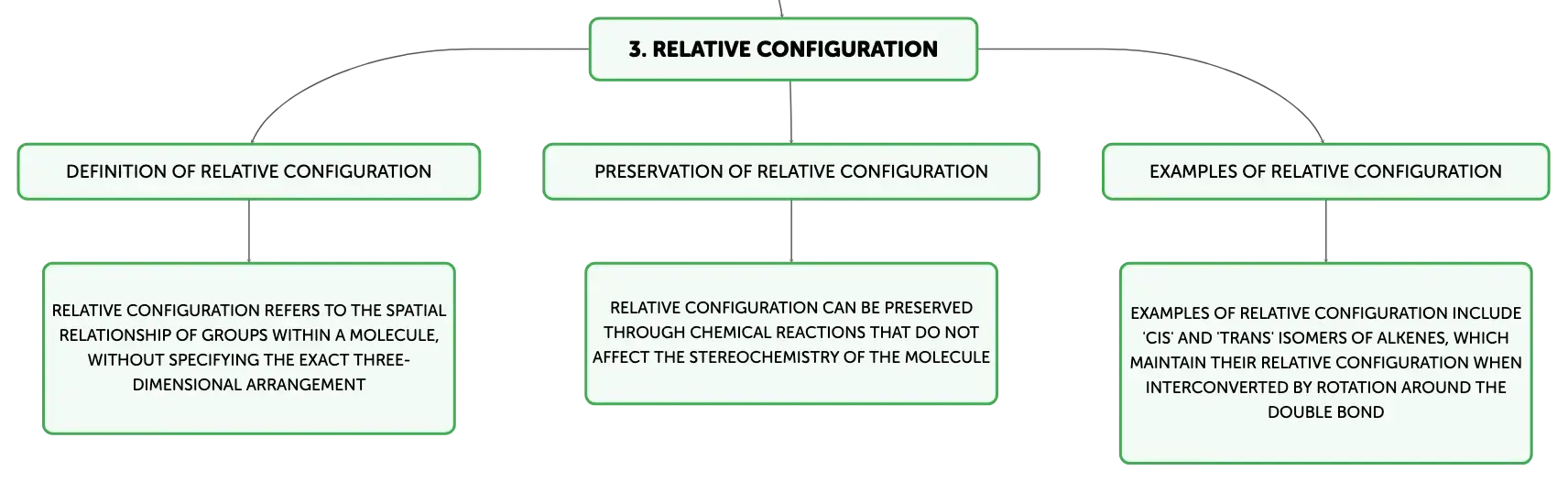

It is important to differentiate between absolute and relative configuration when discussing the spatial arrangement of molecules. Absolute configuration defines the exact three-dimensional orientation of atoms in a molecule, which is invariant under rotation but changes with reflection. Relative configuration, on the other hand, indicates the spatial relationship of groups within a molecule relative to one another, without specifying the exact three-dimensional arrangement. Relative configuration can be preserved even through chemical reactions that do not affect the stereochemistry of the molecule. For instance, 'cis' and 'trans' isomers of alkenes, such as 2-butene, maintain their relative configuration when interconverted by rotation around the double bond.

Assigning R and S Nomenclature to Chiral Centers

The assignment of R and S nomenclature to chiral centers is a systematic process governed by the CIP rules. To assign the configuration, one first ranks the substituents attached to the chiral center by atomic number, with higher atomic numbers receiving higher priority. When looking at the molecule with the lowest-priority substituent directed away from the observer, the order of the remaining substituents is noted. If this order is clockwise, the configuration is 'R'; if counterclockwise, it is 'S'. For example, in (S)-2-bromobutane, the bromine atom is the highest priority, and the molecule is named based on the counterclockwise arrangement of the substituents from highest to lowest priority.

The Significance of Stereocenters in Absolute Configuration

Stereocenters, also known as chiral centers, are atoms within a molecule that are bonded to four different substituents, leading to the possibility of chirality. A molecule with one or more stereocenters may be chiral, meaning it has a non-superimposable mirror image. However, the presence of stereocenters does not guarantee chirality; meso compounds, for example, contain multiple stereocenters but are achiral due to an internal plane of symmetry. Identifying stereocenters and assigning the correct R or S configuration is crucial in organic chemistry, as it affects the biological activity and chemical properties of molecules.

The Importance of Absolute Configuration in Organic Chemistry

Absolute configuration plays a pivotal role in organic chemistry, particularly in the synthesis and biological activity of molecules. Stereochemistry, which includes both absolute and relative configurations, is essential for creating molecules with the desired three-dimensional structures. Asymmetric synthesis aims to produce molecules with a preferred enantiomer, while stereospecific reactions yield products based on the reactants' absolute configurations. The biological significance of absolute configuration is exemplified by the enantioselectivity of enzymes and receptors, which often prefer one enantiomer over another. This selectivity can have profound implications, as seen with the drug thalidomide, where one enantiomer was therapeutic while the other caused severe birth defects.

Absolute Configuration in Amino Acids

Absolute configuration is crucial for understanding the structure and function of amino acids, the monomeric units of proteins. With the exception of glycine, which is achiral, amino acids have a chiral alpha carbon atom that can exist in R or S configurations. In biological systems, amino acids are predominantly found in the S configuration, corresponding to the L-series in the older D/L nomenclature. This configuration is significant for protein structure and function. Determining the absolute configuration of amino acids is essential for studying their role in biochemical pathways and understanding the stereochemical basis of protein interactions.

Practical Applications of R and S Absolute Configuration

The R and S system of nomenclature is fundamental in organic and medicinal chemistry, where the three-dimensional arrangement of atoms around chiral centers influences the physical, chemical, and biological properties of molecules. The Cahn-Ingold-Prelog priority rules provide a reliable method for determining absolute configuration by considering factors such as atomic numbers and isotopic masses. Mastery of these rules is essential for chemists to accurately describe the stereochemistry of complex molecules, which is critical for the design of pharmaceuticals, the synthesis of novel compounds, and the advancement of materials science.
