Simpson's Rule
Simpson's Rule is a numerical integration technique that provides a highly accurate approximation of definite integrals, especially for smooth functions. It uses parabolic arcs to approximate the area under a curve, requiring an even number of subintervals. The rule's formula involves specific coefficients and the subinterval width, and its accuracy surpasses the Trapezoidal Rule. Understanding its theoretical basis, practical application, and error assessment is crucial for students and professionals in fields requiring numerical analysis.
See moreExploring Simpson's Rule for Numerical Integration

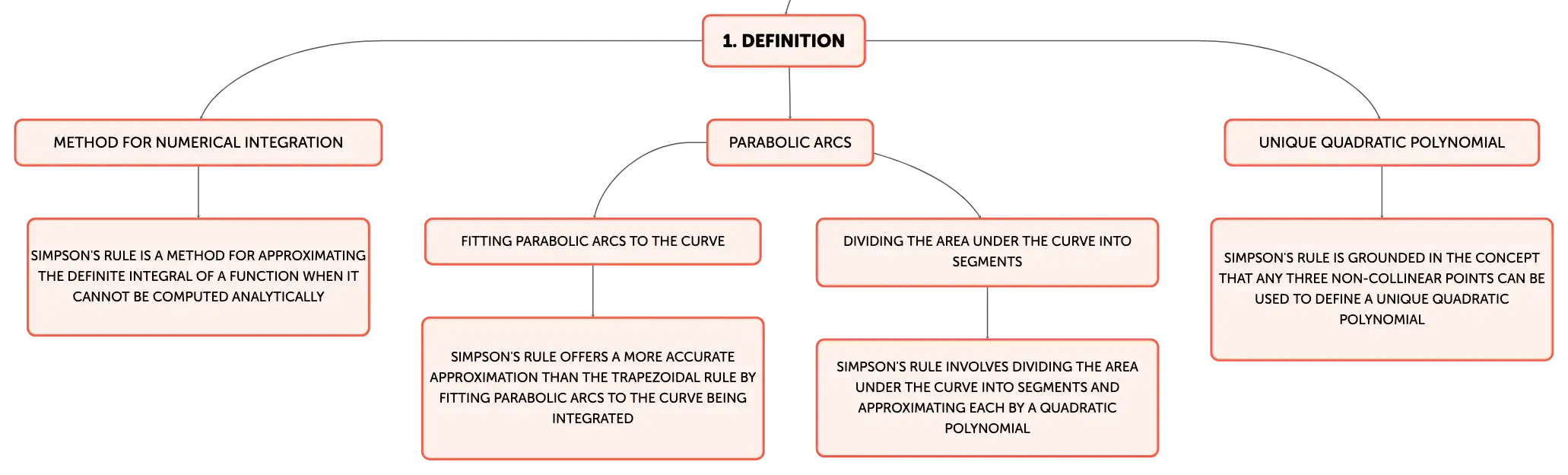

Simpson's Rule is a method for numerical integration that approximates the definite integral of a function, particularly useful when the integral cannot be computed analytically. This rule offers a more accurate approximation than the Trapezoidal Rule by fitting parabolic arcs, rather than straight lines, to the curve being integrated. It involves dividing the area under the curve into segments and approximating each by a quadratic polynomial, which is defined by three points on the curve. The estimated integral is obtained by summing the areas under these parabolas.Theoretical Basis of Simpson's Rule

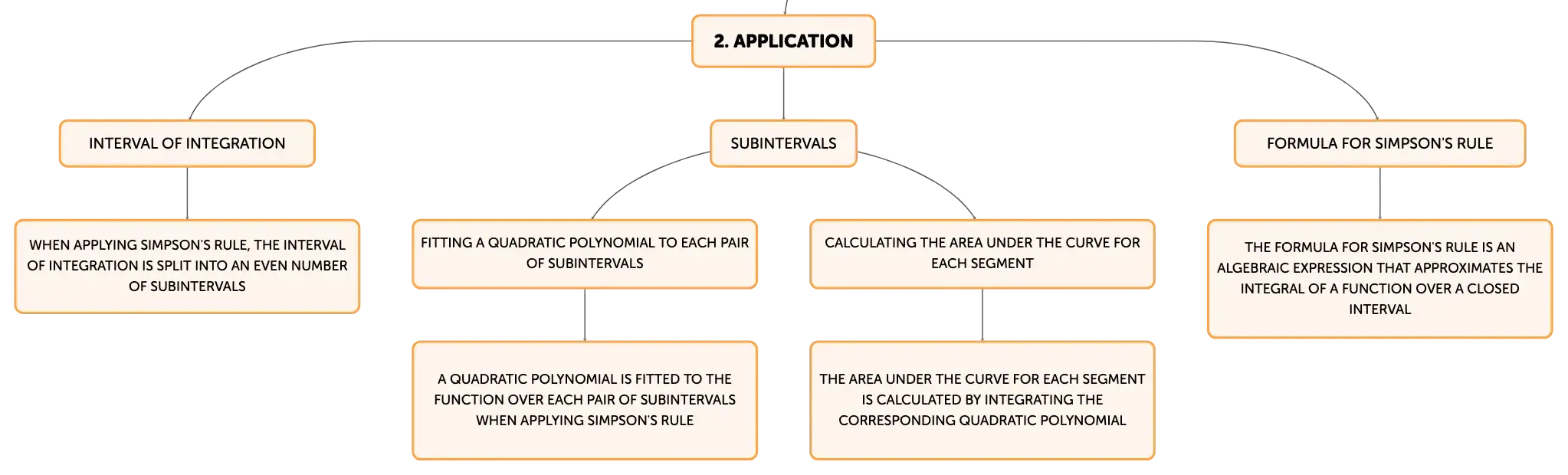

Simpson's Rule is grounded in the concept that any three non-collinear points can be used to define a unique quadratic polynomial. When applying Simpson's Rule to a function f(x), the interval of integration is split into an even number of subintervals. A quadratic polynomial is then fitted to the function over each pair of subintervals. The area under the curve for each segment is calculated by integrating the corresponding quadratic polynomial. The specific area formula for a parabola passing through points (xi-1, f(xi-1)), (xi, f(xi)), and (xi+1, f(xi+1)) is obtained by integrating the polynomial from xi-1 to xi+1. This approach, when applied across all segments, yields an approximation of the function's definite integral.Simpson's Rule Formula and Its Use
The formula for Simpson's Rule is an algebraic expression that approximates the integral of a function f(x) over a closed interval [a, b]. It sums the products of the function's values at specified points and predetermined coefficients, multiplied by the subinterval width (∆x) divided by three. The coefficients alternate in the pattern 1, 4, 2, with the exception of the first and last coefficients, which are both 1. The number of subintervals, n, is required to be even, and the width of each subinterval is (b - a)/n. The precision of the approximation improves with an increased number of subintervals.Assessing the Accuracy of Simpson's Rule

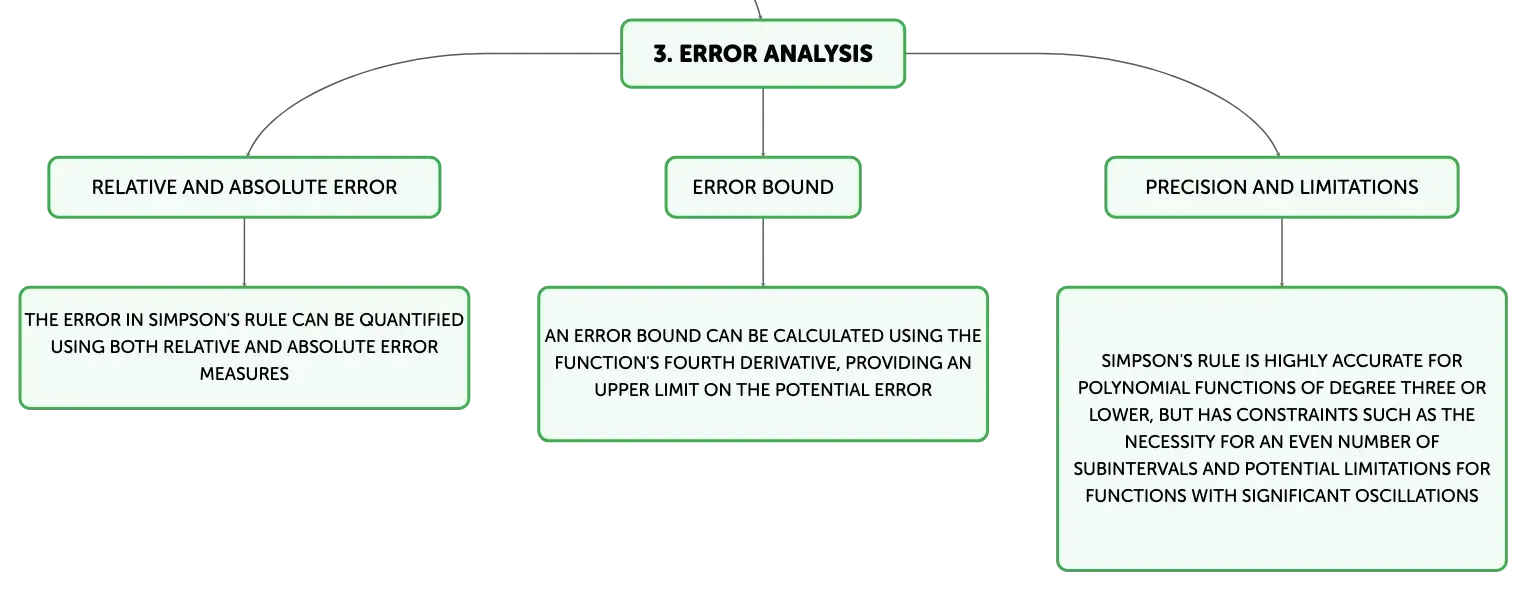

Simpson's Rule is a more precise approximation method than the Trapezoidal Rule, but it is not without error. The error in Simpson's Rule can be quantified using both relative and absolute error measures. The relative error is the ratio of the approximation's deviation from the true integral to the true integral itself, often expressed as a percentage. The absolute error is the magnitude of the discrepancy between the approximation and the true integral. Furthermore, an error bound can be calculated using the function's fourth derivative, which provides an upper limit on the potential error and thus a gauge for the approximation's reliability.Benefits and Drawbacks of Simpson's Rule
Simpson's Rule is highly regarded for its accuracy, particularly for polynomial functions of degree three or lower, for which it yields exact results since their fourth derivatives vanish. Nevertheless, the rule has its constraints, such as the necessity for an even number of subintervals, which may not always be convenient. Additionally, the rule may not be as effective for functions with significant oscillations. Despite these drawbacks, Simpson's Rule remains a powerful technique for approximating integrals, especially when the function is relatively smooth over the interval of interest.Practical Application of Simpson's Rule
To demonstrate Simpson's Rule in action, one might estimate the integral of a function over a certain interval using a predetermined number of subintervals. This entails calculating the subinterval width (∆x), applying the Simpson's Rule formula with the function's values at the subinterval endpoints and midpoints, and summing these contributions to approximate the integral. The error bound formula can also be employed to ascertain the maximum approximation error, and the number of subintervals can be adjusted to meet a specific accuracy requirement. These practical examples help students understand the application, effectiveness, and limitations of Simpson's Rule.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
When calculating the definite integral of a function, Simpson's Rule approximates the area by using ______ arcs instead of straight lines.
Click to check the answer
2
Simpson's Rule Interval Division
Click to check the answer
3
Simpson's Rule Area Calculation
Click to check the answer
4
Simpson's Rule Approximation of Definite Integral
Click to check the answer
5
The accuracy of Simpson's Rule improves as the number of ______, which must be even, increases.
Click to check the answer
6
Simpson's Rule vs. Trapezoidal Rule
Click to check the answer
7
Relative Error in Simpson's Rule
Click to check the answer
8
Absolute Error in Simpson's Rule
Click to check the answer
9
______'s Rule is precise for polynomial functions of degree ______ or less, providing exact results.
Click to check the answer
10
Simpson's Rule Subinterval Width Calculation
Click to check the answer
11
Simpson's Rule Error Bound Formula
Click to check the answer
12
Adjusting Subintervals for Accuracy in Simpson's Rule
Click to check the answer
