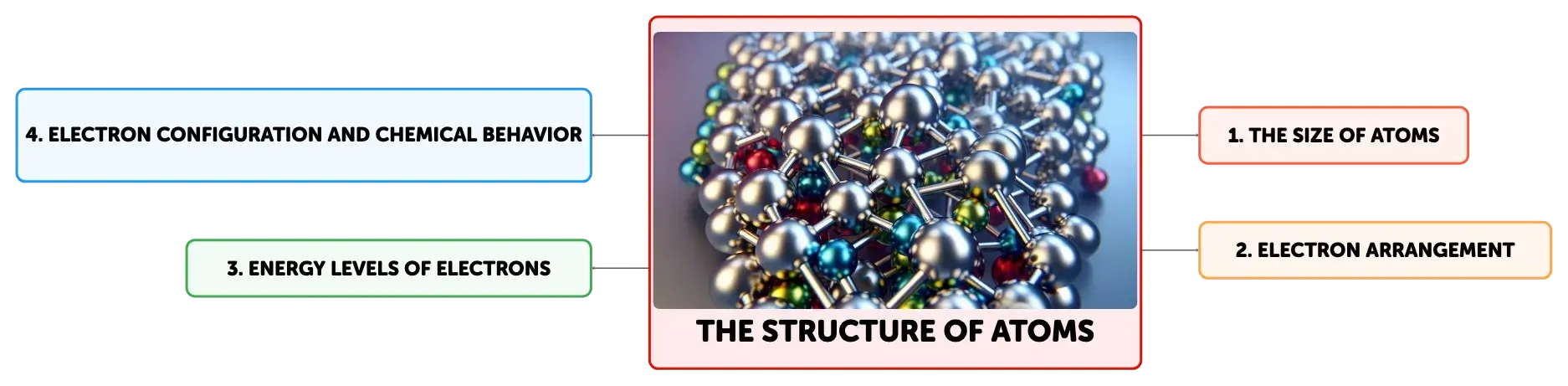

The Structure of Atoms

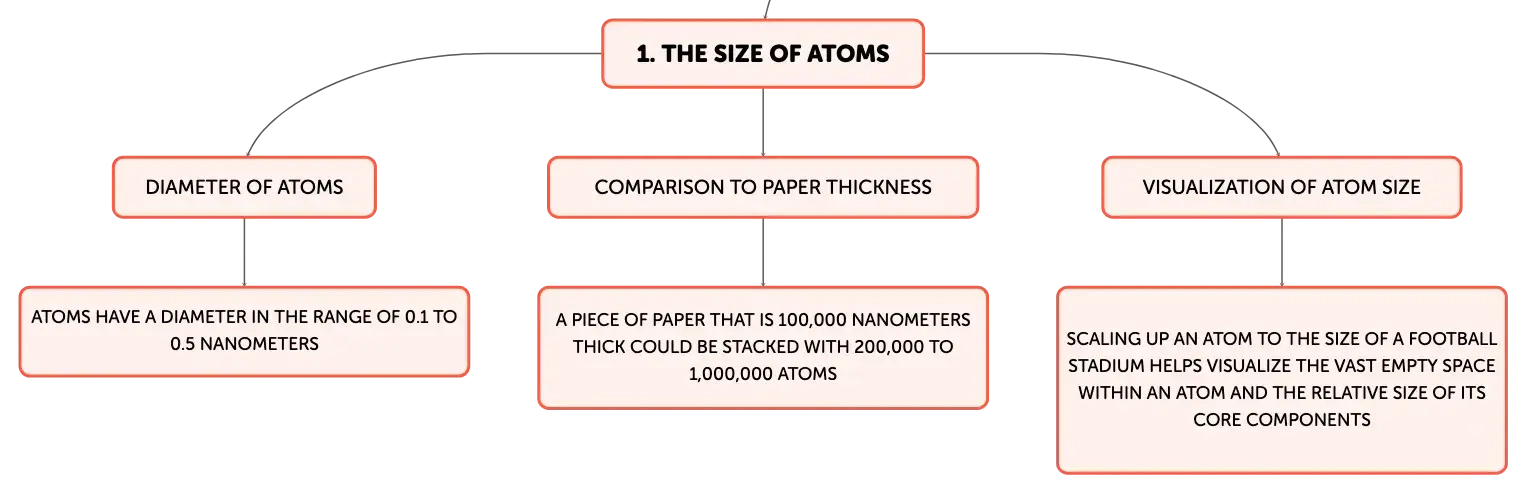

The Minuscule World of Atoms

Atoms are the smallest units of matter that retain the properties of an element, and their size is almost incomprehensible to the human mind. A single atom's diameter is typically in the range of 0.1 to 0.5 nanometers. To put this into perspective, if a piece of paper is about 100,000 nanometers thick, it means that it could be stacked with roughly 200,000 to 1,000,000 atoms. If we were to scale up an atom to the size of a football stadium, its nucleus would be no larger than a small pea situated at the center, while the electrons would be found in the outer stands. This analogy helps us visualize the vast empty space within an atom and the relative size of its core components.

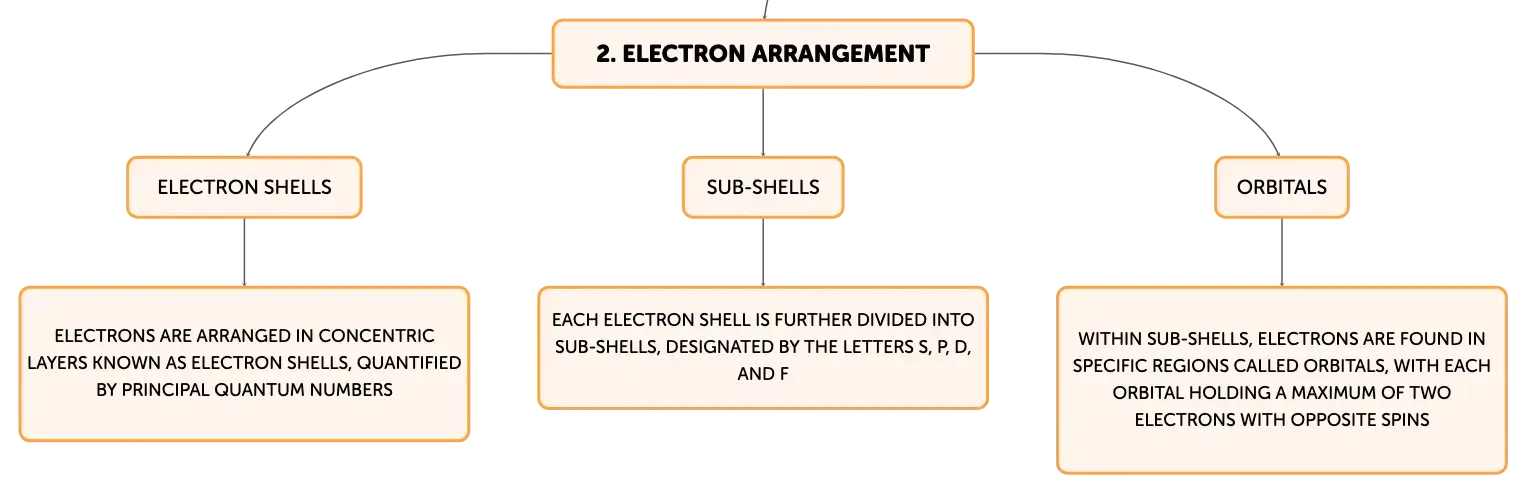

The Arrangement of Electron Shells

Electrons in an atom are arranged in regions known as electron shells or energy levels, which are concentric layers surrounding the nucleus. These shells are quantified by principal quantum numbers (n), starting from n=1 for the shell closest to the nucleus, and increasing for shells further out. The energy of these shells increases with the principal quantum number, meaning electrons in higher shells have more energy. The maximum number of electrons that can occupy a particular shell is given by the formula 2n^2. For example, the first shell (n=1) can hold up to 2 electrons, the second (n=2) up to 8 electrons, and the third (n=3) up to 18 electrons. These shells are not only a representation of distance from the nucleus but also of the energy levels of the electrons within them.

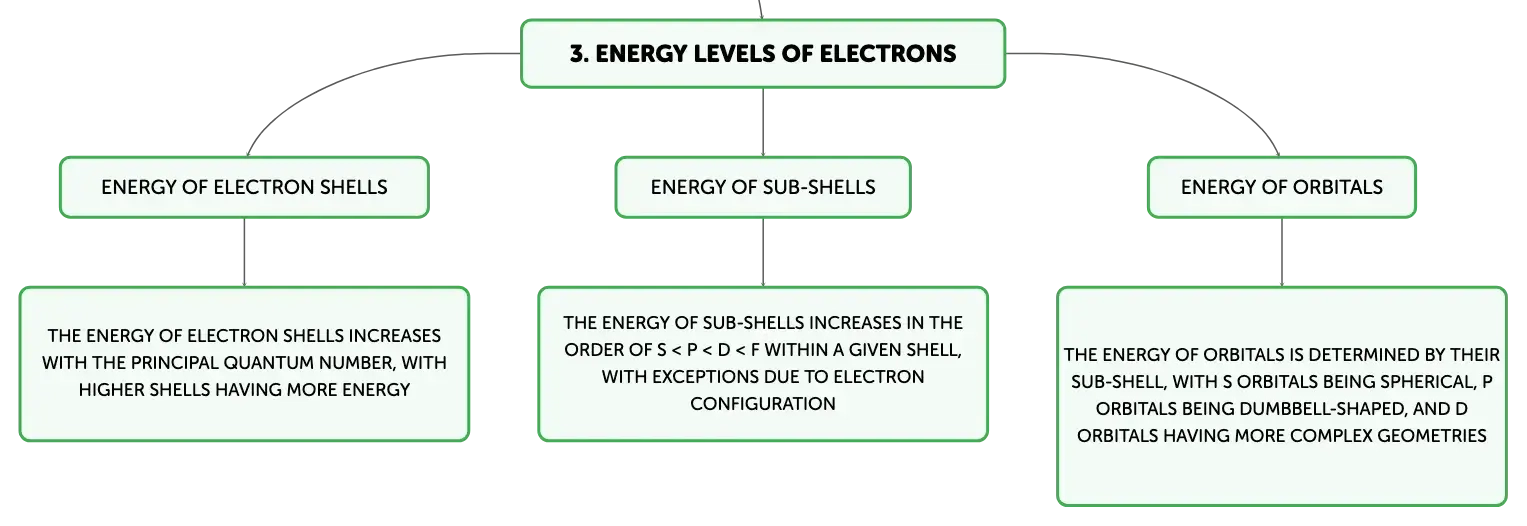

Sub-Shells and Orbital Energies

Each electron shell is further divided into sub-shells, also known as sub-levels, which are designated by the letters s, p, d, and f. The first shell has only one sub-shell (the 1s), the second shell has two sub-shells (2s and 2p), and the third shell has three (3s, 3p, and 3d). The energy of these sub-shells increases in the order of s < p < d < f within a given shell. However, due to the complexities of electron configuration, there are exceptions to this pattern. For instance, the 4s sub-shell is actually filled before the 3d sub-shell, despite the latter being in a lower principal quantum number shell. This is because the 4s sub-shell is lower in energy than the 3d sub-shell.

Electron Orbitals and Spin

Within sub-shells, electrons are found in even more specific regions called orbitals. Each orbital can hold a maximum of two electrons with opposite spins. The shape of an orbital is determined by its sub-shell: s orbitals are spherical, p orbitals are dumbbell-shaped, and d orbitals have more complex geometries. The number of orbitals in a sub-shell corresponds to the type of sub-shell: there is one s orbital, three p orbitals, five d orbitals, and seven f orbitals. The concept of electron spin is a fundamental quantum property that contributes to the Pauli exclusion principle, which states that no two electrons in an atom can have the same set of four quantum numbers. This principle explains why electrons in the same orbital must have opposite spins.

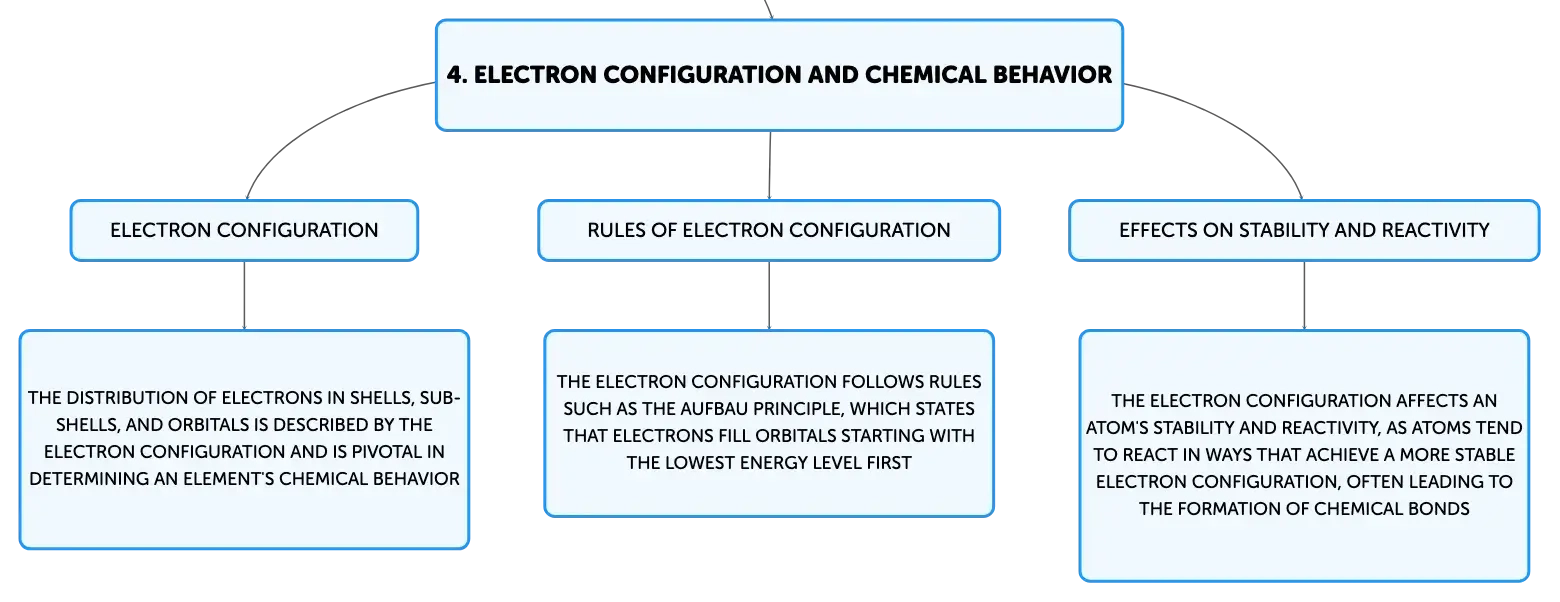

Electron Configuration and Chemical Properties

The electron configuration of an atom describes the distribution of electrons in shells, sub-shells, and orbitals and is pivotal in determining the chemical behavior of an element. The configuration follows a set of rules, including the Aufbau principle, which states that electrons fill orbitals starting with the lowest energy level first. For instance, the electron configuration of hydrogen is 1s^1, indicating that its single electron occupies the 1s orbital. The electron configuration not only affects an atom's stability but also its reactivity, as atoms tend to react in ways that will achieve a more stable electron configuration, often leading to the formation of chemical bonds.
