Kruskal's Algorithm is a cornerstone of graph theory, used to construct minimum spanning trees in weighted, undirected graphs. Developed by Joseph Kruskal in 1956, this greedy algorithm sorts edges by weight and incrementally builds the spanning tree, ensuring no cycles are formed. It's efficient for sparse graphs and applicable in network design, computer science, and operations research. The algorithm's performance, adaptability, and comparison with Prim's Algorithm are also discussed.

Summary

Outline

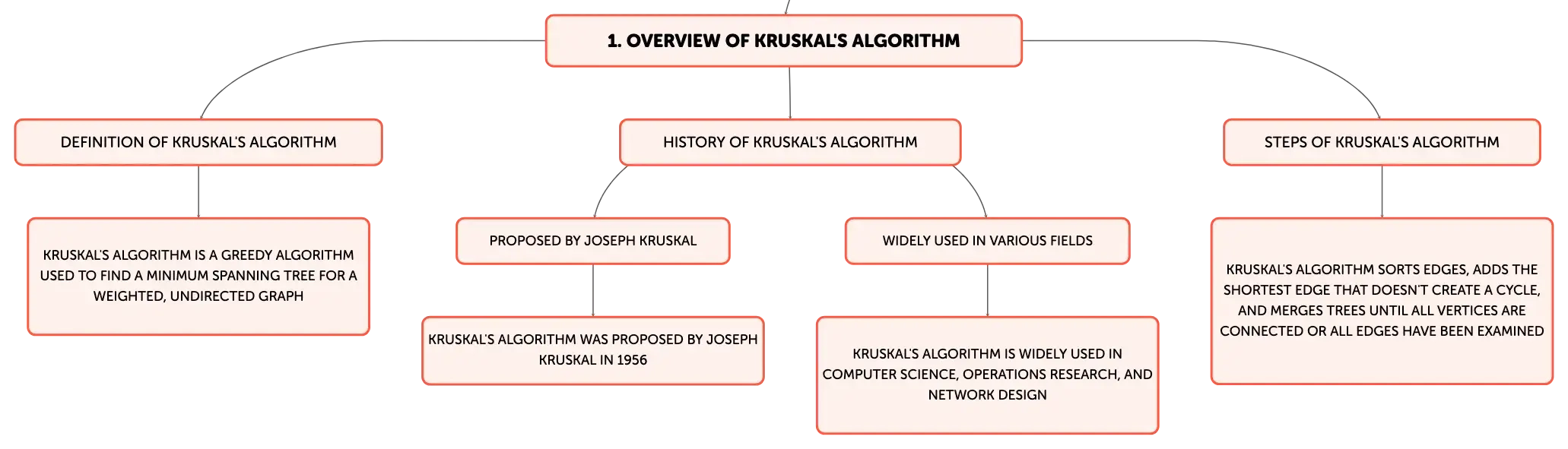

Introduction to Kruskal's Algorithm

Kruskal's Algorithm is an essential algorithm in graph theory, designed for finding a minimum spanning tree for a weighted, undirected graph. This algorithm, proposed by Joseph Kruskal in 1956, is a greedy algorithm that builds the spanning tree by adding the shortest possible edge that doesn't produce a cycle at each step. It is widely used in various fields, including computer science, operations research, and network design, due to its straightforward logic and efficiency in solving optimization problems.

Network of interconnected nodes colored with gray lines on a soft grid background, abstract representation of a system of connections without hierarchy.

The Procedure of Kruskal's Algorithm

Kruskal's Algorithm begins by sorting all the edges of the graph in non-decreasing order of their weight. It then proceeds by initializing a forest, where each vertex in the graph is a separate tree. The algorithm examines each edge in order, and for each edge, if the two vertices it connects are in different trees, the edge is added to the forest, and the two trees are merged. This process continues until all vertices are connected, forming the minimum spanning tree, or until all edges have been examined.

Performance and Properties of Kruskal's Algorithm

Kruskal's Algorithm is a greedy algorithm that selects edges in a way that ensures the minimum total weight of the spanning tree. The performance of Kruskal's Algorithm is highly efficient, with a time complexity of \(O(E \log E)\), where \(E\) is the number of edges in the graph. This makes it particularly suitable for sparse graphs. The algorithm can also be adapted to produce a minimum spanning forest in the case of a disconnected graph, thus maintaining its utility in a broader range of applications.

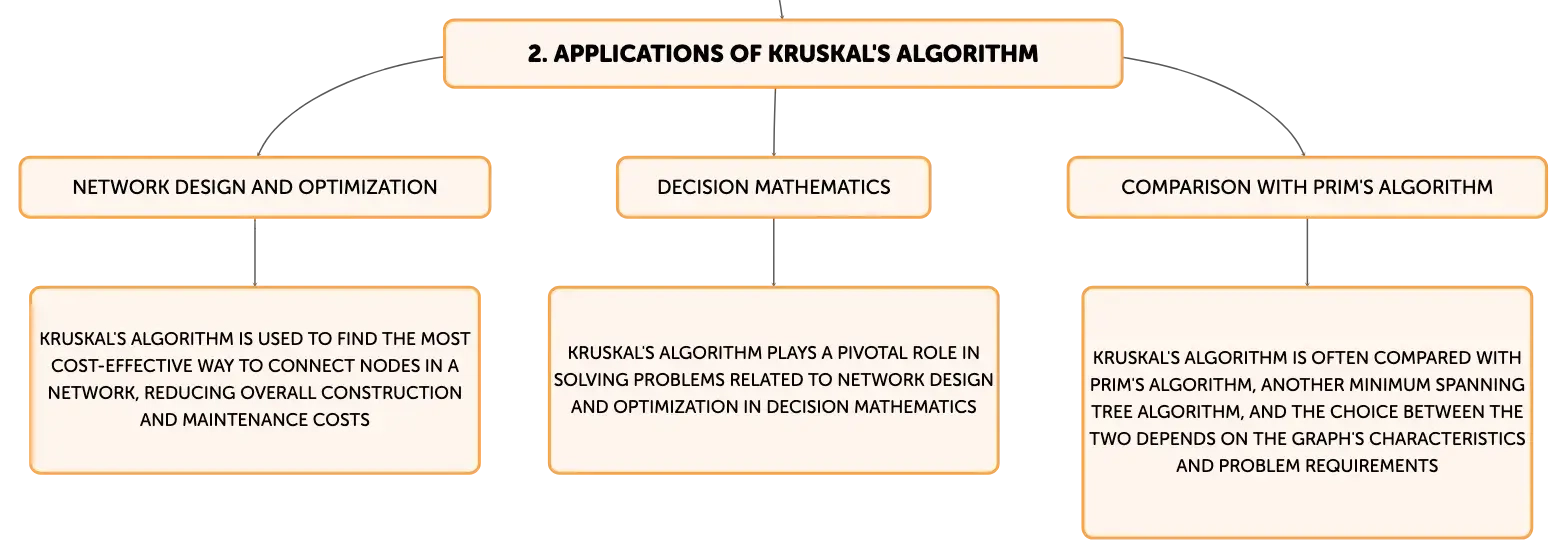

Kruskal's Algorithm in Decision Mathematics

In decision mathematics, Kruskal's Algorithm plays a pivotal role in solving problems related to network design and optimization. It is used to find the most cost-effective way to connect different nodes in a network, such as in the design of roads, computer networks, or electrical grids. By minimizing the total weight of the connecting edges, the algorithm helps in reducing the overall cost of network construction and maintenance.

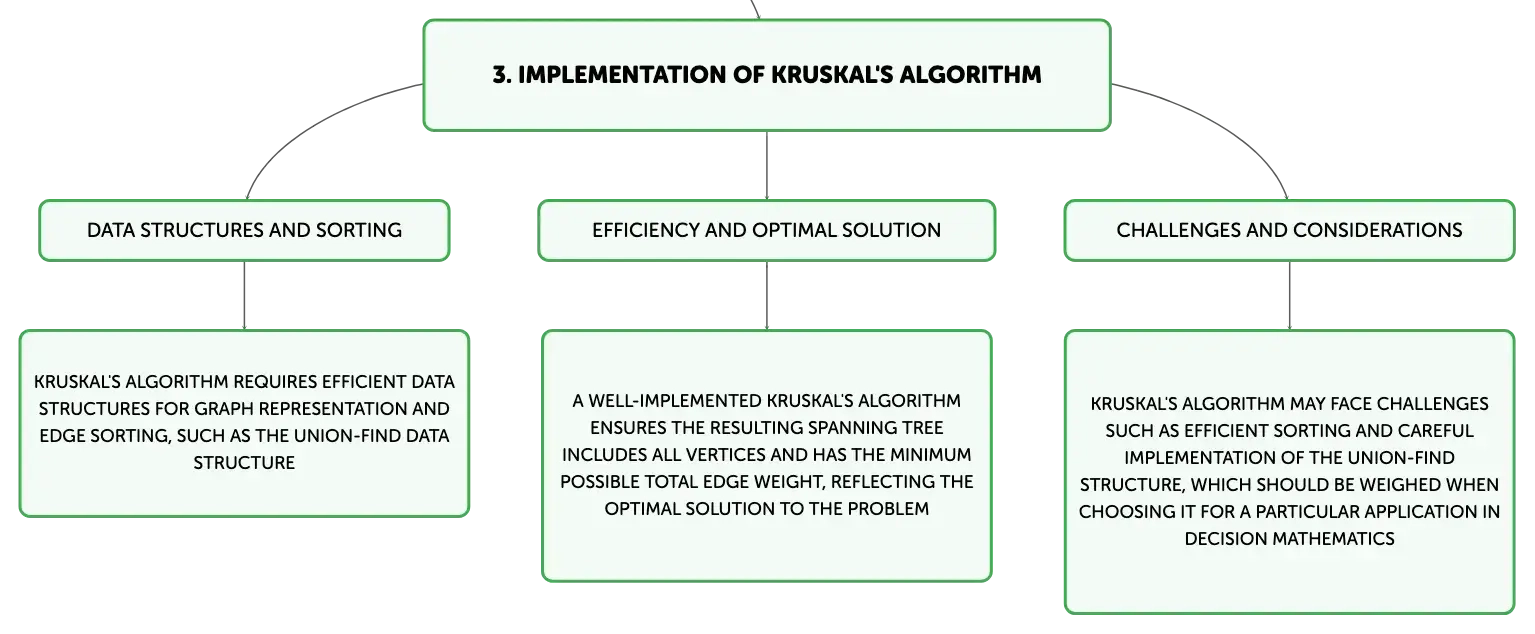

Implementing Kruskal's Algorithm

Implementing Kruskal's Algorithm requires a programming language that supports efficient data structures for graph representation and edge sorting. The Union-Find data structure is commonly used to keep track of the disjoint sets of vertices and to facilitate the merging of trees without creating cycles. A well-implemented Kruskal's Algorithm ensures that the resulting spanning tree includes all vertices and has the minimum possible total edge weight, reflecting the optimal solution to the problem.

Kruskal's Algorithm Versus Other Algorithms

Kruskal's Algorithm is often contrasted with Prim's Algorithm, another minimum spanning tree algorithm. Kruskal's is edge-based and can work on disconnected graphs, while Prim's is vertex-based and requires the graph to be connected. Prim's Algorithm grows the spanning tree from a chosen starting vertex, adding the smallest edge that connects the tree to a new vertex. The choice between Kruskal's and Prim's depends on the graph's characteristics and the specific requirements of the problem.

Advantages and Challenges of Kruskal's Algorithm

Kruskal's Algorithm is favored for its simplicity, efficiency, and adaptability to various problem settings. However, it can face challenges, such as the need for efficient sorting which can be costly for graphs with a large number of edges, and the requirement for a careful implementation of the Union-Find structure to avoid inefficiencies. It is important to weigh these factors when choosing Kruskal's Algorithm for a particular application in decision mathematics.

The Enduring Importance of Kruskal's Algorithm

Kruskal's Algorithm remains a fundamental and widely-used method in graph theory and decision mathematics. Its ability to find minimum spanning trees and forests with efficiency and its applicability to a diverse array of optimization problems highlight its significance. As a key concept in network optimization, Kruskal's Algorithm continues to be an important subject of study in both theoretical and applied mathematics.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

Originator of Kruskal's Algorithm

Joseph Kruskal, 1956.

Type of Graph for Kruskal's Algorithm

Weighted, undirected graph.

Kruskal's Algorithm Strategy

Greedy approach; adds shortest edge without forming cycles.
