Alcohol halogenation is a crucial reaction in organic chemistry, transforming alcohols into halogenoalkanes by substituting the hydroxyl group with a halogen. This process involves various methods such as using hydrogen halides, phosphorus halides, or thionyl chloride, each with distinct reagents and conditions. The reaction rates are affected by the alcohol structure and the halide ion, with tertiary alcohols and iodination being the fastest. Understanding the mechanisms, such as SN1 and SN2, is vital for effective organic synthesis.

Summary

Outline

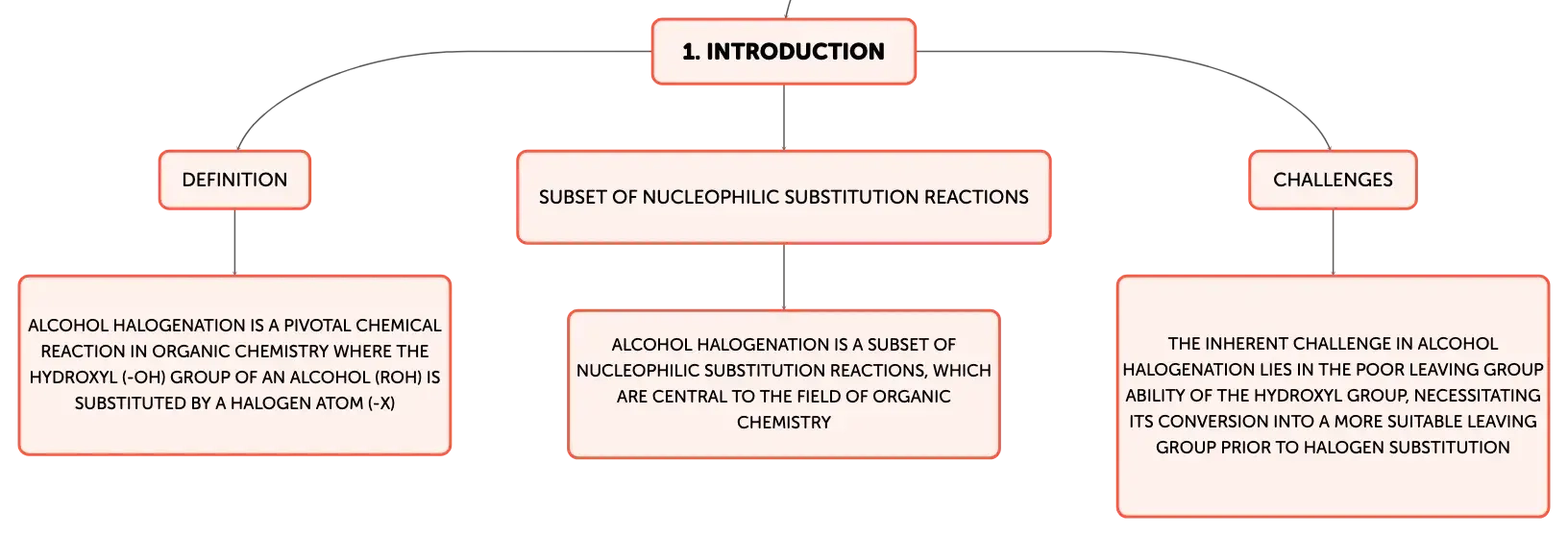

Introduction to Alcohol Halogenation

Alcohol halogenation is a pivotal chemical reaction in organic chemistry where the hydroxyl (-OH) group of an alcohol (ROH) is substituted by a halogen atom (-X), yielding a halogenoalkane (RX). This process is a subset of nucleophilic substitution reactions, which are central to the field. The inherent challenge in alcohol halogenation lies in the poor leaving group ability of the hydroxyl group, necessitating its conversion into a more suitable leaving group prior to halogen substitution. Various methods exist for achieving alcohol halogenation, each employing distinct reagents and conditions, such as hydrogen halides (HX), phosphorus halides (PX_3), and thionyl chloride (SOCl_2).

Glass flask with transparent liquid on a reflective metal surface, submerged stirring rod, dropper with amber liquid and Bunsen burner lit in the background.

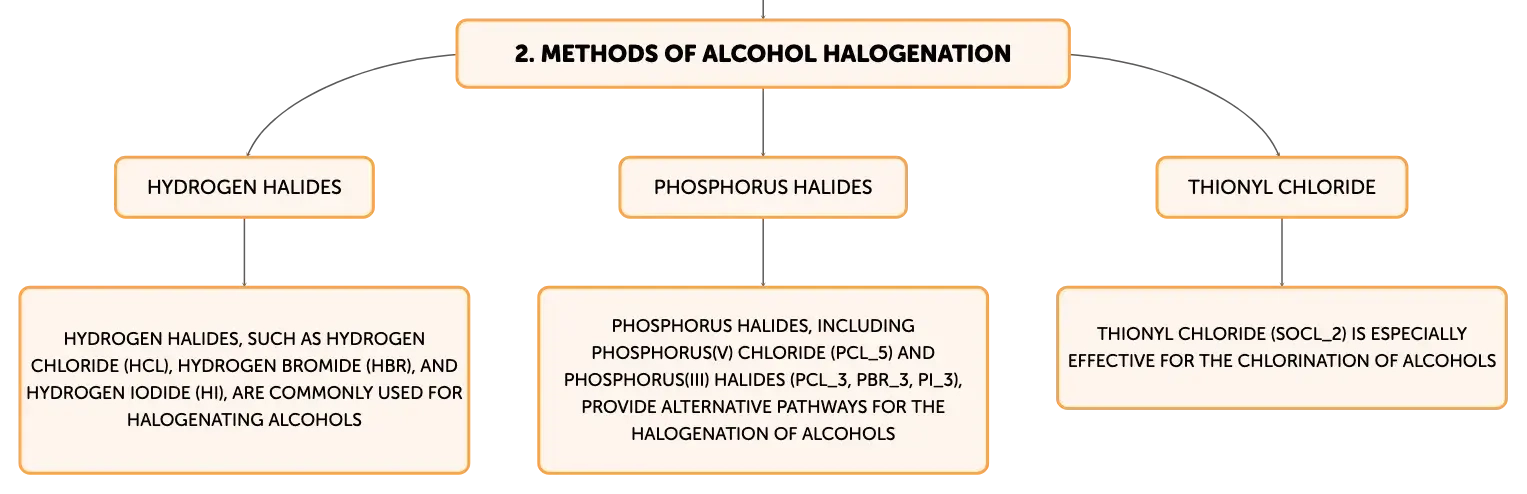

Halogenation via Hydrogen Halides

A prevalent method for halogenating alcohols is the use of hydrogen halides, including hydrogen chloride (HCl), hydrogen bromide (HBr), and hydrogen iodide (HI). The reaction with a hydrogen halide typically yields a halogenoalkane and water, and is often conducted under reflux to promote completion. For primary alcohols, a catalyst such as zinc chloride (ZnCl_2) may be necessary to enhance the reaction's efficiency. The Lucas test, which employs a zinc chloride and hydrochloric acid mixture, serves as a practical application of this reaction to differentiate between primary, secondary, and tertiary alcohols by observing the rate of turbidity formation.

Halogenation with Phosphorus Halides

Phosphorus halides, including phosphorus(V) chloride (PCl_5) and phosphorus(III) halides (PCl_3, PBr_3, PI_3), provide alternative pathways for the halogenation of alcohols. These reactions also proceed through nucleophilic substitution, resulting in halogenoalkanes and byproducts such as phosphorous acid (H_3PO_3) or phosphoryl chloride (POCl_3). The reaction with PCl_5 can take place at room temperature, whereas PCl_3, PBr_3, and PI_3 typically require heating under reflux. In certain instances, the phosphorus halides are generated in situ during the reaction.

Chlorination with Thionyl Chloride (SOCl_2)

Thionyl chloride (SOCl_2) is especially effective for the chlorination of alcohols, reacting at room temperature to form chloroalkanes, along with byproducts such as hydrochloric acid (HCl) and sulfur dioxide (SO_2). This method is advantageous due to its catalyst-free nature and the formation of gaseous byproducts that can be readily removed from the reaction mixture. However, the reaction must be conducted with caution in a well-ventilated area or fume hood due to the toxicity of the gases evolved.

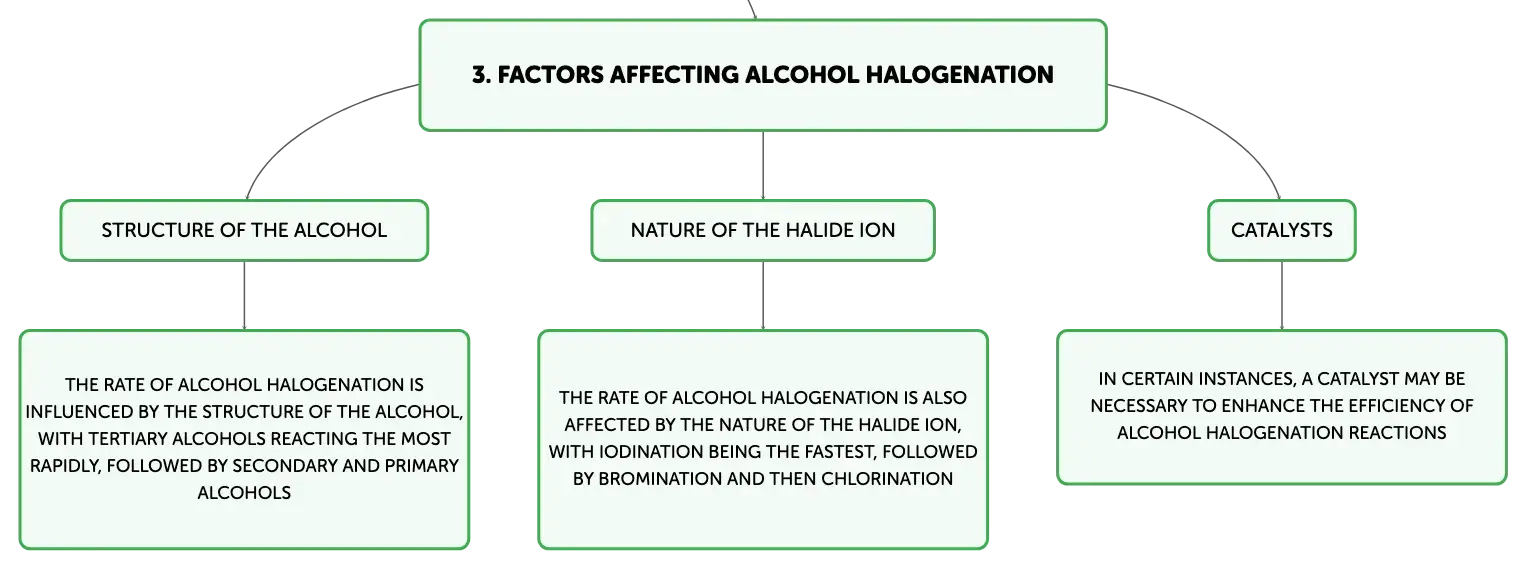

Factors Affecting Halogenation Rates

The rate of alcohol halogenation is influenced by the structure of the alcohol—whether it is primary, secondary, or tertiary—and the nature of the halide ion. Tertiary alcohols typically react the most rapidly, followed by secondary and primary alcohols. Regarding the halide ions, iodination is generally the fastest, followed by bromination, and then chlorination. The necessity for a catalyst in the chlorination of primary alcohols with HCl underscores these reactivity trends.

Mechanistic Pathways of Alcohol Halogenation

The mechanisms underlying alcohol halogenation begin with the activation of the hydroxyl group to form a better leaving group. This is accomplished by reacting the alcohol with a hydrogen halide to create an intermediate that bears a positively charged -H_2O^+ group. The ensuing nucleophilic substitution depends on the alcohol's classification: primary alcohols typically undergo an SN2 mechanism, where the halide ion directly displaces the hydroxyl group. In contrast, secondary and tertiary alcohols follow an SN1 mechanism, characterized by the formation of a carbocation intermediate that is subsequently attacked by the halide ion.

Overview of Alcohol Halogenation Techniques

In conclusion, alcohol halogenation is a fundamental and versatile reaction in organic synthesis, with several methods available for its execution. Each technique—whether utilizing hydrogen halides, phosphorus halides, or thionyl chloride—has specific reagents, conditions, and associated byproducts. A comprehensive understanding of these reactions, their mechanisms, and the factors affecting their rates is essential for chemists to skillfully modify organic compounds and achieve the desired halogenation results.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

00

Alcohol halogenation definition

Substitution of alcohol's -OH with a halogen atom, forming halogenoalkane.

01

Nucleophilic substitution role in alcohol halogenation

Alcohol halogenation is a type of nucleophilic substitution where -OH is replaced by -X.

02

Reagents used in alcohol halogenation

Common reagents include hydrogen halides (HX), phosphorus halides (PX_3), and thionyl chloride (SOCl_2).
