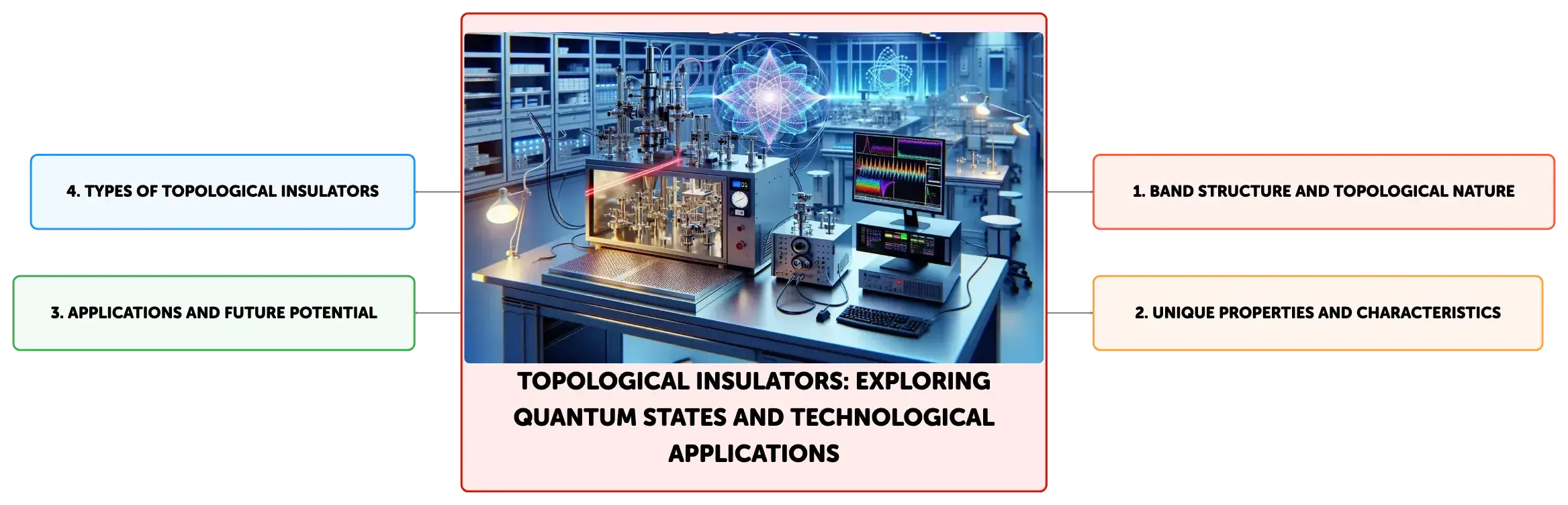

Topological Insulators: Exploring Quantum States and Technological Applications

Topological insulators are materials with a unique quantum mechanical nature, exhibiting insulating properties in their bulk while conducting electricity on their surfaces or edges. These materials are key to advancements in electronics, spintronics, and quantum computing due to their robust surface states, spin-momentum locking, and resistance to certain impurities. The exploration of two-dimensional and three-dimensional topological insulators reveals a diverse landscape with potential applications in various technological domains.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Definition of Topological Insulators

Click to check the answer

Materials that are insulators inside but conduct electricity on surface/edges due to unique quantum states.

2

Technological Applications of Topological Insulators

Click to check the answer

Used in advanced electronics, spintronics, quantum computing due to stable surface conductance.

3

Impact on Quantum Physics Understanding

Click to check the answer

Studying topological insulators provides insights into quantum state behaviors and fundamental quantum principles.

4

______ insulators are unique materials where the surface allows for ______ while the interior remains non-conductive.

Click to check the answer

Topological conducting states

5

In ______ insulators, the stability of electron wave functions against deformations is due to their ______ nature, provided the energy gap remains intact.

Click to check the answer

topological topological

6

Surface conductivity in topological insulators

Click to check the answer

Topological insulators conduct electricity on their surface, not in their bulk, due to topologically protected surface states.

7

Role of symmetry and topological invariants

Click to check the answer

Symmetry and topological invariants protect the surface states of topological insulators, making them robust against non-magnetic disturbances.

8

Spin-momentum locking significance

Click to check the answer

Spin-momentum locking in topological insulators links the direction of an electron's spin with its momentum, crucial for spintronic devices.

9

The ______ effect leads to electrons moving in one direction along the edges with aligned spins, creating channels of ______ conductance.

Click to check the answer

quantum spin Hall perfect

10

Edge conduction in 2D topological insulators

Click to check the answer

Unique to 2D topological insulators, edge conduction allows for low-power, stable transport of electron spin, crucial for advanced computing.

11

Role of edge states in quantum computing

Click to check the answer

Edge states in 2D topological insulators can serve as qubits, the basic units of quantum information, enabling quantum computation.

12

Challenges in fabricating 2D topological insulators

Click to check the answer

Creating large-scale, defect-free 2D topological insulators is difficult, impeding their practical application in technology.

13

______ semimetals share properties with topological insulators and contribute to the expansion of quantum materials science.

Click to check the answer

Weyl

14

Magnetic Topological Insulators - Relevance

Click to check the answer

Combine magnetic properties with topological insulators for quantum computing and spintronics applications.

15

Higher-Order Topological Insulators (HOTIs) - Feature

Click to check the answer

Exhibit conducting states at corners or hinges, extending the concept of edge states.

16

Chern Insulators - Unique Characteristic

Click to check the answer

Have quantized conductance due to nontrivial Chern numbers, crucial for quantum Hall effect.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

The Quantum Hall Effect and its Applications

View document

Physics

Astroparticle Physics: Merging Particle Physics and Astrophysics

View document

Physics

Electrodynamics

View document

Physics

Gauge Theory: The Backbone of Theoretical Physics

View document

Exploring the Phenomenon of Topological Insulators

Topological insulators represent a novel class of materials that defy traditional expectations of electrical conductance. These materials are insulating in their bulk yet exhibit conductive properties on their surfaces or edges. This unusual behavior arises from their unique quantum states, which have the potential to revolutionize various technological domains, including electronics, spintronics, and quantum computing. The exploration of topological insulators not only propels technological advancements but also enhances our understanding of the fundamental principles of quantum physics.
Modern laboratory with scientific equipment for the study of topological insulators, including precision lasers and cryostat.

Quantum Mechanical Foundations of Topological Insulators

To comprehend the essence of topological insulators, one must consider the concept of band structure, which delineates the energy levels that electrons can occupy in a solid. Topological insulators possess an extraordinary band structure that allows for conducting states at their surfaces, despite an insulating bulk. This phenomenon is linked to the topological nature of the electron wave functions, which remain stable against deformations as long as the energy gap does not close. Spin-orbit coupling plays a pivotal role in the formation of these surface states, influencing the field of spintronics by linking an electron's spin to its orbital motion.

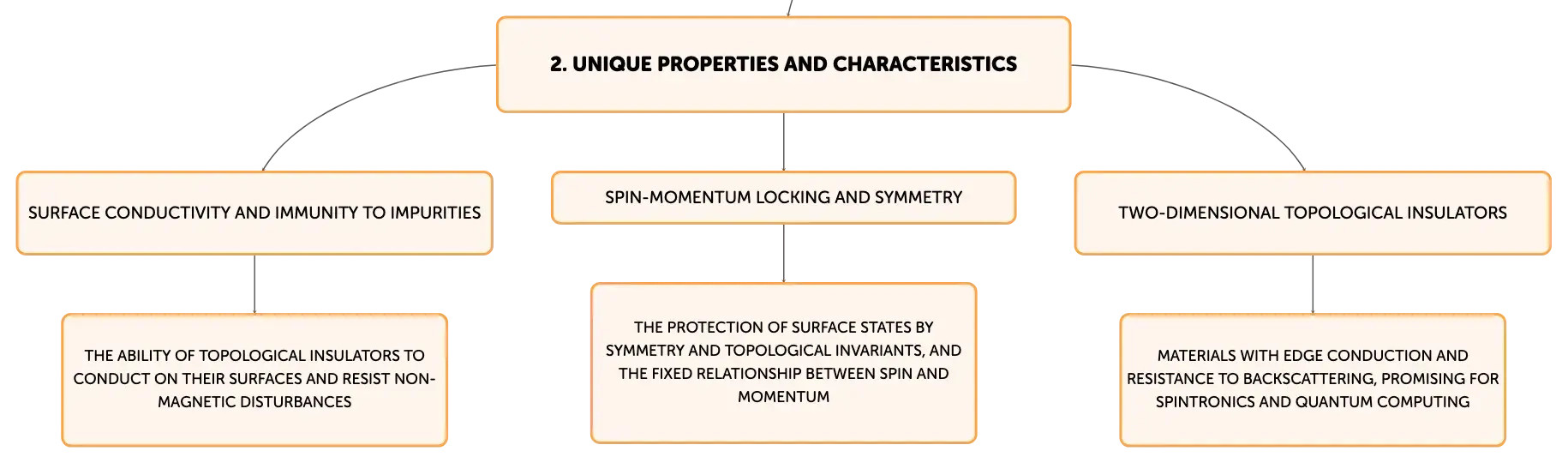

Defining Features of Topological Insulators

Topological insulators are distinguished by their surface conductivity, immunity to certain types of impurities, and spin-momentum locking. Their surface states are safeguarded by symmetry and topological invariants, rendering them impervious to non-magnetic disturbances. Spin-momentum locking ensures a fixed relationship between the direction of an electron's momentum and its spin, which is advantageous for creating devices that harness the spin of electrons. These characteristics originate from the quantum Hall effect, which first demonstrated the existence of topological states, paving the way for the discovery of topological insulators.

The Rise of Two-Dimensional Topological Insulators

Two-dimensional topological insulators are a specialized category that showcases extraordinary properties, such as edge conduction with an insulating bulk. This is a result of the quantum spin Hall effect, where electrons travel in a single direction along the edges with their spins aligned, forming channels of perfect conductance. The resistance to backscattering renders these materials similar to 'ideal' conductors. The occurrence of band inversion, where the conduction and valence bands interchange due to strong spin-orbit coupling, is responsible for these protected edge states.

Applications of Two-Dimensional Topological Insulators

The distinctive edge conduction of two-dimensional topological insulators holds immense promise for applications in spintronics and quantum computing. They offer a prime platform for spintronic devices that utilize electron spin for information processing. Moreover, their edge states have the potential to act as qubits in quantum computers, representing a novel paradigm in information technology. The possibility of enhancing solar cell efficiency also demonstrates the impact of these materials on renewable energy technologies. However, challenges in fabricating large-scale, flawless materials remain.

Delving into Three-Dimensional Topological Insulators

Three-dimensional topological insulators are characterized by their surface conductivity and insulating bulk properties. These materials rely on time-reversal symmetry and strong spin-orbit interactions to maintain surface states that are robust against external perturbations. They are crucial for the development of computing devices that require low power and high speed, and for exploring new quantum phenomena, such as Majorana fermions, which are integral to fault-tolerant quantum computing. The study of Weyl semimetals, which exhibit similarities with topological insulators, further expands the realm of quantum materials science.

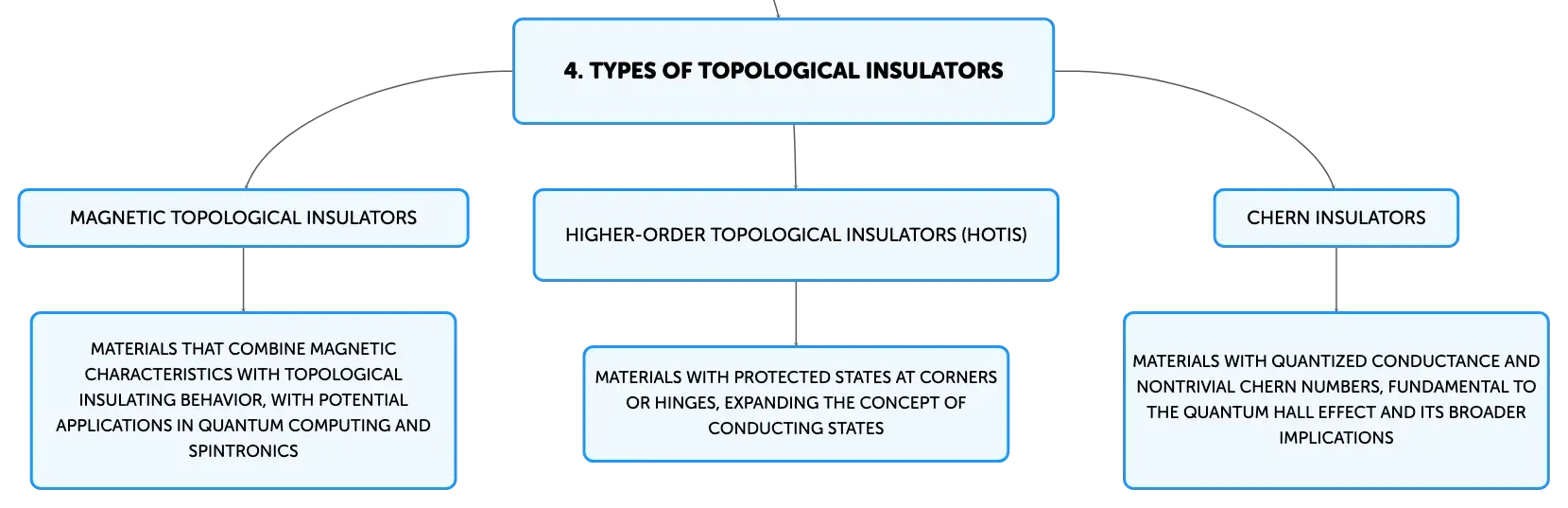

The Varied Landscape of Topological Insulators

Topological insulators encompass a diverse array of types, each with unique properties and prospective applications. Magnetic topological insulators integrate magnetic characteristics with topological insulating behavior, opening new avenues for quantum computing and spintronics. Higher-order topological insulators (HOTIs) extend the concept of conducting states to include protected states at corners or hinges. Chern insulators are distinguished by their quantized conductance, as reflected by their nontrivial Chern numbers, which are fundamental to the quantum Hall effect and its broader implications. The variety of topological insulators underscores the depth and potential of this field for future technological breakthroughs.
