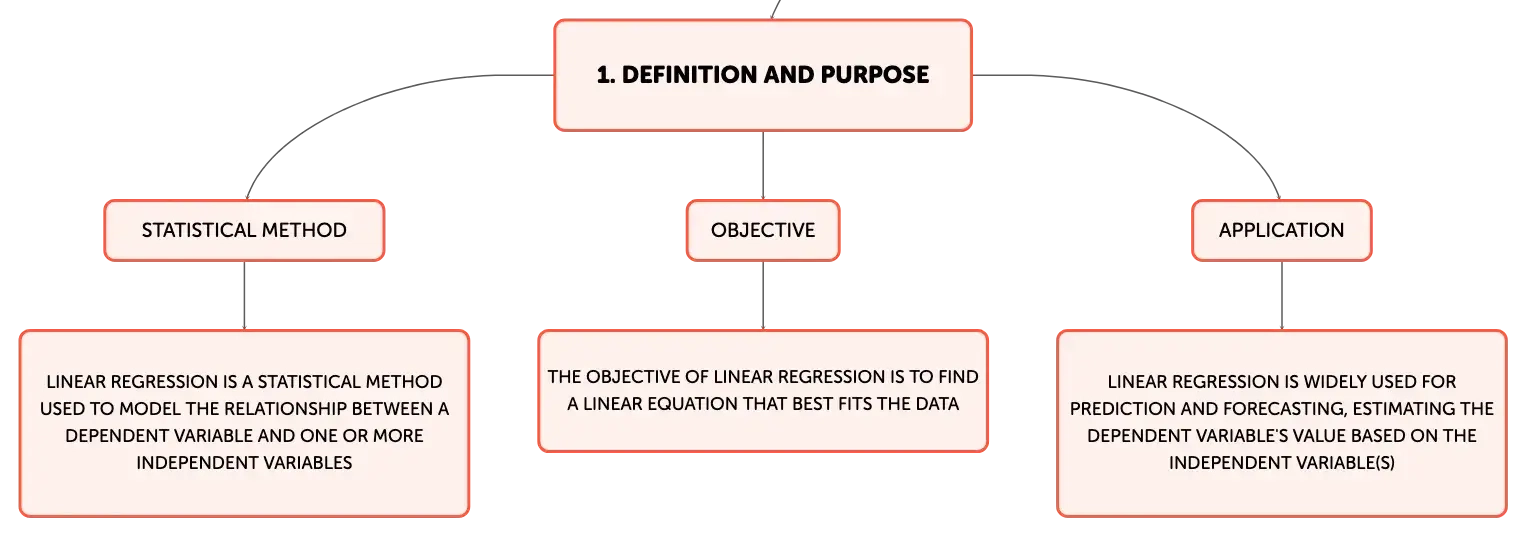

Exploring the Basics of Linear Regression

Linear regression is a statistical method used to model the relationship between a dependent variable and one or more independent variables. The objective is to find a linear equation that best fits the data, which is represented by the line \( y = mx + c \), where \( m \) is the slope of the line, and \( c \) is the y-intercept. This technique is widely used for prediction and forecasting, where it can estimate the dependent variable's value based on the independent variable(s).

Traditional blackboard with wooden frame and Cartesian coordinate system drawn in chalk, with data points and possible trend line.

The Linear Regression Equation and Its Derivation

The linear regression equation aims to minimize the sum of the squared differences between the observed values and the model's predicted values. These differences are called residuals. The equation of the regression line is \( \hat{y} = mx + c \), where \( \hat{y} \) is the predicted value. The slope \( m \) is computed using the formula \( m = \frac{\sum (x - \bar{x})(y - \bar{y})}{\sum (x - \bar{x})^2} \), and the intercept \( c \) is calculated by \( c = \bar{y} - m\bar{x} \). This model allows us to predict the dependent variable's value for new inputs of the independent variable.

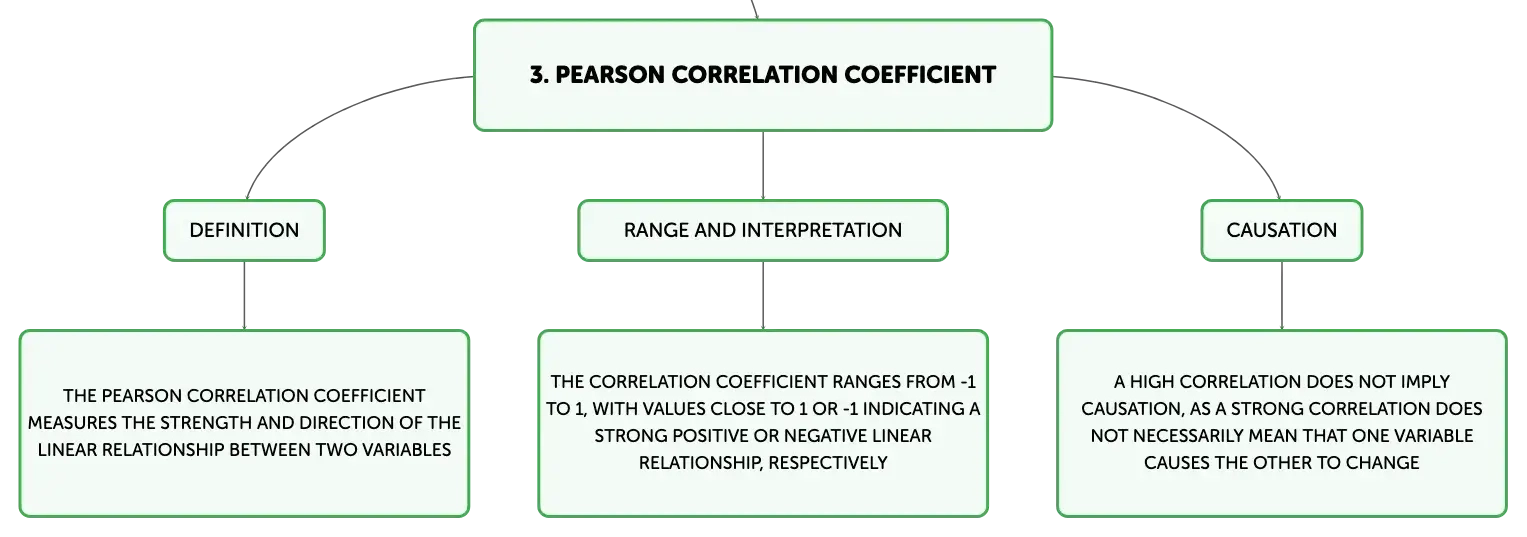

The Role of the Correlation Coefficient

The Pearson correlation coefficient, denoted as \( r \), measures the strength and direction of the linear relationship between two variables. It ranges from -1 to 1, with values close to 1 or -1 indicating a strong positive or negative linear relationship, respectively. A value near 0 suggests a weak or no linear relationship. It is important to understand that a high correlation does not imply causation; a strong correlation does not mean that one variable causes the other to change.

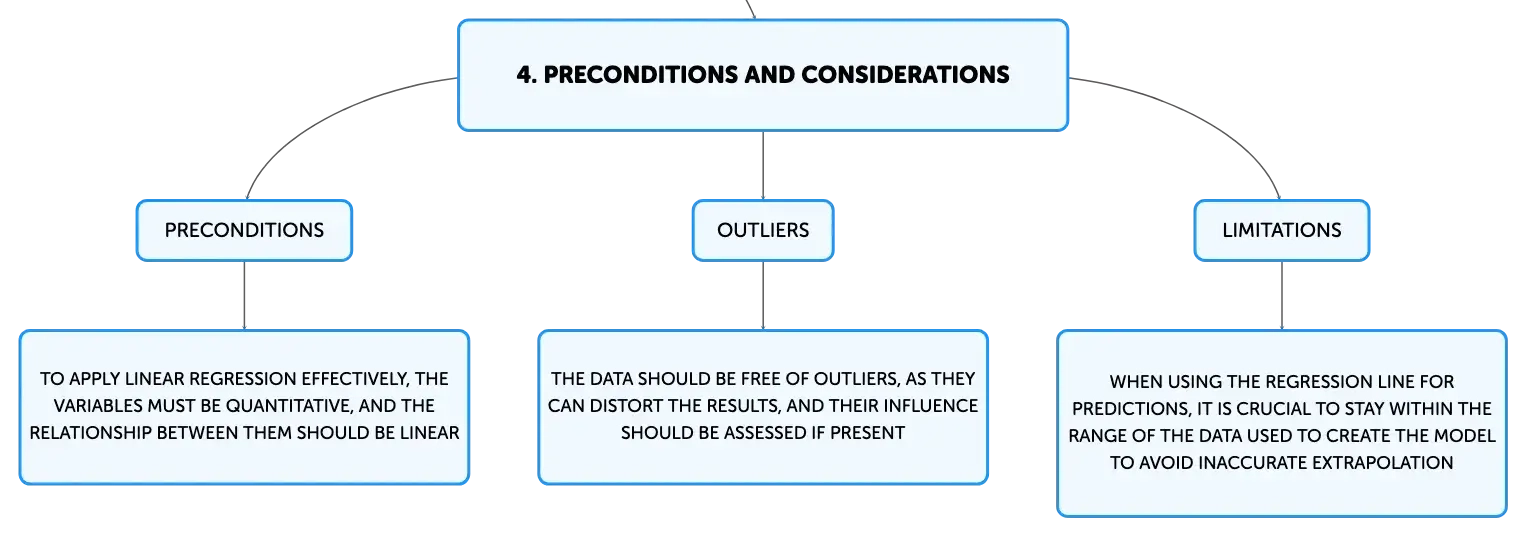

Preconditions for Linear Regression Analysis

To apply linear regression effectively, certain preconditions must be met. The variables must be quantitative, and the relationship between them should be linear, which can be visually inspected using a scatter plot. Additionally, the data should be free of outliers, as these can distort the results. If outliers are present, their influence should be assessed by comparing the results with and without them.

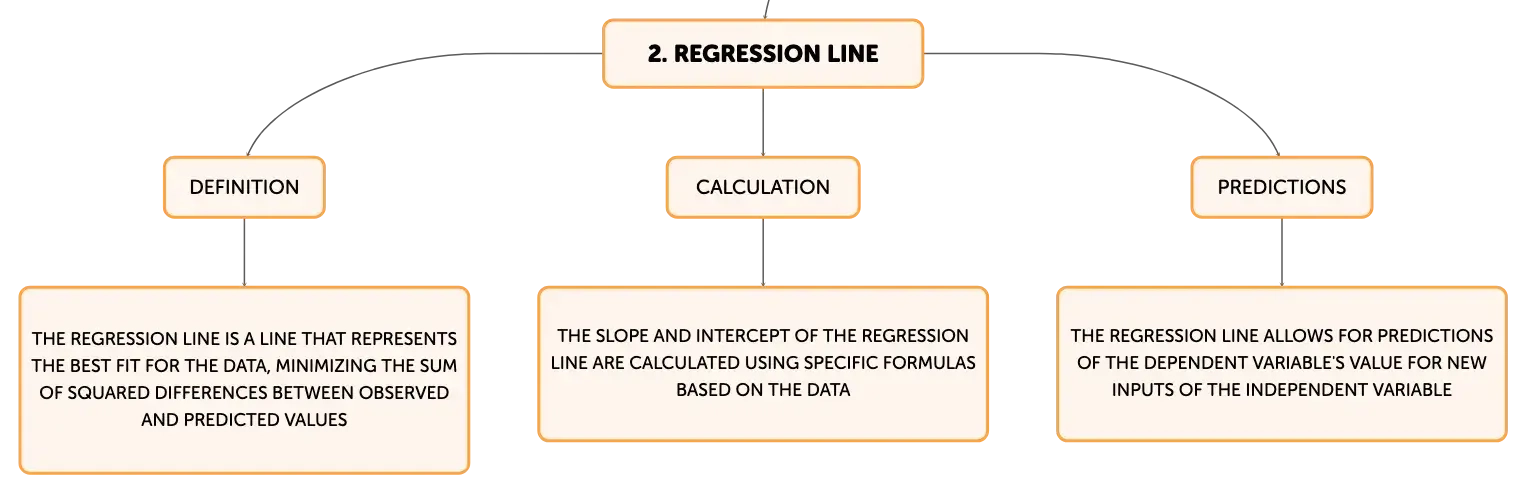

Understanding and Applying the Regression Line

The regression line is a graphical representation of the predicted relationship between the variables. It is the "best fit" because it minimizes the sum of the squared residuals, although it does not pass through all the data points. When using the regression line for predictions, it is crucial to stay within the range of the data used to create the model to avoid extrapolation, which can lead to inaccurate predictions.

Expanding to Multiple Linear Regression

Beyond simple linear regression, which involves a single independent variable, multiple linear regression includes two or more independent variables. This allows for the analysis of more complex phenomena, such as predicting a house's price based on various factors like size, location, and age. Multiple linear regression requires more sophisticated computational methods and is often performed using specialized statistical software.

Concluding Thoughts on Linear Regression

Linear regression is a vital statistical tool for analyzing and predicting the relationship between variables. It is essential to understand the least squares regression line, the correlation coefficient, and the assumptions underlying the model. Whether in simple or multiple linear regression, this method provides a framework for making informed predictions and understanding the data's structure.
