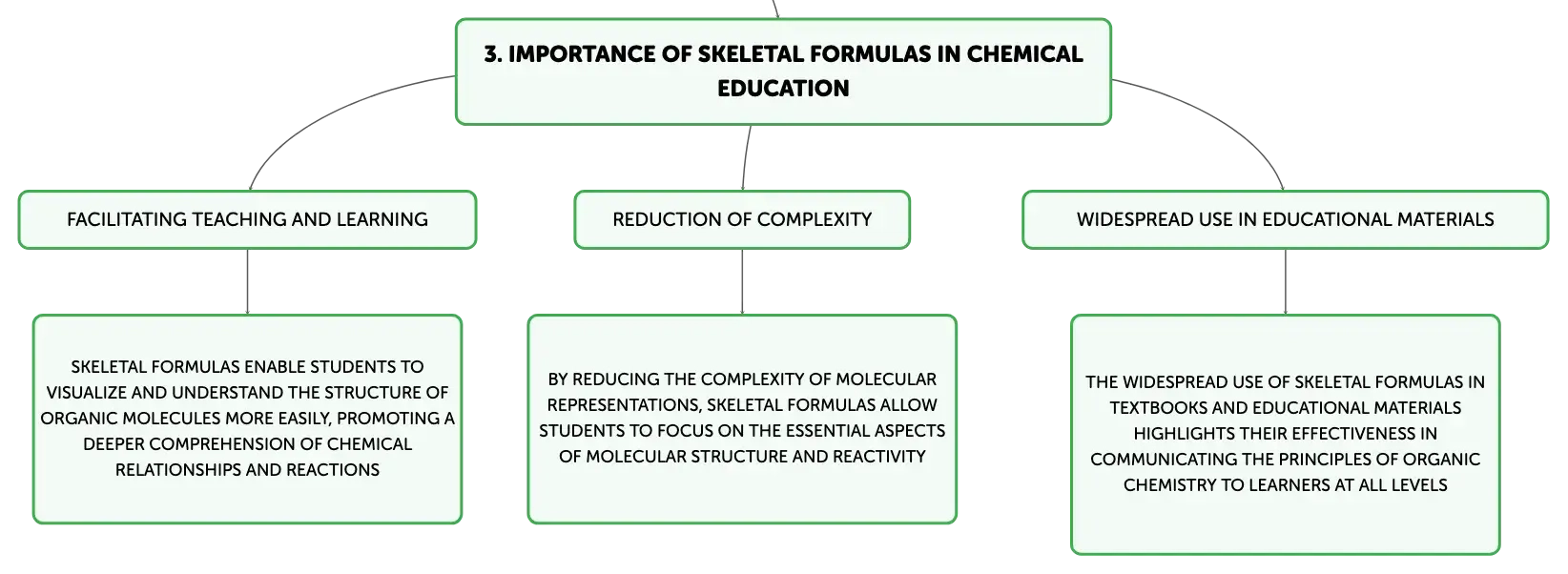

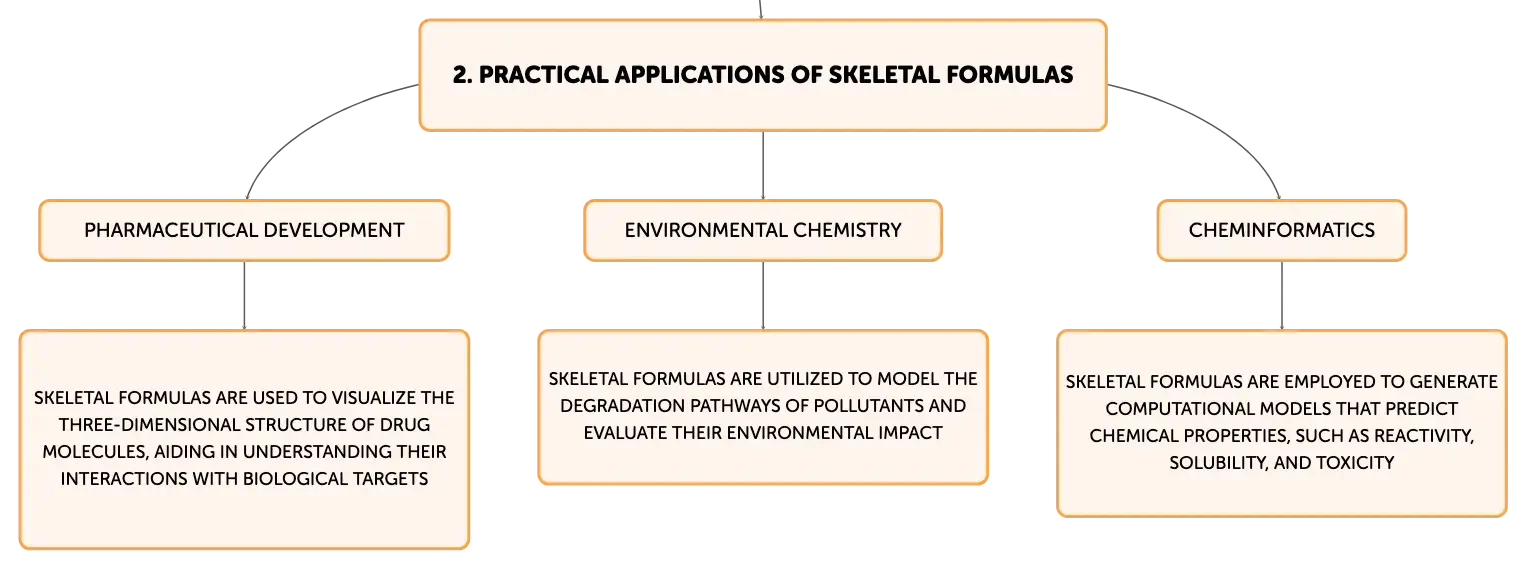

Skeletal formulas are a simplified way of representing organic molecules, focusing on the carbon framework and omitting hydrogen atoms bonded to carbons. They are crucial for understanding molecular structures, isomerism, and reaction mechanisms. These formulas are widely used in chemical education, pharmaceutical development, environmental chemistry, and cheminformatics, highlighting their significance in both academia and industry.

Exploring Skeletal Formulas in Organic Chemistry

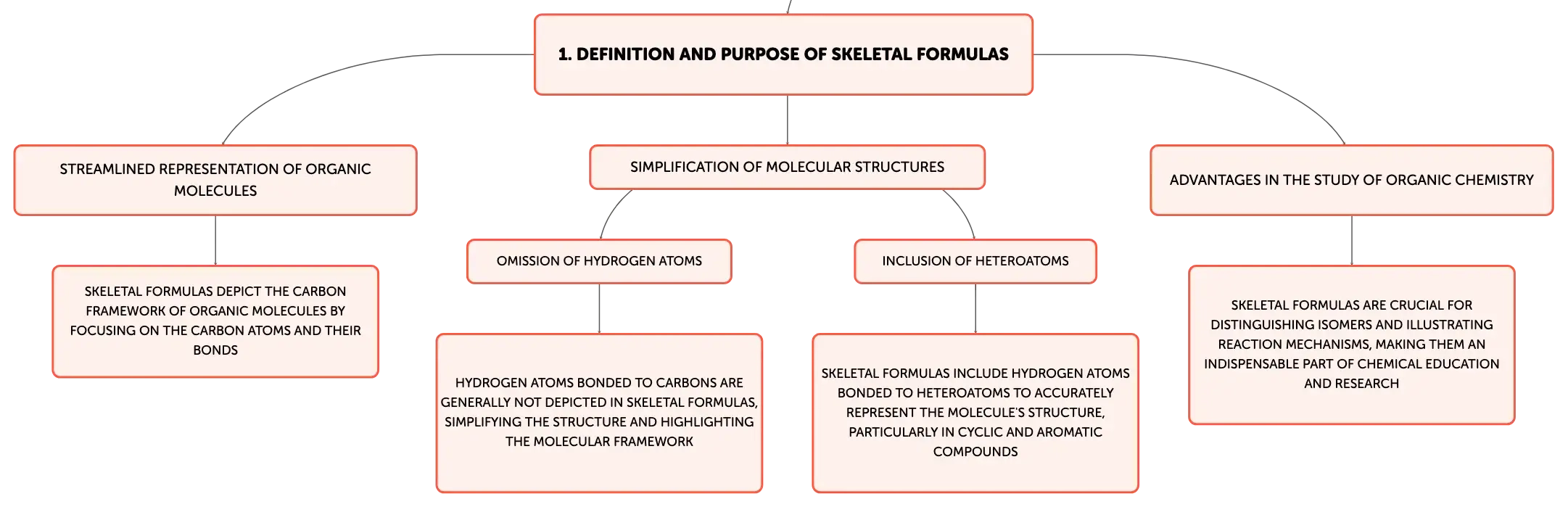

Skeletal formulas, an essential tool in organic chemistry, provide a streamlined representation of organic molecules by focusing on the carbon framework. These formulas depict the carbon atoms as vertices or ends of lines, which represent the chemical bonds. Hydrogen atoms bonded to carbons are generally omitted unless they are part of a functional group or are necessary for clarity, which simplifies the structure and highlights the molecular framework. This method is particularly effective for distinguishing isomers, such as butane and isobutane, which have identical molecular formulas but different structural arrangements.

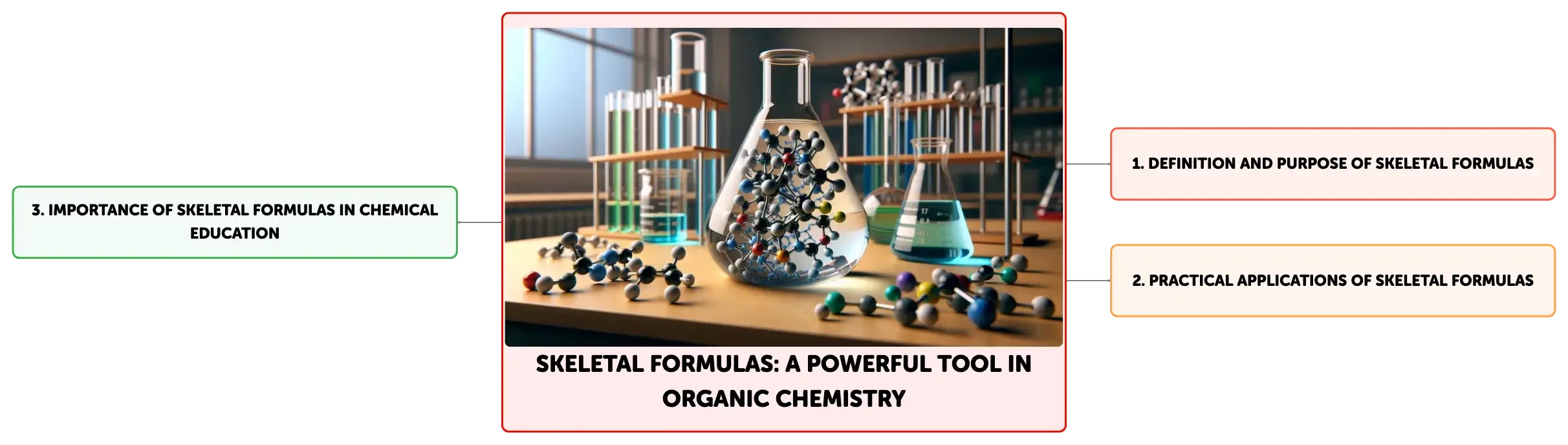

Colorful molecular model in a glass flask on laboratory bench with test tubes and beakers containing colored liquids, blurred laboratory background.

Carbon and Hydrogen Representation in Skeletal Formulas

Within skeletal formulas, carbon atoms are assumed to be located at the ends of lines (bonds) and at junctions where lines meet, with the understanding that each carbon atom typically makes four bonds in accordance with the octet rule. Hydrogen atoms connected to carbons are not depicted, which simplifies the representation of hydrocarbons like methane, ethane, and hexane. Hydrogen atoms bonded to heteroatoms (atoms other than carbon), such as oxygen or nitrogen, are included to accurately represent the molecule's structure. This convention is especially useful for cyclic and aromatic compounds, where the ring structures can be depicted without explicitly drawing each carbon and hydrogen atom.

Show More

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Representation of carbon atoms in skeletal formulas

Carbon atoms depicted as vertices or line ends; bonds shown as lines.

01

Treatment of hydrogen atoms in skeletal formulas

Hydrogen atoms bonded to carbons omitted unless in functional groups or for clarity.

02

Utility of skeletal formulas for isomers

Facilitates distinction between isomers with identical molecular formulas but different structures.
