Chemical Shifts in NMR Spectroscopy

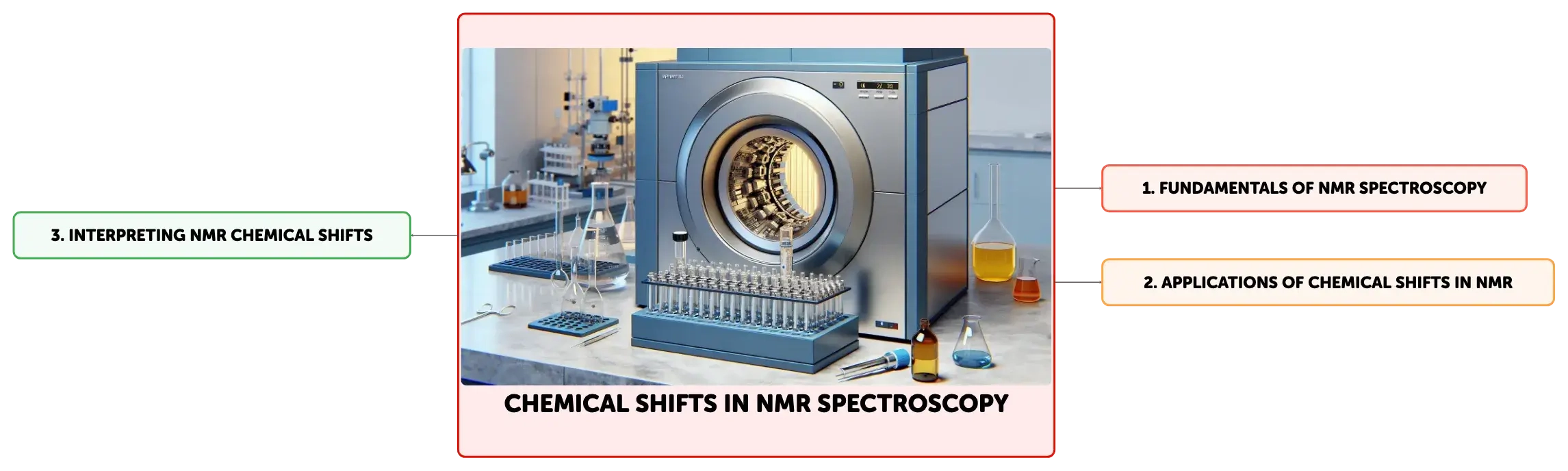

Concept Map
Exploring the fundamentals of chemical shifts in NMR spectroscopy, this overview highlights how variations in electron density around nuclei influence resonant frequencies. Chemical shifts, measured in ppm, are crucial for identifying molecular structures, with factors like electron shielding, electronegativity, and hydrogen bonding playing significant roles. Techniques like Carbon-13 and Proton NMR leverage these shifts to provide insights into organic compounds, aiding in the determination of their three-dimensional conformation and connectivity.
Summary
Outline
Fundamentals of Chemical Shifts in NMR Spectroscopy
Chemical shifts are a fundamental aspect of Nuclear Magnetic Resonance (NMR) spectroscopy, an analytical technique widely used in organic chemistry to determine molecular structure. A chemical shift occurs when the resonant frequency of a nucleus, typically a hydrogen or carbon atom, deviates from a reference frequency due to the surrounding electronic environment. This deviation is quantified in parts per million (ppm) and is influenced by the electron density around the nucleus, which alters the local magnetic field. By analyzing chemical shifts, chemists can identify the types of hydrogen atoms present in a molecule, such as aliphatic, aromatic, allylic, or vinylic, providing insights into the molecule's structure.The Principles and Technique of Chemical Shift NMR
The principle underlying chemical shifts in NMR is described by the Larmor equation, which shows that the resonant frequency of a nucleus in a magnetic field is proportional to the strength of the magnetic field and the gyromagnetic ratio of the nucleus. During NMR spectroscopy, a sample is subjected to a strong external magnetic field and radiofrequency pulses, causing certain nuclei to absorb energy and transition to a higher energy state. When these nuclei relax back to their original state, they emit energy that is detected and converted into an NMR spectrum. The chemical shift is the result of variations in the resonant frequency caused by differences in the electronic environment of the nuclei.Key Parameters Influencing Chemical Shifts
Chemical shifts in NMR are affected by several factors that must be considered for accurate interpretation. The shielding effect, which is the attenuation of the external magnetic field by the electron cloud surrounding a nucleus, is a primary factor. Other influences include hydrogen bonding, the hybridization state of the atom, and the presence of electronegative atoms nearby. Electronegative elements can induce deshielding, leading to higher chemical shift values. Understanding these factors is essential for determining the precise electronic environment of the nuclei under investigation.Chemical Shifts in Organic Chemistry Applications
Chemical shifts are indispensable for the structural analysis of organic compounds. Two common NMR techniques are Carbon-13 NMR and Proton NMR, which utilize chemical shifts to identify different carbon and hydrogen environments within a molecule. Carbon-13 NMR correlates resonant frequencies to specific carbon atoms, while Proton NMR uses the integration of peaks to determine the relative number of protons. These techniques enable chemists to differentiate between various types of protons and carbons, enhancing the understanding of molecular structure and functionality.Interpreting H NMR Chemical Shifts
Hydrogen NMR (H NMR) chemical shifts are critical for deducing the structure of organic molecules. The H NMR spectrum displays peaks corresponding to distinct hydrogen environments. Interpretation involves counting the number of signals, determining their chemical shift in ppm, integrating the signals to ascertain the number of hydrogens represented, and examining splitting patterns to deduce the proximity of neighboring hydrogens. Chemical shifts in H NMR are influenced by factors such as electronegativity, hybridization, and the shielding or deshielding effects of the surrounding electron cloud.Decoding C NMR Chemical Shifts for Structural Insights
Carbon-13 NMR (C NMR) chemical shifts provide valuable structural information about organic compounds. These shifts are referenced against tetramethylsilane (TMS) at zero ppm and are affected by the electron density around the carbon atoms. Electron-rich environments result in lower chemical shifts (shielded), while electron-poor environments cause higher shifts (deshielded). The type of carbon atom, the presence of electronegative substituents, and pi bonding are among the factors that influence the observed chemical shifts in C NMR.Utilizing NMR Chemical Shift Tables for Interpretation
NMR chemical shift tables are indispensable references that provide average chemical shift data for various hydrogen and carbon atoms in organic molecules. These tables, which use tetramethylsilane (TMS) as the standard reference at 0 ppm, assist in the preliminary interpretation of NMR spectra. The ppm values listed for different atoms reflect their electron density and the degree of shielding or deshielding. To effectively use these tables, chemists must understand the nature of the nucleus being studied, the molecule's specific environments, and the impact of electronic factors on chemical shifts.Mastering the Interpretation of Chemical Shift NMR
Proficiency in interpreting chemical shift NMR requires a thorough understanding of the factors that influence chemical shifts and the development of skilled interpretation techniques. This includes recognizing the chemical shift relative to TMS, analyzing signal locations and integrations, and understanding multiplicity and coupling constants. By integrating information from chemical shifts, signal integrations, and splitting patterns, chemists can deduce the structure of unknown organic compounds, gaining insights into the molecule's three-dimensional conformation and connectivity.
Show More

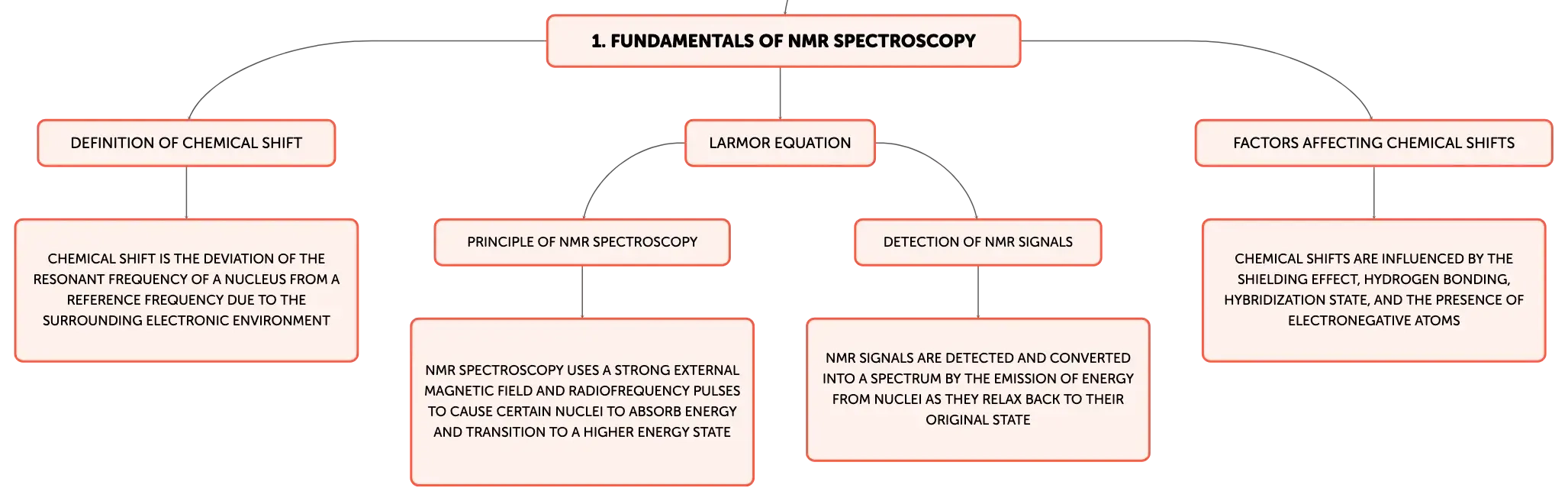

Fundamentals of NMR Spectroscopy
Definition of Chemical Shift
Chemical shift is the deviation of the resonant frequency of a nucleus from a reference frequency due to the surrounding electronic environment
Larmor Equation
Principle of NMR Spectroscopy
NMR spectroscopy uses a strong external magnetic field and radiofrequency pulses to cause certain nuclei to absorb energy and transition to a higher energy state
Detection of NMR Signals
NMR signals are detected and converted into a spectrum by the emission of energy from nuclei as they relax back to their original state
Factors Affecting Chemical Shifts
Chemical shifts are influenced by the shielding effect, hydrogen bonding, hybridization state, and the presence of electronegative atoms

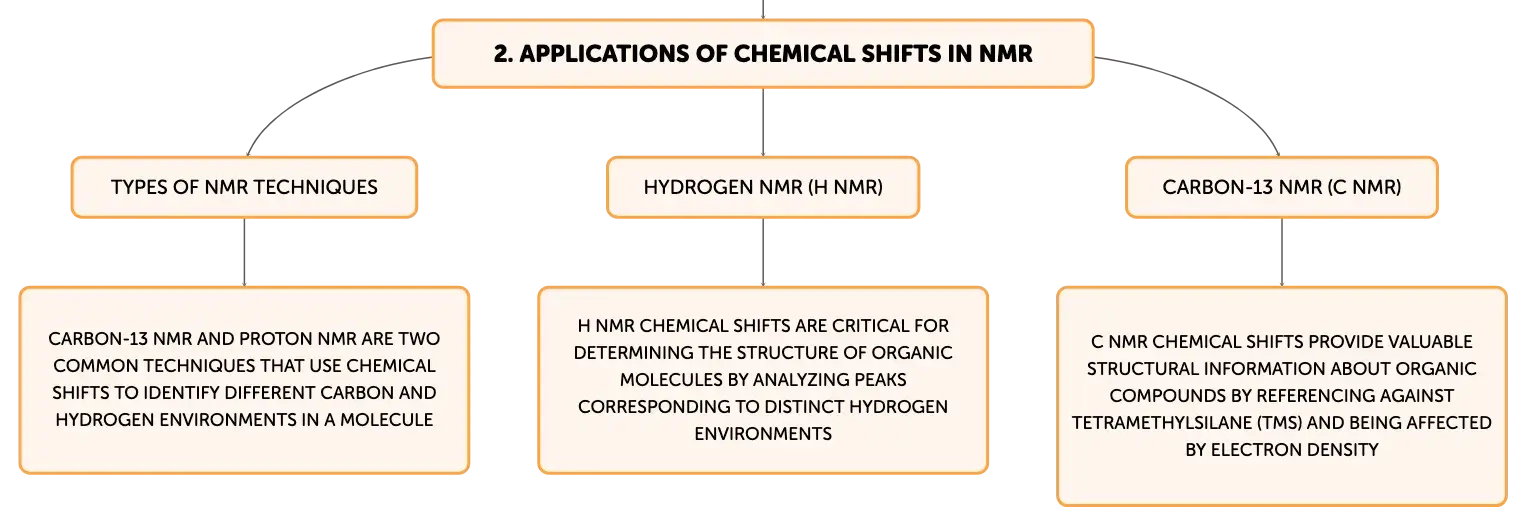

Applications of Chemical Shifts in NMR
Types of NMR Techniques
Carbon-13 NMR and Proton NMR are two common techniques that use chemical shifts to identify different carbon and hydrogen environments in a molecule
Hydrogen NMR (H NMR)
H NMR chemical shifts are critical for determining the structure of organic molecules by analyzing peaks corresponding to distinct hydrogen environments
Carbon-13 NMR (C NMR)
C NMR chemical shifts provide valuable structural information about organic compounds by referencing against tetramethylsilane (TMS) and being affected by electron density

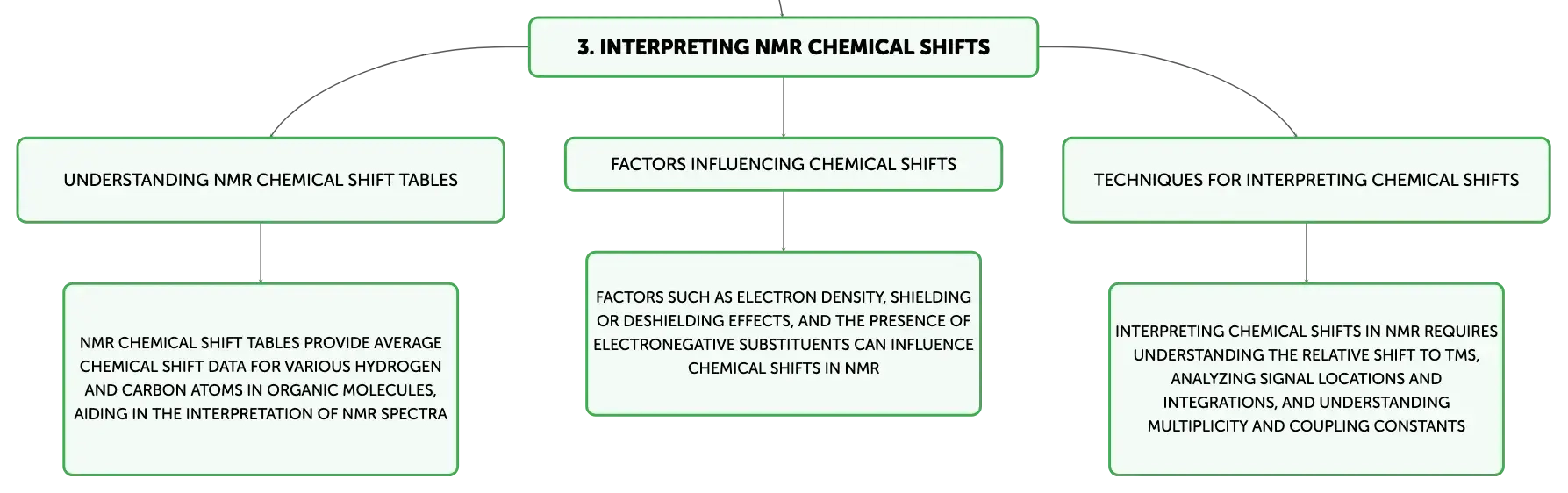

Interpreting NMR Chemical Shifts
Understanding NMR Chemical Shift Tables
NMR chemical shift tables provide average chemical shift data for various hydrogen and carbon atoms in organic molecules, aiding in the interpretation of NMR spectra
Factors Influencing Chemical Shifts
Factors such as electron density, shielding or deshielding effects, and the presence of electronegative substituents can influence chemical shifts in NMR
Techniques for Interpreting Chemical Shifts
Interpreting chemical shifts in NMR requires understanding the relative shift to TMS, analyzing signal locations and integrations, and understanding multiplicity and coupling constants
Chemical Shifts in NMR Spectroscopy
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Chemical shift unit of measurement
Chemical shifts are measured in parts per million (ppm) to reflect the minute changes in resonant frequency.
01
Influence of electron density on chemical shift
Electron density around a nucleus affects its chemical shift; higher density shields the nucleus, leading to an upfield shift.
02
Types of hydrogen atoms identified by chemical shifts
Chemical shifts help distinguish between aliphatic, aromatic, allylic, and vinylic hydrogen atoms, aiding in molecular structure determination.
