Vector Notation

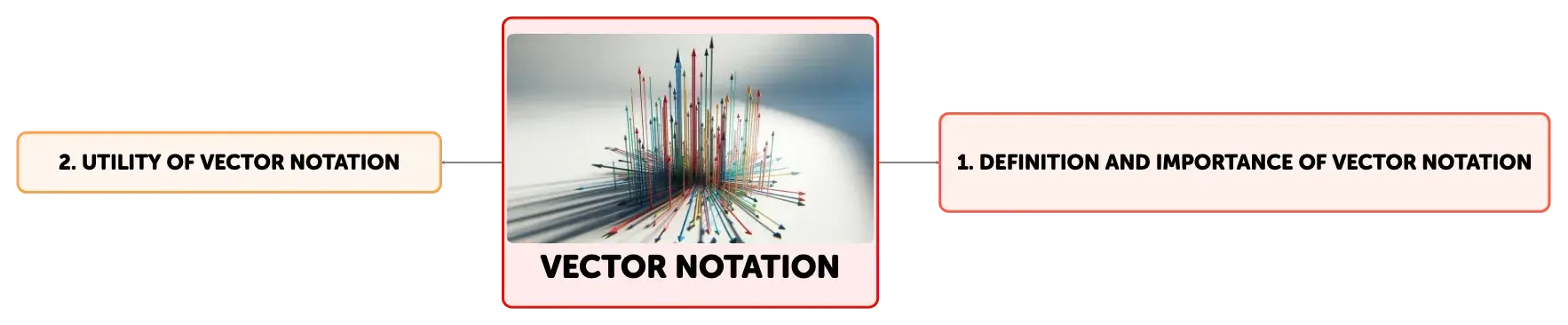

Concept Map
Vector notation is a fundamental language in mathematics and physics, representing quantities with both magnitude and direction. It's used in calculus for gradients and divergences, in linear algebra for vector spaces, and in geometry for defining shapes. Practical applications include describing physical quantities like displacement and force, and it's essential in engineering and electromagnetism. LaTeX typesetting enhances vector notation's clarity in scientific documents.
Summary
Outline
Fundamentals of Vector Notation
Vector notation is an essential symbolic language in mathematics and physics, used to represent vectors, which are quantities defined by both magnitude and direction. Commonly represented by symbols such as \(\vec{a}\) or \(\mathbf{v}\), vector notation is crucial for communicating complex concepts succinctly. Vectors are typically depicted as arrows, where the length represents magnitude and the arrowhead points in the direction of the vector. For instance, a vector in three-dimensional space can be written as \(\mathbf{a} = a_x\mathbf{i} + a_y\mathbf{j} + a_z\mathbf{k}\), where \(a_x\), \(a_y\), and \(a_z\) are the scalar components of the vector along the x, y, and z axes, respectively, and \(\mathbf{i}\), \(\mathbf{j}\), and \(\mathbf{k}\) are the corresponding unit vectors.Vector Notation in Advanced Mathematical Concepts
Vector notation is integral to advanced mathematical disciplines, including calculus, linear algebra, and geometry. In calculus, vectors facilitate the study of curves, surfaces, and fields, and are instrumental in defining operations such as gradients, divergences, and curls. Linear algebra relies on vector notation to explore vector spaces, eigenvalues, and eigenvectors. Geometry uses vectors to prove theorems and define shapes. Additionally, vector notation is vital in formulating and solving differential equations that model complex systems, such as those found in fluid dynamics and electromagnetism, by representing the relationships between variables concisely and accurately.Practical Applications of Vector Notation
The utility of vector notation extends to various scientific fields, including physics and engineering. In physics, vectors are used to describe quantities like displacement, force, and velocity. For example, a displacement vector \(\mathbf{d} = 4\mathbf{i} - 2\mathbf{j} + 3\mathbf{k}\) represents movement in a three-dimensional space. In engineering, vectors are crucial for defining forces and moments in structures and machines. In geometry, vectors are used to describe lines and planes, with line equations often expressed in the form \(\mathbf{r} = \mathbf{a} + t(\mathbf{b} - \mathbf{a})\), where \(\mathbf{a}\) and \(\mathbf{b}\) are position vectors. In the context of rotational dynamics, torque is represented by \(\mathbf{\tau} = \mathbf{r} \times \mathbf{F}\), and in electromagnetism, vectors are used to visualize and analyze field interactions.Implementing Vector Notation in LaTeX
LaTeX is a widely used typesetting system for scientific documentation, offering various commands for vector notation. Basic LaTeX commands include \(\vec{}\), which places an arrow over a character, and \(\mathbf{}\), which emboldens characters to represent vectors in physics. For more complex vector expressions, LaTeX provides commands for dot products (\(\vec{a} \cdot \vec{b}\)) and cross products (\(\vec{a} \times \vec{b}\)). The amsmath package in LaTeX is particularly useful for creating matrices and determinants, which are fundamental in vector-related calculations and in the study of linear algebra.Analyzing Vector Notation: Components and Magnitude
Understanding vector notation requires knowledge of unit vectors, magnitude, and component notation. Unit vectors, such as \(\mathbf{i}\), \(\mathbf{j}\), and \(\mathbf{k}\), have a magnitude of one and point in the direction of their respective coordinate axes. The magnitude of a vector, denoted by \(|\mathbf{v}|\), is a scalar that quantifies the vector's length and can be computed using the Pythagorean theorem in two or three dimensions. For example, the magnitude of vector \(\mathbf{v} = 3\mathbf{i} + 4\mathbf{j}\) is 5 units, reflecting the vector's length. Component notation expresses a vector in terms of its projections along the coordinate axes, which simplifies the visualization and computation of vector operations. For instance, the sum of vectors \(\mathbf{a} = 3\mathbf{i} + 4\mathbf{j}\) and \(\mathbf{b} = 1\mathbf{i} - 2\mathbf{j}\) is \(\mathbf{a} + \mathbf{b} = 4\mathbf{i} + 2\mathbf{j}\), illustrating the straightforward process of adding vectors component-wise.
Show More

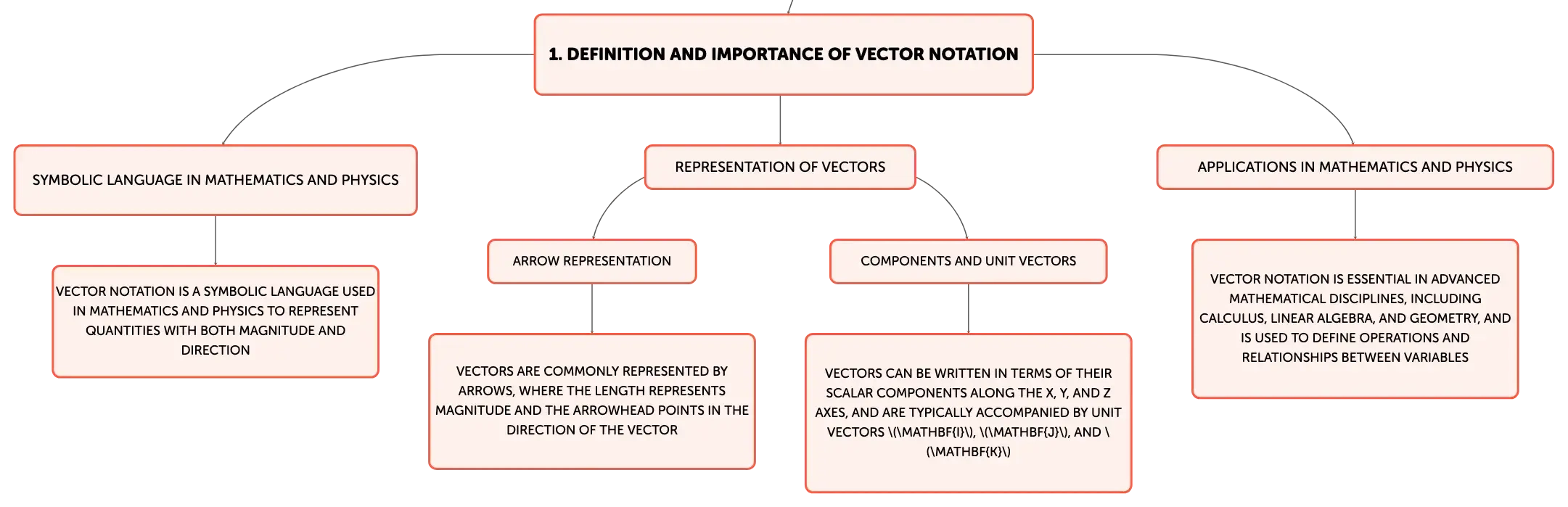

Definition and Importance of Vector Notation
Symbolic Language in Mathematics and Physics
Vector notation is a symbolic language used in mathematics and physics to represent quantities with both magnitude and direction
Representation of Vectors
Arrow Representation
Vectors are commonly represented by arrows, where the length represents magnitude and the arrowhead points in the direction of the vector
Components and Unit Vectors
Vectors can be written in terms of their scalar components along the x, y, and z axes, and are typically accompanied by unit vectors \(\mathbf{i}\), \(\mathbf{j}\), and \(\mathbf{k}\)
Applications in Mathematics and Physics
Vector notation is essential in advanced mathematical disciplines, including calculus, linear algebra, and geometry, and is used to define operations and relationships between variables

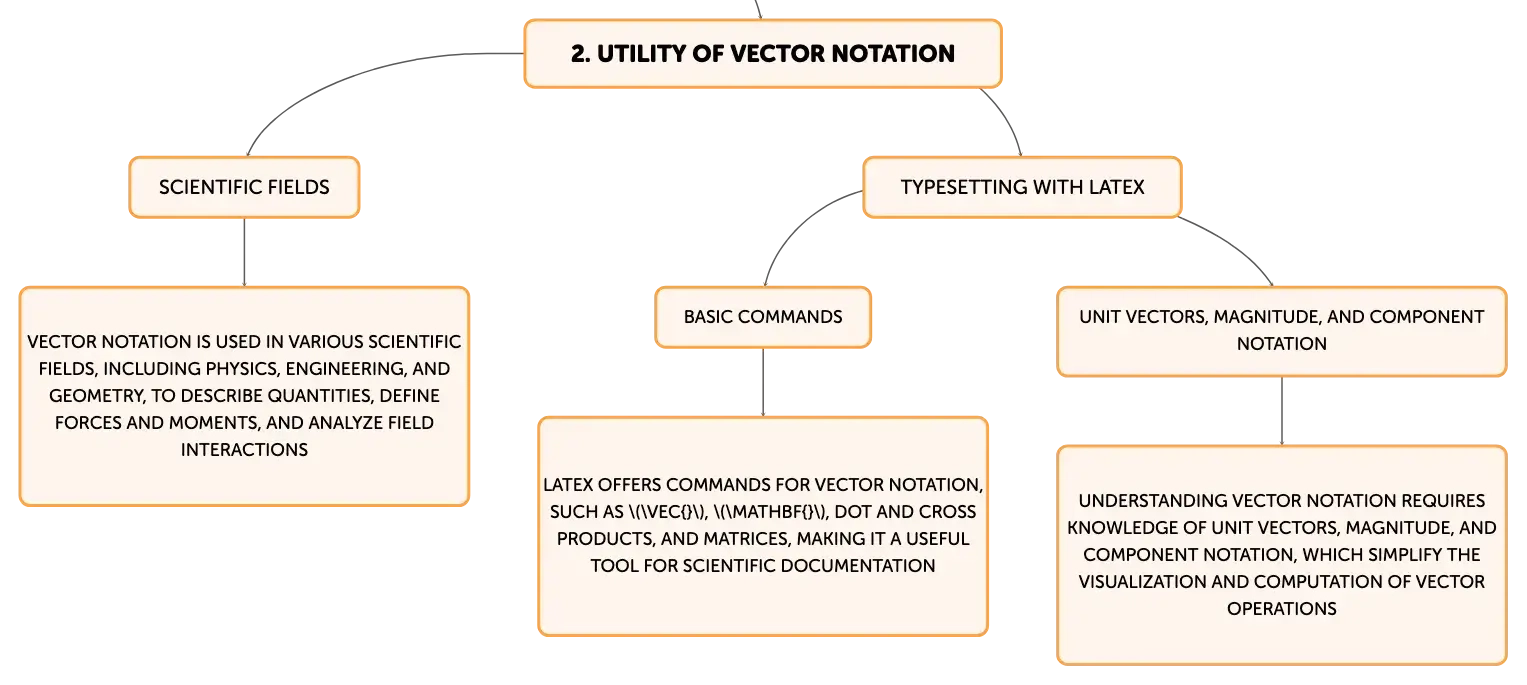

Utility of Vector Notation
Scientific Fields
Vector notation is used in various scientific fields, including physics, engineering, and geometry, to describe quantities, define forces and moments, and analyze field interactions
Typesetting with LaTeX
Basic Commands
LaTeX offers commands for vector notation, such as \(\vec{}\), \(\mathbf{}\), dot and cross products, and matrices, making it a useful tool for scientific documentation
Unit Vectors, Magnitude, and Component Notation
Understanding vector notation requires knowledge of unit vectors, magnitude, and component notation, which simplify the visualization and computation of vector operations
Vector Notation
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
Vector roles in calculus
Vectors study curves, surfaces, fields; define gradients, divergences, curls.
01
Vector application in linear algebra
Vectors explore vector spaces, eigenvalues, eigenvectors.
02
Importance of vectors in geometry
Vectors prove theorems, define shapes, and represent spatial relationships.
