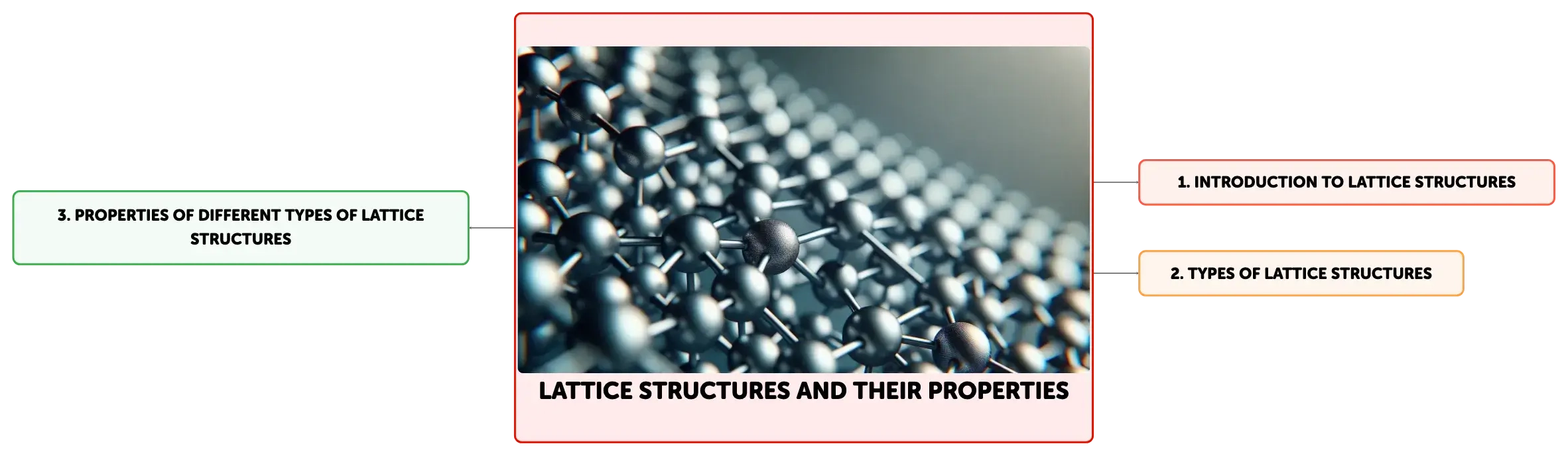

Lattice Structures and Their Properties

Fundamentals of Lattice Structures in Crystalline Solids

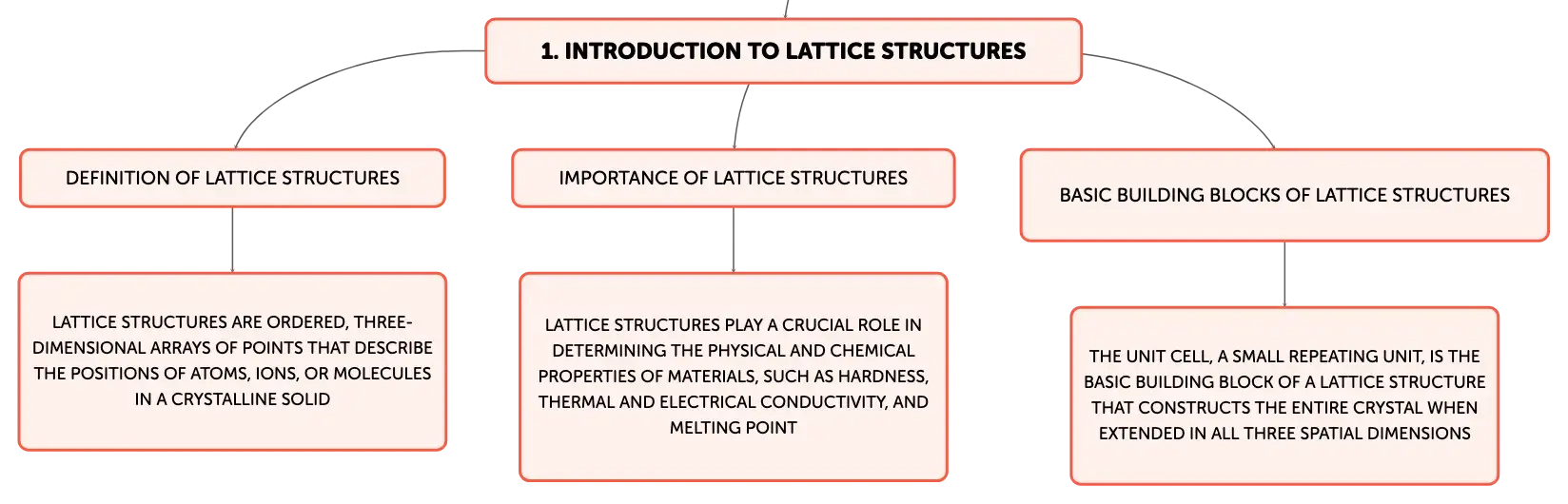

Lattice structures represent the ordered, three-dimensional arrays of points that describe the positions of atoms, ions, or molecules in a crystalline solid. These structures are pivotal in determining the physical and chemical properties of materials, including their hardness, thermal and electrical conductivity, and melting point. The basic building block of a lattice structure is the unit cell, a small repeating unit that, when extended in all three spatial dimensions, constructs the entire crystal.

Common Crystalline Lattice Types

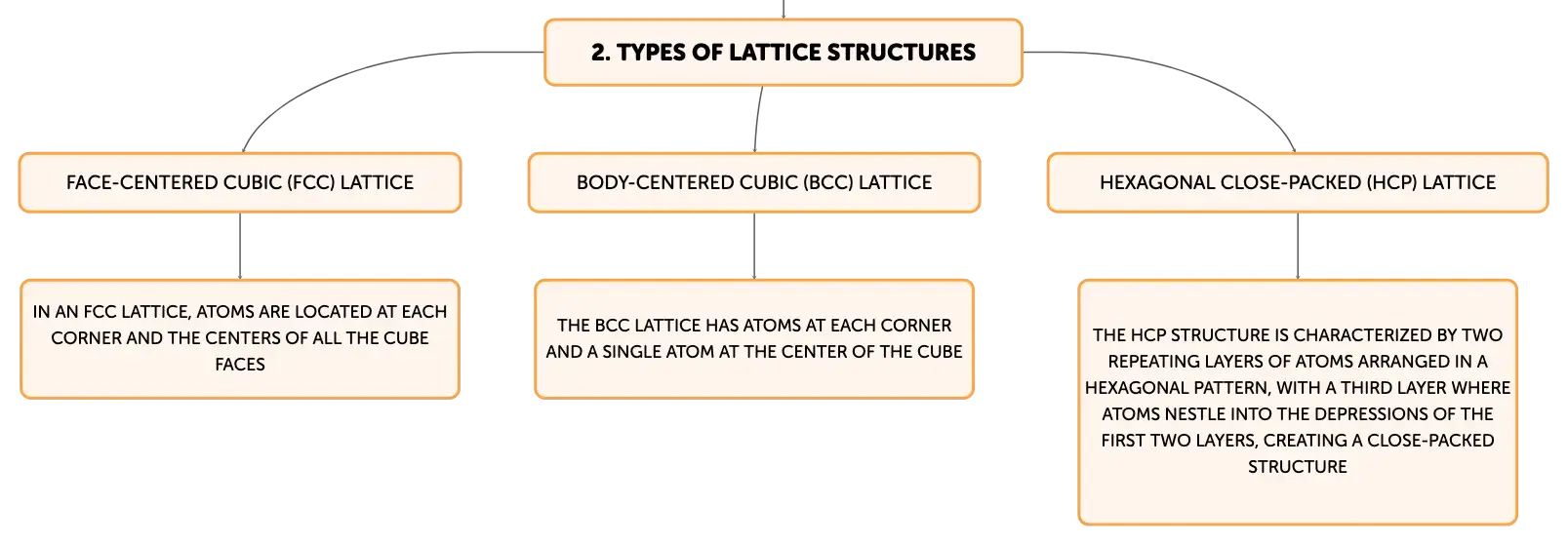

The most prevalent lattice structures in crystals are the face-centered cubic (FCC), body-centered cubic (BCC), and hexagonal close-packed (HCP) arrangements. In an FCC lattice, atoms are located at each corner and the centers of all the cube faces. The BCC lattice has atoms at each corner and a single atom at the center of the cube. The HCP structure is characterized by two repeating layers of atoms arranged in a hexagonal pattern, with a third layer where atoms nestle into the depressions of the first two layers, creating a close-packed structure.

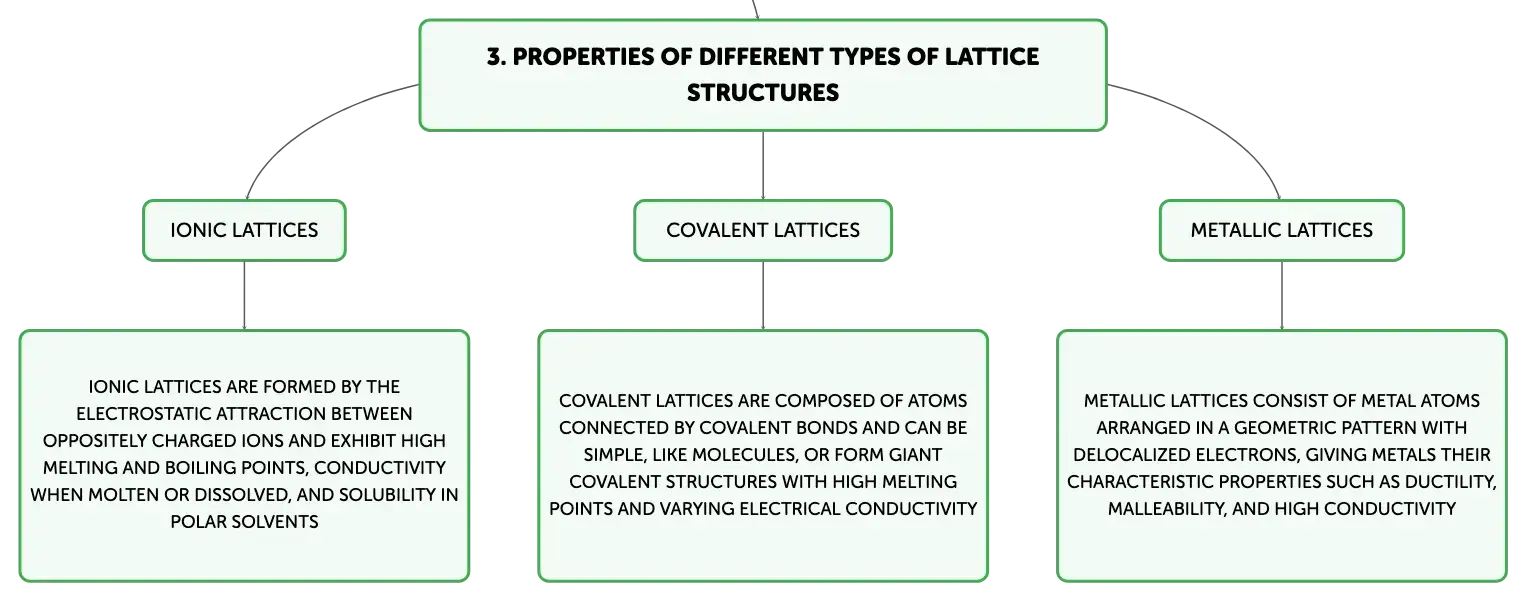

Characteristics of Ionic Lattices

Ionic lattices are formed by the electrostatic attraction between oppositely charged ions. These lattices are typically extensive, with repeating patterns that extend in all three dimensions, forming a crystal lattice. Examples include sodium chloride (NaCl) and magnesium oxide (MgO), which crystallize in a cubic lattice. Ionic crystals exhibit high melting and boiling points due to the strong ionic bonds, conduct electricity when molten or dissolved due to the mobility of ions, and are generally soluble in polar solvents.

Covalent Lattices and Molecular Structures

Covalent lattices are composed of atoms connected by covalent bonds, where electrons are shared between atoms. These structures can be simple, as in the case of molecules like iodine, buckminsterfullerene (C60), and ice, or they can form giant covalent structures such as those found in diamond, graphite, and silicon dioxide (SiO2). Simple molecular lattices typically have low melting and boiling points and are poor electrical conductors. In contrast, giant covalent structures have very high melting points, and with the exception of graphite, which conducts electricity due to delocalized electrons within its layers, they are generally insulators.

Metallic Lattices and Conductivity

Metallic lattices consist of metal atoms arranged in a geometric pattern, often with a high degree of symmetry, forming a metallic crystal. The unique feature of metallic lattices is the presence of delocalized electrons, which are not bound to any specific atom and can move freely throughout the lattice. This sea of electrons allows for the formation of metallic bonds and imparts metals with their characteristic properties, such as ductility, malleability, and high electrical and thermal conductivity. Metals like calcium form lattices with Ca2+ ions surrounded by a sea of electrons, while copper typically forms an FCC lattice.

Lattice Parameters and Unit Cell Geometry

Lattice parameters are the set of values that define the size and shape of the unit cell in a crystal lattice. These parameters include the lengths of the cell edges (a, b, c) and the angles (α, β, γ) between them. In cubic systems, such as FCC and BCC, all edges are of equal length and all angles are 90 degrees. Lattice constants specifically refer to the edge lengths in the unit cell, which are critical for identifying the type of crystal structure and for calculating the density of the material.

Impact of Lattice Structures on Material Properties

The atomic arrangement within a lattice structure has a profound effect on the material's mechanical and physical properties. For example, materials with an FCC lattice, like aluminum and gold, are typically very ductile, allowing them to be drawn into wires. Conversely, materials with an HCP lattice, such as zinc and titanium, often exhibit less ductility. The layered structure of graphite, an HCP lattice, enables its use in pencils, as the weak van der Waals forces between layers allow them to slide over each other and leave a mark on paper. A comprehensive understanding of lattice structures is essential for the design and application of materials across various industries, including electronics, aerospace, and construction.
