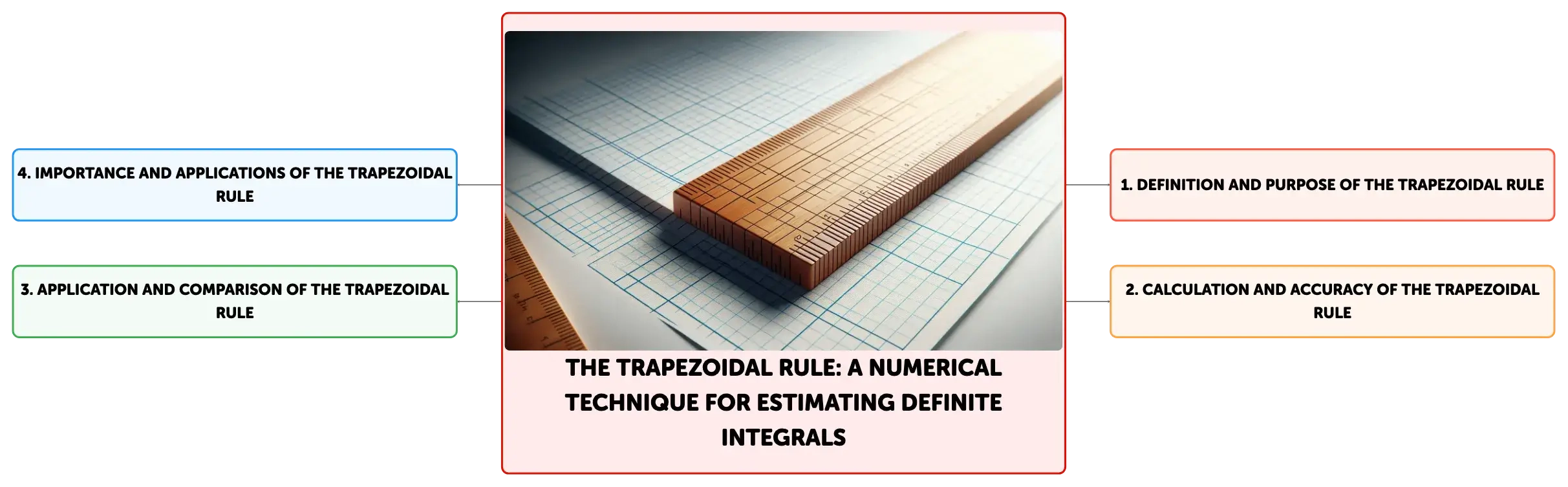

The Trapezoidal Rule: A Numerical Technique for Estimating Definite Integrals

Exploring the Trapezoidal Rule for Numerical Integration

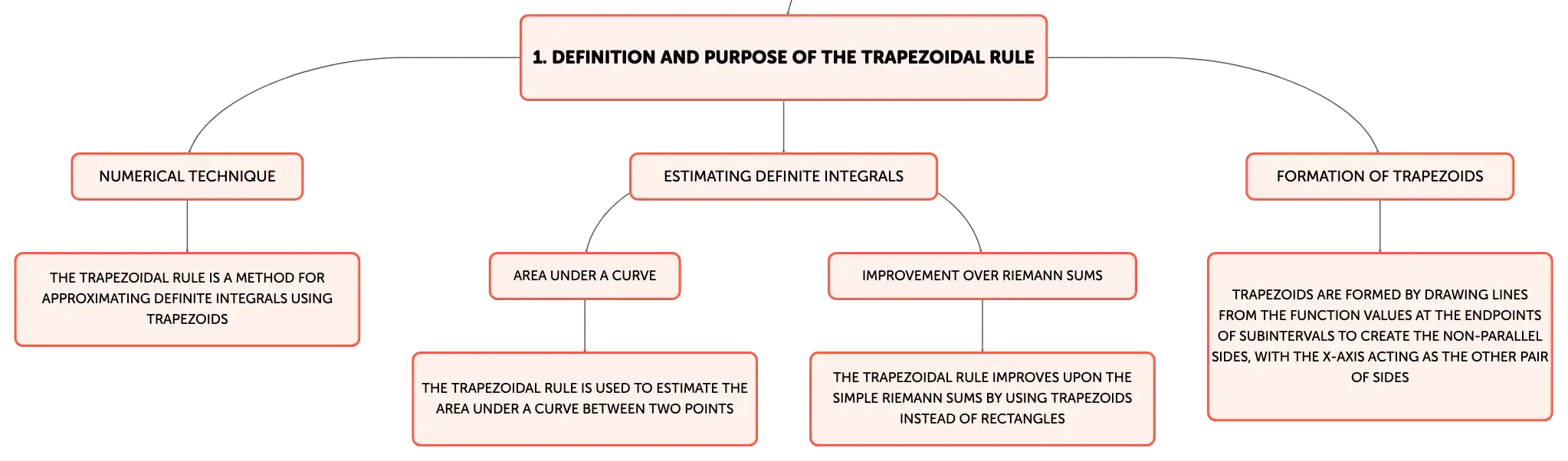

The Trapezoidal Rule is a numerical technique for estimating the definite integral of a function, which represents the area under a curve between two points. This method improves upon the simple Riemann sums by using trapezoids instead of rectangles to approximate the area. The trapezoids are formed by drawing lines from the function values at the endpoints of subintervals to create the non-parallel sides, with the x-axis acting as the other pair of sides. The area of each trapezoid is given by \( \frac{1}{2} \times (\text{height}) \times (\text{sum of the bases}) \), and the total area is the sum of the areas of these trapezoids. For a function \( f(x) \), the integral from \( a \) to \( b \) is approximated by \( \frac{\Delta x}{2} [f(x_0) + 2f(x_1) + 2f(x_2) + \ldots + 2f(x_{n-1}) + f(x_n)] \), where \( \Delta x = \frac{b-a}{n} \) and \( x_i = a + i\Delta x \) for \( i = 0, 1, \ldots, n \).

Assessing Overestimation and Underestimation with the Trapezoidal Rule

The Trapezoidal Rule's accuracy is affected by the function's curvature over the interval of integration. For functions that are concave upwards (convex), the trapezoids will generally overestimate the area, as they lie above the curve. In contrast, for functions that are concave downwards, the trapezoids will underestimate the area, as they lie below the curve. This behavior allows for a prediction of the rule's tendency to overestimate or underestimate the integral based on the concavity of the function within the specified interval.

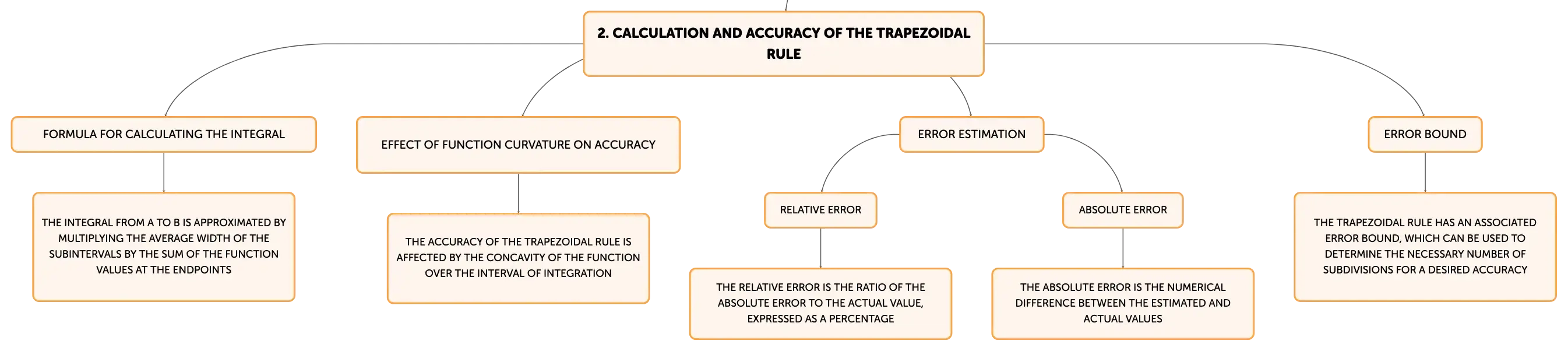

Error Estimation in the Trapezoidal Rule

Error estimation is a vital aspect of numerical integration, providing insight into the precision of the approximation. The relative error is the ratio of the absolute error to the actual value, expressed as a percentage. The absolute error is the numerical difference between the estimated and actual values. The Trapezoidal Rule has an associated error bound, which is determined by \( E_T \leq \frac{K(b-a)^3}{12n^2} \), where \( K \) is the maximum absolute value of the second derivative of \( f(x) \) on the interval \( [a, b] \). This error bound can be used to ascertain the number of subdivisions, or trapezoids, needed to achieve a desired accuracy.

Implementing the Trapezoidal Rule in Practice

To demonstrate the Trapezoidal Rule in action, consider the task of estimating the integral of \( f(x) = \frac{1}{x} \) from \( x = 1 \) to \( x = 3 \) using four trapezoids. The procedure involves calculating \( \Delta x \), applying the formula for the Trapezoidal Rule, and evaluating the concavity of \( f(x) \) to determine whether the result is an overestimate or an underestimate. The error bound can also be calculated to assess the maximum potential error. The Trapezoidal Rule can also be applied to data sets where the function is represented by discrete points, showcasing its adaptability to various types of problems.

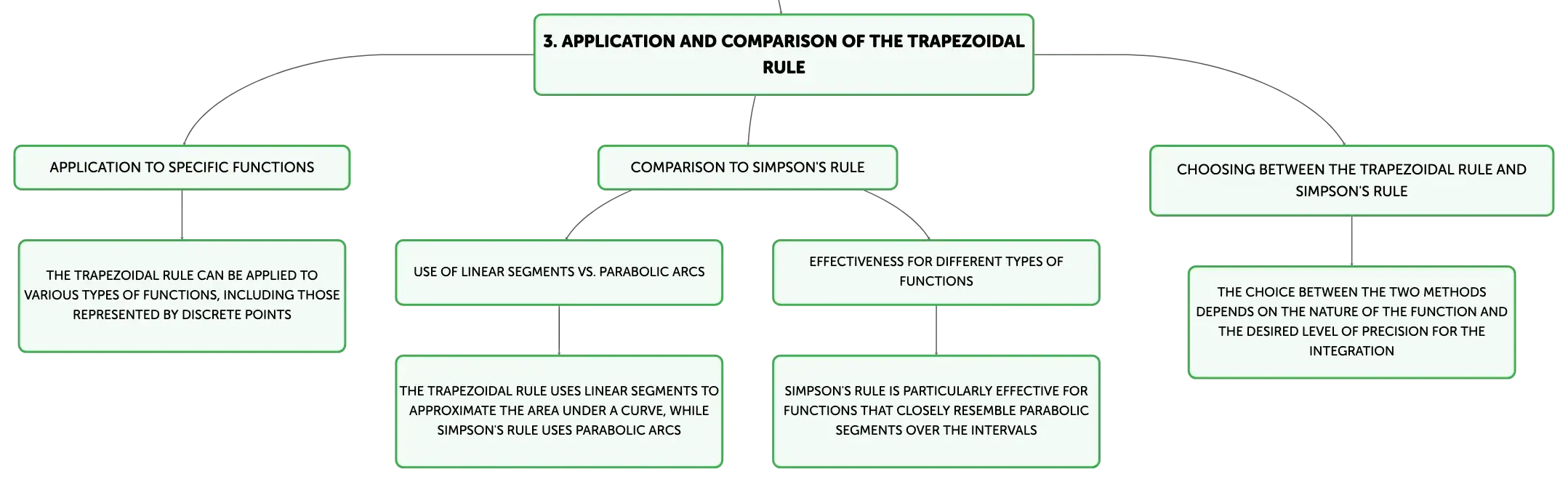

Comparing the Trapezoidal Rule with Simpson's Rule

The Trapezoidal Rule approximates the area under a curve using linear segments to form the tops of trapezoids, while Simpson's Rule uses parabolic arcs to achieve a potentially more accurate approximation. Simpson's Rule is particularly effective when the function closely resembles parabolic segments over the intervals. The choice between the Trapezoidal Rule and Simpson's Rule depends on the nature of the function and the level of precision required for the integration.

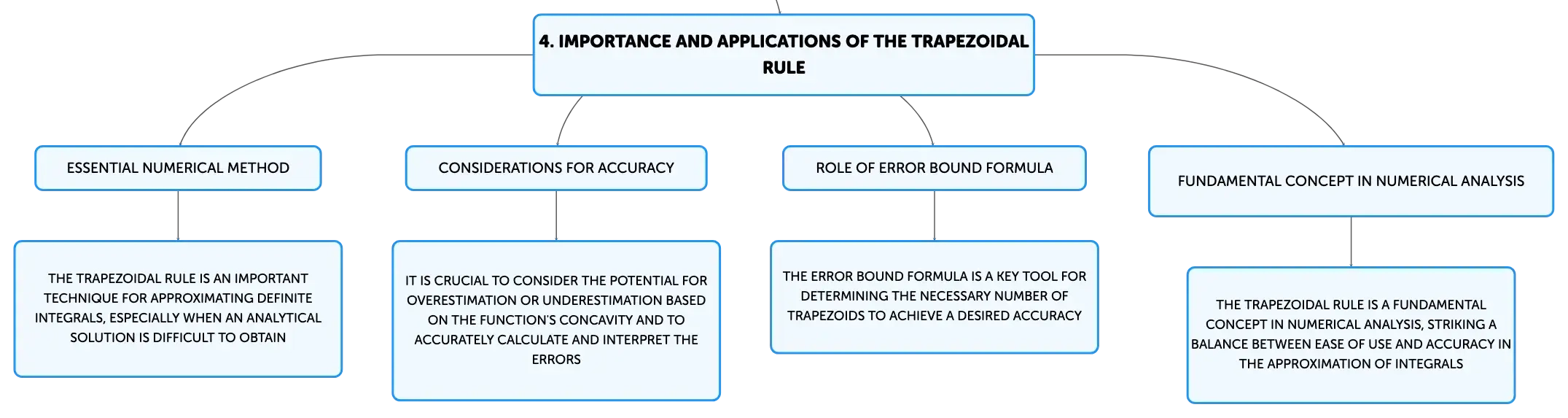

Key Insights into the Trapezoidal Rule

The Trapezoidal Rule is an essential numerical method for approximating definite integrals, especially when an analytical solution is challenging to obtain. It is crucial to recognize the potential for overestimation or underestimation based on the function's concavity and to accurately calculate and interpret the relative and absolute errors. The error bound formula is a key tool for determining the necessary number of trapezoids to reach a specified accuracy. The Trapezoidal Rule stands as a fundamental concept in numerical analysis, striking a balance between ease of use and accuracy in the approximation of integrals.
