The Study of Parametric Curves
Parametric curves are fundamental in calculus, allowing for the representation of complex shapes and motions. These curves are defined by functions x(t) and y(t), with t as an independent parameter. They have applications across physics, engineering, economics, and computer graphics, aiding in the analysis of particle motion, economic trends, and realistic animations. Calculus techniques like differentiation and integration are key to understanding their properties, such as slope, arc length, and tangent lines.
See moreUnderstanding the Calculus of Parametric Curves
The study of parametric curves is an essential aspect of calculus, providing a framework for analyzing and understanding curves that are not necessarily functions of a single variable. Parametric curves are defined by pairs of functions, \(x(t)\) and \(y(t)\), where \(t\) is an independent parameter. This approach allows for the representation of more complex curves that may not be expressible as a function of \(x\) alone. For instance, the slope of a curve at any point can be determined by the derivative \(dy/dx\), which is computed as \(dy/dx = \frac{dy/dt}{dx/dt}\). In the case of the parametric equations \(x(t) = t^2\) and \(y(t) = t^3\), the slope is \(dy/dx = \frac{3t^2}{2t} = \frac{3}{2}t\), provided \(t \neq 0\).The Versatile Applications of Parametric Curves Across Disciplines
Parametric curves have a wide range of applications in various scientific and engineering disciplines. In physics, they are used to model the motion of particles through space, while in engineering, they can describe the path of a moving object under the influence of forces. Economists use parametric curves to represent economic indicators over time, and in computer graphics, they are crucial for creating realistic animations and modeling complex shapes. For example, the position of a particle moving in space can be described by parametric equations that define its coordinates as functions of time, facilitating the computation of velocity and acceleration vectors at any instant. The broad applicability of parametric curves highlights their significance in both theoretical and practical contexts.Classifying and Analyzing Common Types of Parametric Curves
There are several types of parametric curves, each with distinct characteristics and equations. Circles, for example, can be described parametrically by \(x(t) = r\cos(t)\) and \(y(t) = r\sin(t)\), where \(r\) is the radius and \(t\) represents the angle in radians. Ellipses extend this concept with semi-major and semi-minor axes, \(a\) and \(b\), leading to the equations \(x(t) = a\cos(t)\) and \(y(t) = b\sin(t)\). Hyperbolas and spirals, such as the Archimedean spiral, are also expressed parametrically, with the latter given by \(x(t) = a\cdot t\cdot\cos(t)\) and \(y(t) = a\cdot t\cdot\sin(t)\), where \(a\) is a scaling factor. Understanding these parametric forms is crucial for applying calculus techniques to analyze and interpret the properties of these curves.Fundamental Calculus Formulas for Parametric Curves

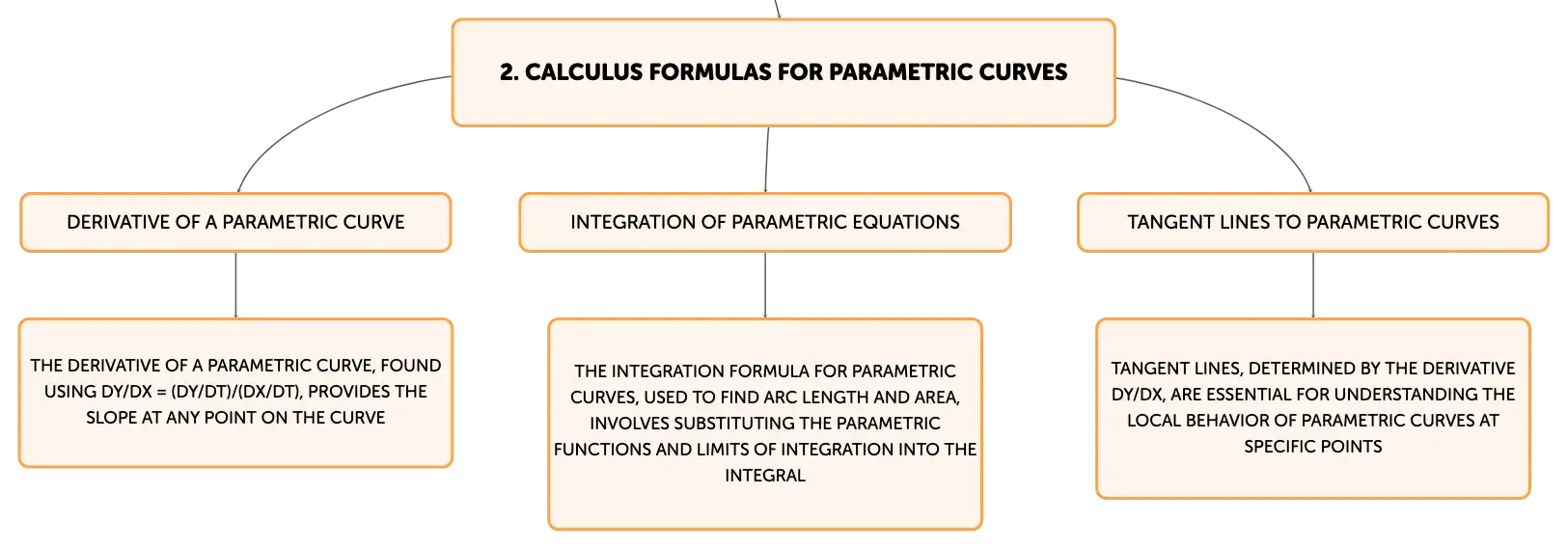

Analyzing parametric curves involves applying key calculus formulas. The derivative of a parametric curve, which provides the slope at any point, is found using \(\frac{dy}{dx} = \frac{dy/dt}{dx/dt}\). For integration, the formula to find the arc length or the area under a parametric curve is \(\int_{a}^{b} \sqrt{(\frac{dx}{dt})^2 + (\frac{dy}{dt})^2} dt\), where \(x(t)\) and \(y(t)\) are the parametric functions and \(a\) and \(b\) are the limits of integration. This integral is essential for calculating the length of a curve segment, known as the arc length, and is a fundamental concept in the study of parametric curves.Calculating Arc Length of Parametric Curves with Precision
The arc length of a parametric curve is a measure of the distance along the curve between two points. The formula for arc length is \( l = \int_{a}^{b} \sqrt{(\frac{dx}{dt})^2 + (\frac{dy}{dt})^2} dt \), which integrates the square root of the sum of the squares of the derivatives of \(x(t)\) and \(y(t)\) with respect to \(t\). To find the arc length of the curve defined by \(x(t) = t^2\) and \(y(t) = e^t\) over the interval \([0, 2]\), one must first compute the derivatives \(dx/dt = 2t\) and \(dy/dt = e^t\), then evaluate the integral of the square root of their squares over the given interval. This process is fundamental in various fields, such as physics and engineering, where precise measurements of length are required.Step-by-Step Integration of Parametric Equations
The integration of parametric equations involves a systematic approach. Begin by differentiating the \(x(t)\) and \(y(t)\) functions with respect to \(t\). Then, apply the chain rule for substitution, which allows the integral to be expressed solely in terms of \(t\). This is achieved by multiplying and dividing the integral by \(dx/dt\), effectively converting the integral into a function of \(t\). After substituting the appropriate limits of integration, the integral can be simplified and evaluated. This method is particularly useful in physics and engineering for calculating quantities such as work done by a force or the center of mass of an object with variable density.The Significance of Tangent Lines in Parametric Curves
Tangent lines are essential for understanding the local behavior of parametric curves at specific points. The slope of a tangent line is determined by the derivative \(dy/dx\), which is the ratio of \(dy/dt\) to \(dx/dt\). This slope reflects the instantaneous rate of change of the curve at a point and is instrumental in analyzing the curve's properties, such as identifying points of inflection or assessing the steepness. For instance, the tangent line to the curve defined by \(x(t) = 3t^2\) and \(y(t) = 2t^3\) at \(t = 1\) has a slope of \(dy/dx = \frac{6t^2}{6t} = t\), which equals 1 when \(t = 1\). The concept of tangent lines is not only a fundamental aspect of calculus but also has deep roots in the history of mathematics, dating back to the work of ancient Greek geometers.Want to create maps from your material?
