Metal Extraction

Metal extraction is a key industrial process that separates valuable metals from their ores. It involves ore concentration, roasting, reduction, and refining stages, each critical for producing high-quality metals. The techniques used depend on metal reactivity, with highly reactive metals requiring electrolysis and less reactive ones using reduction methods. Understanding these processes is crucial for efficiency and environmental sustainability, as the industry evolves towards greener methods like phytomining and bioleaching.

See more

1/5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Purpose of ore concentration in metal extraction

Click to check the answer

Increases metal content of ore by removing excess gangue material.

2

Role of roasting/calcination

Click to check the answer

Eliminates volatile impurities from ore through heating.

3

Objective of metal refining

Click to check the answer

Purifies extracted metal to achieve desired purity standards.

4

The production of materials for various applications relies heavily on the ______ of metals, which is crucial in modern industry.

Click to check the answer

extraction

5

Extraction of highly reactive metals

Click to check the answer

Employ electrolysis, using electric current to decompose metal compounds.

6

Extraction of metals with lower reactivity

Click to check the answer

Use reduction with carbon or carbon monoxide, such as iron in a blast furnace.

7

Aluminium production process

Click to check the answer

Electrolysis of alumina dissolved in molten cryolite.

8

The ______ Free Energy equation is used to determine if a reaction will occur spontaneously.

Click to check the answer

Gibbs

9

Metals like ______ and ______ are high in the reactivity series, thus requiring electrolysis for extraction.

Click to check the answer

potassium sodium

10

Ore concentration significance

Click to check the answer

Concentrates ore by removing unwanted materials, increasing metal content before heating.

11

Refining purpose in metal extraction

Click to check the answer

Enhances metal purity by removing impurities post-reduction to elemental form.

12

______ refining is a process where an electric current deposits pure metal onto a ______ to achieve exceptional purity.

Click to check the answer

Electrolytic cathode

13

Reduction of iron(III) oxide equation

Click to check the answer

Fe2O3 + 3CO -> 2Fe + 3CO2; iron(III) oxide reacts with carbon monoxide to produce iron and carbon dioxide.

14

Role of electron transfer in metal extraction

Click to check the answer

Electron transfer is fundamental in reduction-oxidation reactions, where metal ions gain electrons to become pure metals.

15

______ uses plants that absorb high amounts of metals to gather these elements from the soil.

Click to check the answer

Phytomining

16

______ involves using microorganisms to transform metal compounds into forms that are more easily extracted.

Click to check the answer

Bioleaching

17

Importance of metal extraction in sustainability

Click to check the answer

Metal extraction knowledge is crucial for sustainable resource management and environmental protection.

18

Role of metal extraction in scientific progress

Click to check the answer

Understanding metal extraction drives scientific advancements and innovation in material science.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Chemistry

Organic Chemistry and Its Applications

Chemistry

Ruff Degradation: A Key Technique in Carbohydrate Chemistry

Chemistry

Enolate Ions: Key Intermediates in Organic Chemistry

Chemistry

Alkene Nomenclature

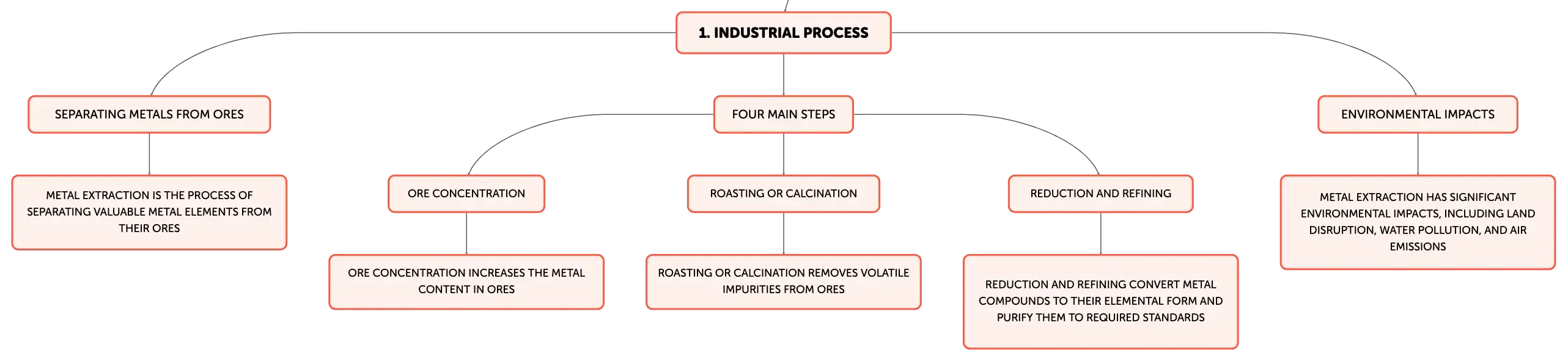

Principles of Metal Extraction from Ores

Metal extraction is a crucial industrial process that involves separating metals from their ores, which are minerals containing valuable metal elements combined with other substances. The extraction of metals is vital for creating the raw materials that are foundational to numerous products, from infrastructure to high-tech devices. The process typically involves four main steps: ore concentration to increase the metal content; roasting or calcination to remove volatile impurities; reduction, which converts the metal compound to its elemental form; and refining, which purifies the metal to the required standards.
Industrial blast furnace for metal extraction with workers in green overalls and orange helmets, controls and orange glow from opening.

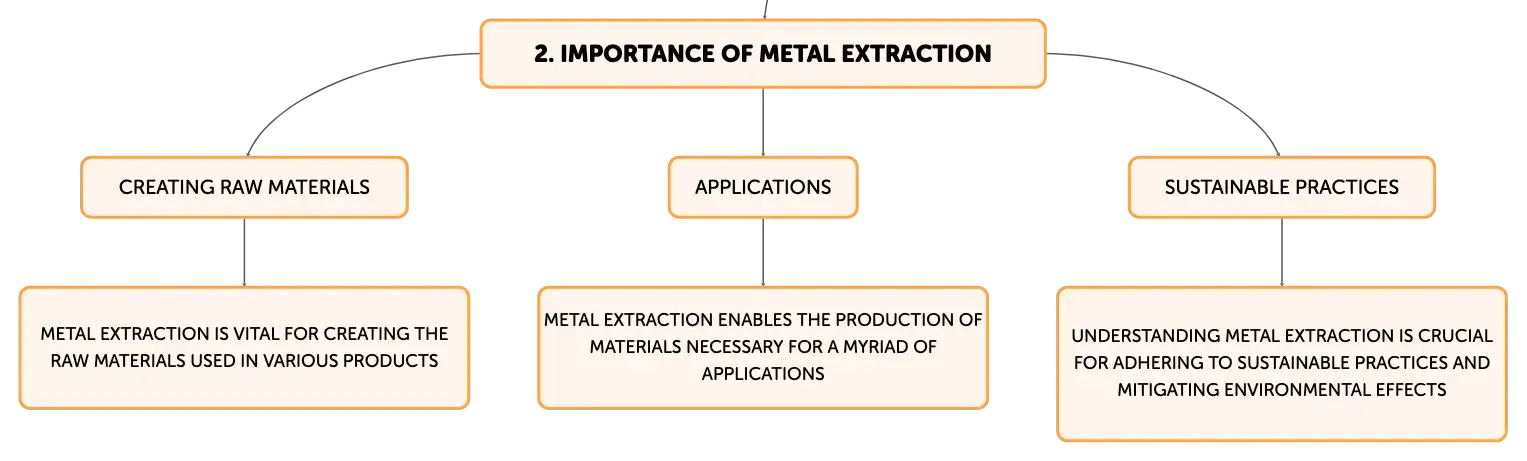

The Role of Metal Extraction in Industry and Environment

Metal extraction plays an indispensable role in modern industry, enabling the production of materials necessary for a myriad of applications. The process is complex and has significant environmental impacts, including land disruption, water pollution, and air emissions. It is imperative to understand the science behind metal extraction not only to produce materials efficiently but also to mitigate the environmental effects and adhere to sustainable practices.

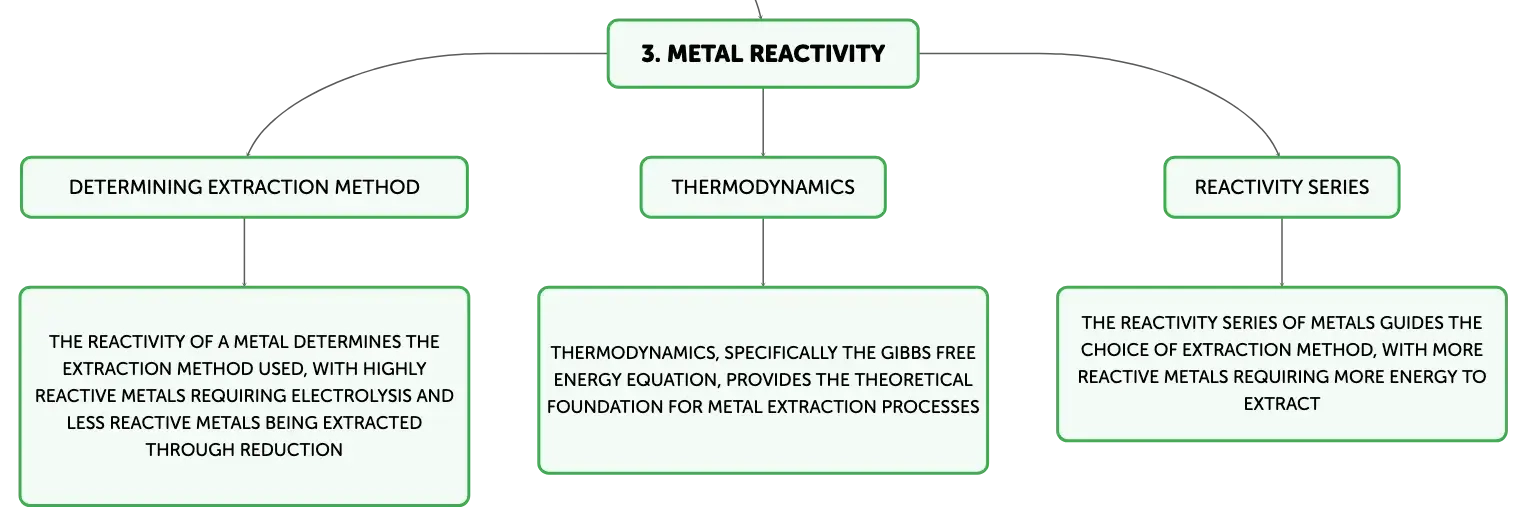

Extraction Techniques Based on Metal Reactivity

The extraction technique employed for a metal is largely determined by the metal's reactivity. Highly reactive metals, such as sodium and potassium, are typically extracted by electrolysis, where an electric current is used to decompose the metal compound. Metals of lower reactivity, such as iron, are often extracted using reduction with carbon or carbon monoxide. For instance, aluminium is produced by electrolysis of alumina dissolved in molten cryolite, while iron is extracted in a blast furnace through reduction of iron oxides by carbon monoxide.

Thermodynamics in Metal Extraction Processes

Thermodynamics provides the theoretical foundation for metal extraction processes. The Gibbs Free Energy equation, \(\Delta G = \Delta H - T\Delta S\), predicts whether a reaction is spontaneous under certain conditions. The reactivity series of metals, which orders metals by their tendency to lose electrons, guides the choice of extraction method. Metals higher in the series, such as potassium and sodium, require more energy to extract, often necessitating electrolysis, while those lower in the series may be found in a native state and can be obtained with less energy-intensive methods.

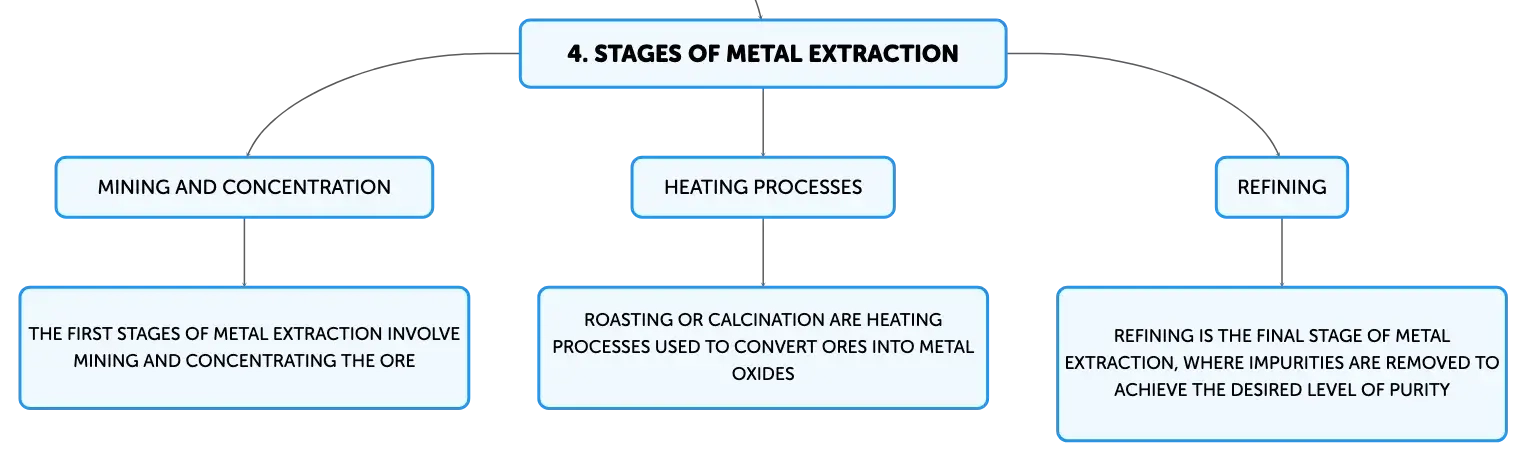

Key Stages in the Metal Extraction Process

The extraction of metals from their ores involves several critical stages. Mining and concentration of the ore precede the heating processes of roasting or calcination, which convert the ore into metal oxides. These oxides are then reduced to the elemental metal, which undergoes refining to remove impurities. Each stage is meticulously controlled to ensure the production of high-quality metal.

Refinement and Purification of Metals

Following reduction, metals often contain impurities that must be eliminated to achieve the desired level of purity. Various techniques, such as distillation for volatile metals, liquation for metals with low melting points, and electrolytic refining for high-purity requirements, are employed. Electrolytic refining, in particular, involves using an electric current to deposit pure metal onto a cathode, resulting in a product of exceptional purity.

Chemical Reactions Involved in Metal Extraction

Chemical reactions are central to the metal extraction process. For example, the reduction of iron(III) oxide by carbon monoxide in a blast furnace is represented by the equation \(Fe2O3 + 3CO \rightarrow 2Fe + 3CO2\), which demonstrates the chemical changes and electron transfer that occur. A thorough understanding of these reactions is essential for optimizing extraction processes and for the development of more efficient and environmentally friendly methods.

Evolution of Metal Extraction Techniques

Metal extraction has evolved from traditional methods of concentration, reduction, and refining to include innovative, environmentally conscious techniques. Phytomining utilizes hyperaccumulating plants to concentrate metals from the soil, while bioleaching employs microorganisms to convert metal compounds into soluble forms for easier extraction. These emerging methods reflect a shift towards sustainable metal extraction practices.

Educational Importance of Metal Extraction

Comprehending metal extraction processes is essential for recognizing the extensive efforts involved in producing everyday metal objects and for understanding the intersection of science, technology, and environmental stewardship. As the world grapples with sustainability and resource management, knowledge of metal extraction is increasingly vital, driving scientific progress and promoting a deeper appreciation of the materials that constitute our civilization.
