Benzene and its Chemistry

Concept Map

Exploring the chemistry of TNT and benzene, this overview delves into the explosive properties of trinitrotoluene and the stability of benzene due to aromaticity. It discusses electrophilic aromatic substitution reactions, the influence of substituents on benzene reactivity, and the versatility of benzene derivatives in synthetic chemistry.

Summary

Outline

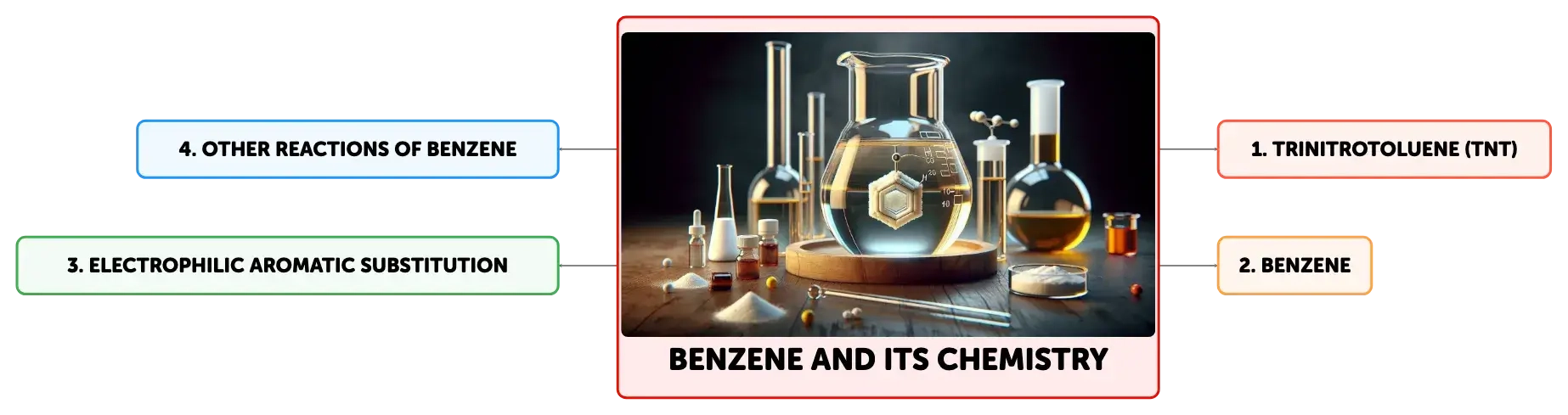

Benzene and its Chemistry

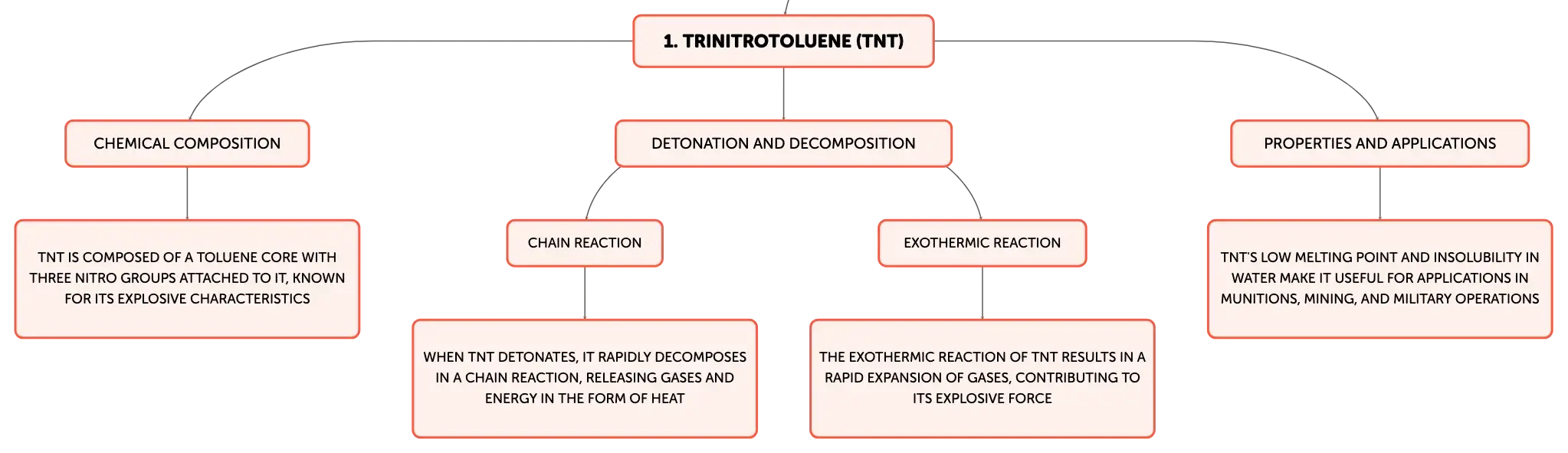

Trinitrotoluene (TNT)

Chemical Composition

TNT is composed of a toluene core with three nitro groups attached to it, known for its explosive characteristics

Detonation and Decomposition

Chain Reaction

When TNT detonates, it rapidly decomposes in a chain reaction, releasing gases and energy in the form of heat

Exothermic Reaction

The exothermic reaction of TNT results in a rapid expansion of gases, contributing to its explosive force

Properties and Applications

TNT's low melting point and insolubility in water make it useful for applications in munitions, mining, and military operations

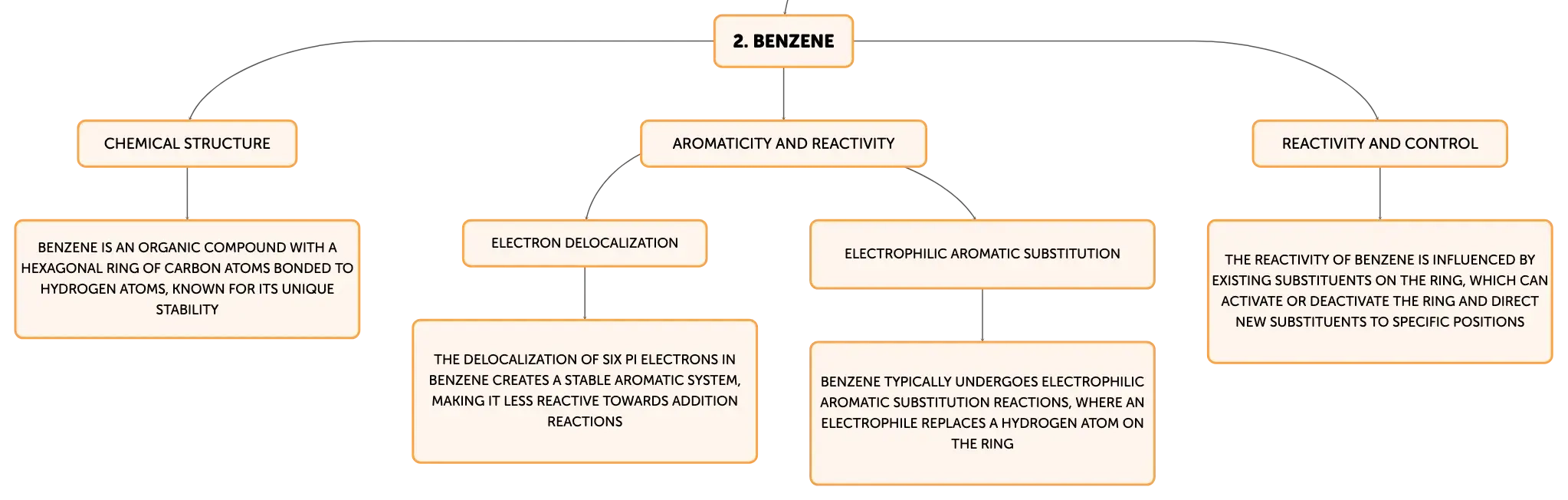

Benzene

Chemical Structure

Benzene is an organic compound with a hexagonal ring of carbon atoms bonded to hydrogen atoms, known for its unique stability

Aromaticity and Reactivity

Electron Delocalization

The delocalization of six pi electrons in benzene creates a stable aromatic system, making it less reactive towards addition reactions

Electrophilic Aromatic Substitution

Benzene typically undergoes electrophilic aromatic substitution reactions, where an electrophile replaces a hydrogen atom on the ring

Reactivity and Control

The reactivity of benzene is influenced by existing substituents on the ring, which can activate or deactivate the ring and direct new substituents to specific positions

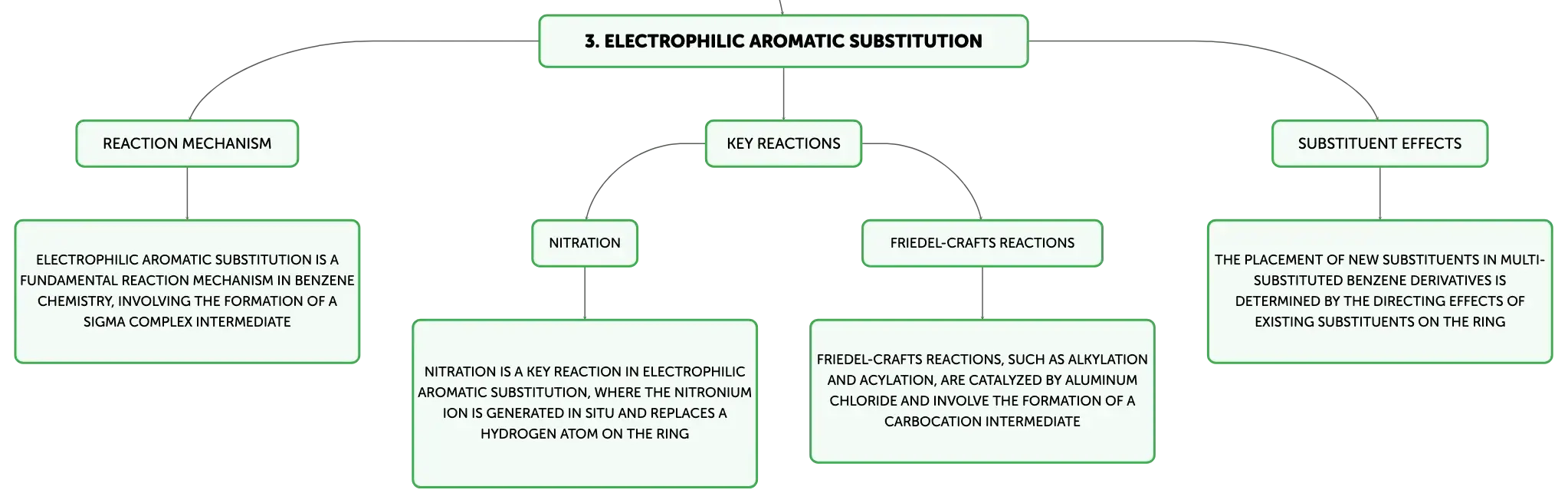

Electrophilic Aromatic Substitution

Reaction Mechanism

Electrophilic aromatic substitution is a fundamental reaction mechanism in benzene chemistry, involving the formation of a sigma complex intermediate

Key Reactions

Nitration

Nitration is a key reaction in electrophilic aromatic substitution, where the nitronium ion is generated in situ and replaces a hydrogen atom on the ring

Friedel-Crafts Reactions

Friedel-Crafts reactions, such as alkylation and acylation, are catalyzed by aluminum chloride and involve the formation of a carbocation intermediate

Substituent Effects

The placement of new substituents in multi-substituted benzene derivatives is determined by the directing effects of existing substituents on the ring

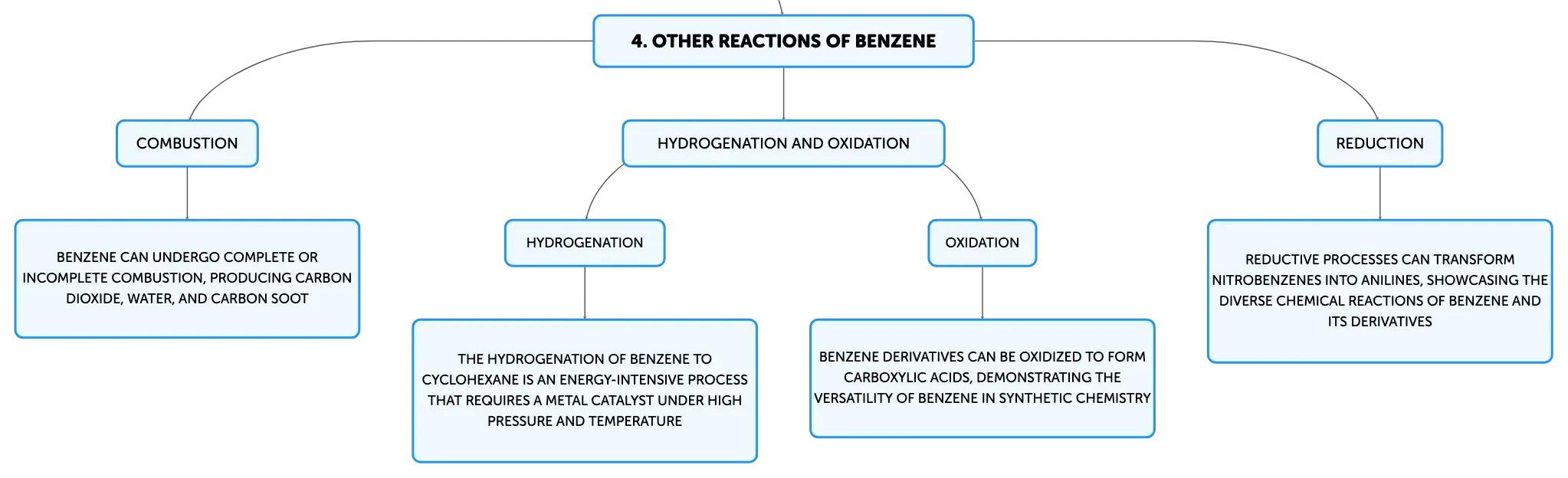

Other Reactions of Benzene

Combustion

Benzene can undergo complete or incomplete combustion, producing carbon dioxide, water, and carbon soot

Hydrogenation and Oxidation

Hydrogenation

The hydrogenation of benzene to cyclohexane is an energy-intensive process that requires a metal catalyst under high pressure and temperature

Oxidation

Benzene derivatives can be oxidized to form carboxylic acids, demonstrating the versatility of benzene in synthetic chemistry

Reduction

Reductive processes can transform nitrobenzenes into anilines, showcasing the diverse chemical reactions of benzene and its derivatives

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

Explosive characteristics of TNT

TNT detonates via rapid decomposition in a chain reaction, releasing gases and heat, resulting in explosive force.

Products of TNT detonation

TNT decomposition produces nitrogen, water vapor, carbon dioxide, and energy.

Advantages of TNT's low melting point

TNT's melting point of 80 °C allows for safe melting and pouring into munitions.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Glass flask on wooden laboratory bench with slightly yellow liquid and bubbles, stirring rod on the left, bottles in the background.

Enolate Ions: Key Intermediates in Organic Chemistry

Laboratory with round bottom flask connected to condenser, heated plate on, beaker with colorless liquid and mortar with white powder.

Organic Chemistry and Its Applications

Glass flask on laboratory bench with layered liquids in blue, yellow and red, dropper with green liquid on top, beaker and glassware in background.

Cycloaddition Reactions in Organic Chemistry

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Benzene and Electrophilic Aromatic Substitution

Electrophilic aromatic substitution is a fundamental reaction mechanism in benzene chemistry, where an electrophile replaces a hydrogen atom on the benzene ring. This process involves the formation of a sigma complex intermediate, followed by the loss of a proton to regenerate the aromatic system. Key reactions of this type include nitration, sulfonation, halogenation, and Friedel-Crafts alkylation and acylation. These reactions are catalyzed by acids such as sulfuric or hydrochloric acid for halogenation, or aluminum chloride for Friedel-Crafts reactions. The electrophiles in these reactions, such as the nitronium ion (NO2+) for nitration or the acylium ion (RCO+) for acylation, are generated in situ from the respective reagents and catalysts.

Substituent Effects on Benzene Reactivity

The reactivity of benzene toward electrophilic substitution is influenced by existing substituents on the ring, which can activate or deactivate the ring and direct new substituents to specific positions. Electron-donating groups, such as alkyl chains, activate the benzene ring and direct incoming electrophiles to the ortho and para positions relative to themselves. Conversely, electron-withdrawing groups, such as nitro groups, deactivate the ring and direct new substituents to the meta position. These directing effects are crucial for controlling the outcome of multi-substituted benzene derivatives, such as TNT, where the placement of each nitro group is determined by the methyl group and the other nitro groups already present on the ring.

Additional Reactions of Benzene and Its Derivatives

In addition to electrophilic substitution, benzene and its derivatives can undergo a variety of other reactions. Complete combustion of benzene yields carbon dioxide and water, while incomplete combustion can produce carbon soot due to the high carbon-to-hydrogen ratio. Hydrogenation of benzene to cyclohexane is an energy-intensive process due to the stability of the aromatic system and typically requires a metal catalyst under high pressure and temperature. Oxidation reactions can convert alkylbenzenes to carboxylic acids, and reductive processes can transform nitrobenzenes into anilines. These reactions demonstrate the chemical versatility of benzene and its derivatives in synthetic chemistry.

Overview of Benzene's Electrophilic Substitution

Benzene's chemistry is predominantly characterized by its electrophilic aromatic substitution reactions, which allow for the introduction of a wide array of functional groups while preserving the stability of the aromatic ring. These reactions are fundamental to the synthesis of various organic compounds, ranging from explosives like TNT to pharmaceuticals and industrial chemicals. A thorough understanding of these reaction mechanisms is essential for chemists to effectively manipulate benzene's reactivity for the production of desired chemical products, highlighting the significance of benzene as a central component in the field of organic chemistry.
