Distillation: A Fundamental Separation Technique

Concept Map

Algorino

Edit available

Crude oil distillation is a process that separates hydrocarbon components based on their boiling points. This text explores the principles of simple and fractional distillation, their industrial uses in desalination and waste management, and the molecular interactions that affect distillation efficiency. Understanding these principles is essential for professionals in chemistry and environmental science.

Summary

Outline

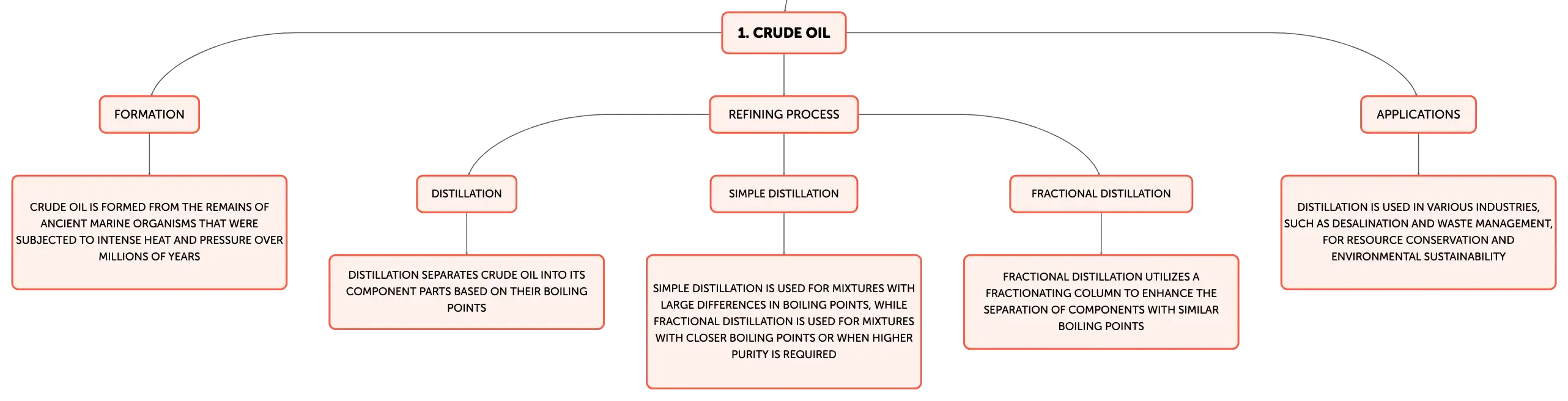

Exploring Crude Oil and Its Distillation Process

Crude oil is a fossil fuel composed primarily of hydrocarbons, formed from the remains of ancient marine organisms that settled on the ocean floor millions of years ago. Over time, these organic materials were covered by layers of silt and sediment, which subjected them to intense heat and pressure, transforming them into oil and natural gas. The sediment layers above became sedimentary rock. To utilize the various hydrocarbons present in crude oil, such as those used for gasoline, diesel, and jet fuel, the oil undergoes a refining process. The initial step in this process is distillation, which separates the oil into its component parts, or fractions, based on their boiling points.

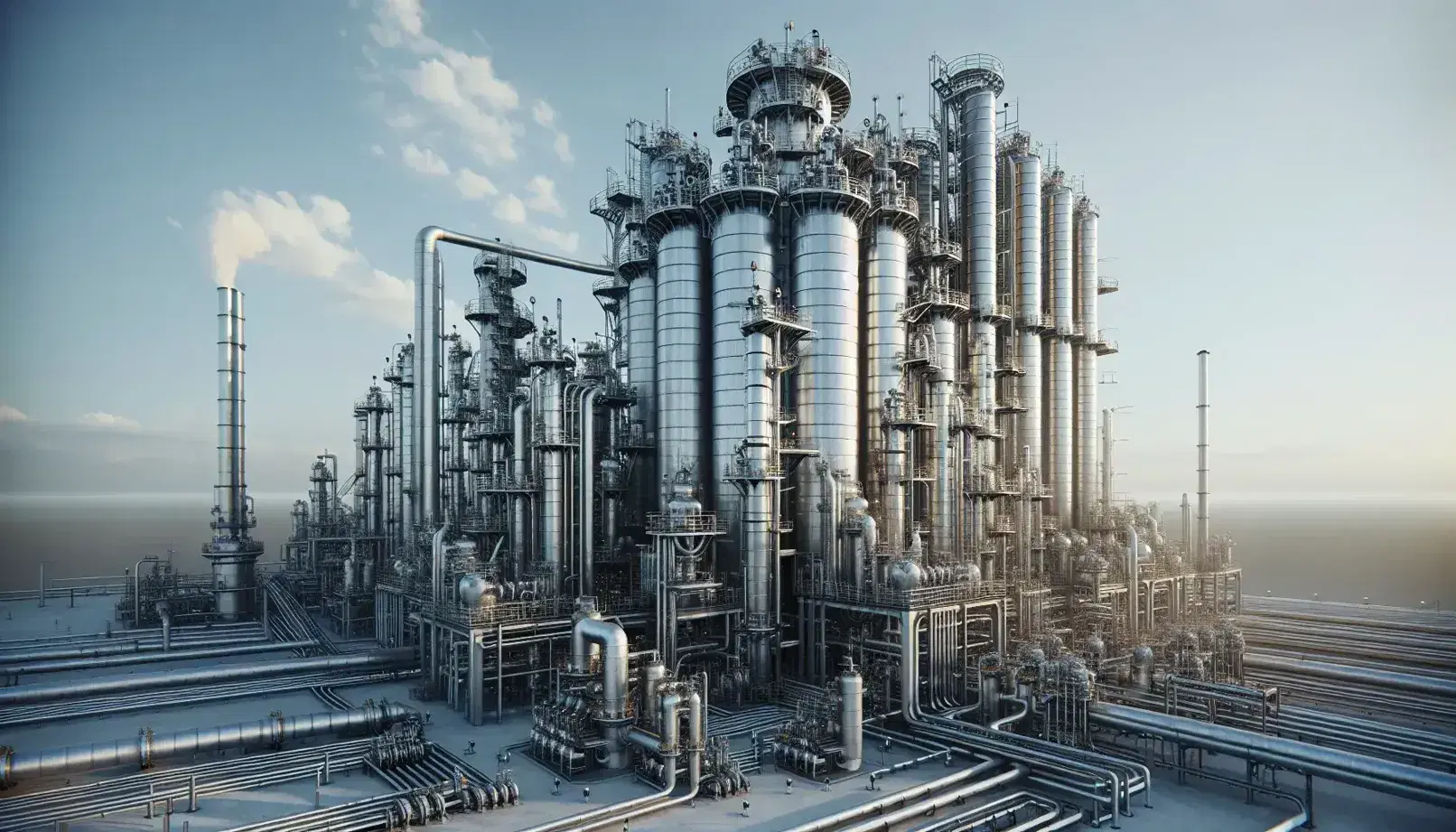

Industrial distillation column for crude oil, metallic cylindrical structure with pipes and valves, under blue sky without people.

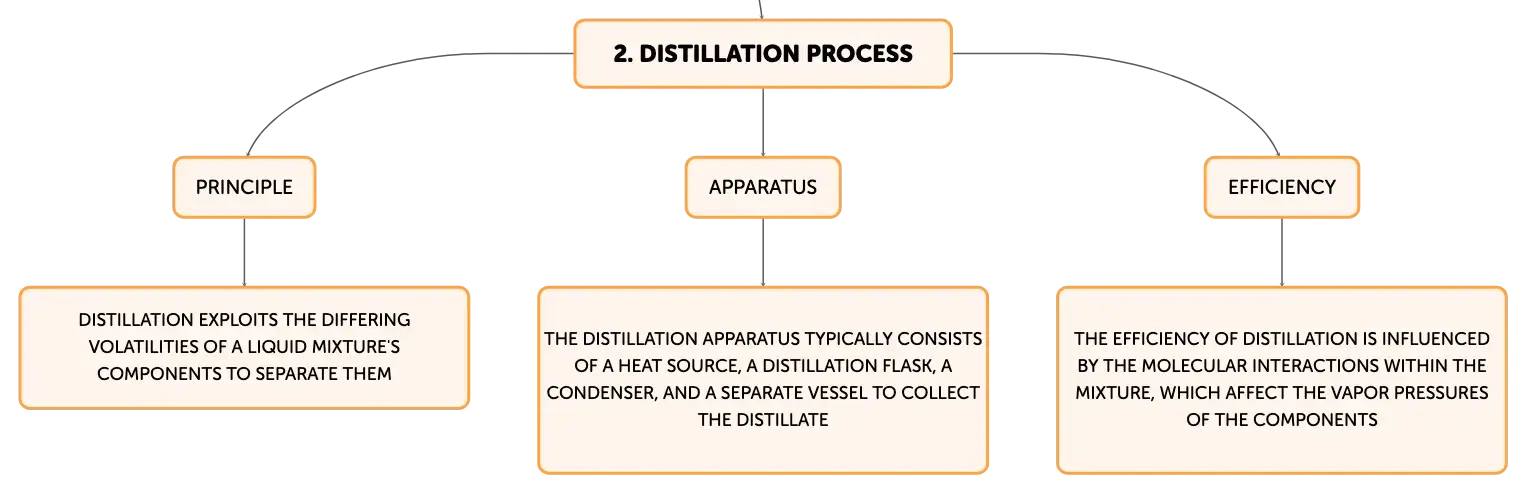

The Principles of Distillation

Distillation is a fundamental separation technique that exploits the differing volatilities of a liquid mixture's components. The process involves heating the mixture until the more volatile substances vaporize. These vapors are then directed into a cooling system, where they condense back into liquid form, known as the distillate. The distillation apparatus typically consists of a heat source, a distillation flask containing the mixture, a condenser to cool the vapors, and a separate vessel to collect the distillate. The underlying principle is that substances with lower boiling points vaporize at lower temperatures, allowing for their sequential separation.

Comparing Simple and Fractional Distillation

Simple and fractional distillation are two common methods used to separate liquid mixtures. Simple distillation is most effective for mixtures with components that have a large difference in boiling points, usually more than 40-50 °C apart. It involves a single stage of vaporization and condensation. For example, in a mixture of liquids with boiling points of 50 °C and 90 °C, heating will cause the substance with the lower boiling point to vaporize and be collected first. Fractional distillation, on the other hand, is necessary for mixtures with closer boiling points or when a higher purity is required. This technique utilizes a fractionating column, which is filled with materials that provide surface area for multiple vaporization-condensation cycles, thereby enhancing the separation of components with similar boiling points.

Industrial and Environmental Applications of Distillation

Distillation is a versatile process with numerous industrial and environmental applications. It is essential in desalination plants, where seawater is distilled to produce potable water by removing salts and other impurities. In the field of waste management, distillation is used to recycle oils, separating usable oil from contaminants such as water and particulates. These applications demonstrate the critical role of distillation in resource conservation and environmental sustainability, making it an indispensable process in various sectors.

Molecular Interactions and Distillation Efficiency

The efficiency of distillation is influenced by the molecular interactions within the mixture, which affect the vapor pressures of the components. Substances with stronger intermolecular forces, such as ion-dipole, hydrogen bonding, dipole-dipole, and London dispersion forces, generally have higher boiling points. A thorough understanding of these forces is crucial for predicting the separation behavior of mixture components during distillation. For students and professionals in the field of chemistry, mastering the principles of distillation is key to comprehending the properties of chemical mixtures and their practical separation for various applications.
