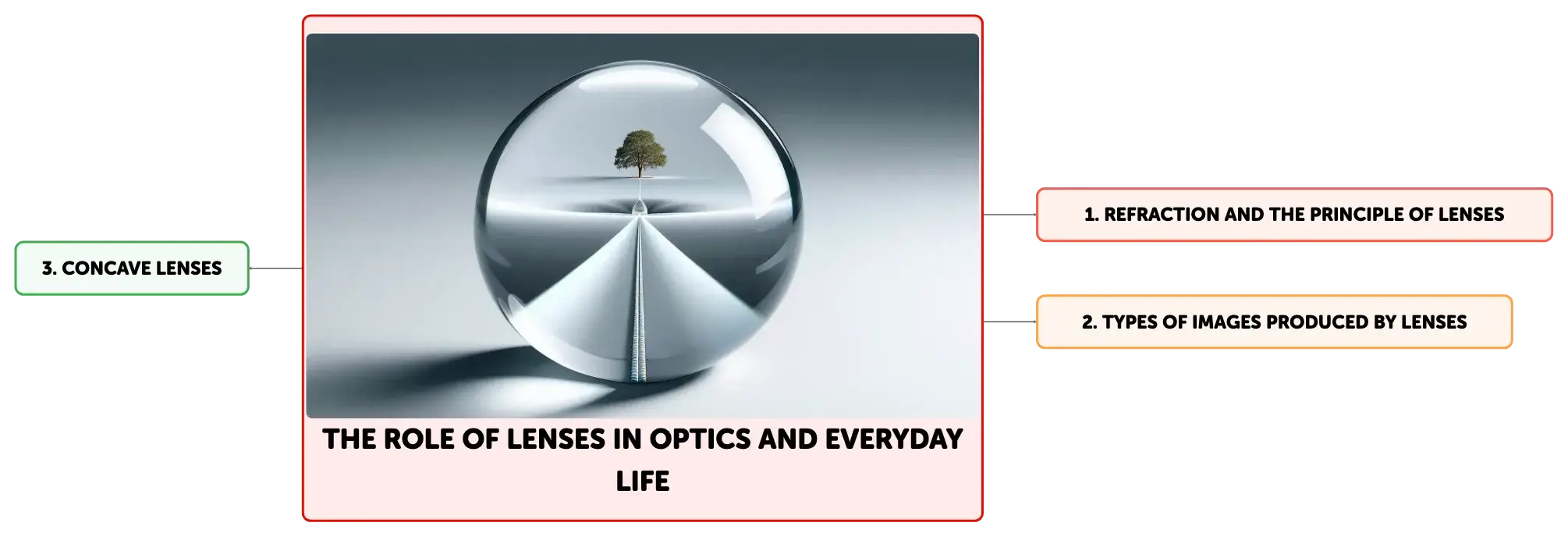

The Role of Lenses in Optics and Everyday Life

Principles of Image Formation Using Lenses

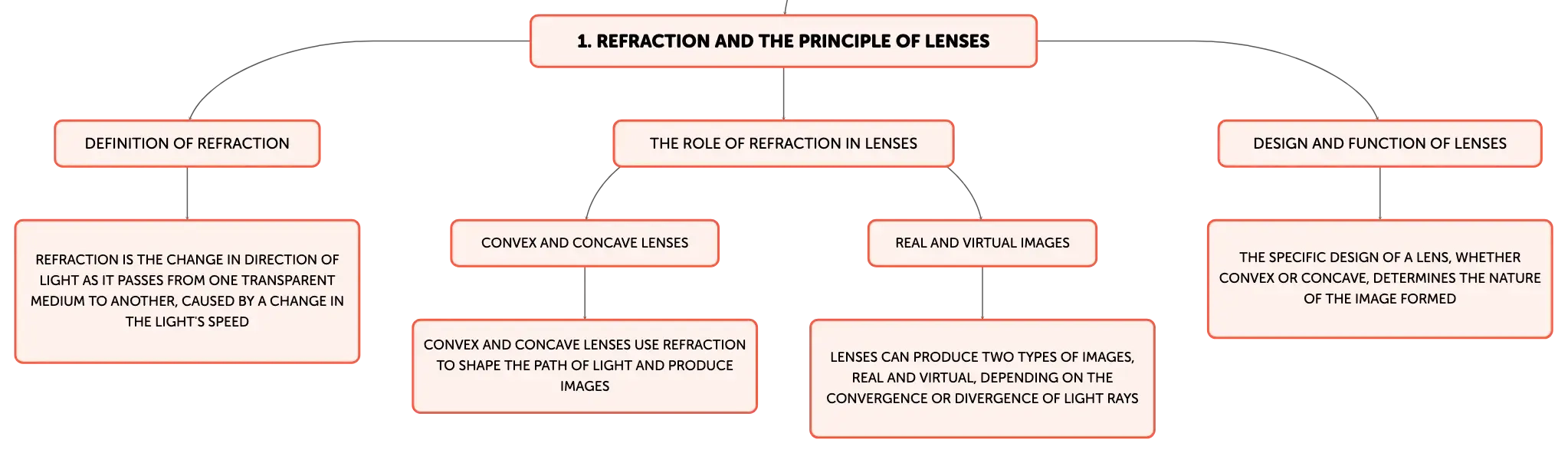

Lenses are vital optical instruments that shape the path of light to produce images, based on the principle of refraction. Refraction is the change in direction of light as it passes from one transparent medium to another, caused by a change in the light's speed. This effect is commonly seen when a straw appears bent in water. The refractive index disparity between air and the lens material, coupled with the lens's curvature, causes light rays to either converge at a focal point or diverge. The specific design of the lens—convex or concave—determines the nature of the image formed, whether it be real or virtual.

Differentiating Real and Virtual Images

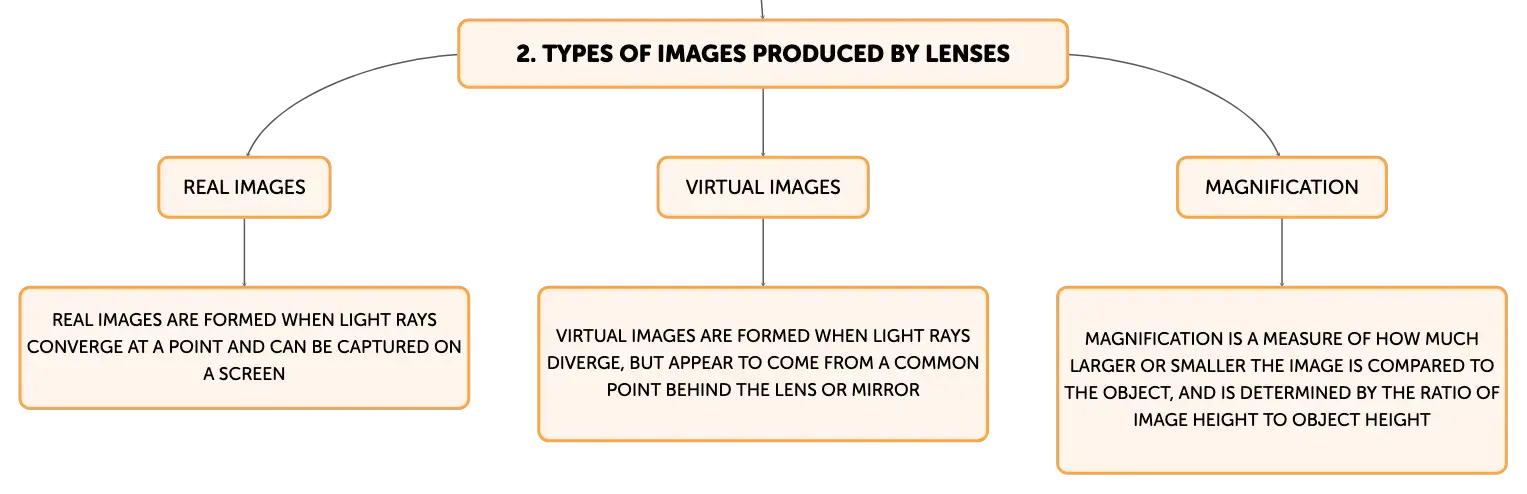

Lenses produce two main types of images: real and virtual. Real images are formed when light rays actually converge at a point and can be captured on a screen, such as the inverted image produced by a concave mirror. Virtual images, in contrast, are formed when light rays diverge, but appear to come from a common point behind the lens or mirror. These images cannot be projected onto a screen because the light rays do not actually meet. A common example of a virtual image is the upright reflection seen in a plane mirror.

The Concept of Magnification in Lenses

Magnification is a measure of how much larger or smaller the image is compared to the object. It is defined as the ratio of the image's height to the object's height, given by the formula: magnification = image height / object height. This ratio is dimensionless and thus has no units. For example, an object that is 4 cm tall and produces a 12 cm tall image through a lens has a magnification of 3, indicating that the image is three times the size of the object.

Image Formation by Convex Lenses

Convex lenses, also known as converging lenses, are thicker at the center and taper towards the edges. They refract parallel incoming light rays to converge at a focal point. The distance from this focal point to the lens is the focal length. Ray diagrams, which trace the path of light through the lens, can be used to predict image formation. The rules for ray diagrams with convex lenses are: rays entering parallel to the principal axis converge at the focal point, rays passing through the center of the lens continue in a straight line, and rays directed towards the focal point on one side emerge parallel to the principal axis on the other side.

Variability in Convex Lens Image Formation

The properties of the image produced by a convex lens depend on the object's distance from the lens. If the object is placed beyond twice the focal length, the image is real, smaller, and inverted. At exactly twice the focal length, the image is real, inverted, and the same size as the object. When the object is between one and two focal lengths, the image is real, larger, and inverted. At the focal length, no real image is formed; instead, the rays are parallel and the image is theoretically at infinity. If the object is within the focal length, the image is virtual, upright, and enlarged, which is the principle behind magnifying glasses.

Convex Lenses for Correcting Hyperopia

Convex lenses are commonly used to correct hyperopia, or farsightedness, a condition where the eye's lens focuses light behind the retina, making nearby objects appear blurry. Convex lenses correct this by converging light rays before they enter the eye, ensuring that the focal point falls on the retina, which sharpens the image of close objects.

Image Formation by Concave Lenses

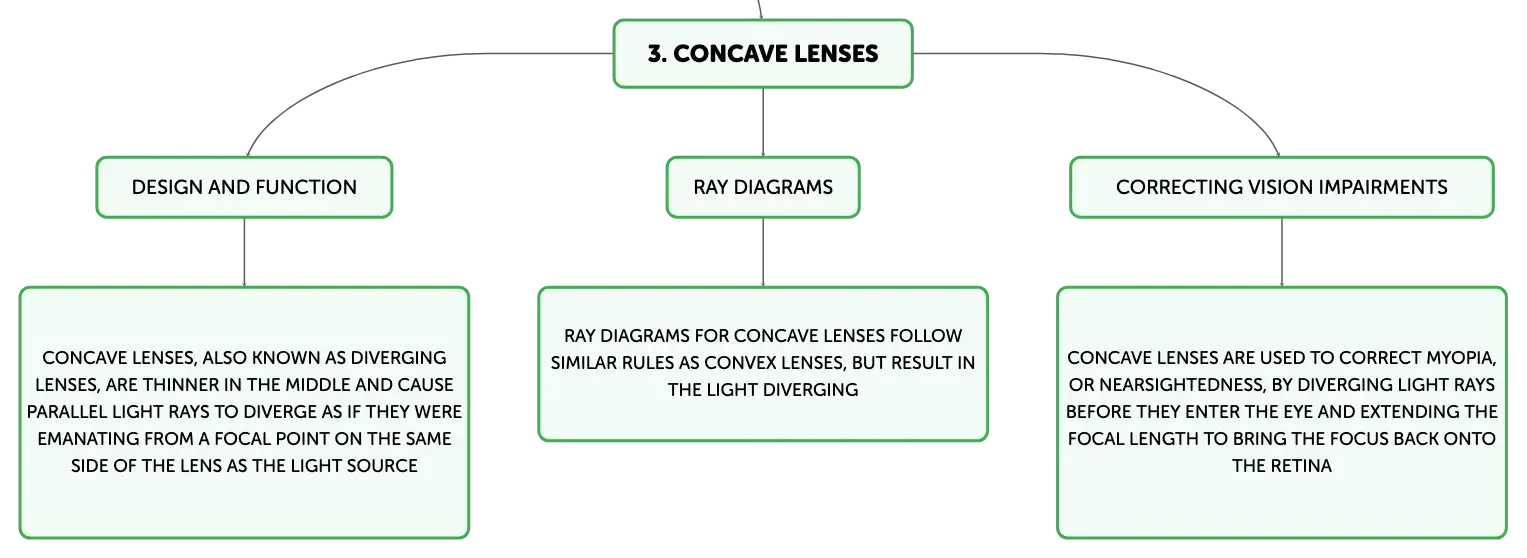

Concave lenses, or diverging lenses, are thinner in the middle than at the edges. They cause parallel light rays to diverge as if they were emanating from a focal point on the same side of the lens as the light source. The rules for tracing light through concave lenses are analogous to those for convex lenses but result in the light diverging. A concave lens always produces a virtual, upright, and smaller image than the object, regardless of the object's position relative to the lens.

Concave Lenses for Correcting Myopia

Concave lenses are used to correct myopia, or nearsightedness, where the eye's lens focuses light in front of the retina, causing distant objects to appear blurry. Concave lenses diverge light rays slightly before they enter the eye, effectively extending the focal length to bring the focus back onto the retina, which clarifies the image of distant objects.

Summary of Lens Image Formation

In conclusion, convex lenses focus light rays and can produce a range of image types, depending on the object's proximity to the lens. Concave lenses, conversely, always diverge light rays, resulting in virtual, upright, and smaller images. Both lens types are instrumental in correcting vision impairments such as hyperopia and myopia, illustrating the practical significance of understanding lens behavior in optics and everyday life.
