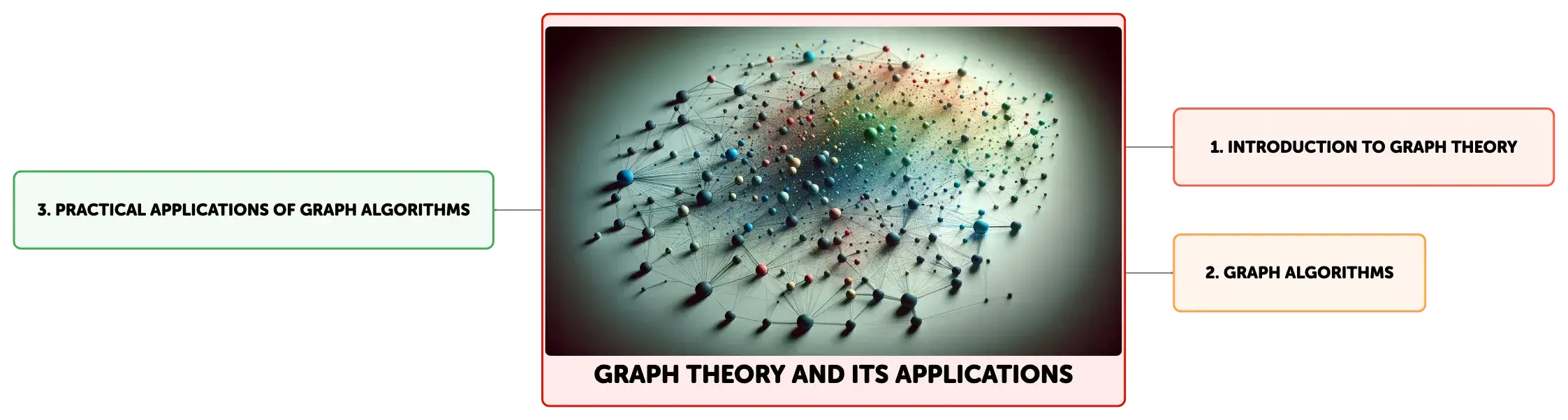

Graph Theory and Its Applications

Graph theory and algorithms form a crucial part of mathematics and computer science, focusing on the relationships between objects modeled as vertices and edges in graphs. This overview discusses different types of graph algorithms, including traversal, shortest path, and flow network algorithms, and their applications in network design, social network analysis, and project management. It also highlights the importance of detecting negative cycles in graphs and the practical use of algorithms like Dijkstra's, Kruskal's, and Ford-Fulkerson's in solving complex real-world problems.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Graph Notation: V(G) and E(G)

Click to check the answer

V(G) represents the set of vertices, E(G) the set of edges in graph G.

2

Vertex Degree: deg(v)

Click to check the answer

deg(v) is the count of edges incident to vertex v.

3

Cardinalities: |V(G)| and |E(G)|

Click to check the answer

|V(G)| is the number of vertices, |E(G)| is the number of edges in graph G.

4

Traversal algorithms like ______ and ______ are used to systematically explore all nodes in a network.

Click to check the answer

Depth-First Search (DFS) Breadth-First Search (BFS)

5

______ and ______ algorithms determine the shortest route between nodes, with the latter also detecting negative cycles.

Click to check the answer

Dijkstra's Bellman-Ford

6

Algorithms such as ______ and ______ are used to maximize flow in a network, which is essential in network design.

Click to check the answer

Ford-Fulkerson Edmonds-Karp

7

Optimal algorithms: Dijkstra's and Floyd-Warshall

Click to check the answer

Ensure most favorable outcome, may be computationally intensive.

8

Greedy algorithms: Kruskal's and Prim's

Click to check the answer

Make locally optimal choices, can lead to global optimum, more efficient.

9

Approximation algorithms: Traveling Salesman Problem

Click to check the answer

Provide near-optimal solutions for complex problems when exact solutions are impractical.

10

______'s algorithm is designed for minimum vertex coloring in ______ graphs.

Click to check the answer

Gilmore's interval

11

Bellman-Ford algorithm purpose

Click to check the answer

Calculates shortest paths in a weighted graph; detects negative cycles by edge relaxation.

12

Floyd-Warshall algorithm functionality

Click to check the answer

Finds shortest paths between all vertex pairs; negative cycle detection via distance matrix inspection.

13

Impact of negative cycles on shortest path algorithms

Click to check the answer

Negative cycles can lead to incorrect shortest path calculations; algorithms must account for them.

14

______'s algorithm is utilized to find the shortest paths in graphs where edges have non-negative weights.

Click to check the answer

Dijkstra

15

The ______ algorithm is applied to determine the maximum flow in networks by identifying augmenting paths progressively.

Click to check the answer

Ford-Fulkerson

16

Graph traversal methods

Click to check the answer

Techniques for visiting nodes in a graph, such as Depth-First Search (DFS) and Breadth-First Search (BFS), used in searching and mapping.

17

Shortest path problem

Click to check the answer

Challenge of finding the minimum distance between nodes; solved by algorithms like Dijkstra's or Bellman-Ford.

18

Importance of detecting negative cycles

Click to check the answer

Crucial for algorithm accuracy; negative cycles affect shortest path calculations and network optimization.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Logistic Regression

Computer Science

Principal Component Analysis (PCA)

Computer Science

Machine Learning and Deep Learning

Computer Science

Cluster Analysis

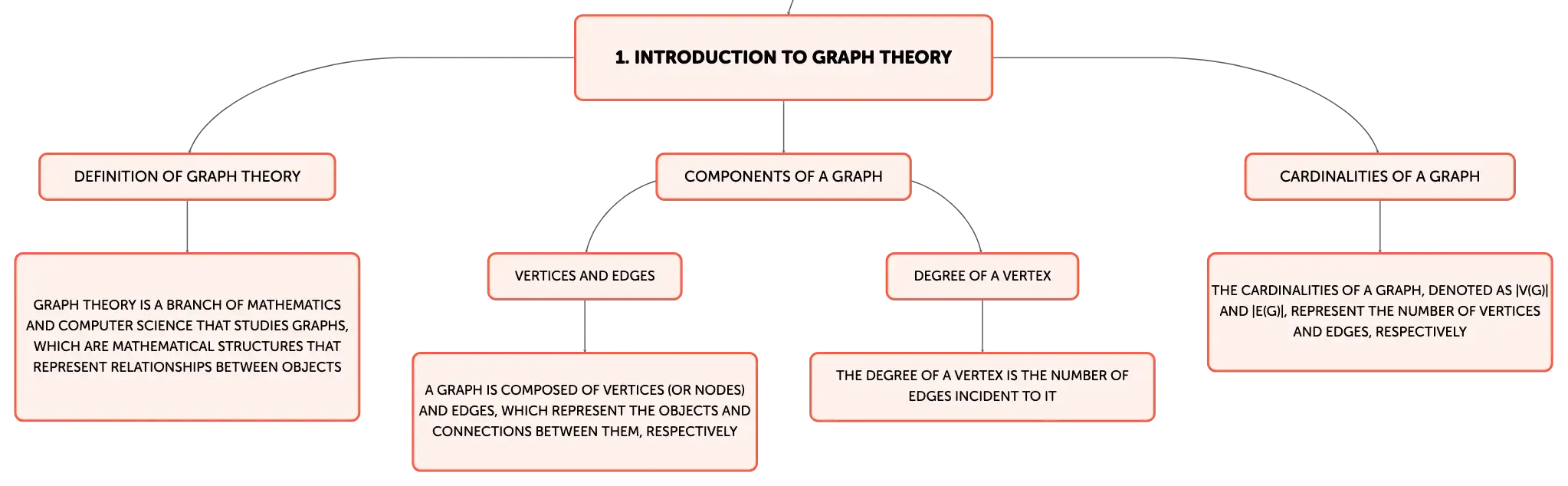

Fundamentals of Graph Theory and Algorithms

Graph theory is an essential branch of mathematics and computer science that deals with the study of graphs—mathematical structures that model relationships between pairs of objects. A graph is composed of vertices (or nodes), which represent the objects, and edges, which represent the connections between them. In graph notation, \(V(G)\) denotes the set of vertices and \(E(G)\) the set of edges of a graph \(G\). The degree of a vertex \(v\), denoted as \(deg(v)\), is the number of edges incident to \(v\). The cardinalities \(|V(G)|\) and \(|E(G)|\) represent the number of vertices and edges, respectively. Mastery of these concepts is vital for exploring graph algorithms, which are systematic procedures designed to address various problems associated with graphs.
Network of interconnected nodes with lines of varying thickness in shades of blue, green, red and yellow on gradient background, graph theory representation.

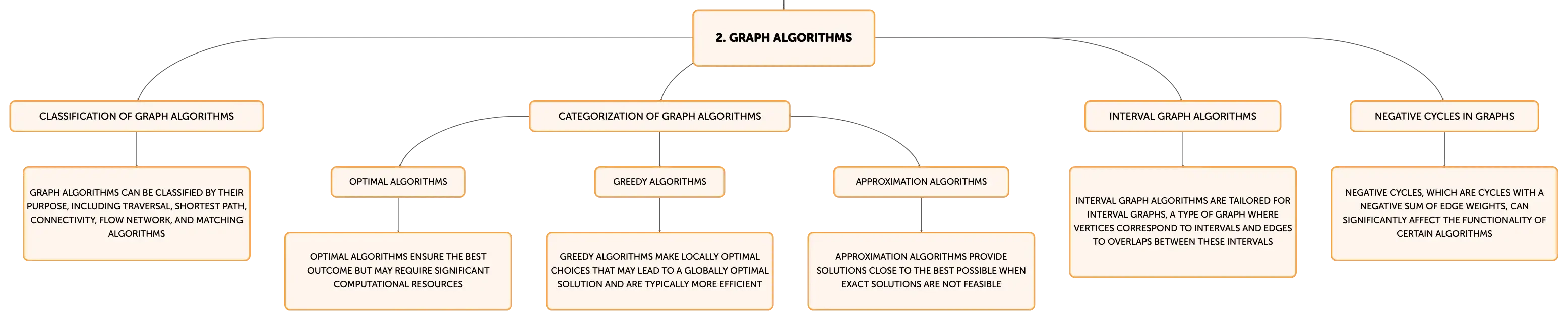

Classification and Uses of Graph Algorithms

Graph algorithms are varied and can be classified by their purpose, including traversal, shortest path, connectivity, flow network, and matching algorithms. Traversal algorithms, such as Depth-First Search (DFS) and Breadth-First Search (BFS), systematically explore all vertices in a graph. Shortest path algorithms like Dijkstra's and Bellman-Ford find the minimal path between vertices, with Bellman-Ford also capable of identifying negative cycles. Connectivity algorithms, exemplified by Kruskal's and Prim's, ascertain whether a path exists between any two vertices. Flow network algorithms, such as Ford-Fulkerson and Edmonds-Karp, are concerned with maximizing flow through a network. Matching algorithms attempt to pair vertices from two different graphs optimally. These algorithms are applied in various fields, including network design, social network analysis, project management, and more.

Approaches to Graph Algorithm Design

Graph algorithms can also be categorized by their approach to solving problems. Optimal algorithms, such as Dijkstra's and Floyd-Warshall, ensure the most favorable outcome but may require significant computational resources. Greedy algorithms, like Kruskal's and Prim's, make a series of locally optimal choices that may lead to a globally optimal solution and are typically more efficient, though not always optimal. Approximation algorithms, useful for computationally complex problems like the traveling salesman problem, provide solutions that are close to the best possible when exact solutions are not feasible. These algorithms are crucial in scenarios where rapid and efficient approximations are necessary.

Specialized Algorithms for Interval Graphs

Interval graph algorithms are tailored for interval graphs, a type of graph where vertices correspond to intervals and edges to overlaps between these intervals. Algorithms such as Gilmore's algorithm for minimum vertex coloring and algorithms for recognizing interval graphs leverage the distinctive properties of interval graphs to efficiently address problems in coloring, scheduling, and resource allocation, offering more specialized solutions than general-purpose algorithms.

The Importance of Detecting Negative Cycles

Negative cycles, which are cycles in a graph where the sum of the edge weights is negative, can profoundly affect the functionality of certain algorithms, particularly those related to shortest paths and optimization. Algorithms such as Bellman-Ford and Floyd-Warshall are designed to detect negative cycles. The Bellman-Ford algorithm relaxes edges iteratively to determine the shortest paths and can identify the presence of negative cycles. The Floyd-Warshall algorithm calculates shortest paths between all pairs of vertices and can detect negative cycles by inspecting the distances in the resulting matrix.

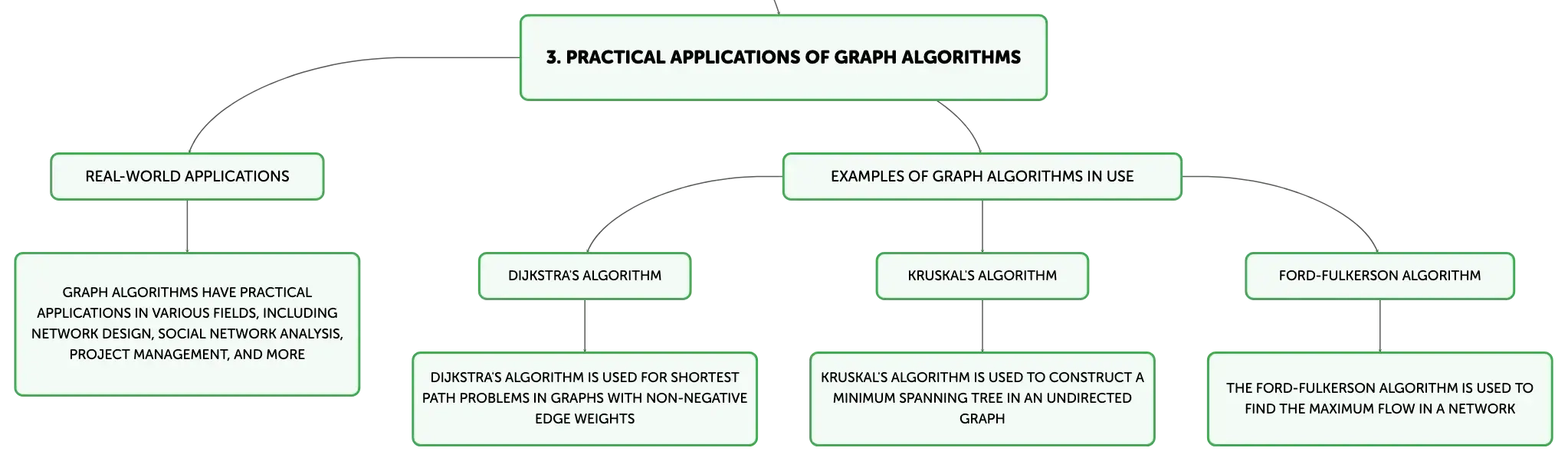

Graph Algorithms in Practice

Graph algorithms have practical applications beyond theoretical study. Dijkstra's algorithm is employed for shortest path problems in graphs with non-negative edge weights, while Kruskal's algorithm is used to construct a minimum spanning tree in an undirected graph by choosing edges with the lowest weight. The Ford-Fulkerson algorithm tackles the maximum flow problem in networks by incrementally finding augmenting paths. These algorithms play a pivotal role in various sectors, including network routing, project scheduling, and financial risk analysis, showcasing the real-world impact of graph algorithms in addressing complex challenges.

Key Insights from Graph Algorithms

Graph algorithms are indispensable tools for the analysis and manipulation of graph structures, with wide-ranging applications in numerous fields. They encompass methods for graph traversal, shortest path determination, connectivity assurance, flow optimization, and vertex matching. A comprehensive understanding of the various graph algorithms, their methodologies, and their practical applications is crucial for addressing intricate problems in network design, social networking, and project management. Recognizing negative cycles is a vital aspect of graph analysis, influencing the accuracy and performance of algorithms. The practical utility and educational value of graph algorithms are exemplified by real-world applications of Dijkstra's, Kruskal's, and Ford-Fulkerson's algorithms.
