Electrophilic Aromatic Substitution

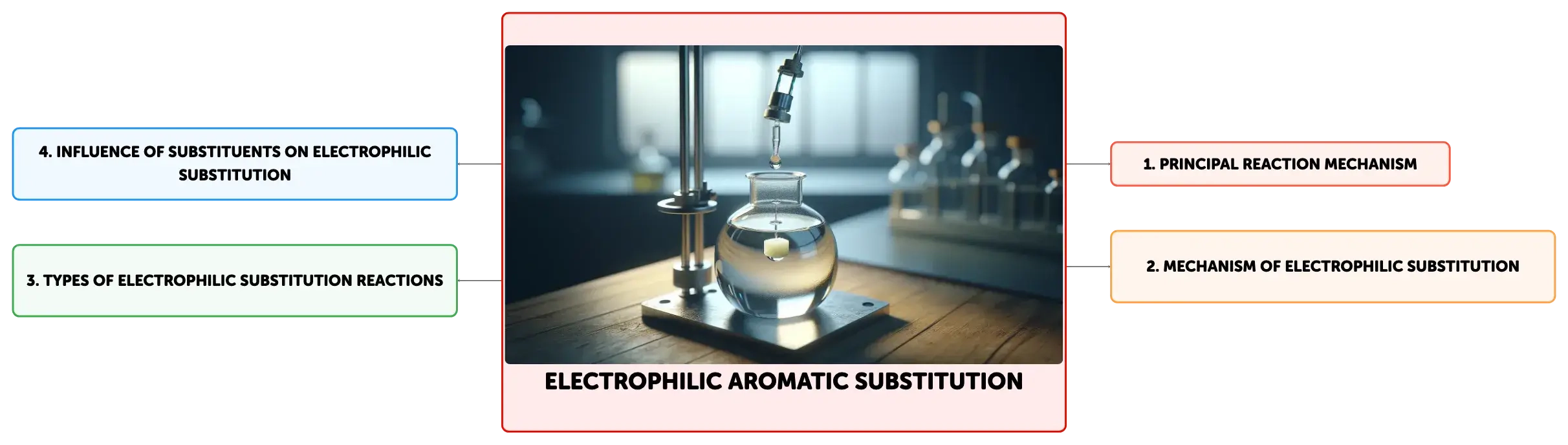

Concept Map
Electrophilic aromatic substitution in benzene is a core reaction in organic chemistry, preserving the ring's aromaticity by replacing a hydrogen atom with an electrophile. This mechanism is crucial for synthesizing various aromatic compounds and is influenced by substituents on the benzene ring, which direct further substitution reactions. Understanding these processes is vital for students, as they apply to the creation of pharmaceuticals, dyes, and advanced materials.
Summary
Outline
Electrophilic Aromatic Substitution Reactions in Benzene
Electrophilic aromatic substitution is a principal reaction mechanism in organic chemistry, where a substituent on an aromatic compound, such as benzene, is replaced by an electrophile. Benzene, characterized by its stable ring of delocalized pi electrons, predominantly undergoes electrophilic substitution rather than addition reactions, which would disrupt its aromaticity. This type of reaction preserves the aromatic ring's stability by substituting a hydrogen atom with an electrophile. Understanding the electrophilic substitution mechanism is essential for students, as it is widely applicable in the synthesis of various aromatic compounds.The Electrophilic Substitution Mechanism in Benzene
The electrophilic substitution mechanism in benzene typically involves the following steps: generation of the electrophile, its attack on the aromatic ring, and the departure of a hydrogen ion, which restores aromaticity. The electrophile, an electron-deficient species, is attracted to the electron-rich aromatic ring of benzene. The interaction results in the formation of a non-aromatic carbocation intermediate, where the aromaticity is temporarily lost. Subsequently, a base removes a proton from the carbocation, reestablishing the delocalized pi electron system and completing the substitution of the hydrogen with the electrophile.Typical Electrophilic Substitution Reactions of Benzene
Benzene undergoes a variety of electrophilic substitution reactions, including nitration, sulfonation, halogenation, and Friedel-Crafts acylation and alkylation. Nitration involves the introduction of a nitro group using a nitrating mixture of concentrated sulfuric and nitric acids. Sulfonation adds a sulfonyl group through the use of sulfur trioxide or fuming sulfuric acid. Halogenation involves the addition of a halogen in the presence of a Lewis acid catalyst. Friedel-Crafts acylation and alkylation introduce acyl and alkyl groups with acyl chlorides or alkyl halides and a strong Lewis acid catalyst, typically aluminum chloride. These reactions exemplify the versatility of benzene in forming a wide array of derivatives through a consistent reaction mechanism.Influence of Substituents on Further Electrophilic Substitution
Substituents on the benzene ring exert a profound influence on the orientation of subsequent electrophilic substitution reactions. Electron-donating substituents, such as alkyl and methoxy groups, typically direct incoming electrophiles to the ortho and para positions relative to the substituent. In contrast, electron-withdrawing substituents, such as nitro or carbonyl groups, direct electrophiles to the meta position. This concept of directing effects and the understanding of activating and deactivating groups are critical for predicting the products of electrophilic substitution reactions on substituted benzene rings and are fundamental in designing complex organic synthetic strategies.Practical Applications and Exercises in Electrophilic Substitution
The study of electrophilic substitution in benzene extends beyond theoretical understanding to practical applications. Students should engage in exercises that involve applying the general mechanism to specific reactions, such as nitration, sulfonation, halogenation, and Friedel-Crafts reactions. Through these exercises, students can deepen their comprehension of reaction conditions, mechanisms, and the influence of substituents on the reactivity and orientation of benzene derivatives. Mastery of these concepts is vital for predicting reaction outcomes and for excelling in the field of aromatic chemistry.Conclusion: The Importance of Benzene Electrophilic Substitution
Electrophilic substitution reactions of benzene are a fundamental aspect of organic chemistry, demonstrating the predictable behavior of aromatic compounds in chemical reactions. Benzene's ability to retain its aromatic stability during these reactions highlights the unique nature of aromaticity. The principles gleaned from studying electrophilic substitution are foundational for chemistry students and have significant applications in the synthesis of complex organic molecules, pharmaceuticals, dyes, and advanced materials.
Show More

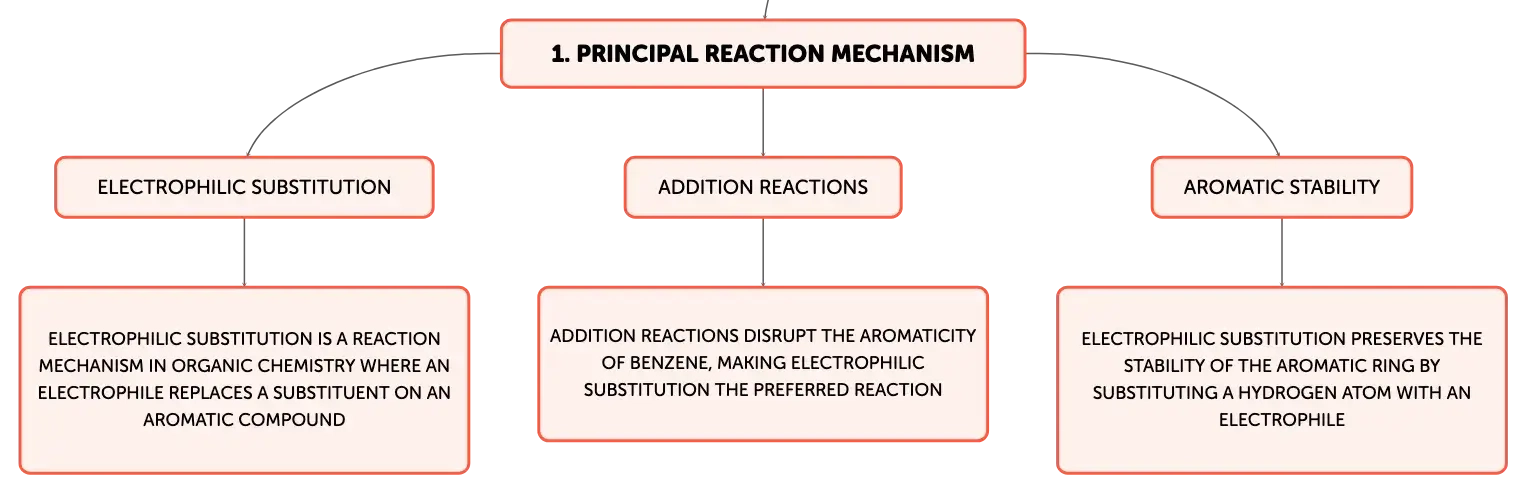

Principal Reaction Mechanism
Electrophilic Substitution
Electrophilic substitution is a reaction mechanism in organic chemistry where an electrophile replaces a substituent on an aromatic compound
Addition Reactions
Addition reactions disrupt the aromaticity of benzene, making electrophilic substitution the preferred reaction
Aromatic Stability
Electrophilic substitution preserves the stability of the aromatic ring by substituting a hydrogen atom with an electrophile

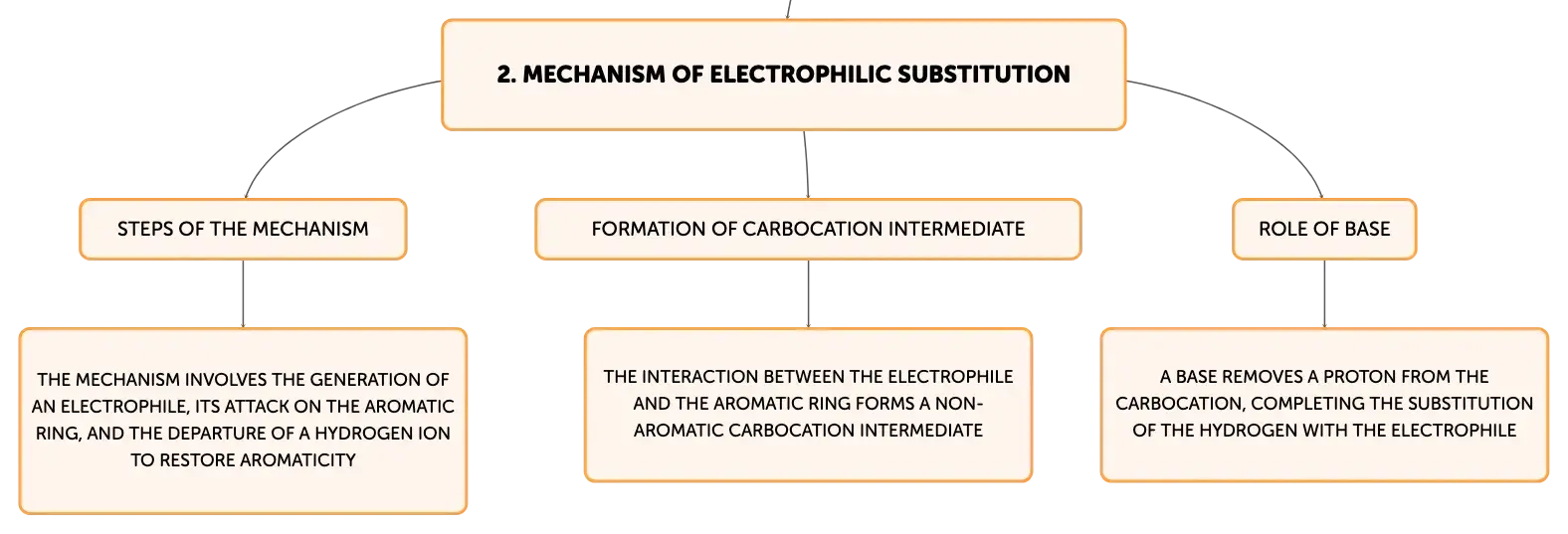

Mechanism of Electrophilic Substitution
Steps of the Mechanism
The mechanism involves the generation of an electrophile, its attack on the aromatic ring, and the departure of a hydrogen ion to restore aromaticity
Formation of Carbocation Intermediate
The interaction between the electrophile and the aromatic ring forms a non-aromatic carbocation intermediate
Role of Base
A base removes a proton from the carbocation, completing the substitution of the hydrogen with the electrophile

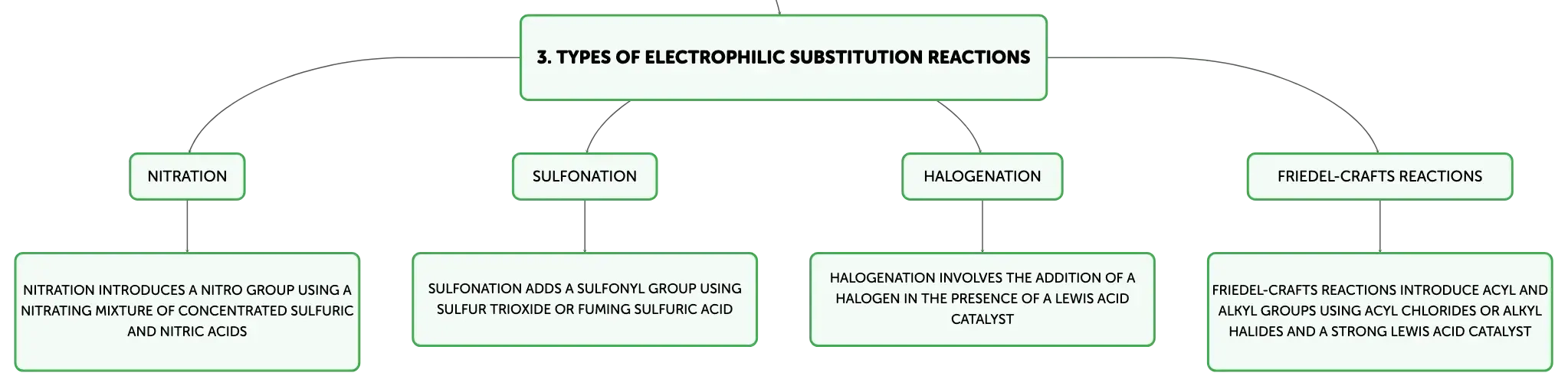

Types of Electrophilic Substitution Reactions
Nitration
Nitration introduces a nitro group using a nitrating mixture of concentrated sulfuric and nitric acids
Sulfonation
Sulfonation adds a sulfonyl group using sulfur trioxide or fuming sulfuric acid
Halogenation
Halogenation involves the addition of a halogen in the presence of a Lewis acid catalyst
Friedel-Crafts Reactions
Friedel-Crafts reactions introduce acyl and alkyl groups using acyl chlorides or alkyl halides and a strong Lewis acid catalyst

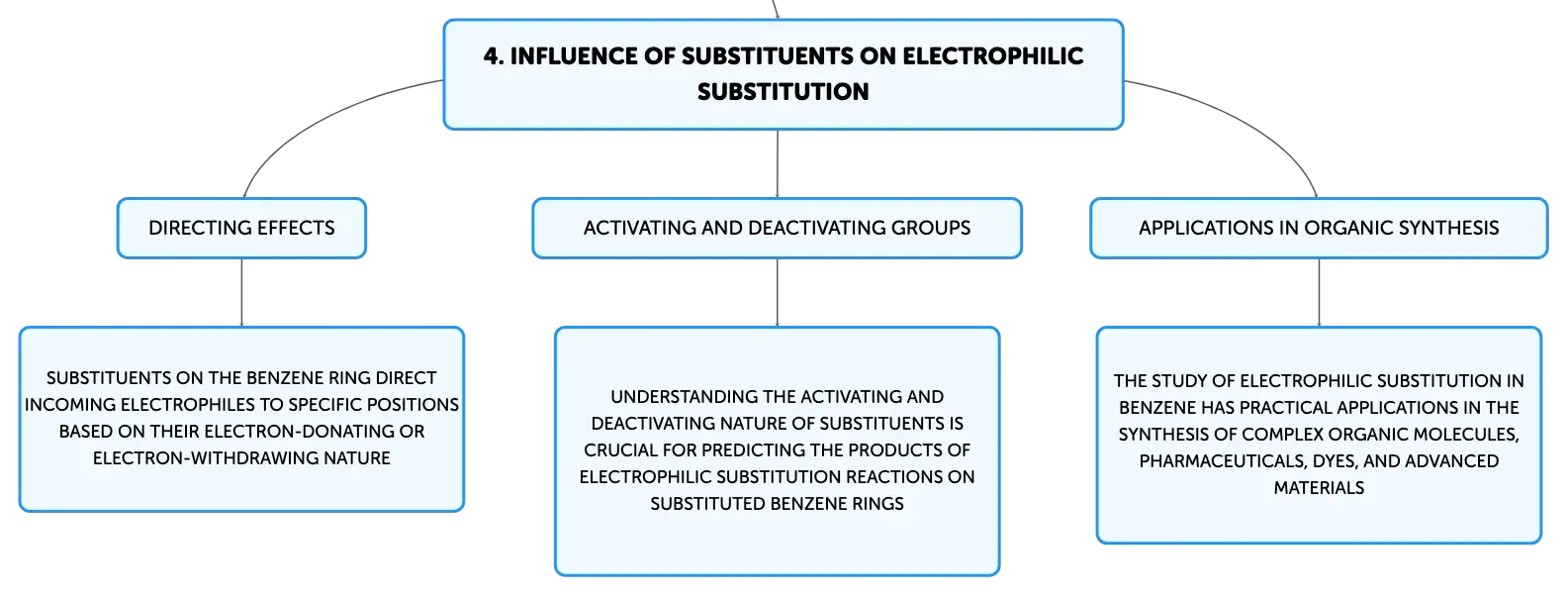

Influence of Substituents on Electrophilic Substitution
Directing Effects
Substituents on the benzene ring direct incoming electrophiles to specific positions based on their electron-donating or electron-withdrawing nature
Activating and Deactivating Groups
Understanding the activating and deactivating nature of substituents is crucial for predicting the products of electrophilic substitution reactions on substituted benzene rings
Applications in Organic Synthesis
The study of electrophilic substitution in benzene has practical applications in the synthesis of complex organic molecules, pharmaceuticals, dyes, and advanced materials
Electrophilic Aromatic Substitution
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In organic chemistry, a common mechanism involves an electrophile replacing a substituent on compounds like ______, while preserving the ring's stability.
benzene
01
Electrophile generation in benzene reaction
Electrophile, an electron-deficient species, is formed to initiate benzene substitution.
02
Role of aromatic ring in electrophilic substitution
Electron-rich aromatic ring of benzene attracts and reacts with electrophile.
