Explore the intricacies of covalent bonding, where atoms share electrons, and how differences in electronegativity lead to polar covalent bonds. Understand the Pauling scale of electronegativity and how factors like nuclear charge and atomic radius influence it. Discover periodic trends and how bond types are affected by electronegativity differences. Additionally, learn how molecular geometry can affect the overall polarity of molecules with symmetrical shapes.

Summary

Outline

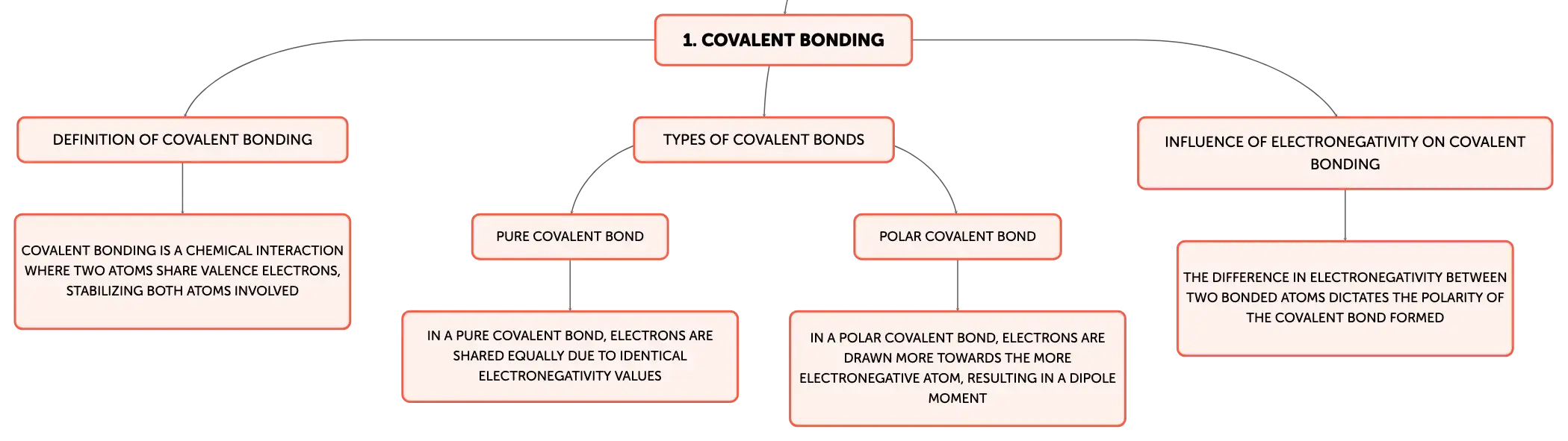

Understanding Covalent and Polar Covalent Bonds

Covalent bonding is a fundamental chemical interaction where two atoms share one or more pairs of valence electrons, stabilizing both atoms involved. In a pure covalent bond, as seen in diatomic molecules like chlorine gas (Cl2), the electrons are shared equally due to identical electronegativity values. However, when atoms of different electronegativities bond, such as in hydrochloric acid (HCl), the shared electrons are drawn more toward the more electronegative atom, resulting in a polar covalent bond. This bond exhibits a dipole moment, a vector quantity that represents the magnitude and direction of the partial charges, with the chlorine atom acquiring a partial negative charge (δ-) and the hydrogen atom a partial positive charge (δ+).

Molecular model with colored spheres representing hydrogen, carbon, oxygen and nitrogen atoms, connected by rods to indicate chemical bonds.

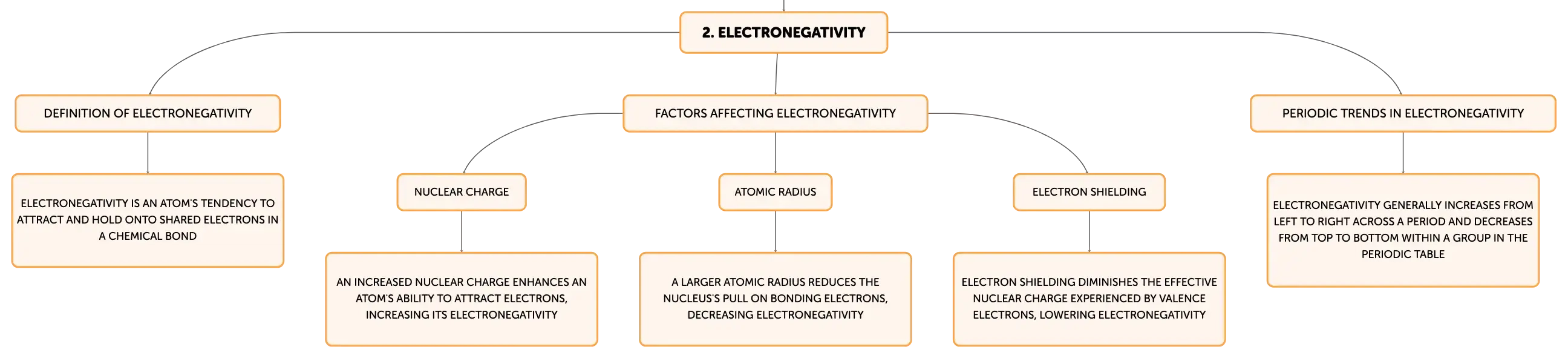

Electronegativity and Bond Polarity

Electronegativity, denoted by the symbol χ, is an atom's tendency to attract and hold onto shared electrons in a chemical bond. The disparity in electronegativity between two bonded atoms dictates the bond's polarity. A larger difference in electronegativity leads to a more polar bond, with the more electronegative atom gaining a partial negative charge and the less electronegative atom obtaining a partial positive charge. This concept is crucial for predicting the behavior and properties of molecules.

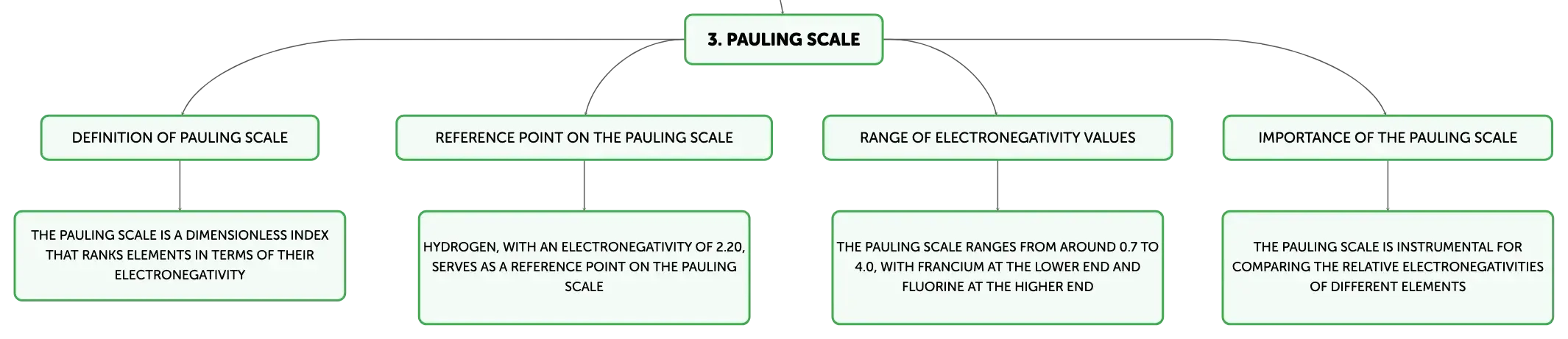

The Pauling Scale of Electronegativity

The Pauling scale, introduced by chemist Linus Pauling, is a dimensionless index that ranks elements in terms of their electronegativity, ranging from around 0.7 to 4.0. Hydrogen, with an electronegativity of 2.20, serves as a reference point on this scale. Francium is at the lower end with an electronegativity of about 0.7, while fluorine is the most electronegative element with a value of 4.0. This scale is instrumental for chemists to compare the relative electronegativities of different elements.

Factors Influencing Electronegativity

Electronegativity is influenced by several atomic properties, including nuclear charge, atomic radius, and electron shielding. An increased nuclear charge, which corresponds to a greater number of protons in the nucleus, enhances an atom's ability to attract electrons, thus increasing its electronegativity. A larger atomic radius reduces the nucleus's pull on the bonding electrons, decreasing electronegativity. Electron shielding, caused by the repulsion of inner-shell electrons, diminishes the effective nuclear charge experienced by the valence electrons, also lowering electronegativity.

Periodic Trends in Electronegativity

Electronegativity exhibits periodic trends within the periodic table. As one moves from left to right across a period, electronegativity generally increases due to a higher nuclear charge and a decrease in atomic radius, despite a constant level of shielding. In contrast, moving down a group, electronegativity tends to decrease because the increase in atomic radius and electron shielding outweighs the increase in nuclear charge, reducing the effective nuclear charge on the valence electrons.

Bond Type and Electronegativity Differences

The type of chemical bond formed between two atoms is greatly influenced by the difference in their electronegativities. A difference of 0.4 or less usually indicates a non-polar covalent bond, while a difference greater than 1.7 suggests the formation of an ionic bond, where electrons are transferred rather than shared. Intermediate differences, ranging from 0.4 to 1.7, typically result in polar covalent bonds. For instance, the bond between hydrogen (electronegativity 2.20) and chlorine (electronegativity 3.16) has a difference of 0.96, leading to a polar covalent bond in HCl.

Polarity in Molecules with Symmetrical Shapes

The overall polarity of a molecule is not solely determined by the presence of polar bonds; molecular geometry also plays a critical role. In symmetrically shaped molecules, such as carbon tetrachloride (CCl4), the individual dipole moments of the polar C-Cl bonds can cancel out due to their symmetrical arrangement, resulting in a non-polar molecule. Thus, both the nature of the bonds and the spatial orientation of atoms within a molecule must be considered to accurately predict molecular polarity.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

In a ______ bond, atoms with the same electronegativity share electrons equally, like in the molecule Cl2.

pure covalent

01

Electronegativity Symbol

Denoted by χ, symbol for atom's tendency to attract electrons.

02

Electronegativity and Bond Polarity

Greater electronegativity difference increases bond polarity.
