Graphite: A Versatile Carbon Allotrope

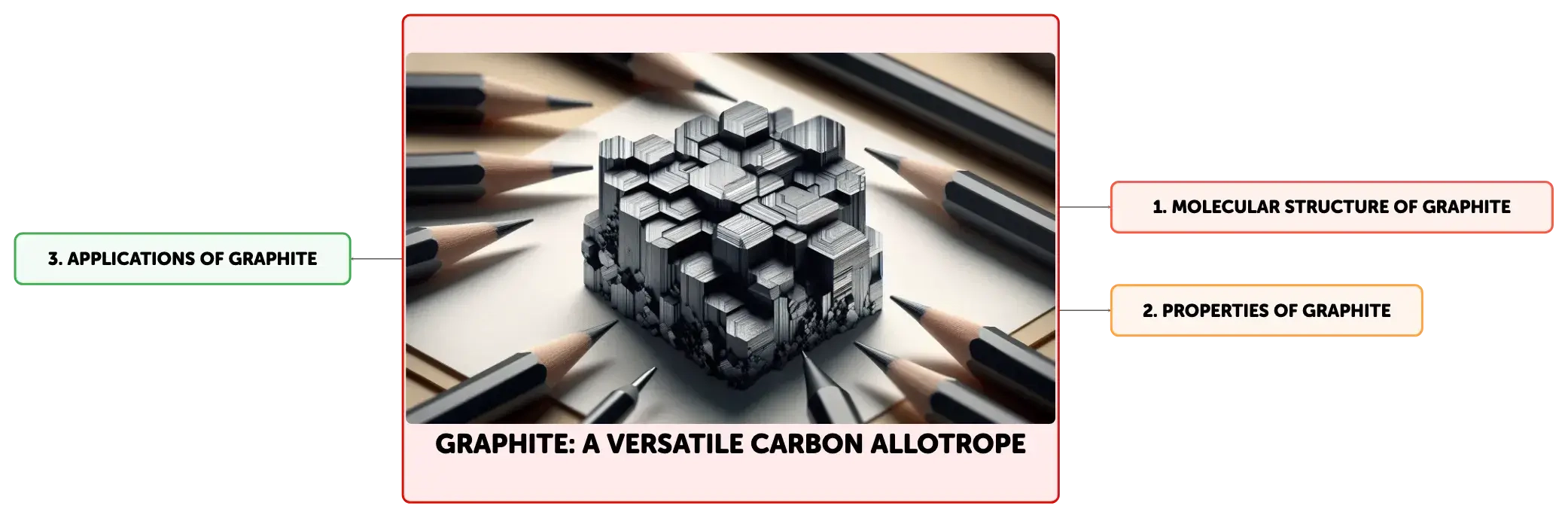

Concept Map
Graphite, a carbon allotrope known for its hexagonal lattice structure, exhibits unique properties such as electrical conductivity, thermal stability, and lubrication capabilities. Its layers, held together by weak van der Waals forces, allow for applications in high-temperature environments, pencil production, and advanced technology like lithium-ion batteries and graphene.
Summary
Outline
Exploring Graphite: An Introduction to Carbon Allotropes
Graphite is one of the most well-known allotropes of carbon, alongside diamond and amorphous carbon forms such as charcoal. Each allotrope is composed of carbon atoms but differs in structure, leading to unique properties. Graphite's structure consists of carbon atoms arranged in a hexagonal lattice, forming layers that are capable of sliding over each other due to weak van der Waals forces. This article provides an in-depth look at graphite, examining its molecular structure, distinctive properties, and the variety of its applications.The Unique Structure of Graphite and Its Conductive Properties
The layered structure of graphite is composed of carbon atoms each bonded to three others in a hexagonal arrangement, forming planar sheets. The fourth valence electron of each carbon atom is free to move, contributing to the delocalized electron cloud that allows graphite to conduct electricity. This property is unusual for a non-metal and is a result of the electron mobility within and between the layers. The weak forces between the layers also contribute to graphite's characteristic softness and its use as a writing material in pencils.Graphite's Diverse Physical Properties
Graphite exhibits a range of physical properties that make it a material of interest for many applications. It is an excellent conductor of electricity and heat, attributed to the mobility of its delocalized electrons. Graphite also has a high melting point, well above 3600°C, and a high boiling point, which are indicative of the strong covalent bonds within its layers. These properties, combined with its lubricating abilities due to the slippage of layers, make graphite suitable for high-temperature applications and as a dry lubricant in various industries.Industrial Applications of Graphite Due to Its Thermal Stability
The exceptional thermal stability of graphite allows it to perform under high-temperature conditions where other materials would fail. It is stable in inert atmospheres up to temperatures around 3000°C and has a relatively high autoignition temperature in air, around 700°C. These characteristics are essential in the manufacture of refractory materials for heat shields in aerospace engineering, linings for high-temperature furnaces, and electrodes in electric arc furnaces for steel production.The Two Principal Forms of Graphite: Alpha and Beta
Graphite can be found in two main forms, alpha and beta, which differ in the stacking order of their carbon layers. Alpha graphite, or hexagonal graphite, has layers arranged in an ABAB pattern, while beta graphite, or rhombohedral graphite, features an ABCABC layer sequence. Although both forms share the fundamental properties of graphite, these structural differences can affect their behavior and suitability for specific applications.The Role of Graphite in Daily Life and Technological Advances
Graphite's applications span from everyday objects to advanced technology sectors. It is the material of choice for pencil leads due to its ability to make marks on paper. In the automotive industry, graphite is incorporated into brake linings to improve performance. Its electrical conductivity and lubrication properties are advantageous in electric motor brushes and various electrical contacts. Graphite is also crucial in energy storage as the anode material in lithium-ion batteries, powering a wide array of electronic devices. Additionally, graphene, a single layer of graphite, is celebrated for its extraordinary strength and potential in future technological applications.Concluding Insights on Graphite
Graphite is a versatile and remarkable carbon allotrope with a deceptively simple composition but a wealth of complex properties. Its hexagonal carbon atom arrangement in layered sheets endows it with notable electrical conductivity, lubrication capabilities, and thermal resilience. These attributes render graphite invaluable across diverse fields, from everyday writing tools to high-temperature industrial processes and the development of advanced materials like graphene. A comprehensive understanding of graphite's properties underscores its significance in both commonplace and high-tech applications.
Show More

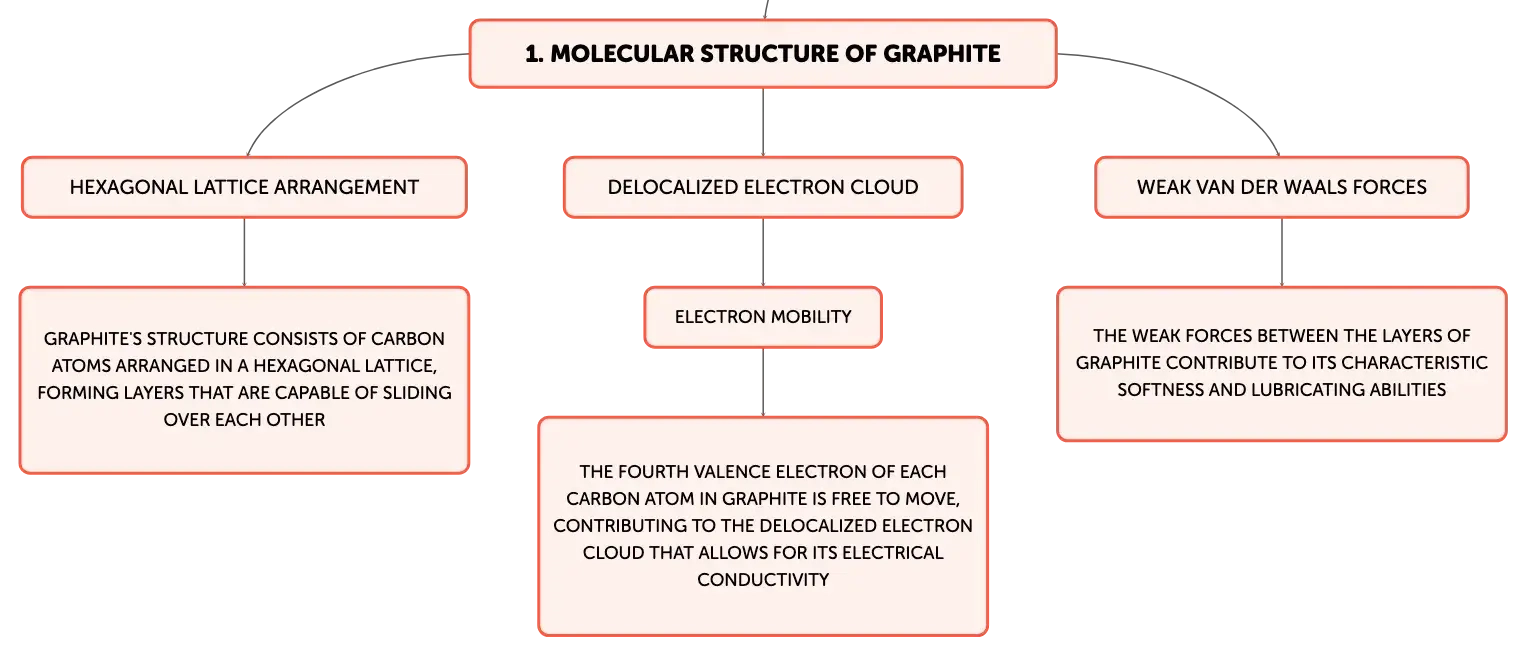

Molecular Structure of Graphite
Hexagonal Lattice Arrangement
Graphite's structure consists of carbon atoms arranged in a hexagonal lattice, forming layers that are capable of sliding over each other
Delocalized Electron Cloud
Electron Mobility
The fourth valence electron of each carbon atom in graphite is free to move, contributing to the delocalized electron cloud that allows for its electrical conductivity
Weak Van der Waals Forces
The weak forces between the layers of graphite contribute to its characteristic softness and lubricating abilities

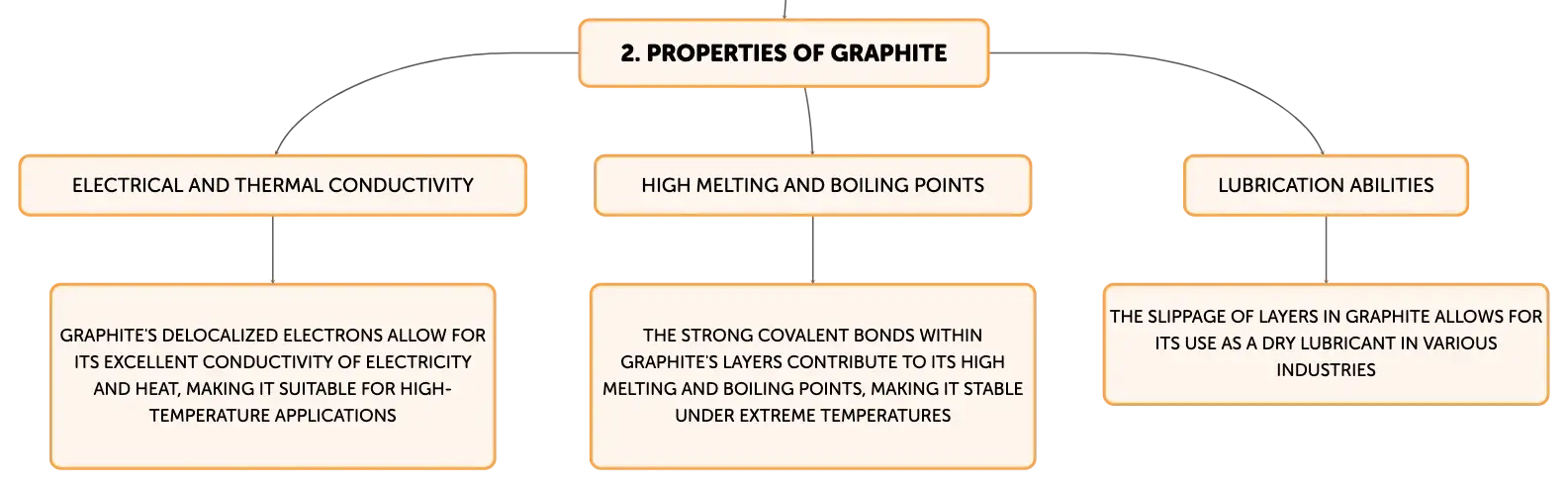

Properties of Graphite
Electrical and Thermal Conductivity
Graphite's delocalized electrons allow for its excellent conductivity of electricity and heat, making it suitable for high-temperature applications
High Melting and Boiling Points
The strong covalent bonds within graphite's layers contribute to its high melting and boiling points, making it stable under extreme temperatures
Lubrication Abilities
The slippage of layers in graphite allows for its use as a dry lubricant in various industries

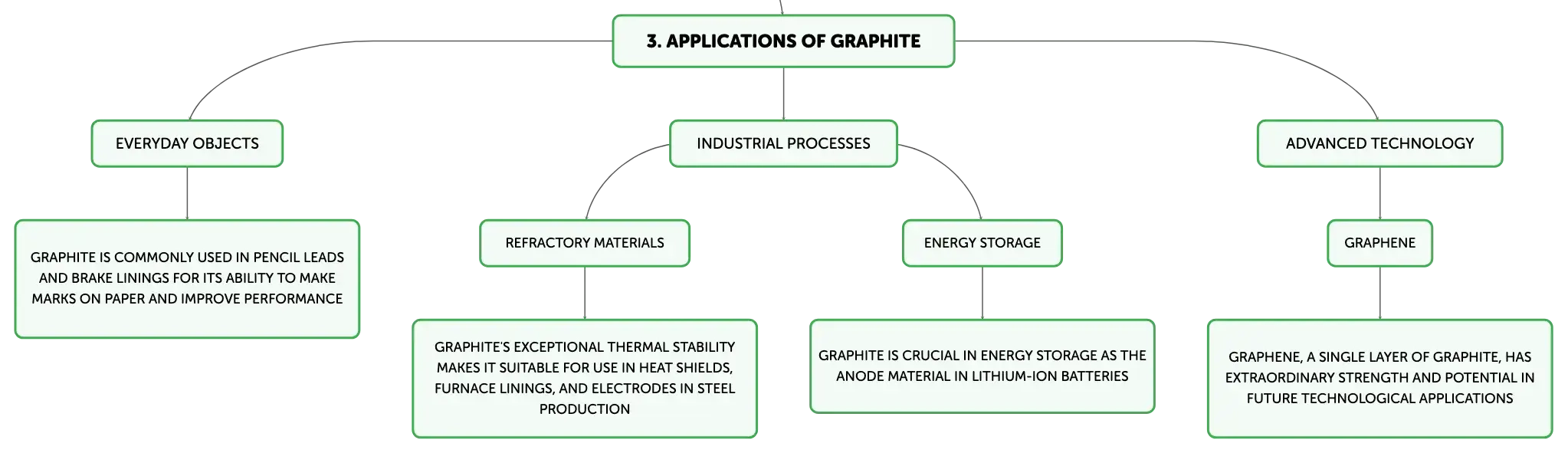

Applications of Graphite
Everyday Objects
Graphite is commonly used in pencil leads and brake linings for its ability to make marks on paper and improve performance
Industrial Processes
Refractory Materials
Graphite's exceptional thermal stability makes it suitable for use in heat shields, furnace linings, and electrodes in steel production
Energy Storage
Graphite is crucial in energy storage as the anode material in lithium-ion batteries
Advanced Technology
Graphene
Graphene, a single layer of graphite, has extraordinary strength and potential in future technological applications
Graphite: A Versatile Carbon Allotrope
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Graphite molecular structure
Carbon atoms in hexagonal lattice, layers slide due to weak van der Waals forces.
01
Graphite distinctive properties
High thermal conductivity, electrical conductivity, lubricity, and resistance to chemical attack.
02
Graphite applications variety
Used in pencils, lubricants, nuclear reactors, and as electrodes.
