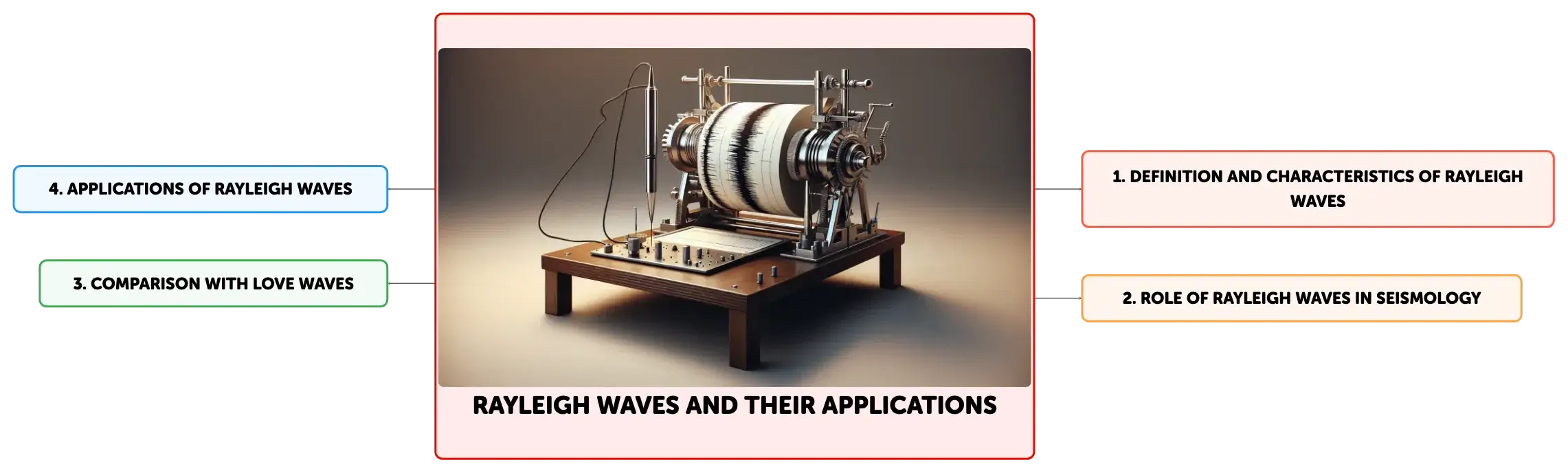

Rayleigh Waves and Their Applications

Exploring the Nature of Rayleigh Waves in Seismology

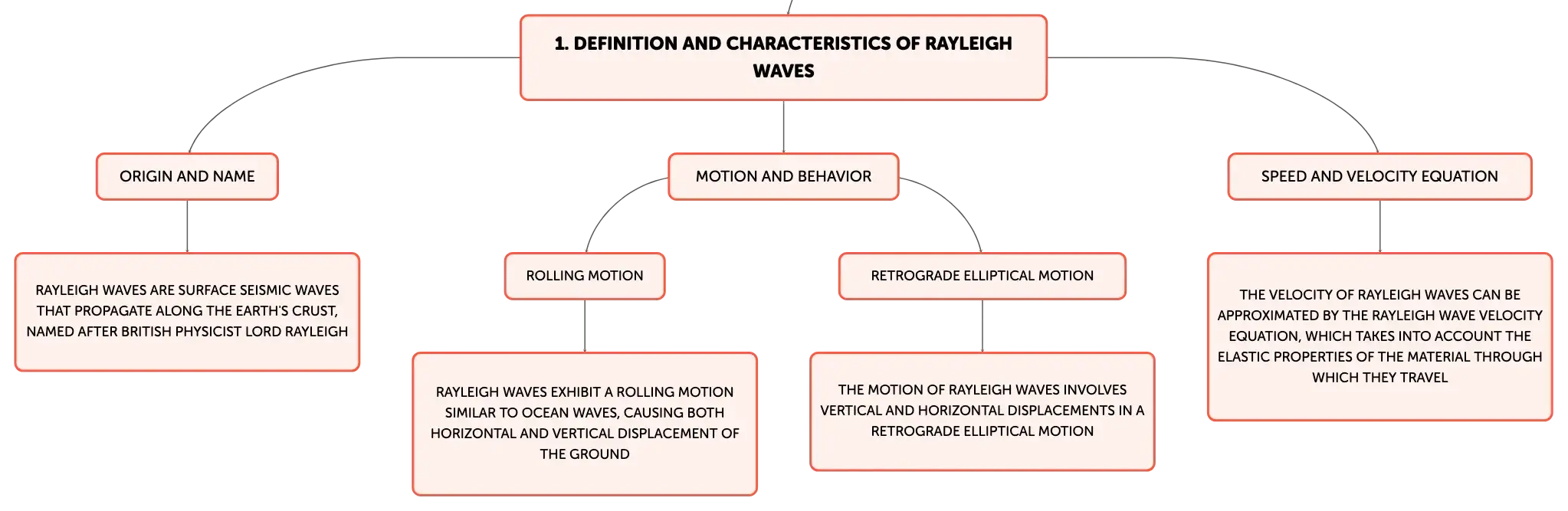

Rayleigh Waves, named after British physicist Lord Rayleigh, are a type of surface seismic wave that propagate along the surface of elastic solids, such as the Earth's crust. These waves are commonly generated by seismic events, including earthquakes, and can also be produced by artificial sources like explosions. They are characterized by a rolling motion similar to ocean waves, which causes both horizontal and vertical displacement of the ground. This motion can be likened to the way a leaf on water moves in a circular path when a wave passes beneath it. Rayleigh Waves are primarily responsible for the ground shaking experienced during an earthquake.

The Dynamics of Rayleigh Wave Propagation

Rayleigh Waves spread out from the source of a disturbance much like ripples from a stone thrown into a pond, but their motion is more complex, involving vertical and horizontal displacements in a retrograde elliptical motion. The speed at which Rayleigh Waves travel is influenced by the elastic properties of the material through which they move. The velocity of these waves in a homogeneous, isotropic medium can be approximated by the Rayleigh wave velocity equation, \( v = \sqrt{\frac{E(1-\sigma)}{\rho(1+\sigma)(1-2\sigma)}} \), where \( E \) is the Young's modulus, \( \sigma \) is the Poisson's ratio, and \( \rho \) is the density of the material. This equation helps scientists understand how Rayleigh Waves will travel through different geological materials.

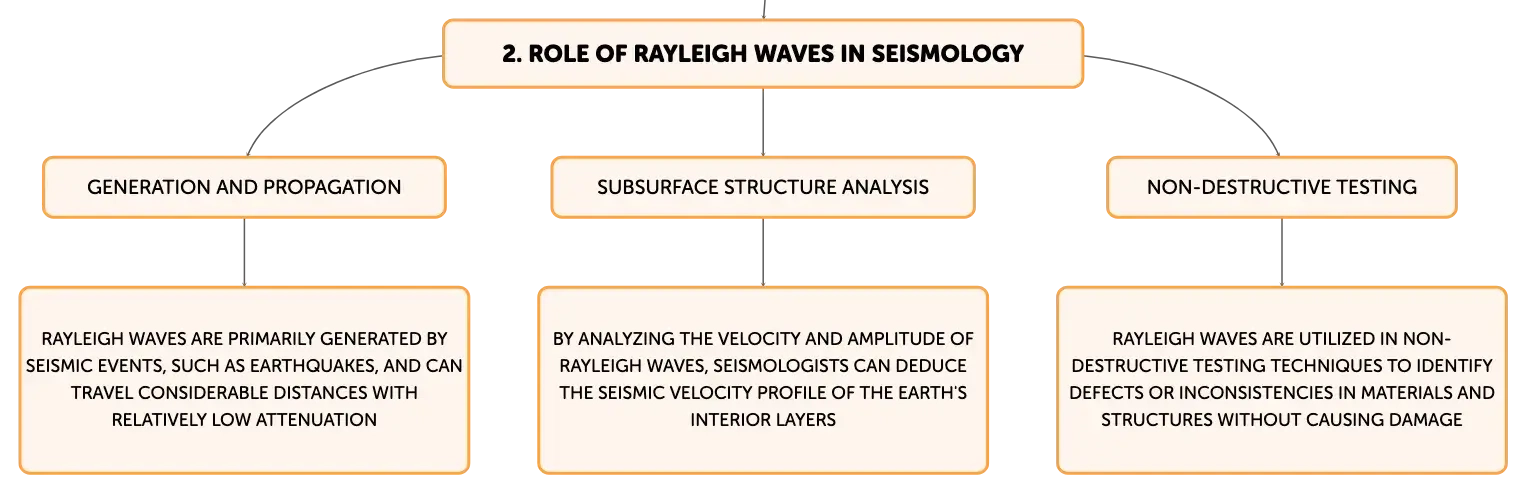

The Significance of Rayleigh Waves in Earth Sciences

Rayleigh Waves play a crucial role in the field of seismology, providing valuable information about the Earth's subsurface structures. By analyzing the velocity and amplitude of these waves, seismologists can deduce the seismic velocity profile of the Earth's interior layers. Furthermore, Rayleigh Waves are utilized in non-destructive testing (NDT) techniques to identify defects or inconsistencies in materials and structures, such as cracks in concrete or corrosion in pipelines, without causing damage. This is essential for maintaining the safety and durability of infrastructure.

Identifying Characteristics and Effects of Rayleigh Waves

Rayleigh Waves are distinguished by their unique particle motion and interaction with the Earth's surface. As surface waves, they exhibit an elliptical retrograde motion, where particles move in an elliptical trajectory opposite to the direction of wave propagation. Although slower than body waves (P-waves and S-waves), Rayleigh Waves can travel considerable distances with relatively low attenuation. The properties of the medium through which they travel, such as elasticity and density, significantly influence their behavior. Due to their energy concentration at the surface, Rayleigh Waves are known to cause extensive ground displacement and can be particularly damaging during seismic events.

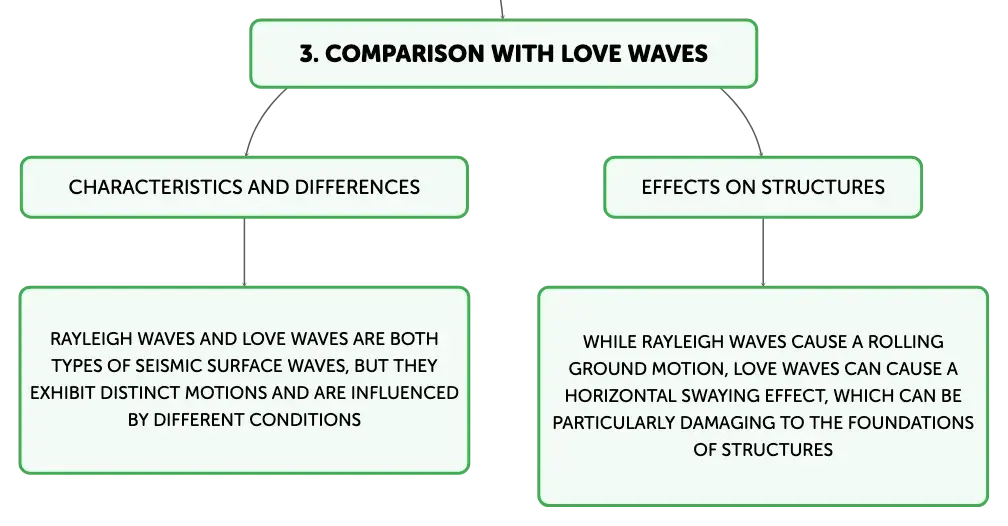

Differentiating Rayleigh Waves from Love Waves

Rayleigh Waves and Love Waves are both types of seismic surface waves, but they exhibit distinct motions and are influenced by different conditions. Rayleigh Waves involve particles moving in an elliptical pattern with both vertical and horizontal components, while Love Waves, named after British mathematician A.E.H. Love, are characterized by horizontal shear motion. Love Waves require the presence of an elastic layer over a half-space with a lower seismic velocity to propagate. Typically, Rayleigh Waves travel at a slower speed than Love Waves and are associated with a rolling ground motion, whereas Love Waves cause a horizontal swaying effect, which can be particularly damaging to the foundations of structures.

The Mathematical Formulation of Rayleigh Waves

The Rayleigh Wave Equation is a sophisticated mathematical model that describes the behavior of Rayleigh Waves as they move along a free surface. This equation is fundamental to the theoretical understanding of seismic wave propagation and is instrumental in applied geophysics. It incorporates factors such as the medium's flexural rigidity, density, wave velocity, and frequency. By solving this equation, scientists can predict the distribution of seismic energy and gain insights into tectonic plate dynamics and the composition of the Earth's interior.

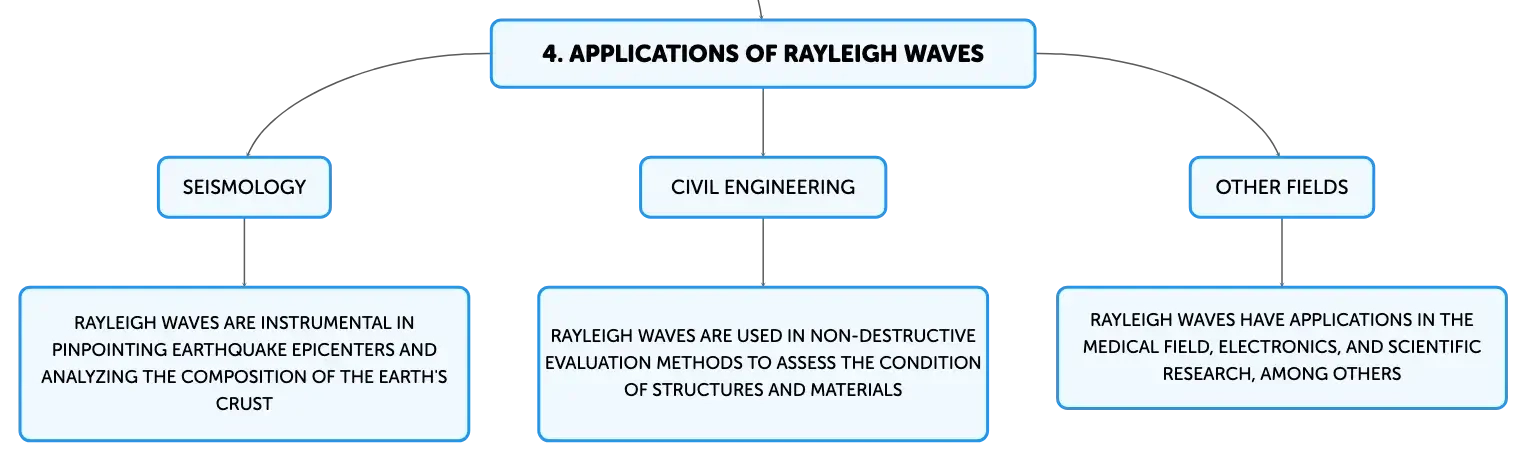

The Broad Applications and Influence of Rayleigh Waves

Rayleigh Waves have a wide array of applications in both scientific research and practical engineering. In seismology, they are instrumental in pinpointing earthquake epicenters and analyzing the composition of the Earth's crust. In civil engineering, Rayleigh Waves are used in non-destructive evaluation methods to assess the condition of structures and materials. Additionally, they find applications in the medical field, such as in the procedure of lithotripsy for the non-invasive treatment of kidney stones. In the realm of electronics, Surface Acoustic Wave (SAW) devices exploit the properties of Rayleigh Waves for signal processing in telecommunications and sensor applications. The focused energy of Rayleigh Waves at surfaces makes them a valuable tool in a variety of technological and scientific endeavors.
