The Haber-Bosch Process: Synthesizing Ammonia for Agriculture

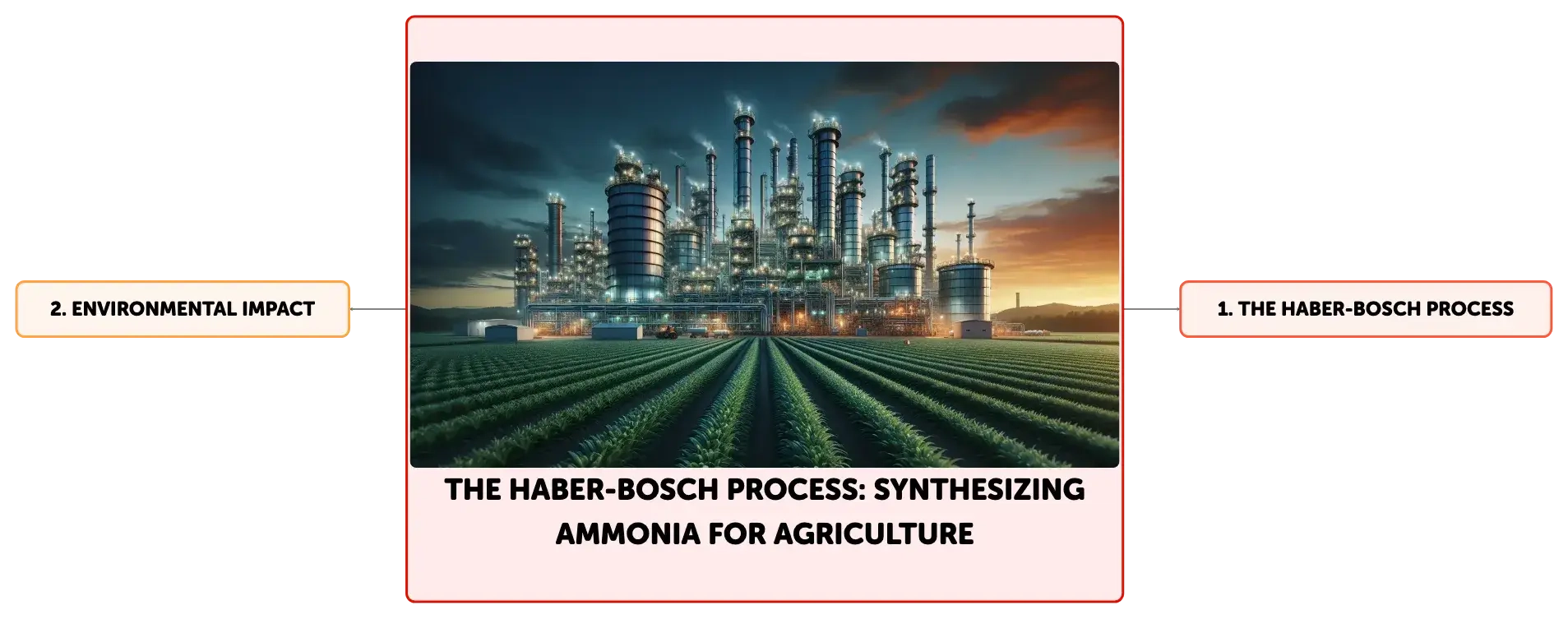

Concept Map

Algorino

Edit available

The Haber-Bosch Process is crucial for synthesizing ammonia, a key component in agricultural fertilizers. It combines nitrogen and hydrogen under high pressure and temperature, using an iron catalyst. While it supports the global food supply, it also poses environmental challenges such as greenhouse gas emissions and eutrophication. Efforts are underway to improve the process's efficiency and reduce its ecological footprint by integrating renewable energy and optimizing fertilizer use.

Summary

Outline

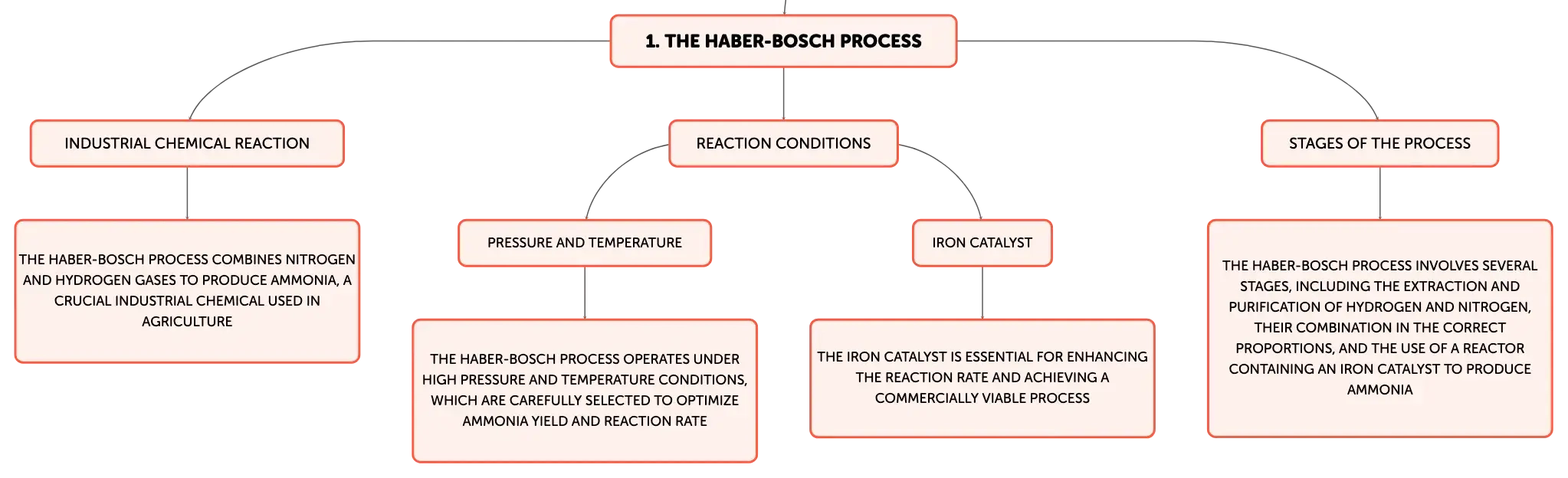

The Haber-Bosch Process: Synthesizing Ammonia for Agriculture

The Haber-Bosch Process, a pivotal industrial chemical reaction, synthesizes ammonia by combining nitrogen from the air with hydrogen, typically derived from natural gas. This process operates under high pressure (150-200 atmospheres) and temperature (400°C to 500°C) conditions, using an iron catalyst to accelerate the reaction. The balanced chemical equation, \( N_2(g) + 3H_2(g) \rightarrow 2NH_3(g) \), demonstrates the direct combination of nitrogen and hydrogen gases to form ammonia, indicating the stoichiometry, gaseous state of reactants, and the production of ammonia gas. The reaction is reversible and exothermic, releasing heat as it proceeds.

Industrial plant at dusk with cylindrical steel structures and pipe network, contrasting with green agricultural field in the foreground.

Optimizing Conditions for Ammonia Production

The efficiency of the Haber-Bosch Process hinges on optimizing reaction conditions to maximize ammonia yield while considering economic and energy constraints. Le Châtelier's Principle informs the selection of pressure and temperature to favor ammonia production; high pressure shifts the equilibrium towards the products, while the temperature is balanced to ensure a practical reaction rate without excessive energy consumption. The iron catalyst, often modified with additives such as potassium and aluminum oxides, is crucial for enhancing the reaction rate and achieving a commercially viable process.

The Haber-Bosch Process: A Step-by-Step Overview

The Haber-Bosch Process encompasses several stages, beginning with the extraction and purification of hydrogen and nitrogen. Hydrogen is typically produced via steam reforming of methane, and nitrogen is isolated from the air. These gases are then combined in the correct stoichiometric proportions and introduced to the reactor containing the iron catalyst. Under the high-pressure and high-temperature conditions, the gases react to form ammonia. The exothermic nature of the reaction contributes to the overall energy efficiency, as some of the heat can be recovered. Unreacted gases are recycled back into the system, and the produced ammonia is cooled and liquefied for removal and subsequent use, primarily as a fertilizer.

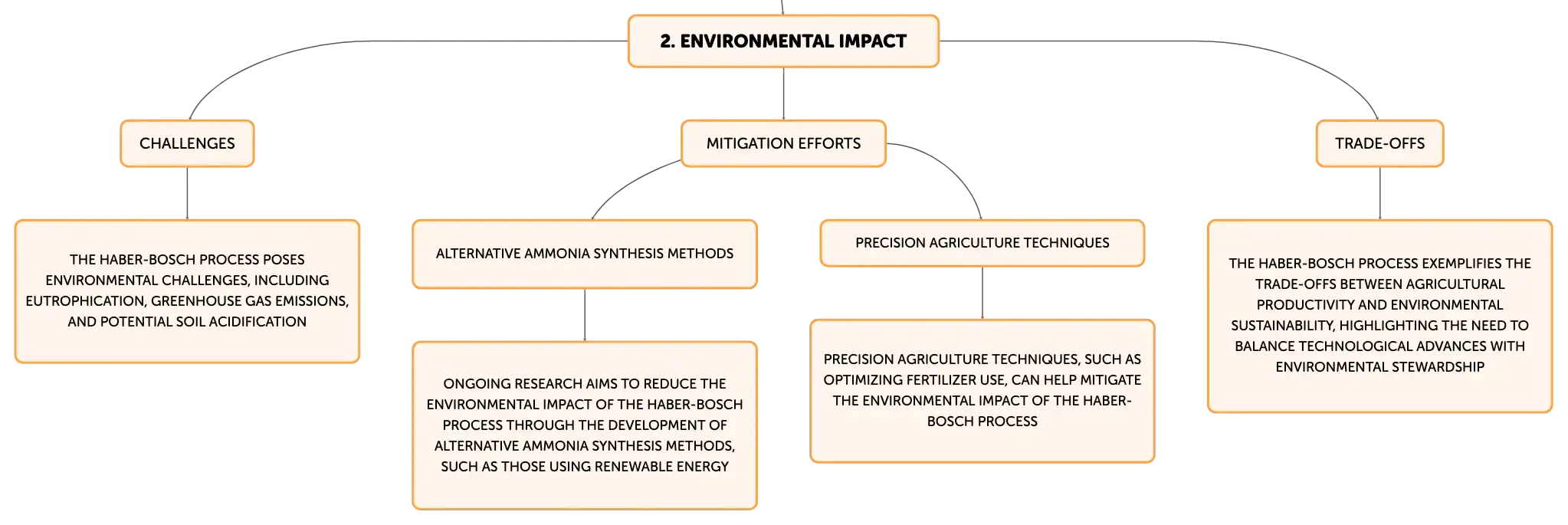

Environmental Impact and Industrial Significance of the Haber-Bosch Process

The Haber-Bosch Process is essential for modern agriculture, enabling the large-scale production of nitrogen fertilizers that support global food supply. However, it also poses environmental challenges, including the contribution to eutrophication, greenhouse gas emissions, and potential soil acidification. The process is energy-intensive, relying on fossil fuels for both hydrogen production and the energy required for synthesis, leading to significant CO2 emissions. Despite these issues, the process is indispensable for meeting the world's nutritional needs, and ongoing research aims to reduce its environmental footprint through improved efficiency and the integration of renewable energy sources.

Navigating the Trade-offs of the Haber-Bosch Process

The Haber-Bosch Process exemplifies the trade-offs between agricultural productivity and environmental sustainability. The introduction of fixed nitrogen into ecosystems can lead to ecological imbalances, such as algal blooms and aquatic 'dead zones.' Additionally, the process contributes to air pollution and climate change through the release of nitrous oxide, a potent greenhouse gas, and CO2. Efforts to mitigate these impacts include the development of alternative ammonia synthesis methods, such as those using renewable energy, and the adoption of precision agriculture techniques to optimize fertilizer use. The process remains a testament to human innovation, highlighting the ongoing need to balance technological advances with environmental stewardship.
