Chemical Shift in NMR Spectroscopy
Chemical shift in NMR spectroscopy is a critical parameter for understanding the electronic environment of nuclei in molecules. It reveals information about atom types, electronic interactions, and molecular connectivity, which is vital for structural elucidation. Factors like electronegativity, hybridization, pi bonds, and molecular geometry influence chemical shifts, aiding in the analysis of organic compounds and their reaction mechanisms.
See more1
4
Fundamentals of Chemical Shift in NMR Spectroscopy

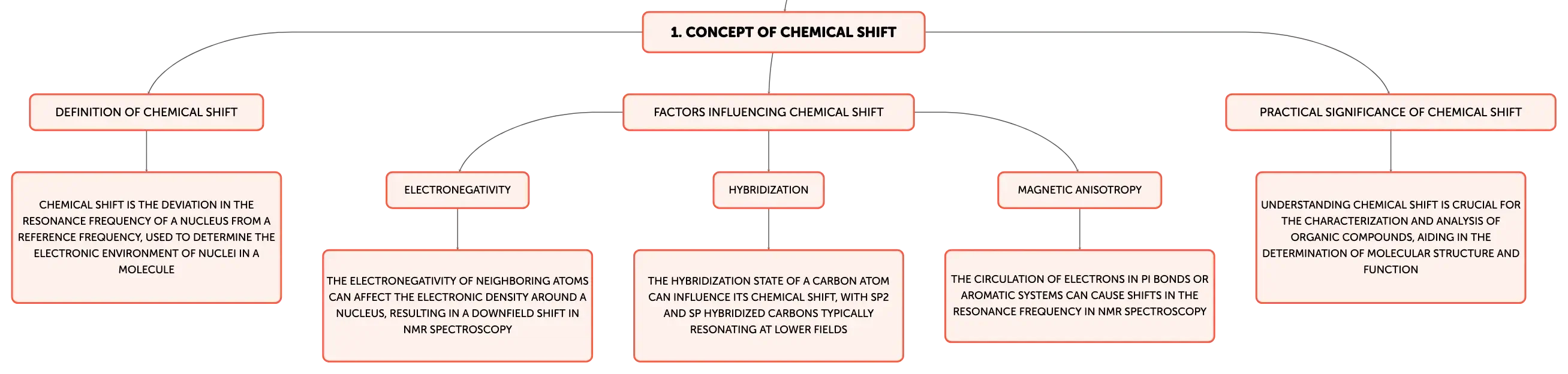

Chemical shift is a pivotal concept in Nuclear Magnetic Resonance (NMR) spectroscopy, serving as a key indicator of the electronic environment surrounding nuclei in a molecule. It is quantified as the deviation in the resonance frequency of a nucleus from a reference frequency, typically tetramethylsilane (TMS) for proton NMR, and is expressed in parts per million (ppm). This shift provides valuable information about the types of atoms in a molecule, their electronic interactions, and their connectivity, which is indispensable for the structural elucidation of compounds and the understanding of chemical reactions. Factors that influence chemical shift include the electronic density around the nucleus, which can be affected by the electronegativity of neighboring atoms, the hybridization state of the atom, the presence of pi bonds, and the overall molecular geometry. For instance, in ethanol (C2H6O), the chemical shifts of hydrogen atoms are distinct for the -OH, -CH3, and -CH2- groups, reflecting their different electronic environments.Influences on Chemical Shift in C13 NMR
In C13 NMR spectroscopy, the chemical shift is influenced by several factors that provide insights into the molecular structure of organic compounds. Electronegativity is a key factor, with more electronegative atoms inducing a downfield shift due to decreased electron density around the carbon nucleus. The chemical shift is also affected by the carbon atom's hybridization; sp2 and sp hybridized carbons typically resonate at lower fields (upfield) compared to sp3 hybridized carbons. Magnetic anisotropy, which arises from the circulation of electrons in pi bonds or aromatic systems, can cause shifts in the resonance frequency. Additionally, the presence of paramagnetic elements or isotopes can significantly alter the chemical shift. These factors collectively allow chemists to deduce the types of carbon environments present in a molecule, such as carbonyl groups, double bonds, or aromatic rings.NMR Spectroscopy's Role in Elucidating Chemical Shift Influences
NMR spectroscopy is an essential tool for identifying the factors that influence chemical shifts. By analyzing the NMR spectrum, chemists can infer the local electronic environment of nuclei within a molecule. For example, methane (CH4) exhibits a single peak in the C13 NMR spectrum due to the equivalence of all carbon atoms. In contrast, ethanol (C2H6O) displays distinct peaks for the methylene (-CH2-) and methyl (-CH3) carbon environments. Through the interpretation of chemical shifts, NMR spectroscopy aids in the determination of molecular structures and the understanding of chemical properties and reactivity.Practical Applications of Chemical Shift Knowledge

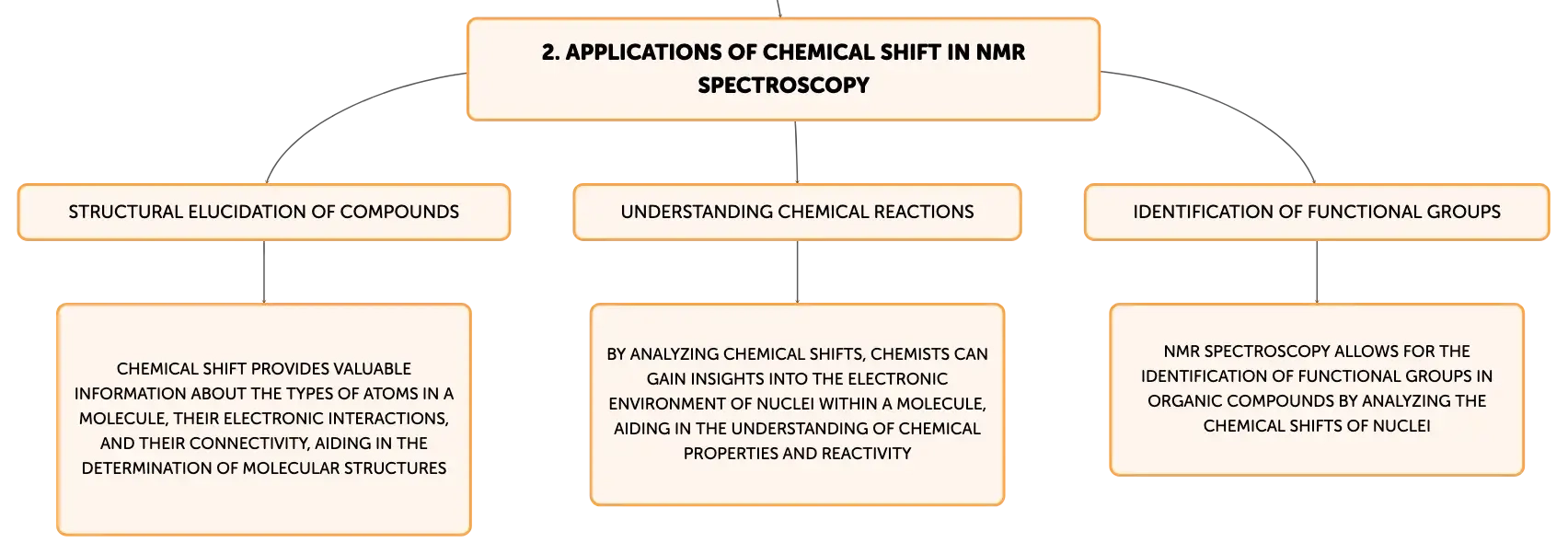

Understanding chemical shift is crucial in the characterization and analysis of organic compounds across various scientific disciplines. For instance, in chloroethane (CH3CH2Cl), the electronegativity of chlorine results in different chemical shifts for the protons attached to the two carbon atoms. Factors such as hybridization and magnetic anisotropy also play a role in chemical shift, as evidenced by the shift changes when ethanol is oxidized to acetic acid (CH3COOH), or the distinct shifts of protons in a benzene molecule (C6H6) due to the delocalized pi electrons. These examples underscore the practical significance of chemical shift in understanding molecular structure and function.Techniques for Determining Chemical Shifts
Determining chemical shifts involves the use of NMR spectroscopy, where familiarity with typical shift ranges for various chemical environments is essential. The technique requires the application of a strong magnetic field and radiofrequency (RF) pulses to excite the nuclei. The resulting NMR spectrum is analyzed by examining the chemical shifts, peak integrals, and multiplet patterns, which provide information about the number of equivalent nuclei and their interactions with neighboring nuclei. Accurate interpretation of NMR spectra, facilitated by knowledge of the factors influencing chemical shift, is fundamental for deducing the structure of organic compounds and elucidating chemical reaction mechanisms.Comprehensive Analysis of Chemical Shift Determinants
A thorough understanding of the determinants of chemical shift is critical for the characterization of organic compounds. The chemical shift is primarily affected by the electron density around the nucleus, which can be influenced by a variety of factors including electronegativity, molecular structure, hybridization, magnetic anisotropy, steric effects, and temperature. NMR spectroscopy evaluates these factors to ascertain their impact on chemical shift, enabling precise structural analysis and predictions regarding the behavior of organic compounds. This in-depth knowledge is indispensable for researchers and professionals in analytical chemistry and related fields.NMR Spectroscopy in Chemical Shift Determination
NMR spectroscopy is a powerful technique for determining chemical shifts, offering detailed insights into molecular structure. The method involves subjecting a sample to a strong magnetic field and perturbing the nuclear spins with RF pulses. The emitted RF signals are recorded and analyzed to determine the chemical shifts, which reflect the electronic environment of the nuclei. Understanding the parameters of NMR, such as pulse sequences and relaxation times, is crucial for interpreting the resulting spectra. These spectra provide comprehensive information on the molecular structure, aiding in the identification of functional groups and the overall molecular architecture.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
The ______ frequency of a nucleus is compared to a standard, often ______, to determine its chemical shift in ppm.
Click to check the answer
2
Chemical shifts in NMR can reveal atom types, their interactions, and ______, aiding in the analysis of molecular structures.
Click to check the answer
3
Factors like electronic density and ______ of neighboring atoms can alter the NMR chemical shift of a nucleus.
Click to check the answer
4
Effect of electronegativity on C13 NMR chemical shift
Click to check the answer
5
Impact of carbon hybridization on C13 NMR resonance
Click to check the answer
6
Role of magnetic anisotropy in C13 NMR
Click to check the answer
7
In the C13 NMR spectrum, ______ shows a single peak, while ______ has separate peaks for different carbon environments.
Click to check the answer
8
Chemical shift influence: electronegativity
Click to check the answer
9
Chemical shift factors: hybridization
Click to check the answer
10
Chemical shift in aromatic compounds
Click to check the answer
11
In NMR spectroscopy, understanding the typical ______ ranges for different chemical environments is crucial.
Click to check the answer
12
Impact of electronegativity on chemical shift
Click to check the answer
13
Role of hybridization in chemical shift
Click to check the answer
14
Effect of magnetic anisotropy on chemical shift
Click to check the answer
15
In NMR, samples are exposed to a ______ magnetic field and the nuclear spins are disturbed using ______ pulses.
Click to check the answer
