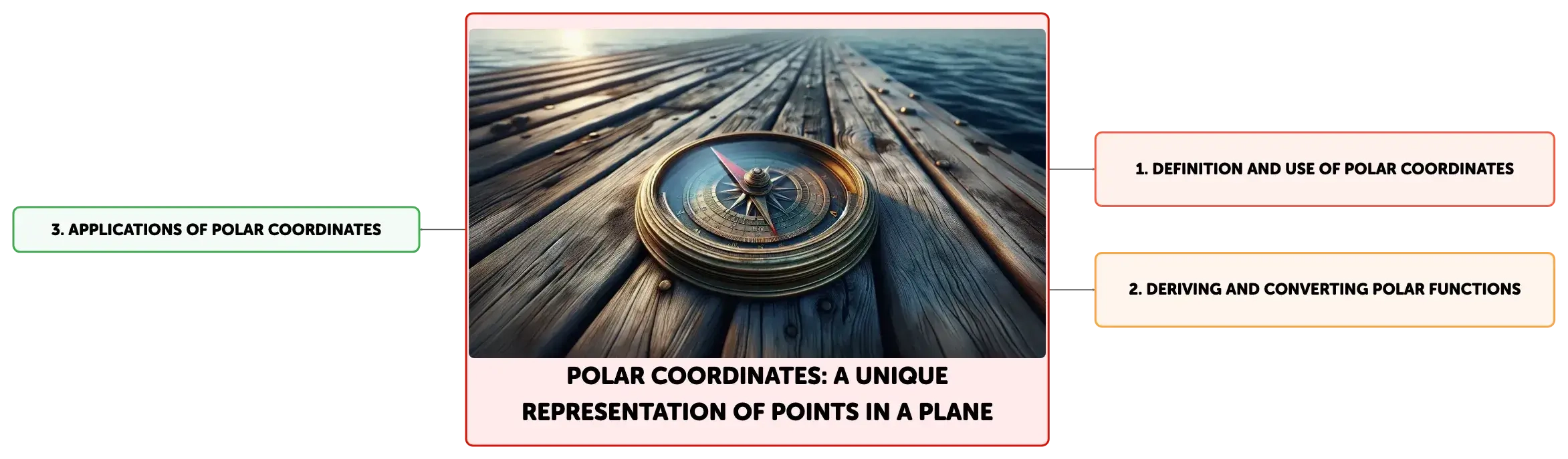

Polar Coordinates: A Unique Representation of Points in a Plane

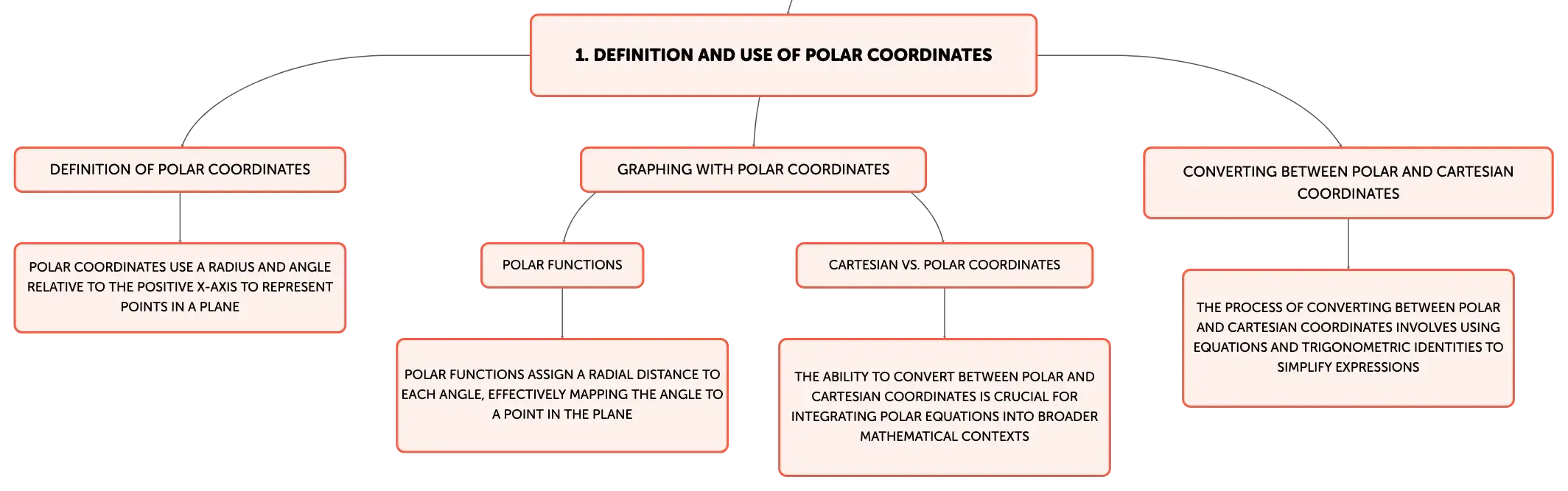

Exploring Polar Coordinates and Their Functions

Polar coordinates offer a unique method for representing points in a plane, utilizing a radius and an angle relative to the positive x-axis. This system is particularly useful for graphing equations that exhibit radial symmetry. A polar function, written as \( r = f(\theta) \), assigns a radial distance \(r\) to each angle \(\theta\), effectively mapping the angle to a point in the plane. This contrasts with the Cartesian coordinate system, which uses perpendicular axes to define points through an ordered pair \((x, y)\). Polar coordinates are especially adept at describing complex curves that are cumbersome to represent in rectangular form.

Converting Between Polar and Cartesian Coordinates

The ability to convert between polar and Cartesian coordinates is a valuable tool in mathematics. To transform polar coordinates \((r, \theta)\) into Cartesian coordinates \((x, y)\), one uses the equations \(x = r \cos \theta\) and \(y = r \sin \theta\). Conversely, to convert from Cartesian to polar coordinates, \(r\) is determined by the equation \(r = \sqrt{x^2 + y^2}\), and \(\theta\) can be found using the arctangent function, \(\theta = \arctan(\frac{y}{x})\), taking into account the quadrant in which the point lies. These transformations are crucial for integrating polar equations into broader mathematical contexts, such as calculus and analytic geometry.

Polar Functions vs. Polar Curves

It is essential to distinguish between polar functions and polar curves. A polar function is a specific type of relation where each angle \(\theta\) corresponds to exactly one radius \(r\), satisfying the definition of a mathematical function. In contrast, a polar curve may associate multiple radii with a single angle, thus not qualifying as a function. For example, the polar curve described by \( r^2 = \cos(2\theta) \) can yield multiple values of \(r\) for certain angles, indicating that it is not a function. Understanding this distinction is important when analyzing the behavior of equations in polar form.

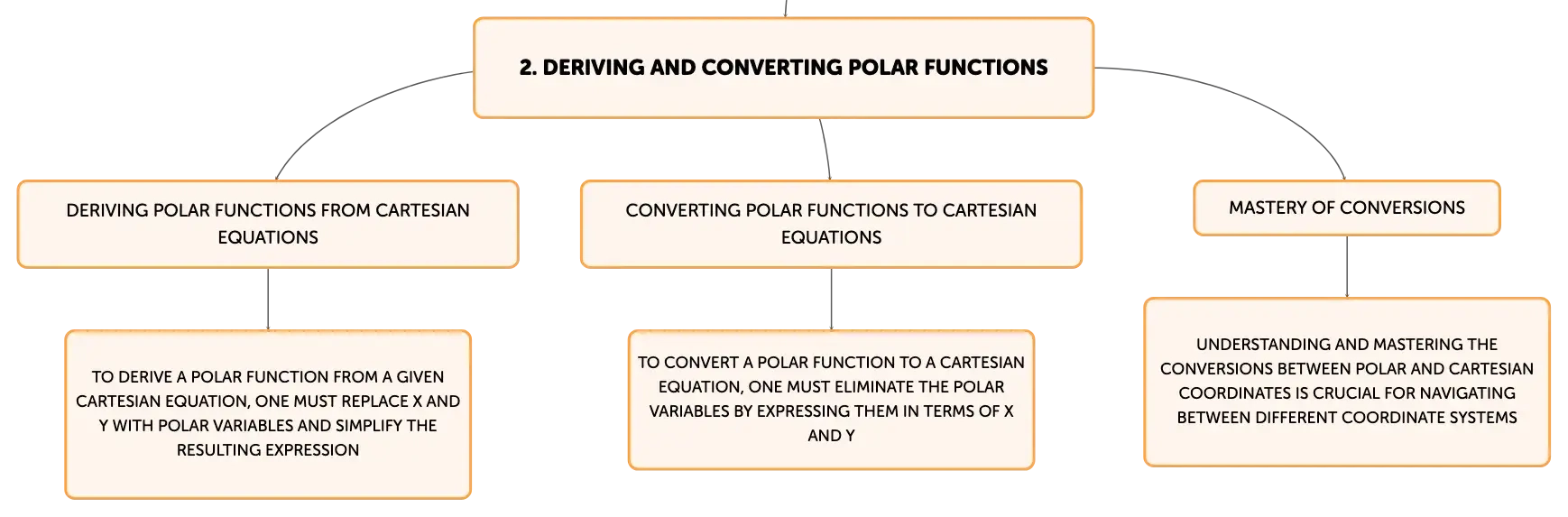

Deriving Polar Functions from Cartesian Equations

To derive a polar function from a given Cartesian equation, one must replace \(x\) with \(r \cos \theta\) and \(y\) with \(r \sin \theta\), and then simplify the resulting expression. This often involves the use of trigonometric identities, such as \( \sin^2\theta + \cos^2\theta = 1 \), to facilitate the conversion. For instance, the Cartesian equation \( x^2 + y^2 = 1 \) translates to the simple polar function \( r = 1 \), representing a circle with a radius of 1. This process is a fundamental technique for analyzing and graphing equations in different coordinate systems.

Converting Polar Functions to Cartesian Form

To convert a polar function to Cartesian form, one must eliminate the polar variables \(r\) and \(\theta\) by expressing them in terms of \(x\) and \(y\). This typically involves using the relationships \(x = r \cos \theta\), \(y = r \sin \theta\), and \(r = \sqrt{x^2 + y^2}\). For example, the polar function \( r = 2\sin\theta \) can be converted to the Cartesian equation \( y = \sqrt{4 - x^2} \), which represents a semicircle above the x-axis with a radius of 2. Mastery of these conversions is crucial for students to navigate between polar and Cartesian representations seamlessly.

Polar Equations of Circles and Lines

Polar coordinates elegantly express the equations of circles and lines. A circle centered at the origin with radius \(a\) is simply \( r = a \) in polar form. For a circle not centered at the origin, the equation becomes more complex, such as \( r(\theta) = a\cos(\theta - \phi) \) for a circle centered at \((a\cos\phi, a\sin\phi)\) in Cartesian coordinates. Lines are represented differently in polar coordinates; a line through the origin makes a constant angle \(\theta = \alpha\) with the positive x-axis. A line not passing through the origin can be expressed as \( r = \frac{e}{\cos(\theta - \alpha)} \), where \(e\) is the shortest distance from the origin to the line, and \(\alpha\) is the angle the line makes with the x-axis. These equations demonstrate the versatility of polar coordinates in capturing the essence of geometric shapes.

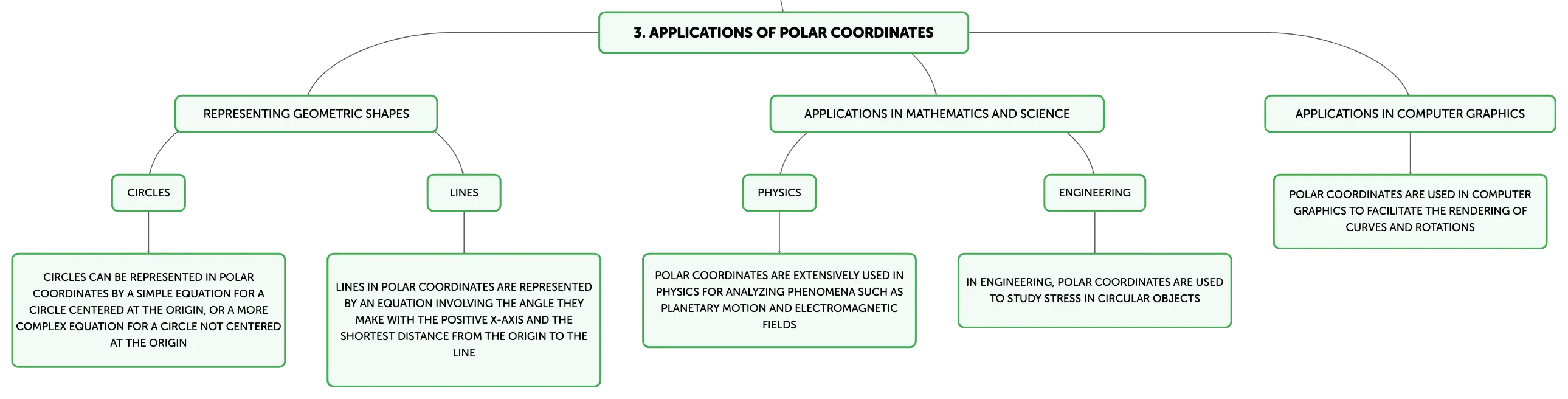

The Importance of Polar Coordinates in Mathematical Applications

Polar coordinates are indispensable in various fields of mathematics and science, offering a perspective that is particularly suited to problems involving radial symmetry and rotation. They are extensively used in physics for analyzing phenomena such as planetary motion and electromagnetic fields, as well as in engineering for studying stress in circular objects. In computer graphics, polar coordinates facilitate the rendering of curves and rotations. A thorough understanding of polar functions and their interplay with Cartesian coordinates is thus crucial for students pursuing careers in STEM fields, as it equips them with the tools to tackle complex problems involving circular and rotational dynamics.
