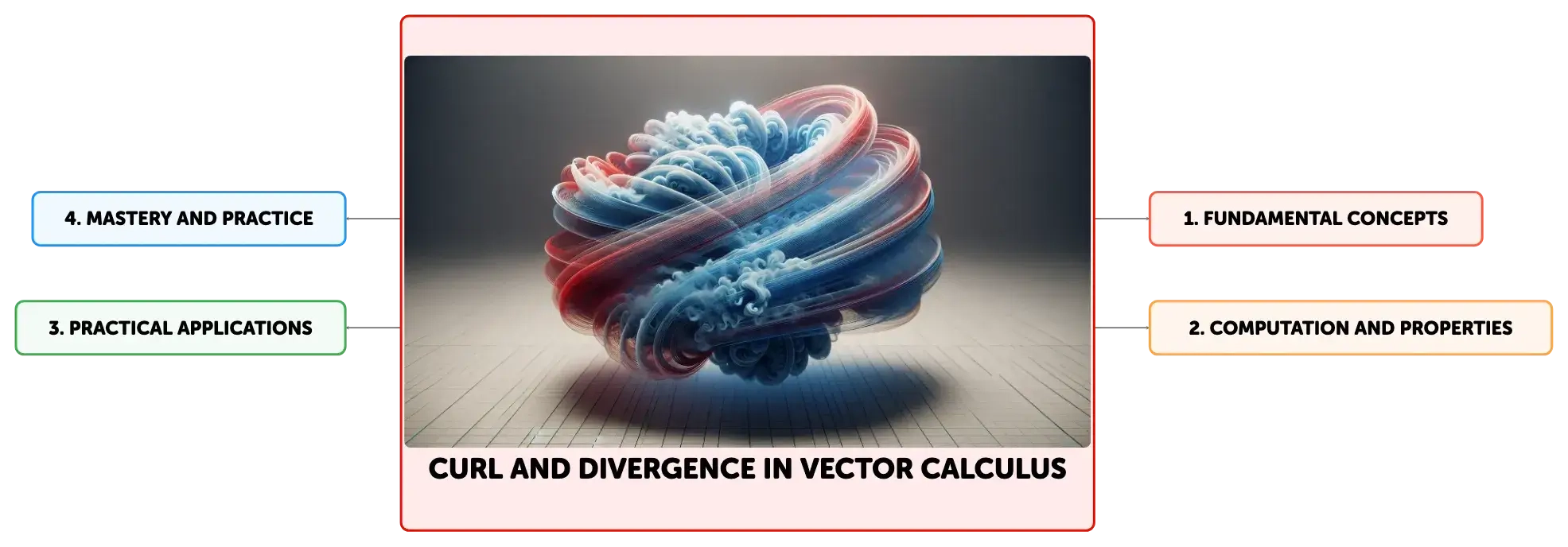

Curl and Divergence in Vector Calculus

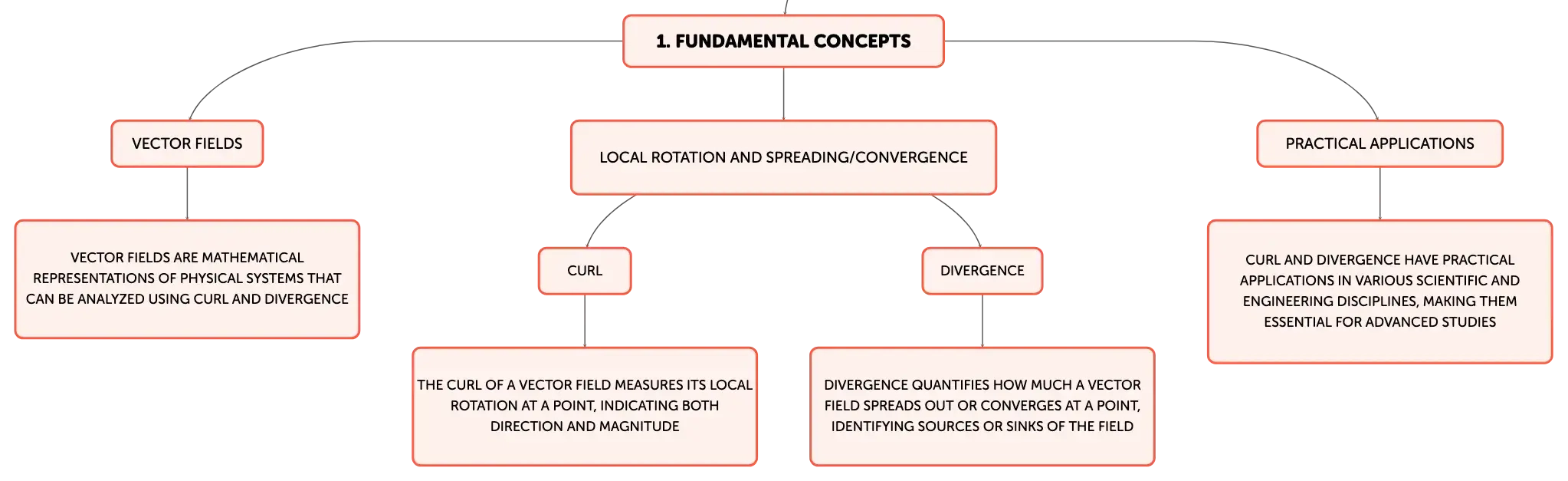

Fundamental Concepts

Vector Fields

Vector fields are mathematical representations of physical systems that can be analyzed using curl and divergence

Local Rotation and Spreading/Convergence

Curl

The curl of a vector field measures its local rotation at a point, indicating both direction and magnitude

Divergence

Divergence quantifies how much a vector field spreads out or converges at a point, identifying sources or sinks of the field

Practical Applications

Curl and divergence have practical applications in various scientific and engineering disciplines, making them essential for advanced studies

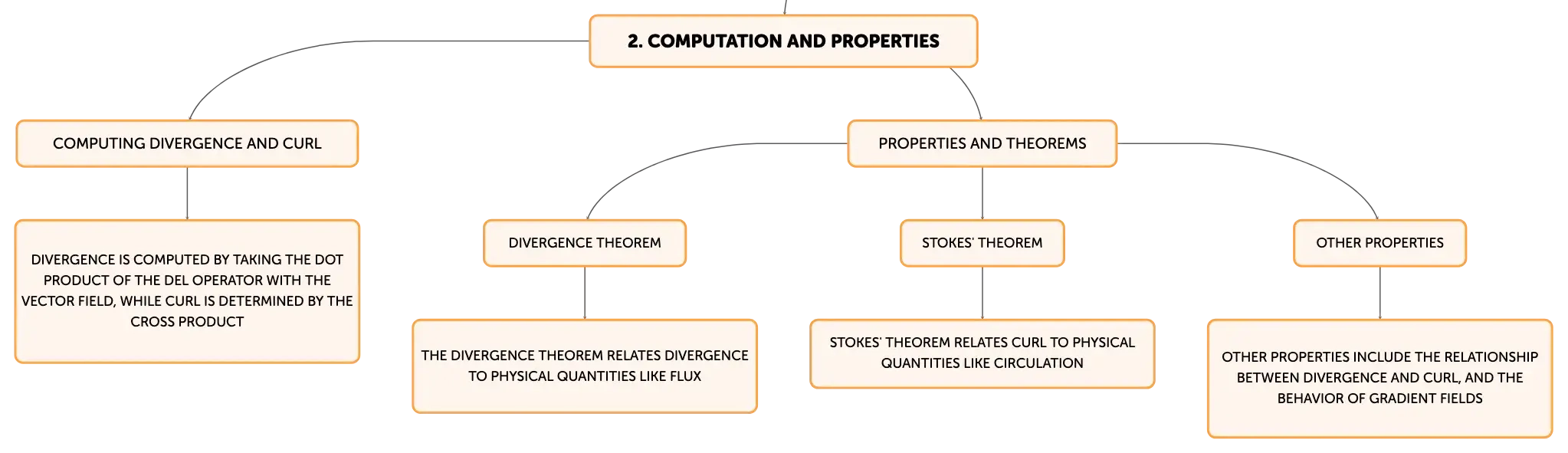

Computation and Properties

Computing Divergence and Curl

Divergence is computed by taking the dot product of the del operator with the vector field, while curl is determined by the cross product

Properties and Theorems

Divergence Theorem

The divergence theorem relates divergence to physical quantities like flux

Stokes' Theorem

Stokes' theorem relates curl to physical quantities like circulation

Other Properties

Other properties include the relationship between divergence and curl, and the behavior of gradient fields

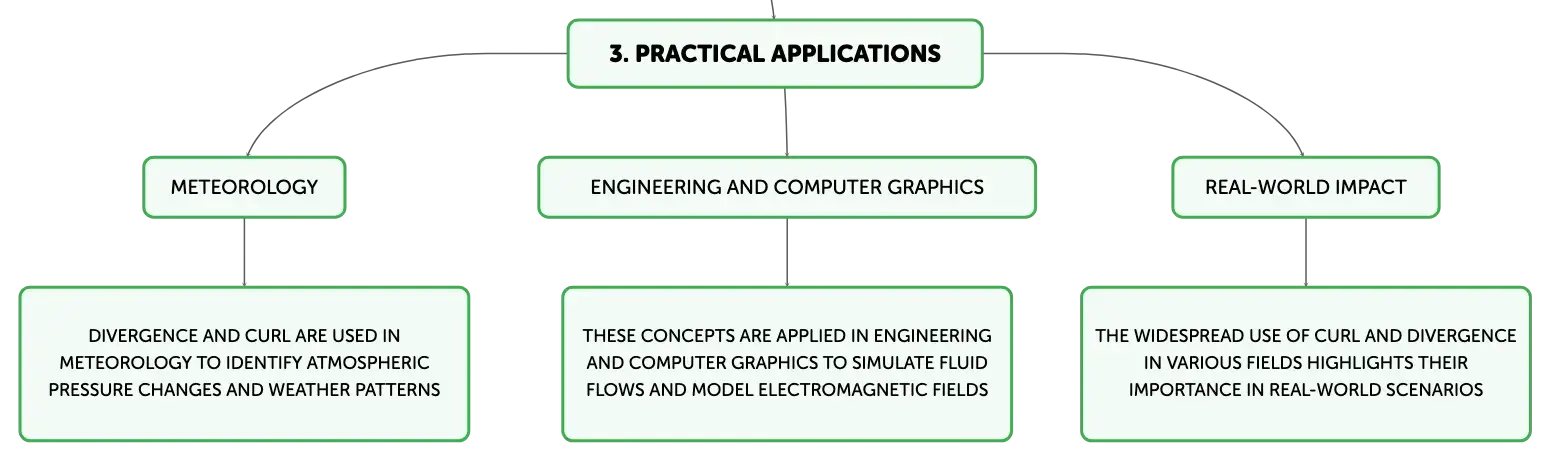

Practical Applications

Meteorology

Divergence and curl are used in meteorology to identify atmospheric pressure changes and weather patterns

Engineering and Computer Graphics

These concepts are applied in engineering and computer graphics to simulate fluid flows and model electromagnetic fields

Real-World Impact

The widespread use of curl and divergence in various fields highlights their importance in real-world scenarios

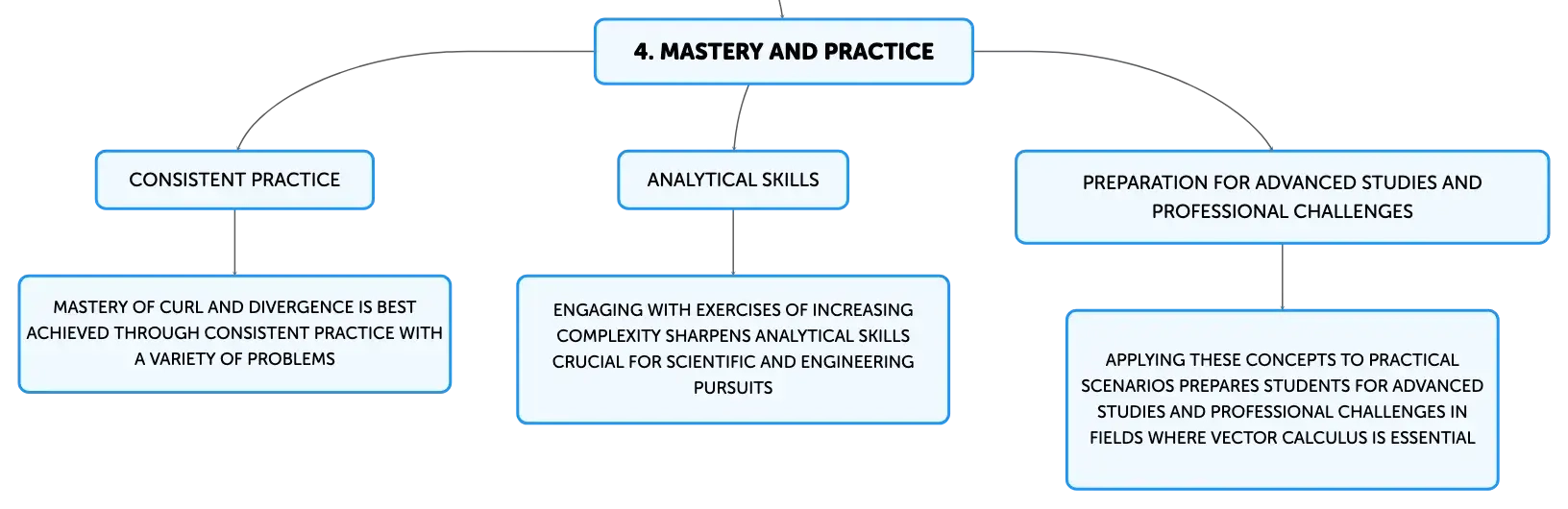

Mastery and Practice

Consistent Practice

Mastery of curl and divergence is best achieved through consistent practice with a variety of problems

Analytical Skills

Engaging with exercises of increasing complexity sharpens analytical skills crucial for scientific and engineering pursuits

Preparation for Advanced Studies and Professional Challenges

Applying these concepts to practical scenarios prepares students for advanced studies and professional challenges in fields where vector calculus is essential

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

______, on the other hand, measures how much a vector field converges or diverges at a point.

Divergence

Divergence concept

Net rate of vector field magnitude flow out of an infinitesimal volume around a point.

Divergence indication

Positive divergence implies source of field; negative divergence implies sink.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Scientific study setup with calculator, stack of red, blue, green books, beaker with blue liquid, protractor on paper, and compass on blackboard.

Integration of Trigonometric Functions

Three-dimensional graph with a smooth, undulating surface above a grid on the x-y plane, with a clear set square in the foreground and a soft white-gray background.

Double Integrals

Blackboard on easel behind desk with blue marbled globe, clear protractor, metallic compasses, and potted plant, in a serene study setting.

Trigonometric Substitution

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Exploring the Fundamentals of Curl and Divergence in Vector Calculus

Curl and divergence are fundamental concepts in vector calculus, pivotal for the analysis of vector fields. The curl of a vector field provides a measure of the field's local rotation at a point, indicating both the direction and magnitude of this rotation. Divergence, in contrast, quantifies how much a vector field spreads out or converges at a point, effectively identifying points that act as sources or sinks of the field. These concepts are not purely theoretical; they have practical applications in numerous scientific and engineering disciplines, including fluid dynamics, electromagnetism, and beyond, making them indispensable for students in these advanced fields.

Swirling blue and red smoke patterns curling in a spiral motion against a neutral gray background, highlighting dynamic movement and depth.

Defining the Mathematical Nature of Curl and Divergence

Divergence is a scalar field that represents the net rate of flow of a vector field's magnitude out of an infinitesimal volume around a given point. It is a measure of the "outflowing-ness" at a point, indicating whether a point is a source (positive divergence) or a sink (negative divergence) of the field. The curl, on the other hand, is a vector field that characterizes the infinitesimal rotation of a vector field around a point. It is a measure of the "twisting" of the field, with its direction given by the right-hand rule and its magnitude by the amount of rotation. These mathematical tools are essential for understanding the dynamic behavior of vector fields in physical systems.

Techniques for Computing Divergence and Curl

To compute the divergence of a vector field \( \mathbf{F} = (P, Q, R) \), one takes the dot product of the del operator \( \nabla \) with \( \mathbf{F} \), yielding \( \nabla \cdot \mathbf{F} = \frac{\partial P}{\partial x} + \frac{\partial Q}{\partial y} + \frac{\partial R}{\partial z} \). The curl is determined by the cross product of \( \nabla \) with \( \mathbf{F} \), resulting in \( \nabla \times \mathbf{F} = \left( \frac{\partial R}{\partial y} - \frac{\partial Q}{\partial z} \right) \mathbf{i} + \left( \frac{\partial P}{\partial z} - \frac{\partial R}{\partial x} \right) \mathbf{j} + \left( \frac{\partial Q}{\partial x} - \frac{\partial P}{\partial y} \right) \mathbf{k} \). These operations facilitate the evaluation of the divergence and curl at any point within a vector field.

Fundamental Properties and Theorems Involving Curl and Divergence

Curl and divergence are characterized by several properties and theorems that simplify their computation and deepen our understanding of vector fields. For example, the divergence of the sum of two vector fields is equal to the sum of their individual divergences, and the divergence of a curl is always zero, which indicates that curl fields are solenoidal. Conversely, the curl of a gradient field is always zero, reflecting the irrotational nature of gradient fields. Theorems such as the divergence theorem and Stokes' theorem relate these concepts to physical quantities like flux and circulation, providing powerful tools for analyzing complex systems in fluid dynamics and electromagnetism.

Real-World Applications of Curl and Divergence Across Disciplines

The practical applications of curl and divergence are vast and varied, impacting disciplines such as meteorology, engineering, and astrophysics. In meteorology, for instance, divergence is used to identify regions of atmospheric pressure changes, while curl can indicate the formation of cyclonic weather patterns. In engineering and computer graphics, these mathematical concepts are employed to create simulations of fluid flows and to model the behavior of electromagnetic fields. The widespread use of curl and divergence in real-world scenarios underscores the importance of mastering vector calculus for professionals in these fields.

Enhancing Understanding of Curl and Divergence Through Practice

Mastery of curl and divergence is best achieved through consistent practice with a variety of problems. Engaging with exercises of increasing complexity not only solidifies understanding but also sharpens analytical skills crucial for scientific and engineering pursuits. By applying these concepts to practical scenarios, students can deepen their grasp of fluid dynamics, electromagnetism, and other areas where vector calculus is essential, thereby preparing them for advanced studies and professional challenges.
