Sample Rate in Digital Audio Processing

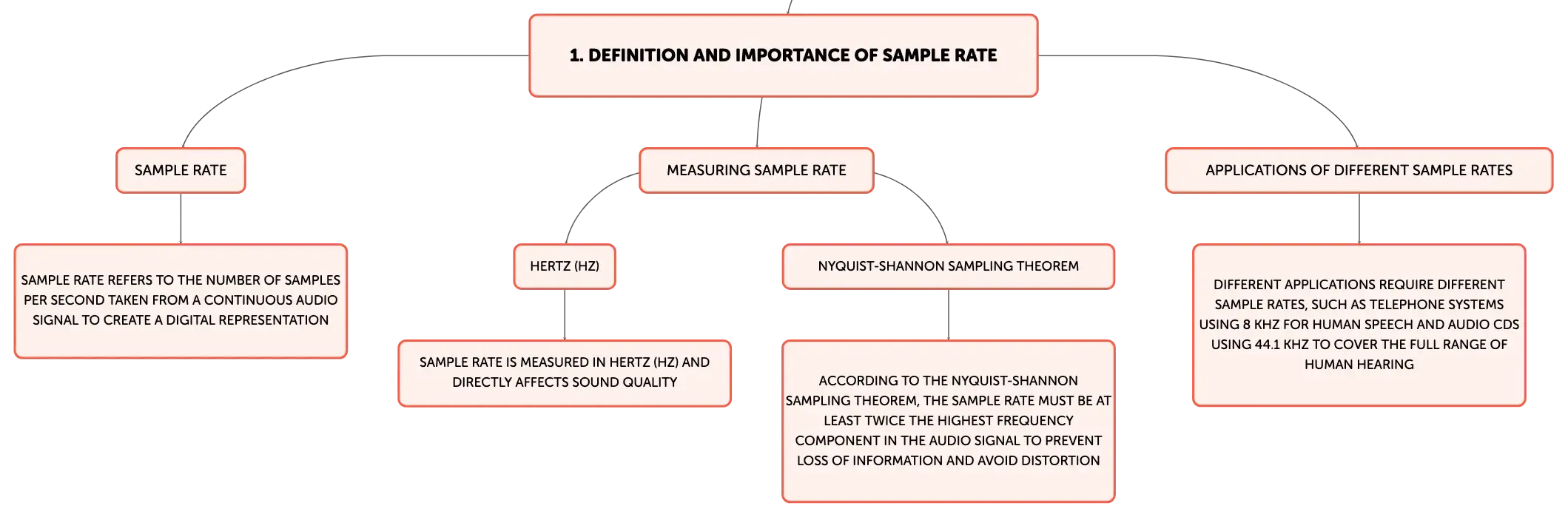

Exploring Sample Rate in Digital Audio

Sample rate, a fundamental concept in digital audio processing, refers to the number of samples per second taken from a continuous audio signal to create a digital representation. Measured in Hertz (Hz), the sample rate directly affects the sound quality; a higher sample rate yields a more accurate representation of the original sound. The standard sample rate for CDs is 44.1 kHz, meaning 44,100 samples per second. According to the Nyquist-Shannon sampling theorem, to prevent loss of information and avoid aliasing—a type of distortion—the sample rate must be at least twice the highest frequency component in the audio signal.

The Role of Sample Rate in Audio Quality and File Size

The sample rate is crucial for maintaining the integrity of the original audio signal. It determines the highest frequency that can be accurately reproduced and influences the size of the audio file; higher sample rates result in larger files. Different applications necessitate different sample rates. For example, telephone systems typically use a sample rate of 8 kHz, sufficient for the limited frequency range of human speech. In contrast, audio CDs use a 44.1 kHz sample rate to cover the full range of human hearing. High-resolution audio may employ sample rates up to 96 kHz or 192 kHz, though the perceptual improvement for most listeners is a subject of debate. The choice of sample rate is a compromise between the desired audio quality, file size, and system capabilities.

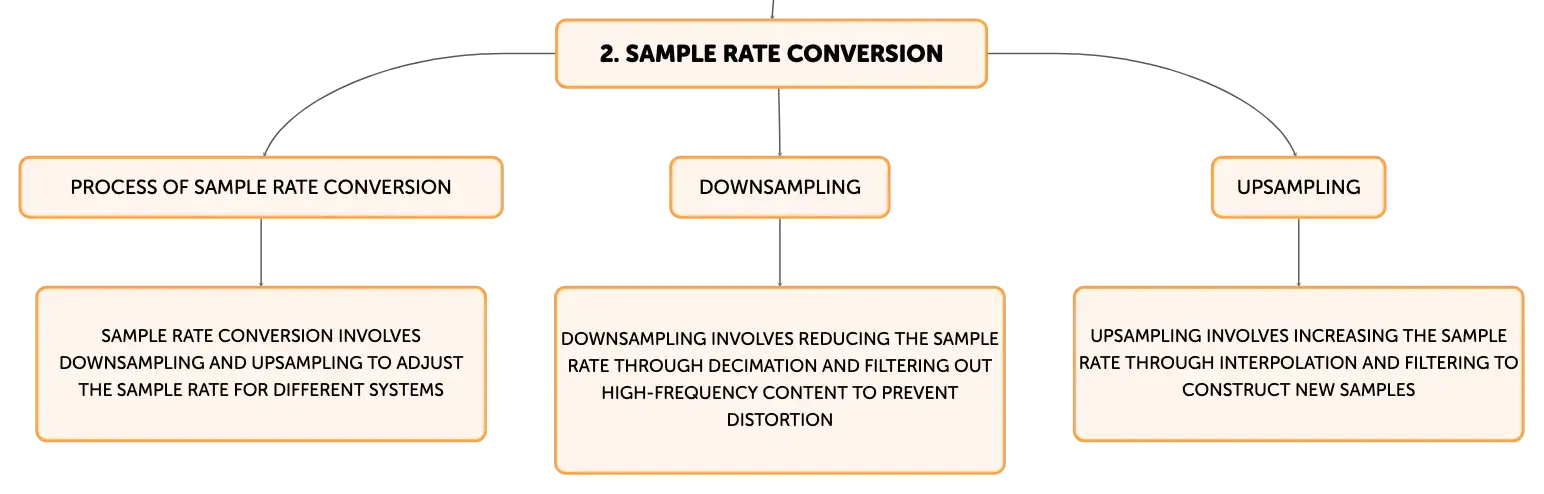

Techniques for Sample Rate Conversion

Sample rate conversion is a process required when audio files must be played back or processed by systems with different sample rates. This involves downsampling (reducing the sample rate) through decimation, which includes filtering out high-frequency content to prevent aliasing, and upsampling (increasing the sample rate) through interpolation, which introduces additional samples and uses filtering to construct the new samples. The quality of the conversion depends heavily on the filtering process, which must be carefully designed to preserve the audio's original quality.

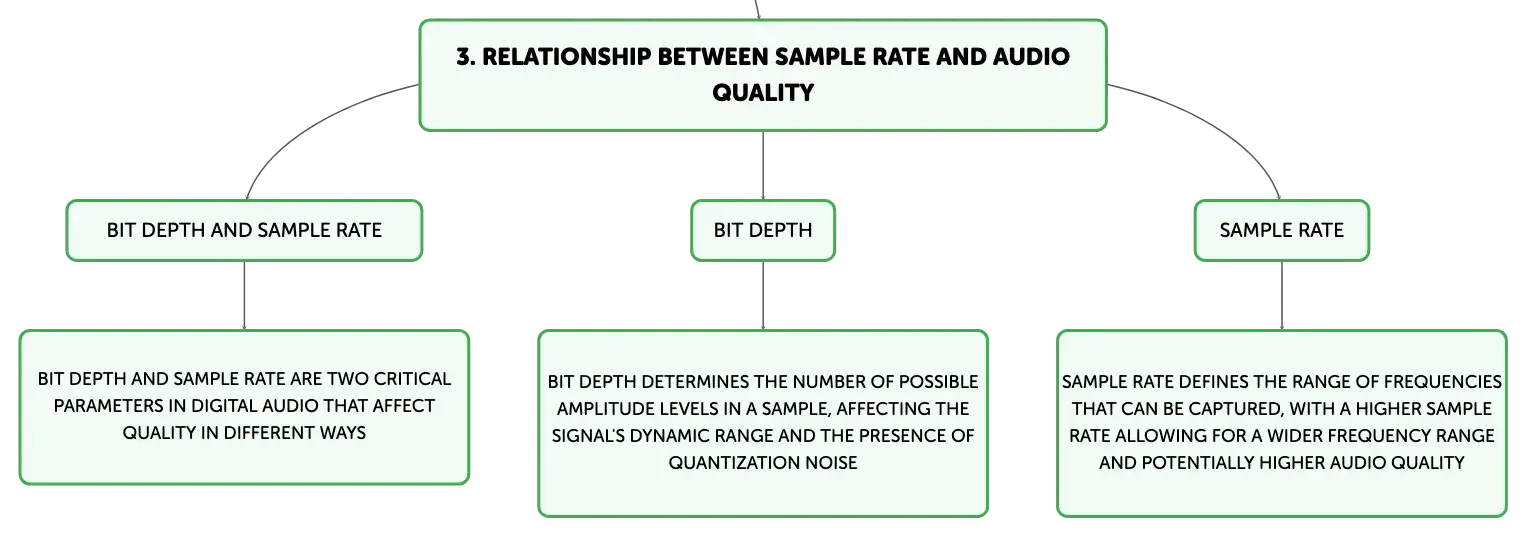

Differentiating Bit Depth from Sample Rate

Bit depth and sample rate are two critical parameters in digital audio that affect quality in different ways. Bit depth determines the number of possible amplitude levels in a sample, thus defining the signal's dynamic range—the contrast between the softest and loudest sounds. Standard bit depths include 16 bits for CDs and 24 bits for professional audio applications. Sample rate, conversely, defines the range of frequencies that can be captured, with a higher sample rate allowing for a wider frequency range. To reproduce the full spectrum of human hearing, a sample rate of at least 40 kHz is necessary, as it can capture frequencies up to 20 kHz, the upper limit of human hearing.

Combined Influence of Bit Depth and Sample Rate on Sound Quality

The audio quality is significantly affected by both bit depth and sample rate. Bit depth influences the signal's dynamic range and the presence of quantization noise, which is the error between the analog signal and its digital representation. A higher bit depth results in a greater dynamic range and a lower level of quantization noise. The sample rate determines the highest frequency that can be accurately captured, with the maximum frequency being half of the sample rate. While increasing bit depth and sample rate can enhance audio quality, they also raise the file size and processing requirements. There is a point of diminishing returns, beyond which further increases may not yield perceptible improvements for most listeners.

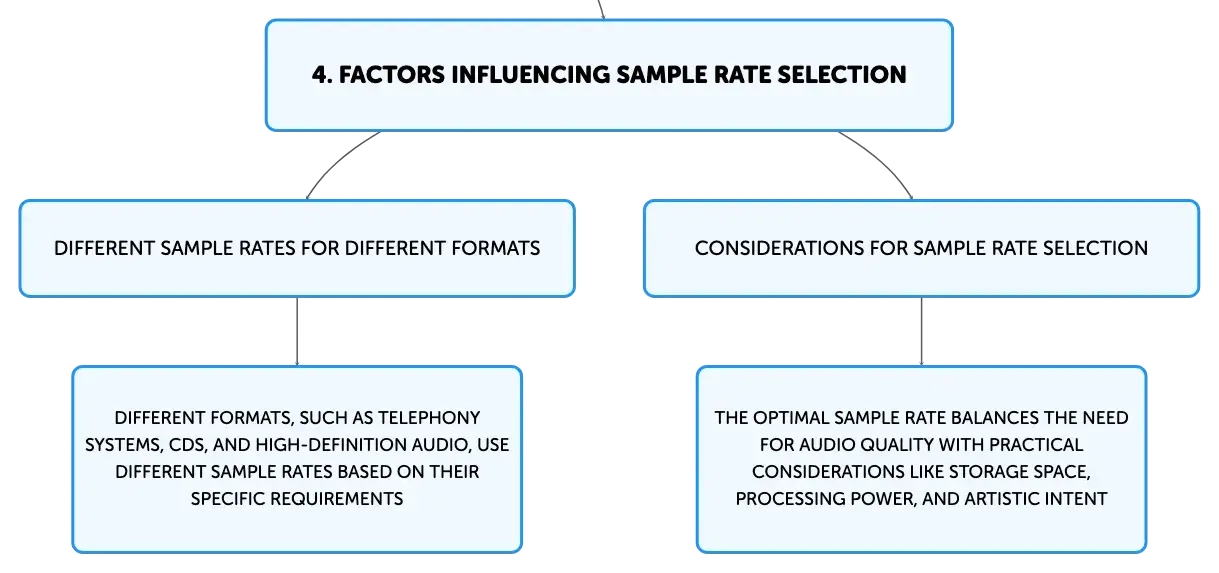

Common Audio Sample Rates and Selection Criteria

Audio sample rates vary across different formats and are chosen based on the application's requirements. Telephony systems use an 8 kHz sample rate, which is adequate for voice communication. Compact Discs (CDs) use a 44.1 kHz sample rate to fully represent the audible range of human hearing. High-definition audio formats may use sample rates such as 96 kHz or 192 kHz to provide higher fidelity. The selection of a sample rate is influenced by several factors, including the limits of human hearing, the desired audio bandwidth, the medium's constraints, available processing power, and artistic intent. The optimal sample rate balances the need for audio quality with practical considerations like storage space and processing power.
