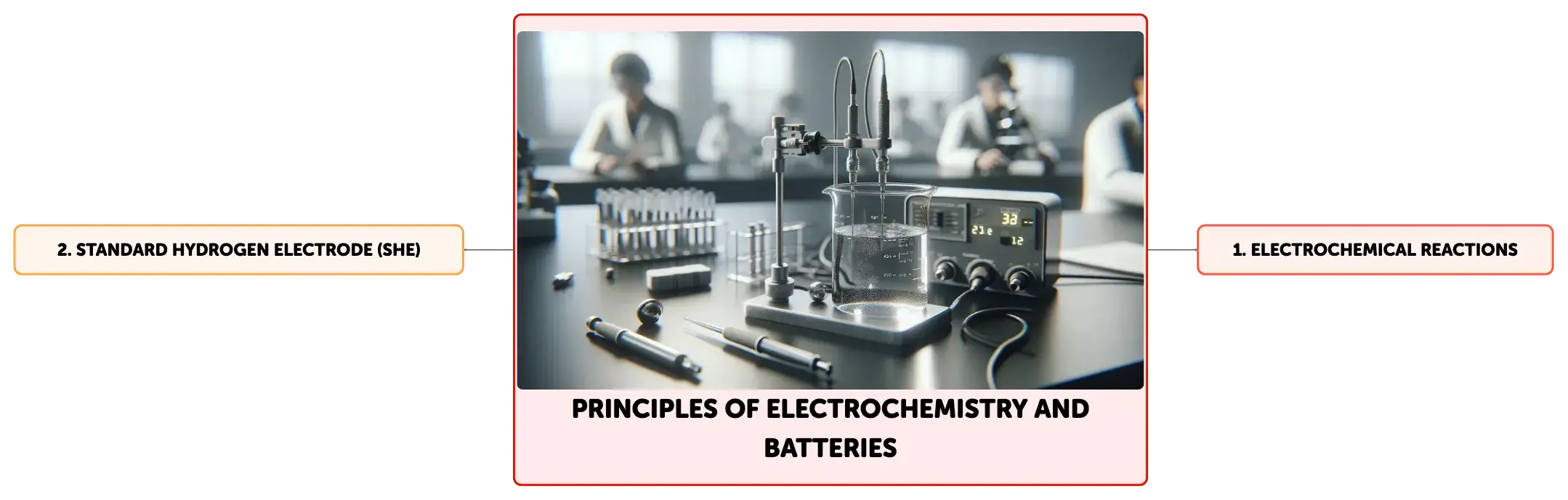

Concept Map

Understanding the electrochemical principles of battery operation is crucial for harnessing electrical energy. This involves redox reactions where substances undergo oxidation and reduction, losing or gaining electrons. The Standard Electrode Potential (E°) plays a pivotal role in determining the direction of these reactions. Galvanic cells convert chemical energy into electrical energy, with the Standard Hydrogen Electrode (SHE) serving as a reference point for measuring electrode potentials.

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

In batteries, ______ is the process of losing electrons, while ______ is the process of gaining electrons.

oxidation

reduction

Standard conditions for E° measurement

298 K, 100 kPa, 1 M concentration for ions

Reference for E° values

Standard Hydrogen Electrode (SHE) at 0 V

Q&A

Here's a list of frequently asked questions on this topic

Principles of Electrochemistry and Batteries

Concept Map

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

In batteries, ______ is the process of losing electrons, while ______ is the process of gaining electrons.

oxidation

reduction

Standard conditions for E° measurement

298 K, 100 kPa, 1 M concentration for ions

Reference for E° values

Standard Hydrogen Electrode (SHE) at 0 V

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Glass beaker with pale yellow liquid mixed by a magnetic stirrer on a black plate, pipette and other laboratory glassware in the background.

Ruff Degradation: A Key Technique in Carbohydrate Chemistry

Glass bottle with green liquid on laboratory bench, colored test tubes in rack, lit Bunsen burner and tweezers next to an empty petri dish.

Heteroatoms in Organic Chemistry

Transparent glass vial with colorless liquid and black cap on reflective laboratory bench, empty test tubes in wooden rack and blurry green leaves on background.

Alkene Nomenclature

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Electrochemical Principles in Battery Operation

Batteries operate on the fundamental principles of electrochemistry, where chemical energy is transformed into electrical energy via electrochemical reactions. Central to these reactions are the processes of oxidation, where a substance loses electrons and increases in oxidation state, and reduction, where a substance gains electrons and decreases in oxidation state. These complementary processes are collectively known as redox reactions. In a battery, these redox reactions are orchestrated in such a way that they produce a continuous flow of electrons through an external circuit, resulting in an electric current.

Close-up of a laboratory bench with glass beakers and electrolyte solution, electrodes connected to a power supply, pipette and safety glasses.

The Importance of Standard Electrode Potentials

The Standard Electrode Potential (E°) is a measure of the intrinsic tendency of a chemical species to be reduced or oxidized. It is a critical factor in determining the direction and spontaneity of redox reactions. The standard electrode potential is defined under standard conditions, which include a temperature of 298 K (25°C), a pressure of 100 kPa (1 atmosphere), and a concentration of 1 M for each ion participating in the reaction. The potential is measured in volts (V), and the values are referenced against the Standard Hydrogen Electrode (SHE), which has an assigned potential of 0 V.

Dissecting Redox Reactions with Half-Reactions

Half-reactions are a useful tool for analyzing redox reactions by breaking them down into their oxidation and reduction components. These half-reactions, also referred to as half-equations, illustrate the individual processes of electron loss or gain by a species. In a complete redox reaction, these half-reactions occur simultaneously, but they are often represented separately for clarity and ease of understanding. By convention, half-reactions are written as reduction processes, and electrode potentials are listed as reduction potentials, which simplifies the comparison of the relative strengths of oxidizing and reducing agents.

Galvanic Cells and Electrical Energy Generation

Galvanic cells, also known as voltaic cells, are devices that convert chemical energy into electrical energy through spontaneous redox reactions. A galvanic cell consists of two half-cells, each containing an electrode and an electrolyte where either oxidation or reduction occurs. The electromotive force (EMF) generated by the cell is the driving force for the movement of electrons from the anode, where oxidation takes place, to the cathode, where reduction occurs. The EMF of the cell, also known as the cell potential, is calculated by taking the difference between the reduction potential of the cathode and the oxidation potential of the anode.

Anatomy of a Galvanic Cell

A typical galvanic cell is composed of two half-cells, each containing an electrolyte and an electrode, connected by a salt bridge and an external electrical circuit. The salt bridge is essential for maintaining electrical neutrality within the cell by allowing ions to flow between the half-cells, thereby preventing charge buildup that would otherwise stop the reaction. The electrodes, usually made of metals or other conductive materials, facilitate the redox reactions; the anode is the site of oxidation and the cathode is the site of reduction. The flow of electrons through the external circuit from anode to cathode is the electrical current that can be harnessed for work.

The Standard Hydrogen Electrode as a Reference

The Standard Hydrogen Electrode (SHE) is the universal reference for measuring electrode potentials in electrochemistry. It is assigned a potential of 0 volts under standard conditions, providing a baseline against which the potentials of other electrodes can be compared. To determine the standard electrode potential of a species, a galvanic cell is constructed with the SHE as one half-cell and the species of interest as the other half-cell. The measured potential difference is the standard electrode potential of the species, indicating its propensity to gain or lose electrons when compared to hydrogen.

Measuring and Interpreting Electrode Potentials

The electrode potential is the voltage difference between an electrode and its surrounding electrolyte, resulting from the separation of charges. It reflects the ability of a species in a half-cell to either donate or accept electrons. The standard electrode potential is measured under standard conditions with a concentration of 1 M for all reactants and products. To measure this potential, a galvanic cell is set up with the species in question and a reference electrode, often the SHE. The EMF of the cell, also known as the cell potential or E°cell, is indicative of the electrode potential for the species, which is a key parameter for predicting the feasibility and direction of redox reactions in electrochemical cells.

Principles of Electrochemistry and Batteries

Concept Map

Summary

Outline

Principles of Electrochemistry and Batteries

Electrochemical Reactions

Oxidation and Reduction

Redox Reactions

Galvanic Cells

Standard Hydrogen Electrode (SHE)

Reference Electrode

Standard Electrode Potential

Electrode Potential

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

Q&A

Here's a list of frequently asked questions on this topic

What are the key processes involved in the operation of batteries according to electrochemical principles?

What does the Standard Electrode Potential indicate in electrochemistry?

How do half-reactions aid in understanding redox reactions?

What is the role of electromotive force in a galvanic cell?

What components make up a galvanic cell and how do they function?

How is the Standard Hydrogen Electrode used in measuring electrode potentials?

What does the electrode potential measure and how is it determined?

Similar Contents

Explore other maps on similar topics

Principles of Electrochemistry and Batteries

Concept Map

Summary

Outline

Principles of Electrochemistry and Batteries

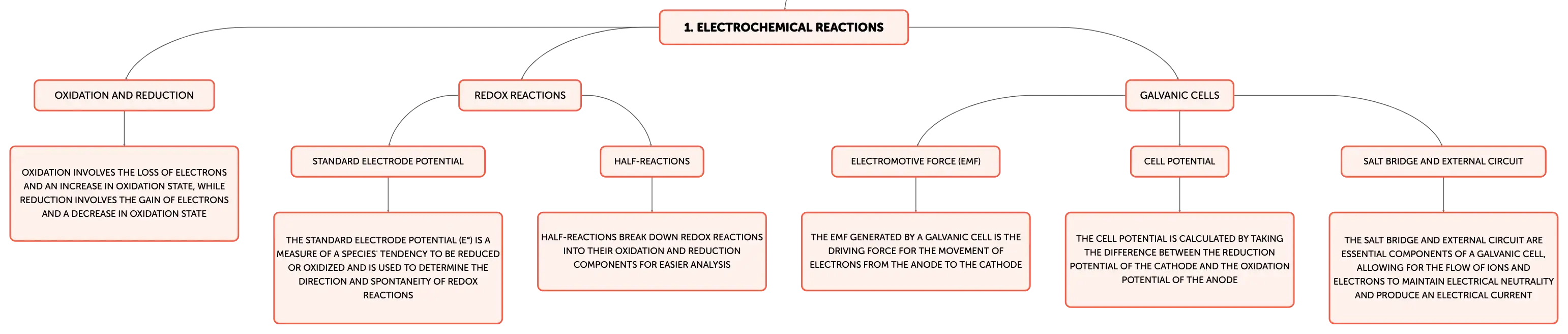

Electrochemical Reactions

Oxidation and Reduction

Redox Reactions

Galvanic Cells

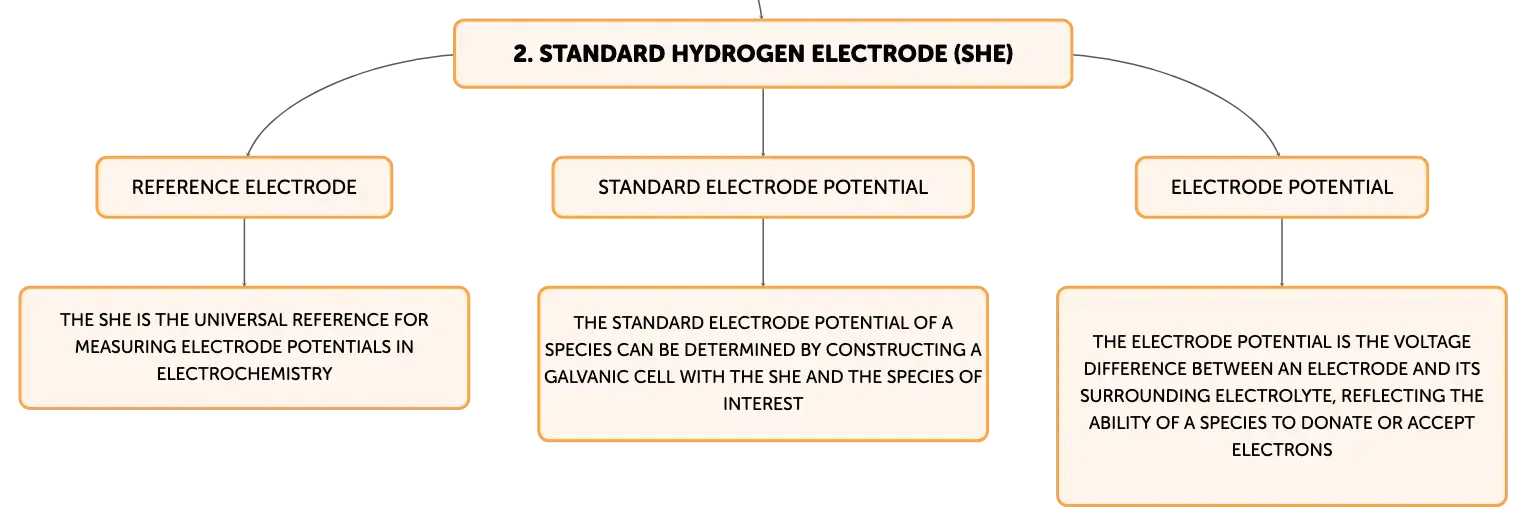

Standard Hydrogen Electrode (SHE)
