Green's Function: A Powerful Tool for Solving Differential Equations

Green's Function is a crucial tool in mathematical physics for solving inhomogeneous linear differential equations. It represents the response of a system to a point source of force or disturbance. This concept is instrumental in various physical theories, including electrostatics and diffusion processes, and adapts to different dimensions and boundary conditions. Green's Function also finds applications in quantum mechanics and financial mathematics, showcasing its versatility and importance in advanced scientific modeling.

see more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Origin of Green's Function

Click to check the answer

Introduced by George Green in the 19th century for solving inhomogeneous linear differential equations.

2

Definition of Green's Function

Click to check the answer

For a linear operator L and function y(x), G(x, x') satisfies L G(x, x') = δ(x - x'), with δ being the Dirac delta function.

3

Application of Green's Function

Click to check the answer

Used to solve Ly(x) = f(x) by integrating G(x, x') with f(x'), linking point conditions to system behavior.

4

______'s Function is known for its ______, enabling the use of the ______ of superposition in solving linear differential equations.

Click to check the answer

Green linearity principle

5

The form of ______'s Function is shaped by the ______ conditions, crucial for a precise solution.

Click to check the answer

Green boundary

6

Role of Green's Function in electrostatics

Click to check the answer

Calculates electric potential V by a point charge within complex geometries.

7

Green's Function G(⃗r, ⃗r') interpretation in electrostatics

Click to check the answer

Represents potential from a unit charge at position ⃗r' in a given geometry.

8

Application of Green's Function in diffusion equations

Click to check the answer

Describes concentration at a point from an instantaneous point source at an earlier time.

9

______ is a powerful tool used for solving linear differential equations in one-dimensional scenarios like wave propagation and heat conduction.

Click to check the answer

Green's Function

10

Green's Function is crucial in quantum mechanics for solving the ______ equation, key to understanding particle behavior.

Click to check the answer

Schrödinger

11

In financial mathematics, Green's Function is fundamental to the ______ equation, which is used for option pricing.

Click to check the answer

Black-Scholes

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Calculus in Motion

View document

Physics

Density, Center of Mass, and Moments in Physics

View document

Physics

Motion in Space

View document

Physics

Velocity and its Applications

View document

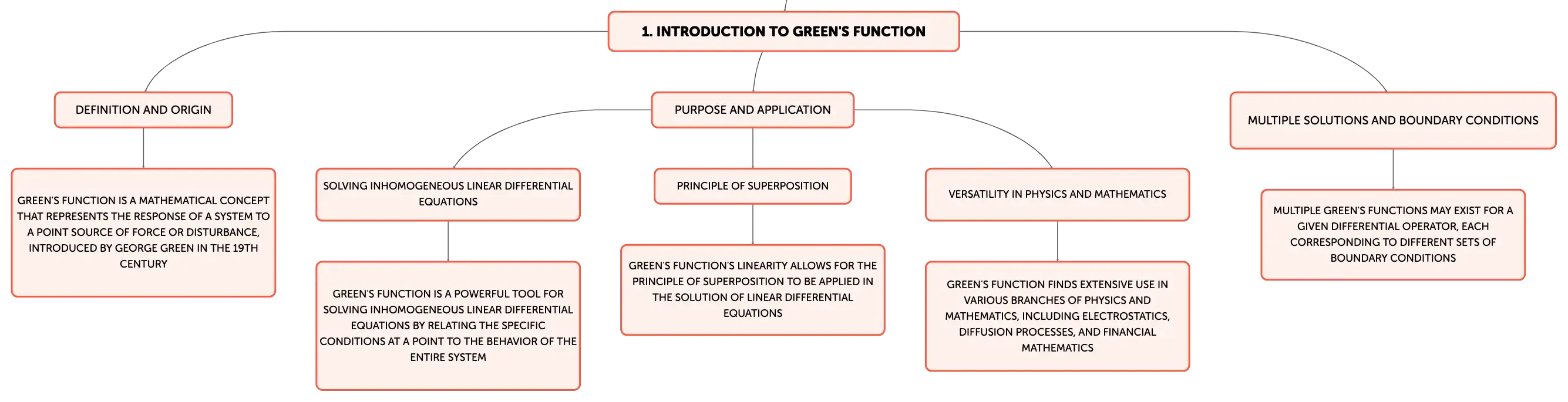

Exploring Green's Function in Mathematical Physics

Green's Function, named after the British mathematician George Green, is a fundamental concept in mathematical physics, introduced in the 19th century. It represents the response of a system to a point source of force or disturbance, and is a powerful tool for solving inhomogeneous linear differential equations. When a linear operator \(L\) acts on a function \(y(x)\), Green's Function \(G(x, x')\) is defined such that \(L G(x, x') = \delta(x - x')\), where \(\delta(x - x')\) is the Dirac delta function, indicating a unit impulse at location \(x'\). This function is pivotal for solving the equation \(L y(x) = f(x)\), where \(f(x)\) is a known source term, by integrating the product of \(G(x, x')\) and \(f(x')\). This process effectively relates the specific conditions at a point to the behavior of the entire system.
Scientific workspace with a Foucault pendulum, beakers, textbooks, protractor, compasses, and a potted plant on a wooden desk.

Fundamental Characteristics of Green's Function

Green's Function is distinguished by its linearity, which allows for the principle of superposition to be applied in the solution of linear differential equations. It acts as an impulse response, providing a direct interpretation of how a system responds to localized stimuli. The specific form of Green's Function is tailored to the boundary conditions of the problem, which are essential for deriving a precise solution. Solutions involving Green's Function are typically represented as integral expressions, which can simplify the treatment of complex problems. It is noteworthy that Green's Function is not uniquely determined; multiple Green's Functions may exist for a given differential operator, each corresponding to different sets of boundary conditions.

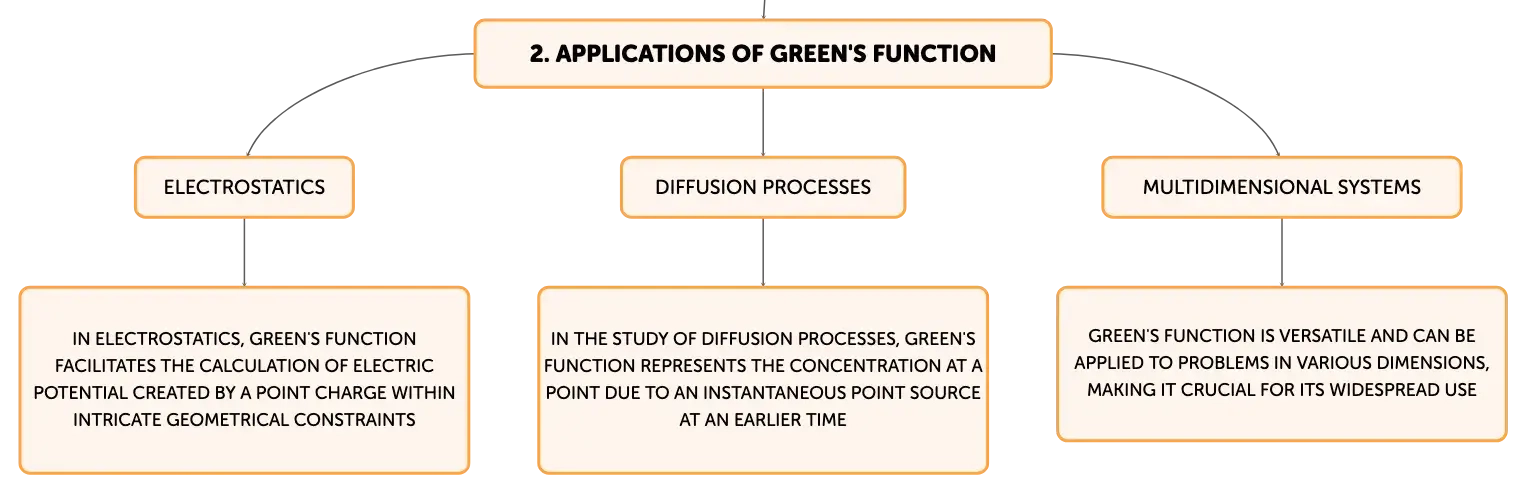

Utilizing Green's Function in Physical Theories

Green's Function finds extensive use in various branches of physics, including electrostatics and the study of diffusion processes. In electrostatics, it facilitates the calculation of the electric potential \(V\) created by a point charge, particularly within intricate geometrical constraints. The Green's Function \(G(\vec{r}, \vec{r}')\) corresponds to the potential due to a unit charge at position \(\vec{r}'\), considering the specific geometry of the problem. In the context of diffusion equations, which describe the temporal and spatial distribution of substances such as heat or chemicals, Green's Function represents the concentration at a point due to an instantaneous point source at an earlier time. These instances exemplify how Green's Function simplifies the modeling and solution of differential equations that encapsulate complex physical situations.

Dimensional Adaptability of Green's Function

Green's Function is versatile and can be applied to problems in various dimensions, which is crucial for its widespread use. In one-dimensional (1D) scenarios, such as the analysis of wave propagation or heat conduction, Green's Function offers a methodical approach to solving linear differential equations. In two-dimensional (2D) contexts, it is vital for addressing issues in fluid mechanics and electromagnetism. The determination of Green's Function in 2D relies heavily on the symmetry of the problem and the boundary conditions, demonstrating the adaptability of the method to complex multidimensional systems.

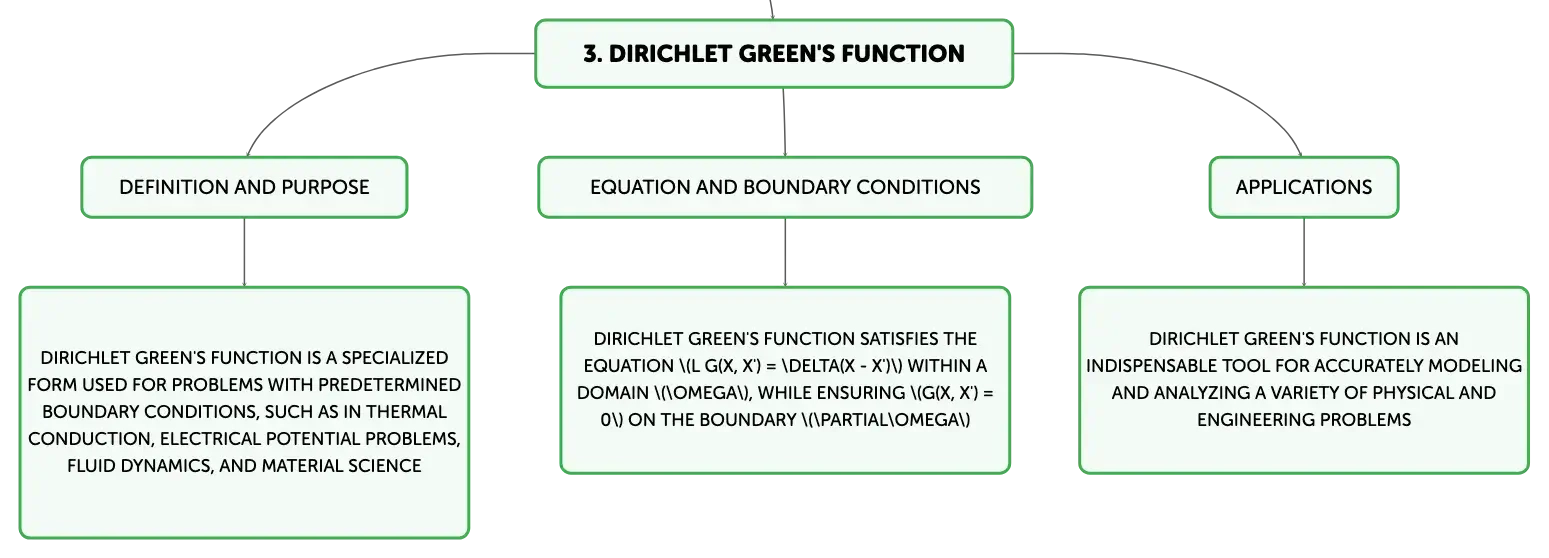

Dirichlet Green's Function and Boundary Value Problems

Dirichlet Green's Function is a specialized form used when Dirichlet boundary conditions are applied, specifying the values of the function on the boundary of the domain. This type is particularly relevant for problems where the solution is predetermined at the boundaries, such as in thermal conduction, electrical potential problems, fluid dynamics, and material science. Dirichlet Green's Function satisfies the equation \(L G(x, x') = \delta(x - x')\) within a domain \(\Omega\), while ensuring \(G(x, x') = 0\) on the boundary \(\partial\Omega\). This specificity renders it an indispensable tool for accurately modeling and analyzing a variety of physical and engineering problems.

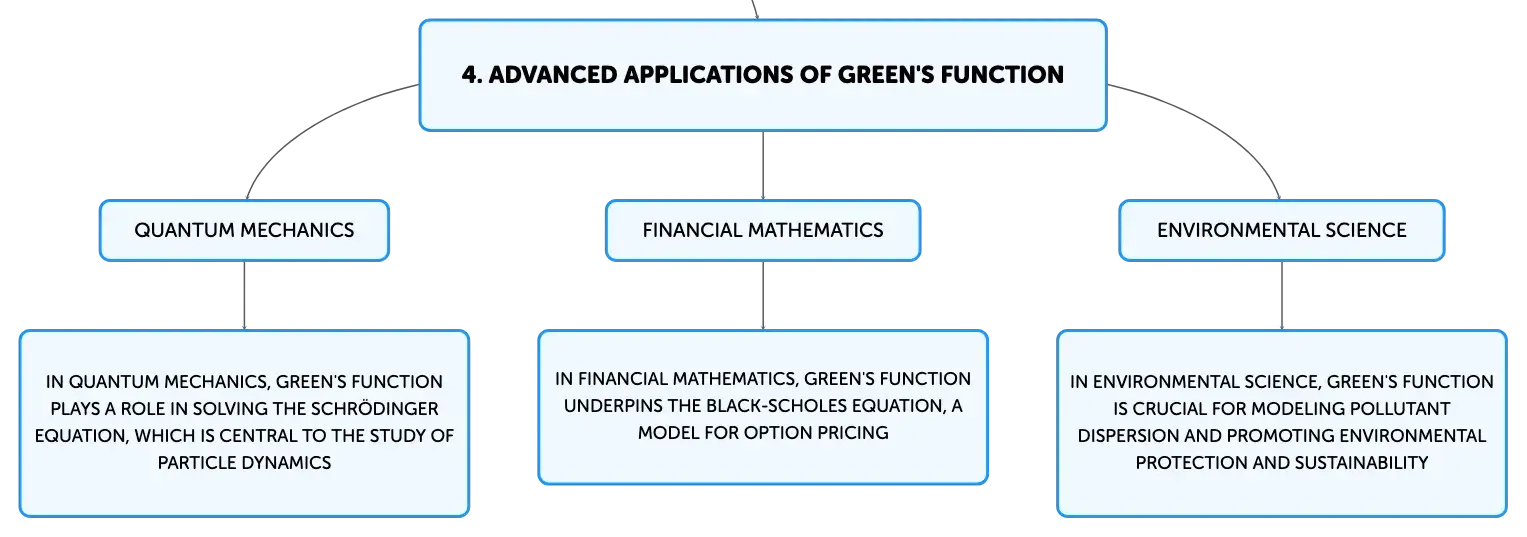

Broadening the Horizon: Green's Function in Advanced Applications

The application of Green's Function extends beyond classical physics, reaching into advanced areas such as quantum mechanics and financial mathematics. In quantum mechanics, it plays a role in solving the Schrödinger equation, which is central to the study of particle dynamics. In the realm of financial mathematics, Green's Function underpins the Black-Scholes equation, a model for option pricing. Environmental science also benefits from Green's Function, particularly in the modeling of pollutant dispersion, emphasizing its importance in environmental protection and sustainability. These advanced applications demonstrate the broad scope and essential nature of Green's Function in tackling complex problems across various scientific and mathematical disciplines.
