Cell Potential and its Relationship to Gibbs Free Energy
Concept Map
Exploring the concept of cell potential, or electromotive force (EMF), this overview delves into its significance in electrochemical systems and its relationship with Gibbs free energy. Cell potential is crucial for applications such as signal transmission in biological organisms and powering electric vehicle batteries. The text also explains how to calculate cell potential and its correlation with equilibrium constants, providing insights into the spontaneity of electrochemical reactions.
Summary
Outline
Exploring Cell Potential in Electrochemical Systems
Cell potential, also known as electromotive force (EMF), is a critical concept in electrochemistry that quantifies the energy per unit charge which is available from the redox reactions occurring in an electrochemical cell. This potential difference is essential for a myriad of applications, ranging from the transmission of signals in biological organisms to the powering of batteries in electric vehicles. In biological systems, such as nerve cells, the potential difference across the cell membrane is established by the differential distribution of ions like Na+ and K+, which is vital for nerve impulse propagation. In electric vehicles, batteries convert chemical energy into electrical energy through redox reactions, with the cell potential determining the amount of power that can be delivered. The cell potential, measured in volts (V), is indicative of the direction and magnitude of the spontaneous flow of electrons during a chemical reaction, with a positive cell potential suggesting a spontaneous reaction under standard conditions.The Interplay Between Gibbs Free Energy and Cell Potential
Gibbs free energy (ΔG) and cell potential (E°) are intimately linked in assessing the spontaneity of electrochemical reactions. A positive standard cell potential corresponds to a spontaneous reaction, as does a negative value of Gibbs free energy. The relationship between these two quantities is mathematically expressed by the equation ΔG° = -nFE°, where 'n' represents the number of moles of electrons exchanged in the reaction, 'F' is the Faraday constant (approximately 96,485 coulombs per mole of electrons), and 'E°' is the standard cell potential. This equation is pivotal for predicting the feasibility and direction of chemical reactions in electrochemical cells.Determining Cell Potential in Electrochemical Cells
The cell potential of an electrochemical cell can be experimentally measured using a voltmeter, which gauges the voltage difference between the two half-cells. The standard cell potential is calculated with the equation E°cell = E°cathode - E°anode, where E°cathode and E°anode are the standard reduction potentials of the cathode and anode, respectively. These standard reduction potentials are tabulated values that are independent of the amount of substance involved, thus being intensive properties. The net cell potential, which is the sum of the individual half-cell potentials, provides insight into the overall spontaneity of the electrochemical reaction.Derivation of the Free Energy-Cell Potential Relationship
The theoretical derivation of the relationship between Gibbs free energy and cell potential involves the concept of electrical work, which is the work done by the electric current during the transfer of charge. The work done by an electrochemical cell can be expressed as w = -qE°cell, where 'q' is the total charge transferred and 'E°cell' is the cell potential. By incorporating the Faraday constant, which relates charge to the amount of substance, the maximum non-expansion work that can be performed by the cell is equated to the change in Gibbs free energy, yielding the formula ΔG° = -nFE°cell. This fundamental equation enables the calculation of either Gibbs free energy or cell potential when the other is known, facilitating the analysis of electrochemical processes.Correlating Cell Potential with Equilibrium Constants
The equilibrium constant (K) for a chemical reaction is another important parameter that can be linked to the standard cell potential. The Nernst equation, E°cell = (RT/nF) ln K, relates the standard cell potential to the equilibrium constant, where 'R' is the universal gas constant and 'T' is the temperature in Kelvin. At standard conditions (298 K), the equation simplifies to E°cell = (0.0257 V/n) ln K. This relationship allows for the comparison of cell potential, Gibbs free energy, and the equilibrium constant, providing a comprehensive view of the reaction's dynamics. A reaction at equilibrium will have a constant K value, signifying a dynamic balance between the forward and reverse reactions.Practical Application: Calculating Gibbs Free Energy from Cell Potential
As a practical example, consider an electrochemical cell composed of sodium metal and water. By determining the standard reduction potentials for the half-reactions involved and calculating the overall cell potential, we can apply the equation ΔG° = -nFE°cell to compute the Gibbs free energy change for the reaction. This calculation will indicate whether the reaction can occur spontaneously under standard conditions. A positive cell potential and a corresponding negative Gibbs free energy change would confirm the reaction's spontaneity.Key Insights into Cell Potential and Gibbs Free Energy
In conclusion, cell potential is a measure of the energy difference between two half-cells in an electrochemical system and serves as a key indicator of a reaction's spontaneity. The interrelation between cell potential and Gibbs free energy is a cornerstone of electrochemistry, enabling the prediction and control of chemical reactions. Mastery of the equations that connect these concepts is essential for understanding the behavior of electrochemical cells and leveraging their potential in a wide array of applications, from biological systems to technological devices.
Show More
Cell Potential
Definition of Cell Potential
Cell potential is the energy per unit charge available from redox reactions in an electrochemical cell
Applications of Cell Potential
Biological Systems
Cell potential is essential for nerve impulse propagation in biological systems, established by the differential distribution of ions
Electric Vehicles
Cell potential determines the amount of power that can be delivered in electric vehicles through redox reactions
Measurement and Calculation of Cell Potential
Cell potential can be measured experimentally using a voltmeter and calculated using the standard reduction potentials of the cathode and anode

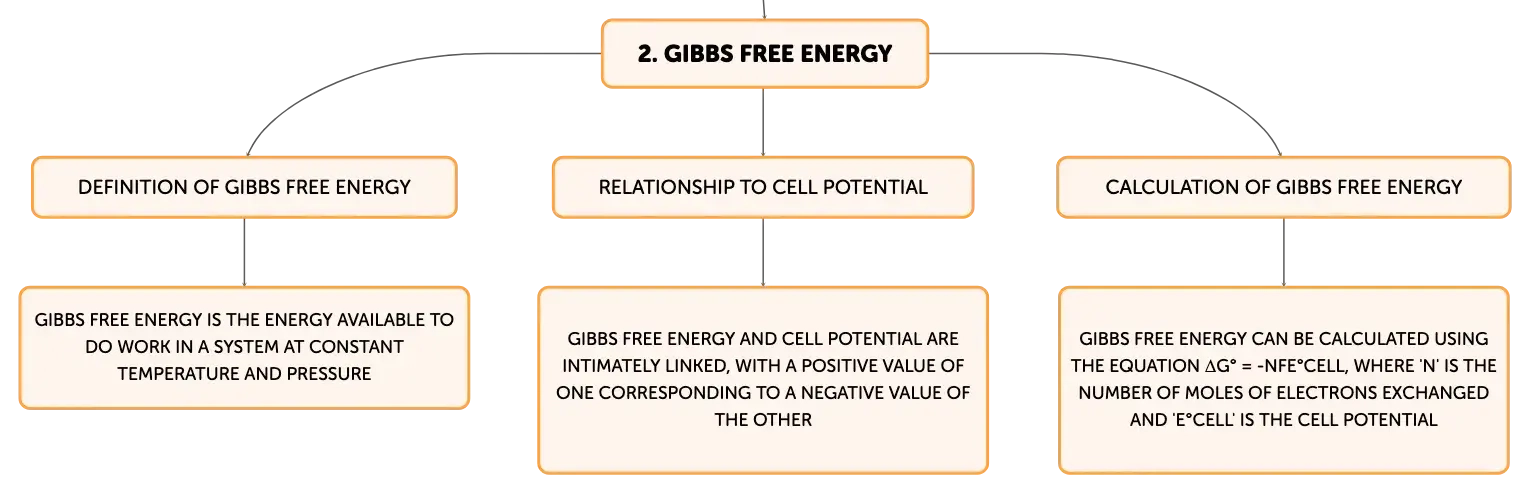

Gibbs Free Energy
Definition of Gibbs Free Energy
Gibbs free energy is the energy available to do work in a system at constant temperature and pressure
Relationship to Cell Potential
Gibbs free energy and cell potential are intimately linked, with a positive value of one corresponding to a negative value of the other
Calculation of Gibbs Free Energy
Gibbs free energy can be calculated using the equation ΔG° = -nFE°cell, where 'n' is the number of moles of electrons exchanged and 'E°cell' is the cell potential

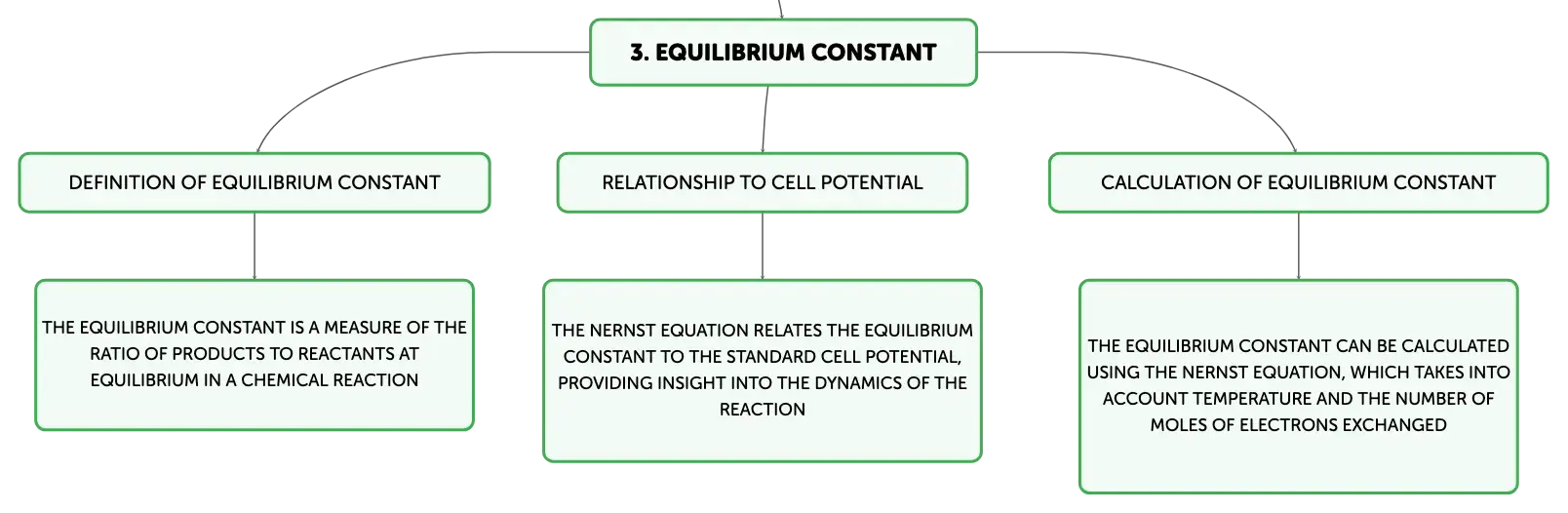

Equilibrium Constant
Definition of Equilibrium Constant
The equilibrium constant is a measure of the ratio of products to reactants at equilibrium in a chemical reaction
Relationship to Cell Potential
The Nernst equation relates the equilibrium constant to the standard cell potential, providing insight into the dynamics of the reaction
Calculation of Equilibrium Constant
The equilibrium constant can be calculated using the Nernst equation, which takes into account temperature and the number of moles of electrons exchanged
Cell Potential and its Relationship to Gibbs Free Energy
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Define EMF in electrochemistry.
EMF, or electromotive force, measures energy per unit charge from redox reactions in an electrochemical cell.
01
Role of cell potential in biological systems.
Cell potential in biological systems is crucial for nerve impulse propagation, established by ion distribution across membranes.
02
Cell potential's impact on electric vehicle batteries.
In electric vehicles, cell potential determines the power output by converting chemical energy into electrical energy via redox reactions.
