Diamond - The Hardest Natural Substance on Earth

Concept Map

Diamonds are the hardest natural substance, formed deep within the Earth's mantle. This text delves into their tetrahedral crystal structure, exceptional hardness, and thermal properties, as well as their uses in cutting tools, electronics, optics, and medical technology. Diamonds also hold significant symbolic value and are a pure carbon crystal, denoted by 'C'.

Summary

Outline

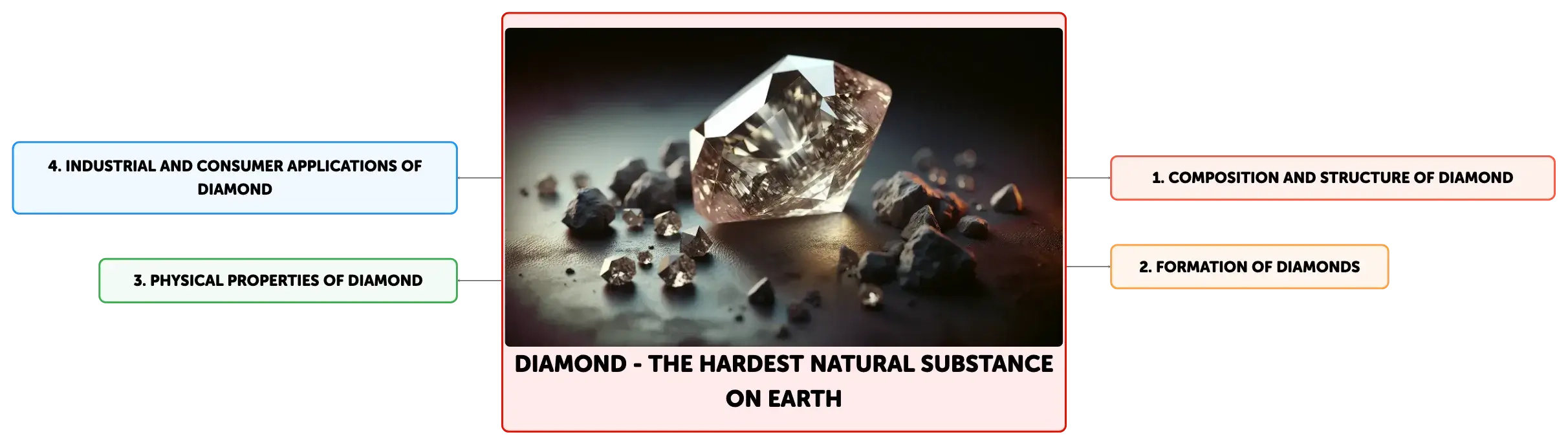

Diamond - The Hardest Natural Substance on Earth

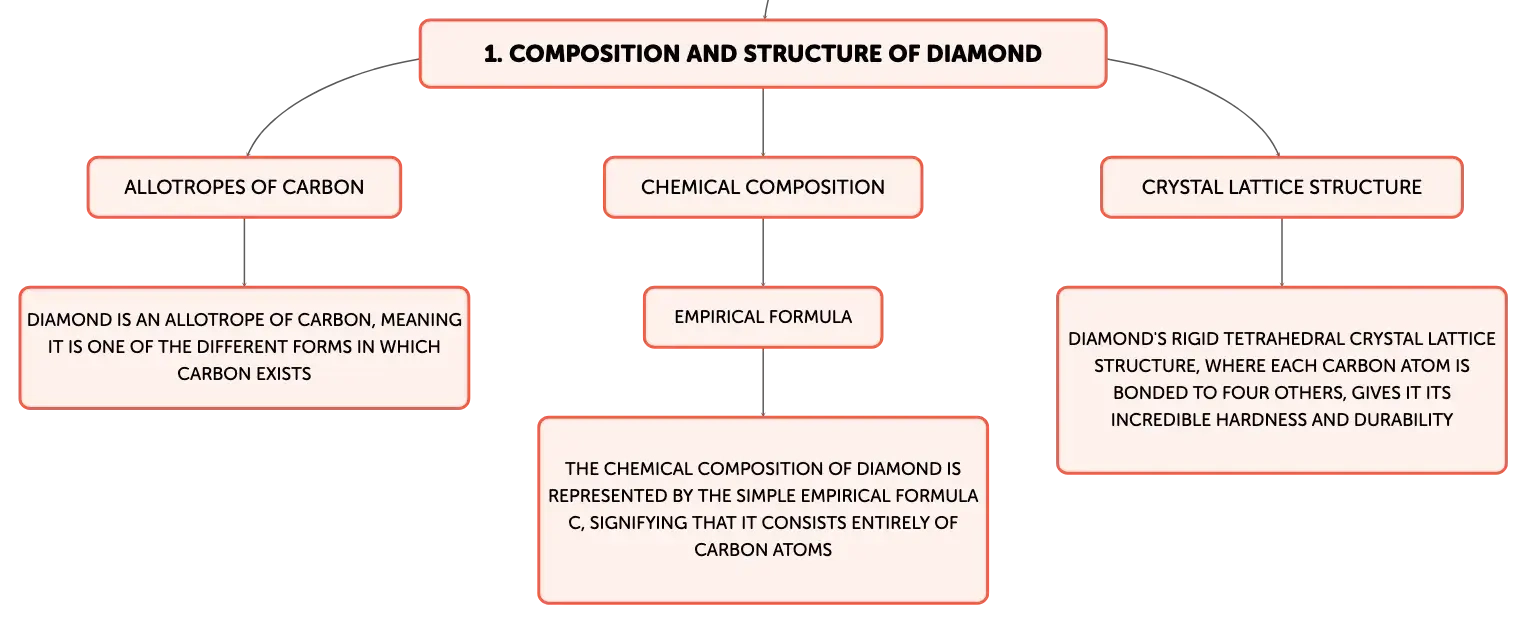

Composition and Structure of Diamond

Allotropes of Carbon

Diamond is an allotrope of carbon, meaning it is one of the different forms in which carbon exists

Chemical Composition

Empirical Formula

The chemical composition of diamond is represented by the simple empirical formula C, signifying that it consists entirely of carbon atoms

Crystal Lattice Structure

Diamond's rigid tetrahedral crystal lattice structure, where each carbon atom is bonded to four others, gives it its incredible hardness and durability

Formation of Diamonds

Time and Location

Diamonds are formed over billions of years deep within the Earth's mantle at depths of over 150 kilometers

High Temperatures and Pressures

The high temperatures and pressures in the Earth's mantle allow carbon atoms to bond in the unique way that forms diamonds

Unique Bonding of Carbon Atoms

The tetrahedral bonding of carbon atoms in diamond results in its exceptional physical properties

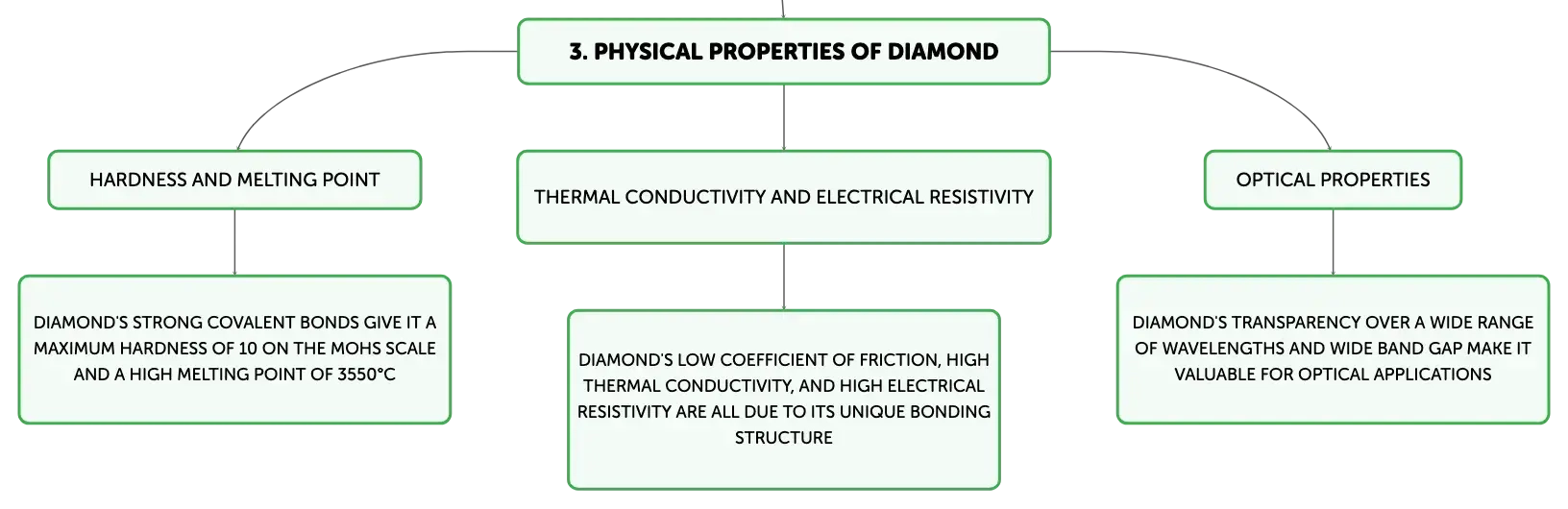

Physical Properties of Diamond

Hardness and Melting Point

Diamond's strong covalent bonds give it a maximum hardness of 10 on the Mohs scale and a high melting point of 3550°C

Thermal Conductivity and Electrical Resistivity

Diamond's low coefficient of friction, high thermal conductivity, and high electrical resistivity are all due to its unique bonding structure

Optical Properties

Diamond's transparency over a wide range of wavelengths and wide band gap make it valuable for optical applications

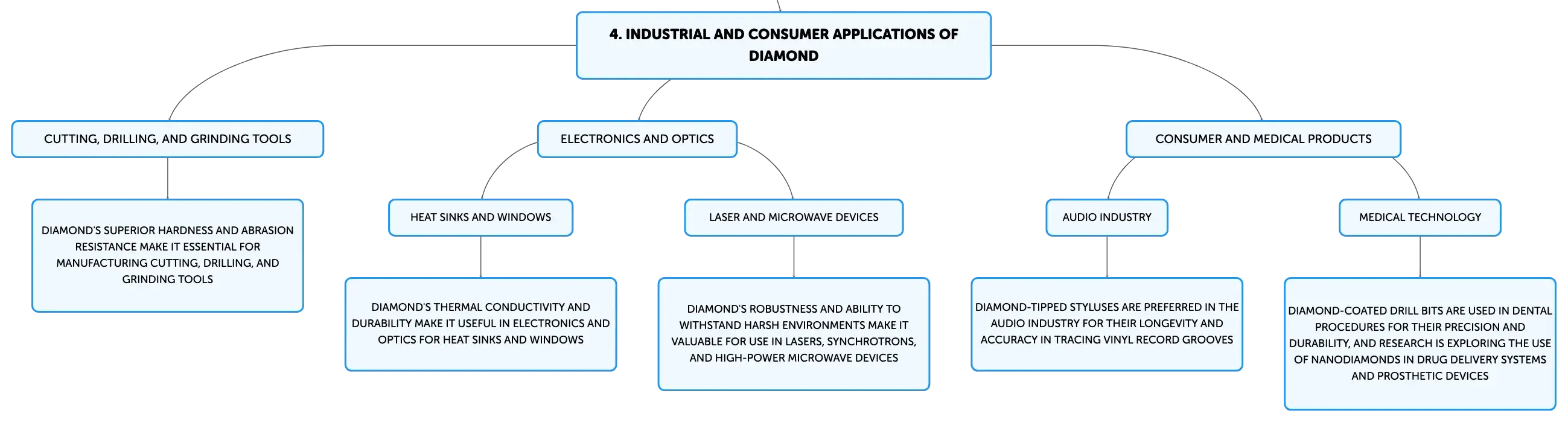

Industrial and Consumer Applications of Diamond

Cutting, Drilling, and Grinding Tools

Diamond's superior hardness and abrasion resistance make it essential for manufacturing cutting, drilling, and grinding tools

Electronics and Optics

Heat Sinks and Windows

Diamond's thermal conductivity and durability make it useful in electronics and optics for heat sinks and windows

Laser and Microwave Devices

Diamond's robustness and ability to withstand harsh environments make it valuable for use in lasers, synchrotrons, and high-power microwave devices

Consumer and Medical Products

Audio Industry

Diamond-tipped styluses are preferred in the audio industry for their longevity and accuracy in tracing vinyl record grooves

Medical Technology

Diamond-coated drill bits are used in dental procedures for their precision and durability, and research is exploring the use of nanodiamonds in drug delivery systems and prosthetic devices

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

Diamond's chemical composition

Consists entirely of carbon atoms, empirical formula C.

Formation conditions for diamonds

Formed deep within Earth's mantle, 1-3.3 billion years, at 150+ km depth, 1050-1200°C, 45-60 kilobars.

Diamond's crystal structure

Tetrahedral crystal lattice, each carbon atom covalently bonded to four others in a 3D pyramid shape.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Laboratory with thin layer chromatography chamber, glass plate with colored spots, tweezers and vial with dropper.

Thin Layer Chromatography (TLC)

Laboratory with round bottom flask connected to condenser, heated plate on, beaker with colorless liquid and mortar with white powder.

Organic Chemistry and Its Applications

Glass flask on wooden laboratory bench with slightly yellow liquid and bubbles, stirring rod on the left, bottles in the background.

Enolate Ions: Key Intermediates in Organic Chemistry

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

The Structure and Formation of Diamond

Diamond is a remarkable mineral, notable for being the hardest known natural substance on Earth. It is an allotrope of carbon, which means it is one of the different structural forms in which the element carbon exists. The chemical composition of diamond is represented by the simple empirical formula C, signifying that it consists entirely of carbon atoms. These atoms are bonded together in a rigid lattice structure known as a tetrahedral crystal lattice, where each carbon atom is covalently bonded to four other carbon atoms in a three-dimensional pyramid-like shape. This strong, repeating pattern is what gives diamond its incredible hardness and durability. Diamonds are formed over 1 to 3.3 billion years deep within the Earth's mantle at depths of over 150 kilometers, where high temperatures (about 1050 to 1200 degrees Celsius) and pressures (45 to 60 kilobars) allow carbon atoms to bond in this unique way.

Natural rough diamond in octahedral shape on dark surface with pieces of kimberlite rock, soft light highlighting the facets.

The Exceptional Characteristics of Diamond

The tetrahedral bonding of carbon atoms in diamond results in several exceptional physical properties. Diamond has a very high melting point, around 3550°C, which is a reflection of the strong covalent bonds between the carbon atoms that require a substantial amount of energy to break. On the Mohs scale of mineral hardness, diamond is rated at the maximum, 10, indicating its superior hardness; it is approximately four times harder than corundum, the next hardest mineral. Because of this, diamonds can only be effectively cut or shaped by other diamonds or by specialized laser equipment. Diamond also exhibits a low coefficient of friction, high thermal conductivity, and high electrical resistivity. The latter is due to the absence of free charge carriers, making it an excellent electrical insulator. Additionally, diamond has a low coefficient of thermal expansion, which means it experiences minimal size changes with temperature fluctuations. Its chemical inertness makes it resistant to most acids and alkalis. Optically, diamond is transparent over a wide range of wavelengths, from the ultraviolet into the far infrared, which is due to its wide band gap.

Industrial Uses of Diamond

Diamond's unparalleled hardness and thermal conductivity make it invaluable for a multitude of industrial applications. It is commonly used in the manufacturing of cutting, drilling, and grinding tools, which are capable of machining a wide variety of materials due to diamond's superior abrasion resistance. In electronics, diamond is used as a heat sink to dissipate heat efficiently in high-performance microelectronics. In the field of optics, diamond windows are used in lasers, synchrotrons, and high-power microwave devices due to their robustness and ability to withstand harsh environments. Diamond-tipped tools are also essential for precision engraving and detailed work on hard materials.

Diamond in Consumer and Medical Technology

Diamond's unique properties extend its use to consumer products and medical technology. In the audio industry, diamond-tipped styluses are preferred for their longevity and ability to accurately trace the grooves of vinyl records, ensuring high-fidelity sound reproduction. In the medical sector, diamond-coated drill bits are used for their precision and durability in dental procedures. Research is also exploring the use of nanodiamonds in drug delivery systems for cancer treatment and the potential for diamond-based materials in prosthetic devices such as bionic eyes, which could offer improved performance and biocompatibility.

Symbolism and Chemical Identity of Diamond

Chemically, diamond is denoted by the elemental symbol for carbon, 'C', reflecting its composition as a pure carbon crystal. The extraordinary properties of diamond, from its robust covalent bonds to its broad optical transparency, are all manifestations of its carbon-based tetrahedral structure. Symbolically, diamonds are often associated with luxury and strength in the context of jewelry. In scientific and industrial domains, they represent the epitome of material hardness, thermal conductivity, and versatility, serving as a benchmark for comparing the properties of other materials.
