Computer Memory
Concept Map
Exploring the essentials of computer memory, this overview delves into volatile and non-volatile memory types, their roles in computing, and strategies for optimizing performance. It highlights the importance of cache memory in speeding up data access and discusses the significance of error detection and correction for system reliability. Understanding memory units and their conversions is also crucial for effective computing resource management.
Summary
Outline
The Fundamentals of Computer Memory
Computer memory is a critical component of a computing system, acting as the workspace for the Central Processing Unit (CPU) to access and manipulate data. It is typically volatile, meaning that it requires power to maintain the stored information. Computer memory's primary functions include temporarily holding data for processing, controlling the execution of programs, and enabling communication between the CPU and other hardware components. The performance of a computer is significantly influenced by the efficiency of its memory, highlighting the importance of understanding memory to enhance computing operations.Categories and Characteristics of Computer Memory
Computer memory is classified into different types based on retention of data and access methods. Volatile memory, such as Random Access Memory (RAM), is designed for temporary data storage and is cleared when the system is powered down. Non-volatile memory, including Read-Only Memory (ROM), Solid-State Drives (SSD), and Hard Disk Drives (HDD), preserves data without power. Memory access methods further differentiate types, with RAM providing direct and rapid access to any memory cell, in contrast to Sequential Access Memory (SAM), which requires a predetermined sequence to read or write data, leading to slower performance.The Importance of Cache Memory in Computing
Cache memory is a specialized form of volatile memory that significantly improves computing performance by temporarily storing frequently accessed data for prompt retrieval by the CPU. It is organized into multiple levels: L1, L2, and L3, with L1 being the smallest and fastest, integrated within the CPU itself, and L3 being the largest and slowest, which may be situated on a separate chip. Cache memory utilizes the concept of locality, which is the tendency of a processor to access the same set of data repeatedly, to accelerate data retrieval processes.Measuring Computer Memory
Understanding memory measurement units is crucial for handling computer memory effectively. The hierarchy of memory units starts with the bit, the smallest unit of data, and scales up to bytes, kilobytes (KB), megabytes (MB), gigabytes (GB), and terabytes (TB). These units are fundamental when evaluating memory capacities and managing computing resources. The conversion between these units follows a binary system, typically in multiples of 1,024, due to the binary architecture of computer systems.Differentiating Memory from Storage
Memory (RAM) and storage are two distinct but complementary components of a computer system. Memory is a volatile, high-speed area used for the temporary storage of data that the CPU needs to access rapidly, while storage devices provide long-term, non-volatile retention of data. Memory supports active processing and quick data retrieval, whereas storage is designed for the durable preservation of data. Together, they enable efficient operation and data management within a computer system.The Roles of Various Memory Types in Computing
Each type of memory within a computer system has a specific function. Volatile memory, such as RAM, is employed for short-term data storage and is essential for system operation, while non-volatile memory like ROM and SSDs are used for long-term data storage. Dynamic Random Access Memory (DRAM) and Static Random Access Memory (SRAM) are types of volatile memory utilized for main memory and cache memory, respectively, with SRAM being faster and more reliable. Virtual memory is a technique that extends the capacity of physical memory by using a portion of the storage device, facilitating the execution of larger applications.Strategies for Enhancing Computer Memory Performance
Enhancing the performance of computer memory can be achieved by addressing several key factors, including memory capacity, speed, architecture, and bandwidth. Upgrading the amount of RAM, optimizing memory usage through efficient allocation, reducing the number of running background processes, enabling virtual memory, and conducting regular system maintenance can all contribute to improved memory performance. These enhancements can lead to faster computing speeds and better multitasking capabilities.Memory System Reliability through Error Detection and Correction
Maintaining the integrity of data in computer memory is essential for system reliability. Error detection and correction techniques are implemented to safeguard against data corruption. Parity checking is a method that can identify single-bit errors, while Error-Correcting Code (ECC) memory is capable of detecting and correcting these errors and pinpointing multi-bit errors. Cyclic Redundancy Check (CRC) and checksums are commonly used for error detection during data transmission, and Forward Error Correction (FEC) is employed in communication systems to correct errors without the need for retransmission. These mechanisms are vital for preventing data corruption and ensuring the stability of computing systems.Concluding Insights on Computer Memory
In conclusion, computer memory is a pivotal element of the CPU's data processing capabilities, encompassing a variety of types such as volatile RAM for immediate data handling and non-volatile storage for data preservation. Cache memory plays a key role in enhancing performance by storing data that is frequently accessed by the CPU. A clear understanding of memory units is essential for effective resource management. Optimizing memory performance and implementing error detection and correction are crucial for maintaining system efficiency and dependability.

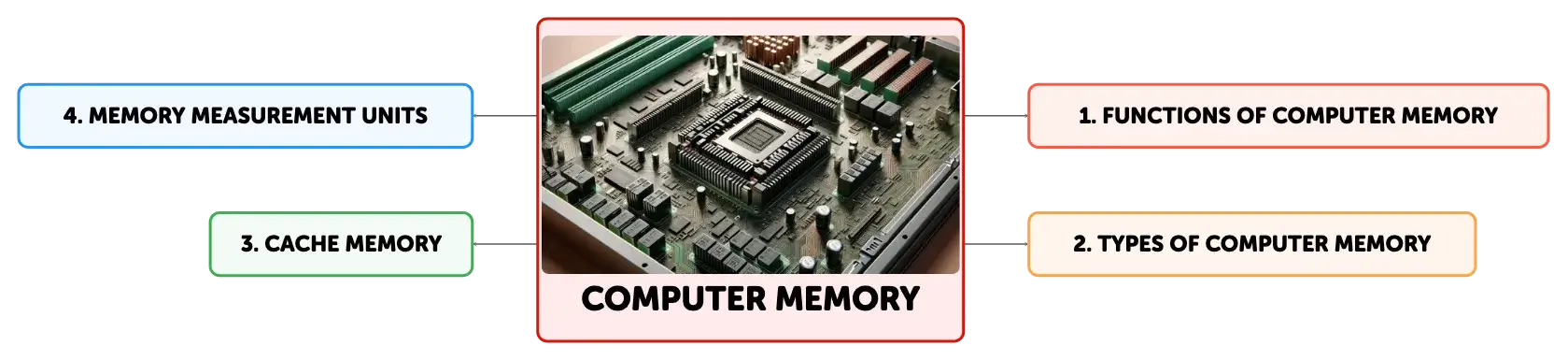

Show More

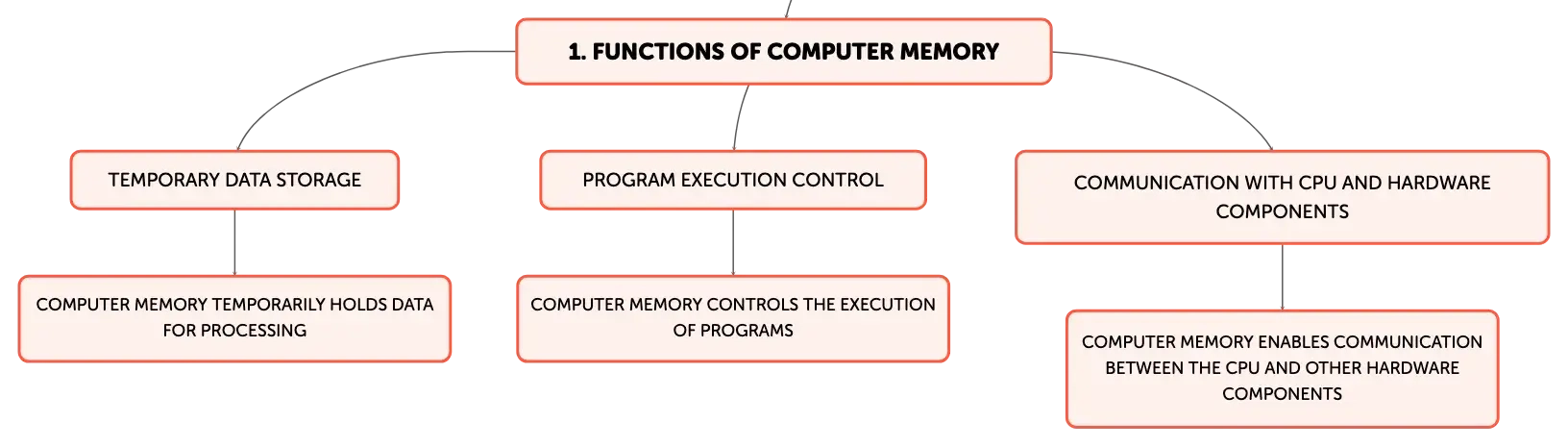

Functions of Computer Memory
Temporary Data Storage
Computer memory temporarily holds data for processing
Program Execution Control
Computer memory controls the execution of programs
Communication with CPU and Hardware Components
Computer memory enables communication between the CPU and other hardware components
Types of Computer Memory
Volatile Memory
Volatile memory, such as RAM, requires power to maintain stored information
Non-volatile Memory
Non-volatile memory, such as ROM, preserves data without power
Memory Access Methods
Memory access methods differentiate types, with RAM providing direct access and SAM requiring a predetermined sequence

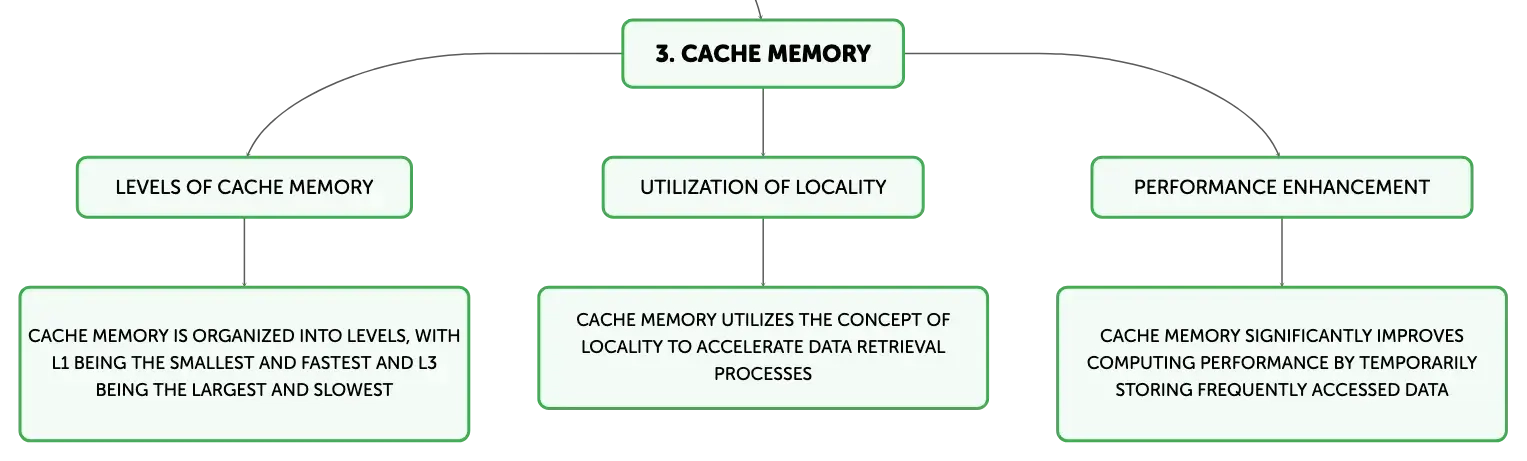

Cache Memory
Levels of Cache Memory
Cache memory is organized into levels, with L1 being the smallest and fastest and L3 being the largest and slowest
Utilization of Locality
Cache memory utilizes the concept of locality to accelerate data retrieval processes
Performance Enhancement
Cache memory significantly improves computing performance by temporarily storing frequently accessed data
Memory Measurement Units
Hierarchy of Memory Units
Memory units range from bits to terabytes and are crucial for evaluating memory capacities and managing computing resources
Binary System Conversion
Memory units follow a binary system, typically in multiples of 1,024, due to the binary architecture of computer systems
Computer Memory
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Nature of computer memory
Volatile; requires power to maintain data.
01
Impact on performance
Memory efficiency crucial for computer speed.
02
CPU-memory communication
Enables data access and manipulation by CPU.
