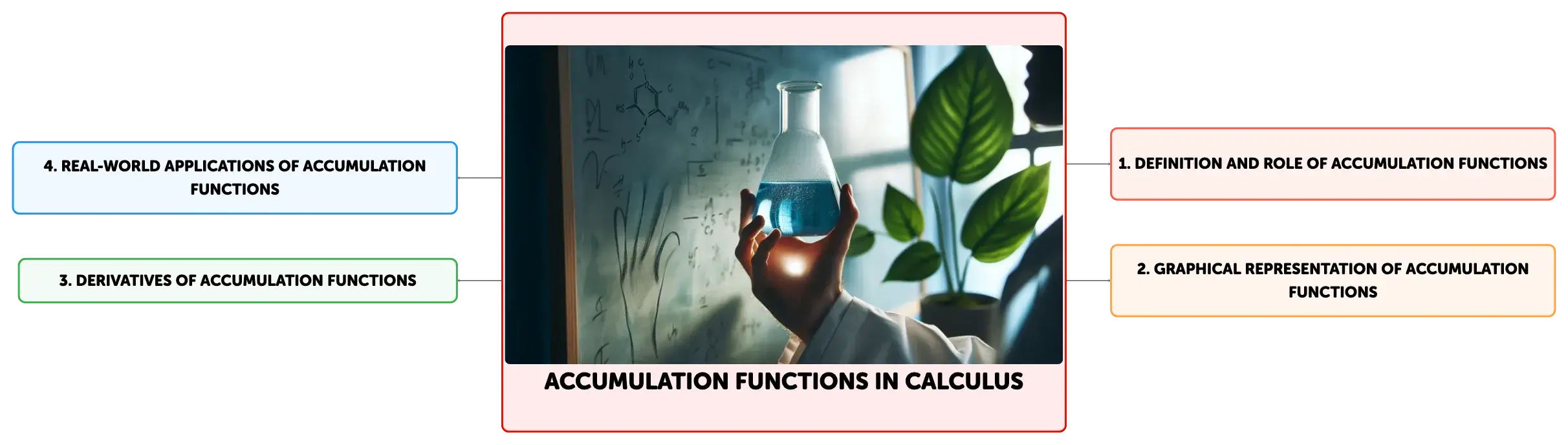

Accumulation Functions in Calculus

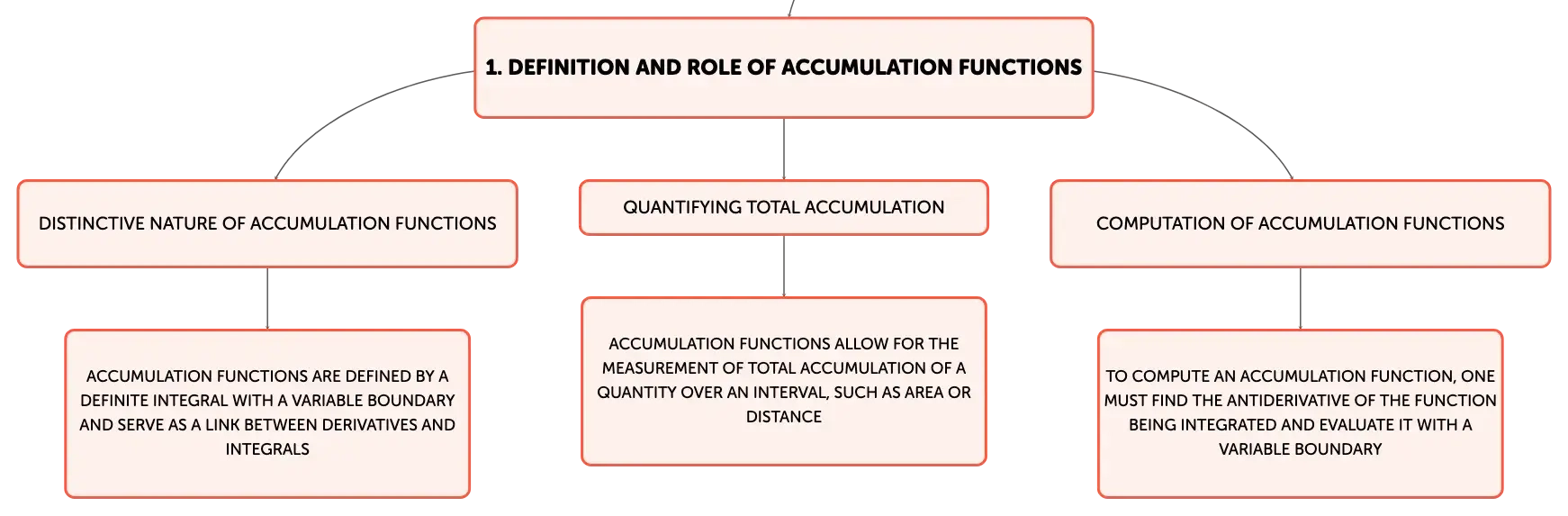

Exploring the Concept of Accumulation Functions in Calculus

Accumulation functions play a crucial role in calculus, acting as a pivotal link between the concepts of derivatives and integrals, as established by the Fundamental Theorem of Calculus. These functions are distinctive because they are defined by a definite integral where one of the boundaries is a variable. For example, if \( f \) is a continuous function on the interval \( [a,b] \), then an accumulation function \( F(x) \) for \( a \leq x \leq b \) is given by \( F(x) = \int_a^x f(t)\,dt \). This definition allows us to quantify the total accumulation of a quantity, such as area or distance, over an interval, which is essential in various calculus applications.

Computing Accumulation Functions

To compute an accumulation function, one must determine the antiderivative of the function being integrated, akin to solving an indefinite integral. The difference lies in the evaluation step, where one of the boundaries is a variable rather than a constant. This is where the Fundamental Theorem of Calculus comes into play. For instance, to find the accumulation function \( F(x) = \int_0^x t\,dt \), one would identify the antiderivative as \( \frac{1}{2}t^2 \) and evaluate it from 0 to \( x \), yielding \( F(x) = \frac{1}{2}x^2 \). The accumulation function thus represents the total area under the curve of the function from the fixed lower limit to the variable upper limit.

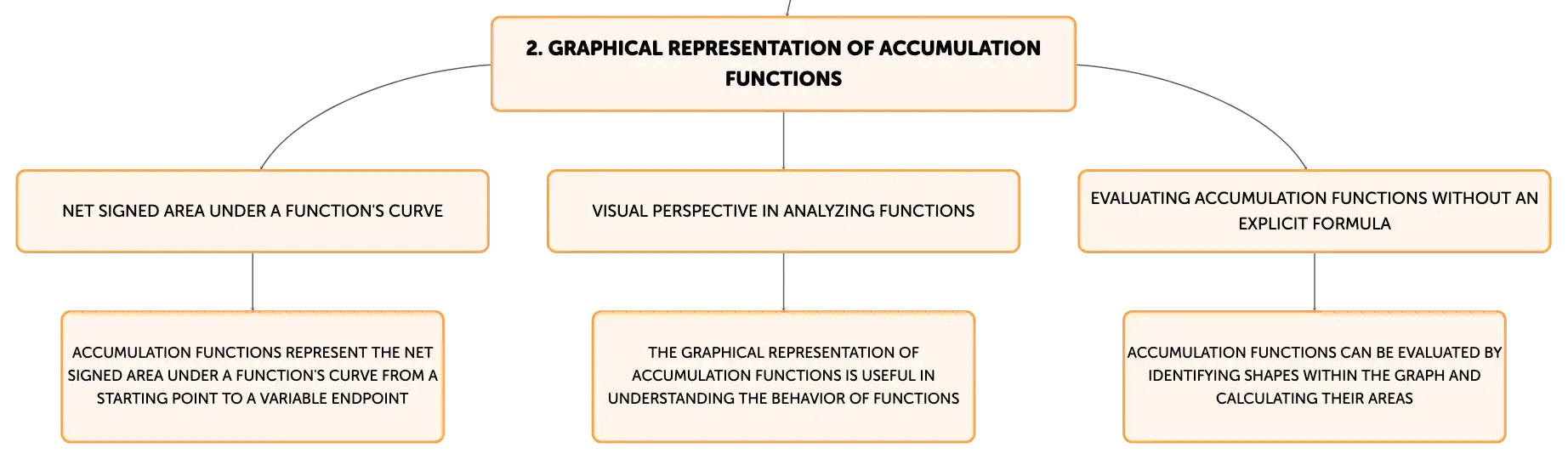

Graphical Interpretation of Accumulation Functions

From a graphical standpoint, an accumulation function represents the net signed area under a function's curve from a starting point to a variable endpoint. The definite integral \( \int_a^b f(x)\,dx \) quantifies this net signed area, which is positive when the function lies above the \( x \)-axis and negative when below. When the variable serves as the upper limit, the accumulation function \( \int_a^x f(t)\,dt \) denotes the area to the right of \( a \). If the variable is the lower limit, \( \int_x^b f(t)\,dt \) signifies the area to the left of \( b \). This visual perspective is invaluable when analyzing functions graphically.

Assessing Accumulation Functions Using Graphs

Even without an explicit formula, one can evaluate accumulation functions by examining the graph of a function. For instance, if the graph of \( f \) is given and one needs to determine the accumulation function \( g(x) = \int_{-2}^x f(t)\,dt \), the value of \( g(0) \) can be found by calculating the area under the curve of \( f \) from \( -2 \) to \( 0 \). This approach involves identifying shapes such as rectangles, triangles, or segments of circles within the graph and computing their areas to ascertain the accumulation function's value at specific points.

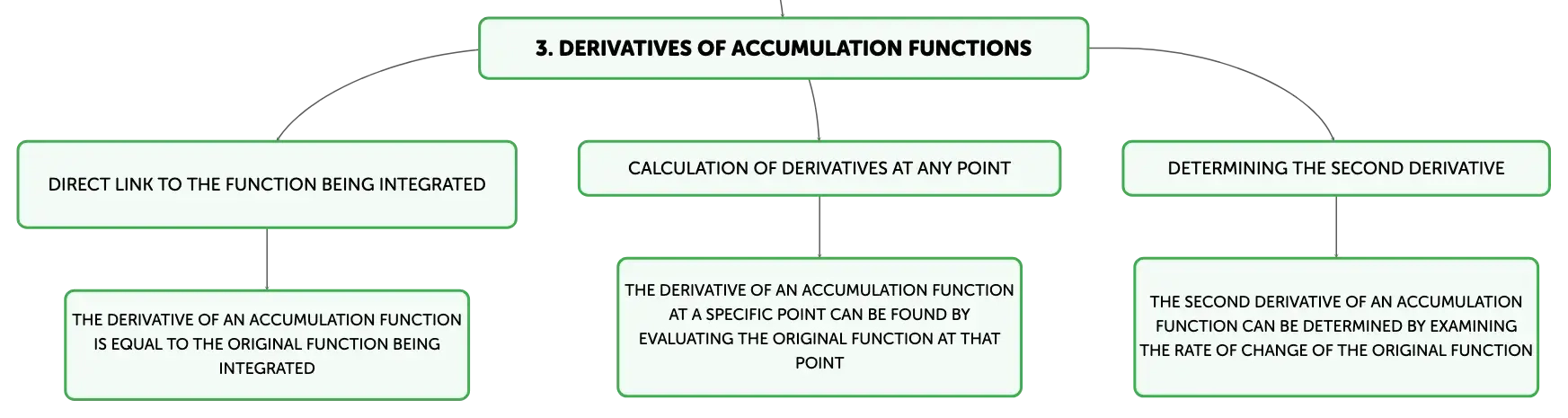

Derivative Relationships in Accumulation Functions

The derivative of an accumulation function reveals a direct link to the function being integrated. If \( F(x) = \int_a^x f(t)\,dt \), then the derivative \( F'(x) \) is equal to \( f(x) \). This relationship enables the calculation of the derivative of an accumulation function at any point by simply evaluating the original function at that point. The second derivative, \( F''(x) \), can be determined by examining the rate of change of the original function, as \( F''(x) = f'(x) \). It is important to note that if the function has discontinuities or is not differentiable at certain points, the derivative may not exist at those points.

The Integral of Accumulation Functions and Variable Roles

An accumulation function integral involves a dummy variable for the integration process and a separate variable representing the limit of integration. To avoid confusion, the dummy variable, often denoted as \( t \), is distinct from the limit variable \( x \). The choice of the dummy variable is arbitrary and does not affect the integral's outcome, allowing the result to be expressed solely as a function of \( x \).

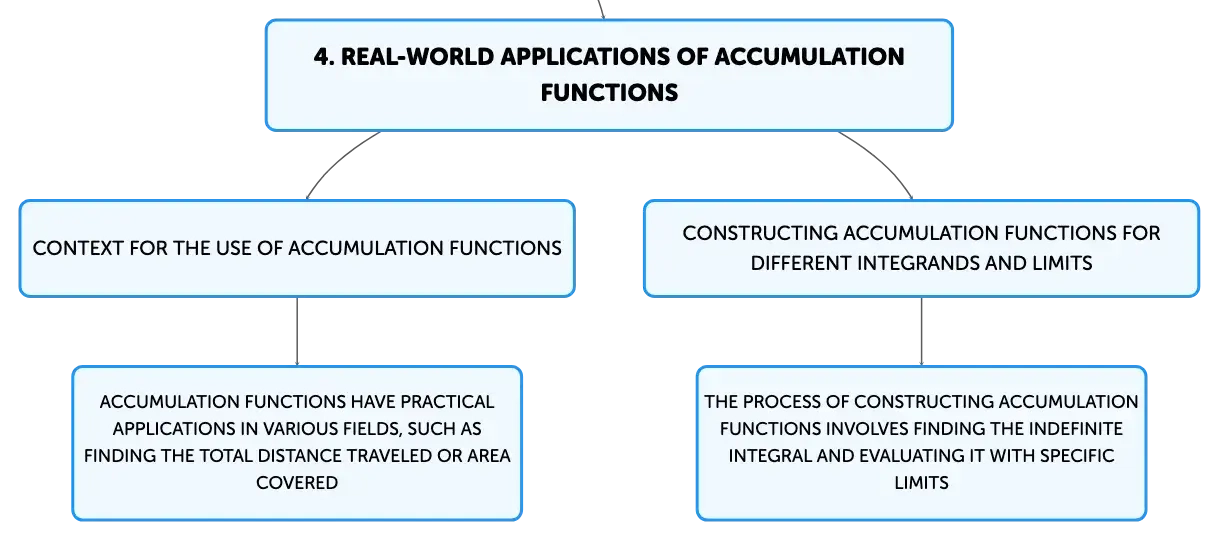

Real-World Applications of Accumulation Functions

Real-world applications provide context for the use of accumulation functions. For example, to find the accumulation function \( F(x) = \int_\pi^x \cos(t) \, dt \), one computes the indefinite integral of the cosine function, which is the sine function, and evaluates it from \( \pi \) to \( x \), resulting in \( F(x) = \sin(x) - \sin(\pi) \). In another case, for \( G(x) = \int_e^x \frac{5}{t} \, dt \), the indefinite integral involves the natural logarithm, leading to \( G(x) = 5\ln|x| - 5\ln|e| \). These examples demonstrate the process of constructing accumulation functions for various integrands and integration limits.
