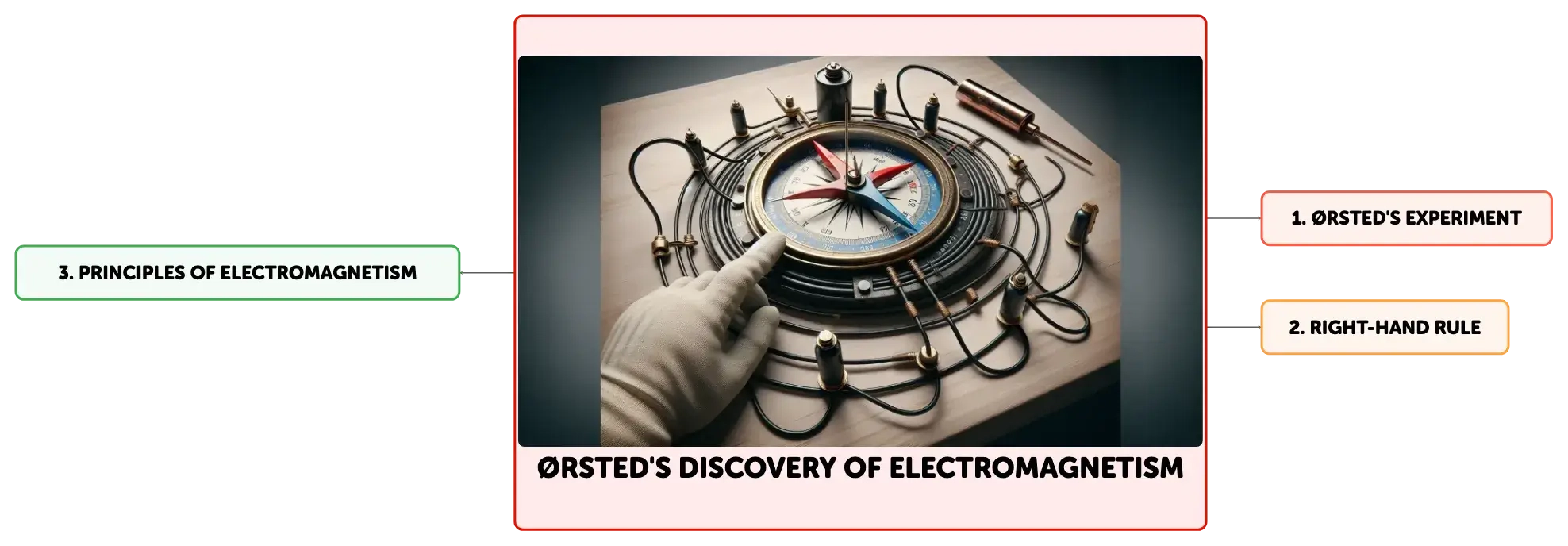

Ørsted's Discovery of Electromagnetism
Hans Christian Ørsted's 1820 discovery that electric currents generate magnetic fields revolutionized our understanding of electromagnetism. His observation of a compass needle's deflection near a current-carrying wire led to Ørsted's law, which states that the strength of the magnetic field is directly proportional to the current's intensity and inversely proportional to the distance from the wire. This principle is vital for modern electrical engineering and technology.
See moreHans Christian Ørsted's Electromagnetic Discovery

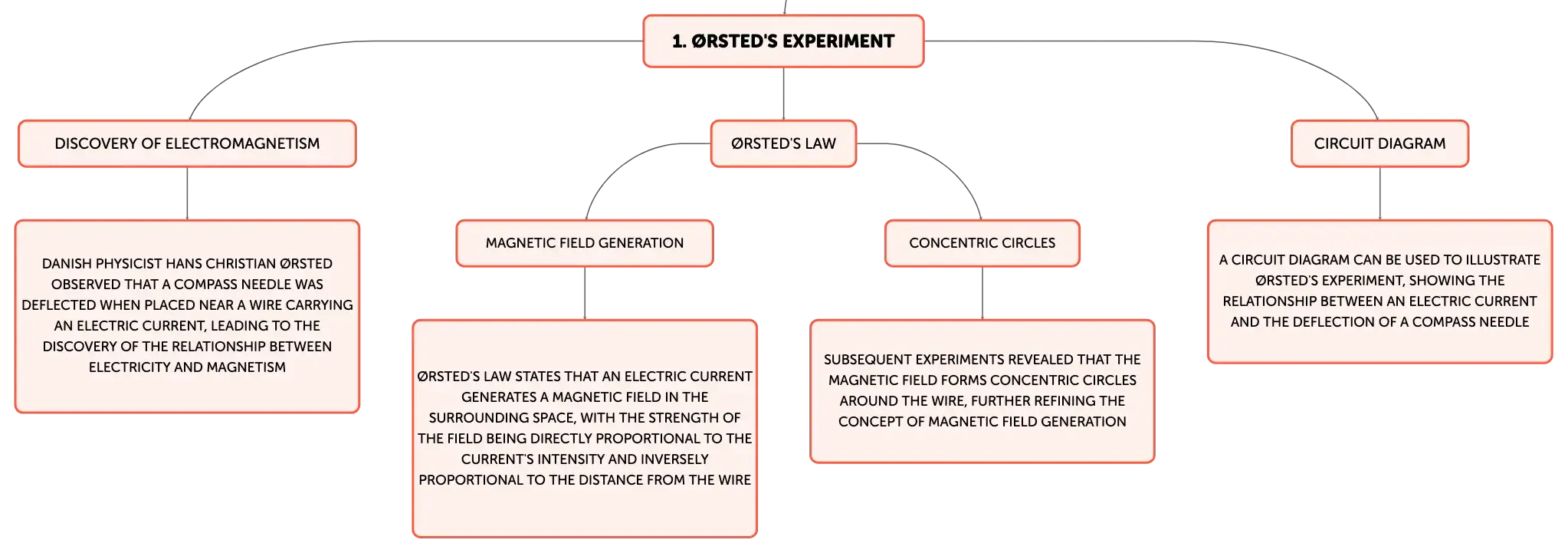

On April 21, 1820, Danish physicist Hans Christian Ørsted made a groundbreaking discovery that would become a cornerstone of electromagnetism. While demonstrating a lecture, Ørsted observed that a compass needle was deflected from its north-south orientation when placed near a wire carrying an electric current. This deflection was evidence of a previously unknown interaction between electricity and magnetism, suggesting that an electric current could create a magnetic field. This fundamental principle, now known as Ørsted's law, established the basis for the unified theory of electromagnetism.The Principles of Ørsted's Law
Ørsted's law articulates that an electric current generates a magnetic field in the surrounding space. Ørsted proposed that this magnetic effect emanates from the wire similarly to how light radiates from a source. Subsequent experiments refined this concept, revealing that the magnetic field forms concentric circles around the wire. The strength of the magnetic field (B) is directly proportional to the electric current's intensity (I), denoted as \(B \propto I\), and inversely proportional to the distance from the wire (r), denoted as \(B \propto \frac{1}{r}\). These relationships quantified the interaction between electricity and magnetism, enabling precise predictions and manipulations of electromagnetic fields.Depicting Ørsted's Experiment in Circuit Diagrams
A circuit diagram can help illustrate Ørsted's experiment. Imagine a circuit composed of a battery, a resistor, and a magnetic compass. With the circuit open, the compass needle points to magnetic north, indicating no current flow. Closing the switch completes the circuit, allowing current to flow and the compass needle to deflect due to the magnetic field generated by the moving electrons in the wire. This simple setup demonstrates the fundamental relationship between electricity and magnetism discovered by Ørsted.The Right-Hand Rule in Electromagnetic Fields

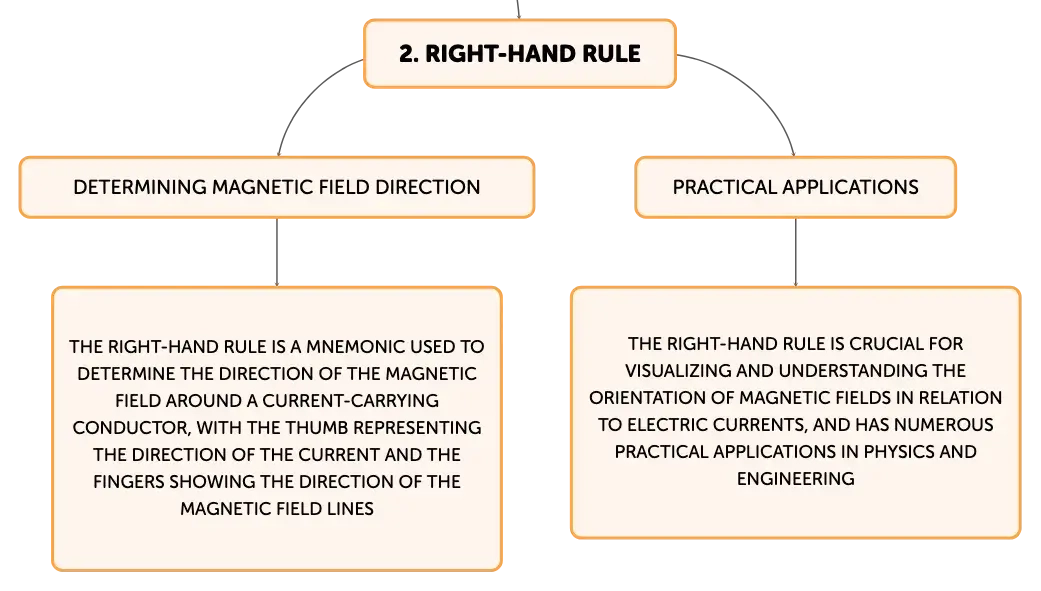

The right-hand rule is a mnemonic that aids in determining the direction of the magnetic field around a current-carrying conductor. To apply this rule, extend the right thumb in the direction of the electric current, and the curl of the fingers will show the direction of the magnetic field lines encircling the wire. This rule is crucial for visualizing and understanding the orientation of magnetic fields in relation to electric currents and is widely used in physics and engineering.Practical Applications of Ørsted's Discovery
Ørsted's discovery has numerous practical applications. For example, consider a wire with a current flowing upward and to the right. Using the right-hand rule, the magnetic field lines can be visualized as curling around the wire, pointing towards the observer at the back of the hand and away at the fingertips. A compass placed near this wire would have its north pole deflected in the direction of the magnetic field lines. This behavior is a direct result of Ørsted's discovery and underpins the functionality of many electrical devices and systems.Conclusions from Ørsted's Electromagnetic Research

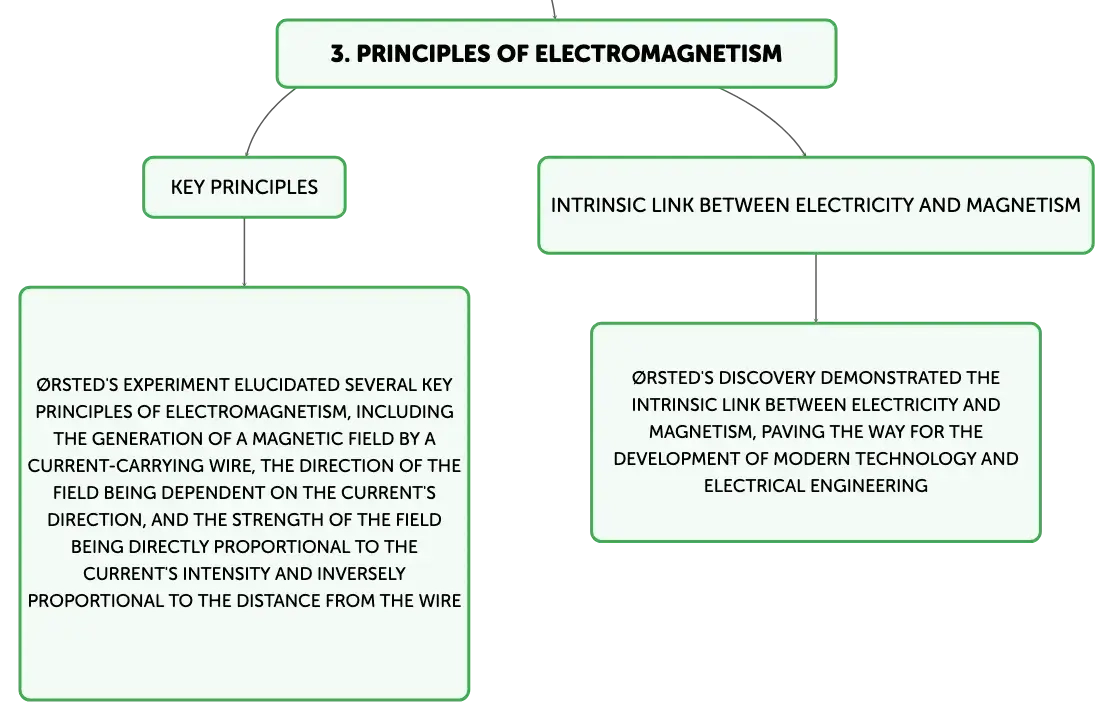

Ørsted's experiment elucidated several key principles of electromagnetism: a current-carrying wire generates a magnetic field, the direction of which is dependent on the current's direction; the strength of the magnetic field is directly proportional to the current's intensity and inversely proportional to the distance from the wire. These findings not only demonstrated the intrinsic link between electricity and magnetism but also provided a quantitative framework for the field of electromagnetism, which has become fundamental to the development of modern technology and electrical engineering.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Discoverer of the interaction between electricity and magnetism
Click to check the answer
2
Observation leading to Ørsted's Law
Click to check the answer
3
Significance of Ørsted's discovery for electromagnetism
Click to check the answer
4
The intensity of the magnetic field is directly proportional to the ______ and inversely proportional to the ______ from the wire.
Click to check the answer
5
Effect of open circuit on compass in Ørsted's experiment
Click to check the answer
6
Result of closing switch in Ørsted's experiment
Click to check the answer
7
Ørsted's discovery
Click to check the answer
8
When using the right-hand rule, point your thumb in the direction of the ______, and the way your fingers curl will indicate the magnetic field's ______.
Click to check the answer
9
Right-hand rule visualization
Click to check the answer
10
Magnetic field direction around wire
Click to check the answer
11
Compass behavior near current-carrying wire
Click to check the answer
12
Ørsted discovered that the magnetic field's strength is ______ proportional to the current's intensity and ______ proportional to the distance from the wire.
Click to check the answer
