Nuclear Magnetic Resonance (NMR) Spectroscopy

Nuclear Magnetic Resonance (NMR) spectroscopy is a powerful analytical technique used to determine the structure and dynamics of molecules. It relies on the absorption and re-emission of electromagnetic radiation by nuclei in a magnetic field. This method provides insights into the arrangement of atoms, functional groups, and the connectivity within molecules. Advanced NMR techniques, including 2D-NMR and solid-state NMR, further enhance the understanding of complex and non-liquid samples.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

______ spectroscopy is crucial in chemistry and biochemistry for determining molecular ______ and ______.

Click to check the answer

Nuclear Magnetic Resonance (NMR) structure dynamics

2

Spin and its relation to NMR spectroscopy

Click to check the answer

Nuclei with odd mass numbers exhibit spin, a quantum property essential for NMR, allowing them to behave like tiny magnets.

3

Alignment of nuclear spins in a magnetic field

Click to check the answer

In a magnetic field, nuclear spins align parallel (low-energy) or anti-parallel (high-energy), creating two distinct energy states.

4

Role of radiofrequency pulse in NMR

Click to check the answer

A radiofrequency pulse at the correct energy can induce transitions between the low and high nuclear spin states, crucial for NMR signal generation.

5

The NMR signal, which acts as a fingerprint of the molecule's structure, is detected after nuclei absorb energy from ______ pulses matching their resonance frequency.

Click to check the answer

radiofrequency

6

Chemical Shift in NMR

Click to check the answer

Indicates resonance frequency of nuclei relative to reference; reveals electronic environment.

7

NMR Peak Equivalence

Click to check the answer

Each peak corresponds to a set of equivalent nuclei within the molecule.

8

Multiplicity and Spin-Spin Coupling

Click to check the answer

Splitting of NMR peaks due to interactions between adjacent non-equivalent nuclei; shows atom connectivity.

9

In organic chemistry, NMR helps distinguish between hydrogen atoms in different groups, such as ______, ______, and ______ groups, through unique chemical shifts and coupling patterns.

Click to check the answer

methyl methylene hydroxyl

10

Purpose of 2D-NMR

Click to check the answer

Analyzes complex molecules by providing detailed atomic connectivity and spatial arrangement.

11

Function of COSY in NMR

Click to check the answer

Identifies coupled spin networks to determine molecular structure.

12

Role of HSQC in NMR

Click to check the answer

Correlates hydrogen and carbon atoms to elucidate molecular frameworks.

13

In solid-state NMR, ______ and ______ are techniques used to improve spectral resolution by reducing line broadening.

Click to check the answer

Magic Angle Spinning (MAS) Cross-Polarization (CP)

14

Sensitivity comparison of Proton NMR vs Carbon-13 NMR

Click to check the answer

Proton NMR is more sensitive due to higher abundance of 1H; Carbon-13 NMR is less sensitive because of 13C's lower natural abundance.

15

Primary use of Proton NMR in organic compound analysis

Click to check the answer

Proton NMR is used to identify organic compounds by analyzing the hydrogen atom environment.

16

Role of Carbon-13 NMR in structural analysis

Click to check the answer

Carbon-13 NMR is crucial for determining the carbon framework of organic molecules.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Chemistry

Cycloaddition Reactions in Organic Chemistry

Chemistry

Enolate Ions: Key Intermediates in Organic Chemistry

Chemistry

Heteroatoms in Organic Chemistry

Chemistry

Organic Chemistry and Its Applications

Introduction to Nuclear Magnetic Resonance (NMR) Spectroscopy

Nuclear Magnetic Resonance (NMR) spectroscopy is an indispensable analytical tool in chemistry and biochemistry for elucidating the structure and dynamics of molecules. It is based on the principle that certain nuclei with an odd number of protons or neutrons can absorb and re-emit electromagnetic radiation in the presence of an external magnetic field. The specific frequency at which these nuclei resonate depends on the magnetic field strength and the chemical environment of the atoms. By analyzing the resulting NMR signals, scientists can infer detailed information about molecular structure, including the arrangement of atoms and the presence of specific functional groups.

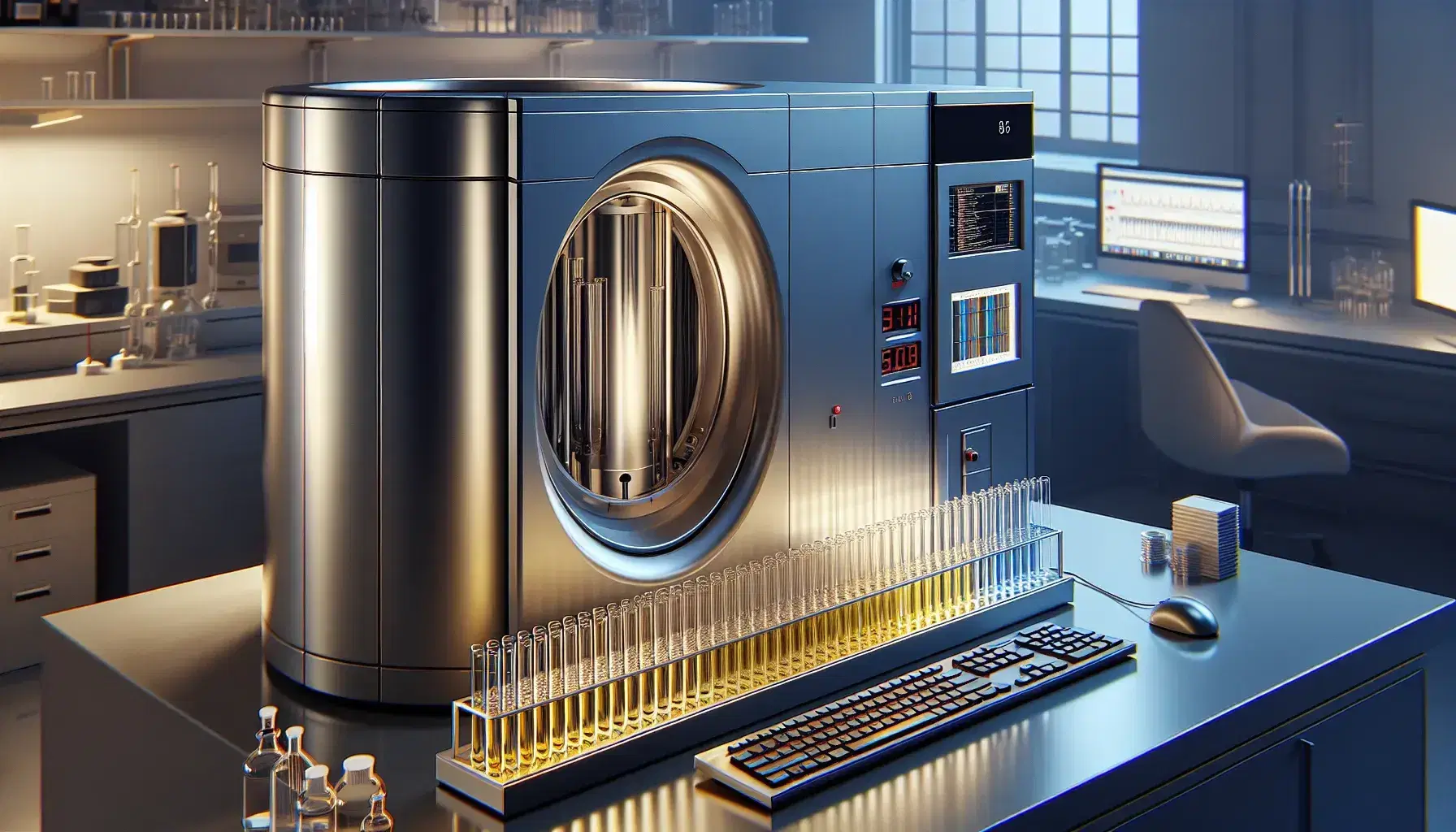

Modern nuclear magnetic resonance spectrometer in laboratory with cylindrical magnets and test tubes containing clear liquids on workbench.

Spin Phenomena and Magnetic Moments in NMR

The fundamental concepts of spin and magnetic moments are crucial for understanding NMR spectroscopy. Nuclei with an odd mass number possess a property called spin, which gives rise to a magnetic moment, analogous to a tiny magnet. In a magnetic field, these nuclear magnets can align either parallel (low-energy state) or anti-parallel (high-energy state) to the field. The energy difference between these two states is small, and when a radiofrequency pulse with the right energy is applied, it can induce transitions between them. This excitation and subsequent relaxation of nuclear spins produce the NMR signal.

The Role of Magnetic Fields and Radiofrequency Pulses in NMR

The magnetic field and radiofrequency pulses are essential components of NMR spectroscopy. The external magnetic field, typically several teslas in strength, causes the nuclear spins to align at discrete energy levels. Radiofrequency pulses are then used to perturb this alignment, causing the nuclei to absorb energy and transition between energy states. The frequency of these pulses must match the resonance frequency of the nuclei being studied. The resulting NMR signal is detected and transformed into a spectrum, which provides a fingerprint of the molecule's structure.

Deciphering NMR Spectra

Deciphering NMR spectra requires expertise in interpreting the complex patterns that arise from the interactions of nuclear spins. Each peak in an NMR spectrum corresponds to a different set of equivalent nuclei in the molecule. The chemical shift, expressed in parts per million (ppm), reflects the resonance frequency of these nuclei relative to a reference compound and provides insight into the electronic environment surrounding the nuclei. Multiplicity of peaks, or splitting, arises from spin-spin coupling between adjacent non-equivalent nuclei and helps to reveal the connectivity of atoms within the molecule.

Applications of NMR Spectroscopy in Science

NMR spectroscopy has diverse applications in scientific research, including structural biology, materials science, and drug discovery. Its non-destructive nature allows for the detailed study of molecular structures in solution. For instance, in organic chemistry, NMR can differentiate between various hydrogen atoms in a molecule, such as those in methyl, methylene, and hydroxyl groups, by their distinct chemical shifts and coupling patterns. This information is invaluable for confirming the identity and purity of compounds.

Advanced NMR Techniques for Complex Molecules

Advanced NMR techniques, such as Two-Dimensional NMR (2D-NMR), including Correlation Spectroscopy (COSY) and Heteronuclear Single Quantum Coherence (HSQC), are used to analyze complex molecules. COSY helps to identify networks of coupled spins, while HSQC allows for the correlation of hydrogen and carbon atoms within a molecule. These multidimensional techniques provide a more comprehensive view of molecular structures, enabling scientists to unravel the connectivity and spatial arrangement of atoms in large and complex molecules.

Solid-State NMR for Non-Liquid Samples

Solid-state NMR expands the utility of NMR spectroscopy to non-liquid samples, such as crystalline solids, glasses, and polymers. Techniques such as Magic Angle Spinning (MAS) and Cross-Polarization (CP) mitigate the line broadening caused by dipolar couplings and chemical shift anisotropy in solids. These methods enhance spectral resolution and provide detailed insights into the structure, dynamics, and interactions of molecules in the solid state, making solid-state NMR an essential technique in materials science and condensed matter physics.

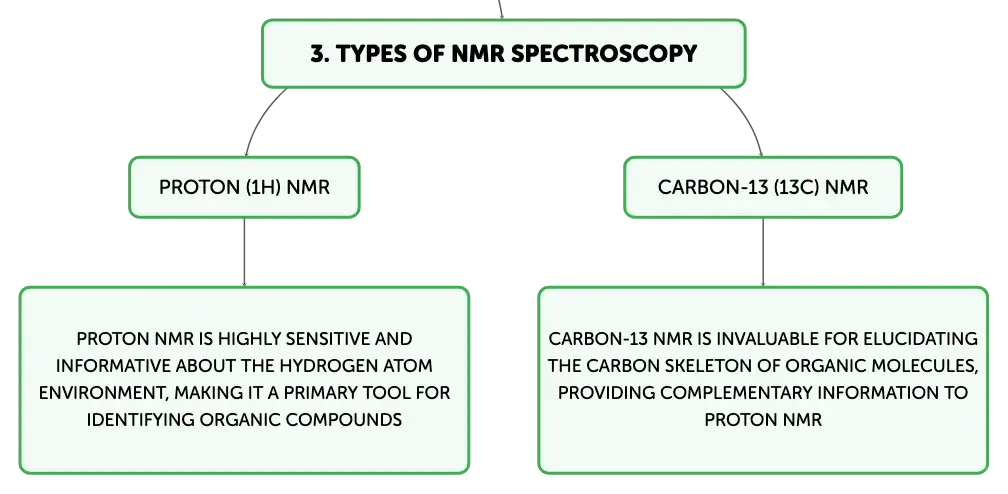

Proton and Carbon-13 NMR Spectroscopy

Proton (1H) and Carbon-13 (13C) NMR spectroscopy are two common types of NMR that provide complementary information about organic molecules. Proton NMR is highly sensitive and informative about the hydrogen atom environment, making it a primary tool for identifying organic compounds. Carbon-13 NMR, although less sensitive due to the lower natural abundance of 13C, is invaluable for elucidating the carbon skeleton of organic molecules. Together, these NMR techniques form the cornerstone of modern structural analysis in organic chemistry.
