Sigma and Pi Bonds in Covalent Bonding

Concept Map

Sigma and pi bonds are crucial in understanding covalent bonding in chemistry. Sigma bonds, formed by direct orbital overlap, are strong and present in all single, double, and triple bonds. Pi bonds, resulting from lateral p orbital overlap, are weaker and only found in multiple bonds. These bonds determine molecular geometry, reactivity, and stability, with sigma bonds allowing free rotation and pi bonds restricting it. Examples like H2, F2, and O2 illustrate sigma bond formation, while C2H4 and N2 showcase both sigma and pi bonds.

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

In chemistry, a ______ bond is the strongest covalent bond, formed by head-on overlap of atomic orbitals along the axis between two nuclei.

sigma

Orbital interactions forming sigma bonds

Sigma bonds form from s-s, s-p, or p-p orbital overlaps with high electron density between nuclei.

Electron density distribution in pi bonds

Pi bonds have electron density above and below bonding axis, due to side-by-side p orbital overlap.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Laboratory with round bottom flask connected to condenser, heated plate on, beaker with colorless liquid and mortar with white powder.

Organic Chemistry and Its Applications

Glass beaker with pale yellow liquid mixed by a magnetic stirrer on a black plate, pipette and other laboratory glassware in the background.

Ruff Degradation: A Key Technique in Carbohydrate Chemistry

Glass flask on laboratory bench with layered liquids in blue, yellow and red, dropper with green liquid on top, beaker and glassware in background.

Cycloaddition Reactions in Organic Chemistry

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Understanding Sigma and Pi Bonds in Chemical Bonding

Sigma (σ) and pi (π) bonds are integral to the study of covalent bonding in chemistry. A sigma bond is the primary covalent bond formed when two atomic orbitals overlap directly along the axis connecting the two bonding nuclei. This type of bond is the strongest covalent bond due to its head-on orbital overlap and is present in all single bonds, as well as being the first bond formed in double and triple bonds. Pi bonds, on the other hand, result from the lateral overlap of two parallel p orbitals above and below the bonding axis. They are found in molecules with double or triple bonds, always in conjunction with a sigma bond. A comprehensive understanding of sigma and pi bonds is essential for analyzing molecular structure and stability.

Molecular model with colored spheres representing hydrogen, carbon, oxygen and nitrogen atoms connected by sticks in a defocused laboratory.

Formation and Comparative Strength of Sigma and Pi Bonds

Sigma and pi bonds form through the overlap of atomic orbitals, which define the spatial regions where there is a high probability of finding electrons. Sigma bonds can result from various orbital interactions, including s-s, s-p, or p-p overlaps, and are characterized by a significant electron density between the atomic nuclei, contributing to their robustness. Pi bonds, created by the side-by-side overlap of p orbitals, exhibit a weaker interaction due to their electron density being distributed above and below the bonding axis rather than directly between the nuclei. In molecules with double and triple bonds, the combined strength of sigma and pi bonds contributes to a bond strength that is greater than that of a single sigma bond alone.

Distinctive Characteristics of Sigma and Pi Bonds

Sigma and pi bonds have distinctive features that influence molecular geometry and reactivity. Sigma bonds allow for free rotation around the bond axis because of their symmetrical electron distribution, and they can be formed with both hybridized and unhybridized orbitals, leading to various bonding scenarios. Pi bonds, formed from the parallel overlap of p orbitals, restrict rotation due to their electron distribution, which creates regions of electron density above and below the bond axis. The strength of a sigma bond surpasses that of a pi bond due to the direct orbital overlap and closer proximity of the bonding electrons to the nuclei. These differences have practical implications in predicting the reactivity, physical properties, and chemical behavior of molecules.

Molecular Examples of Sigma and Pi Bonds

The hydrogen molecule (H2) exemplifies a sigma bond formed by the overlap of two s orbitals. In fluorine (F2), a sigma bond arises between two p orbitals, while in hydrogen chloride (HCl), a sigma bond is created by an s-p orbital overlap. Ethene (C2H4) features a double bond composed of one sigma bond due to sp2-sp2 hybrid orbital overlap and one pi bond from the parallel overlap of p orbitals. Oxygen (O2) has a double bond with one sigma and one pi bond, the latter formed by the side-by-side overlap of p orbitals. These examples demonstrate the variety of orbital interactions that lead to sigma and pi bond formation, aiding in the visualization of molecular bonding.

Sigma and Pi Bonds in Conjugated and Multiple Bonds

In molecules with multiple bonds, such as double or triple bonds, sigma and pi bonds are distributed in a consistent pattern. A double bond consists of one sigma bond and one pi bond, as seen in carbon dioxide (CO2), where each carbon-oxygen bond is made up of these two types of bonds. A triple bond, such as that in nitrogen (N2), includes one sigma bond and two pi bonds. This arrangement is uniform across all double and triple bonds and is fundamental to understanding the bonding and structure of molecules with multiple covalent bonds.

Counting Sigma and Pi Bonds in Molecules: Practice Examples

Practicing the counting of sigma and pi bonds in various molecules enhances understanding of their contribution to molecular structure. In the molecule C3H7NO2, there are 11 sigma bonds corresponding to the single bonds and one double bond, which includes one sigma and one pi bond, totaling 12 sigma bonds and one pi bond. Ethyne (C2H2) contains two single bonds and one triple bond, equating to three sigma bonds and two pi bonds. These practice problems help solidify the concepts of sigma and pi bonding and are an essential part of chemical education.

Summary of Sigma and Pi Bond Concepts

Sigma bonds are the primary covalent bonds formed by direct orbital overlap and can exist independently, while pi bonds are secondary bonds formed by lateral orbital overlap and always accompany a sigma bond. Sigma bonds are stronger due to their extensive overlap area and are found in all types of covalent bonds. Pi bonds, which are weaker, only occur in double and triple bonds. A single bond consists of one sigma bond, a double bond includes one sigma and one pi bond, and a triple bond comprises one sigma bond and two pi bonds. Mastery of these concepts is crucial for predicting molecular behavior and understanding the properties of substances in chemistry.

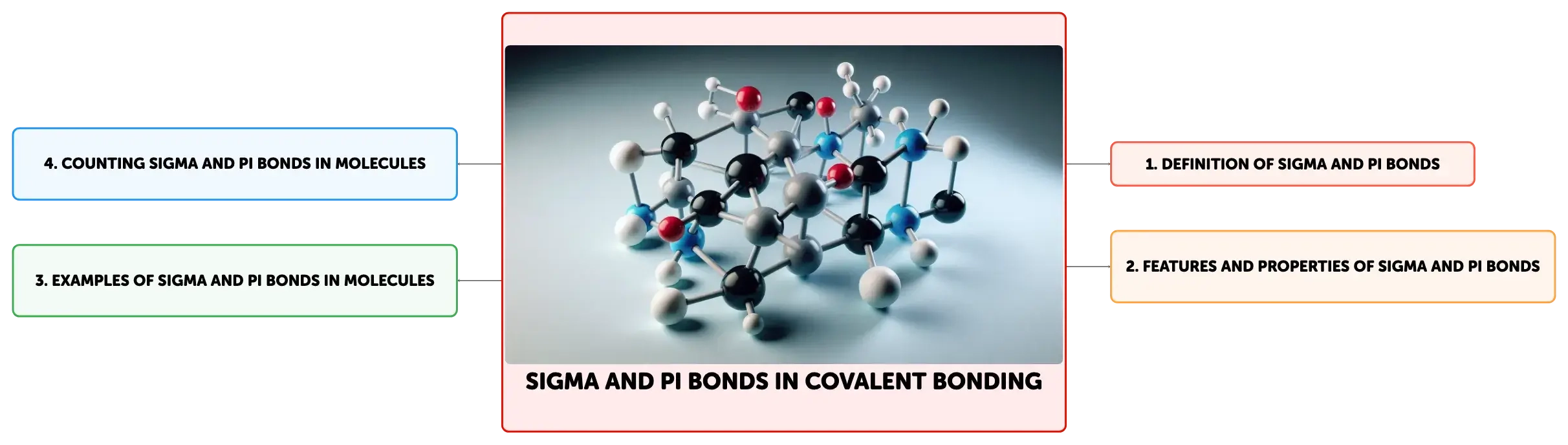

Sigma and Pi Bonds in Covalent Bonding

Concept Map

Summary

Outline

Sigma and Pi Bonds in Covalent Bonding

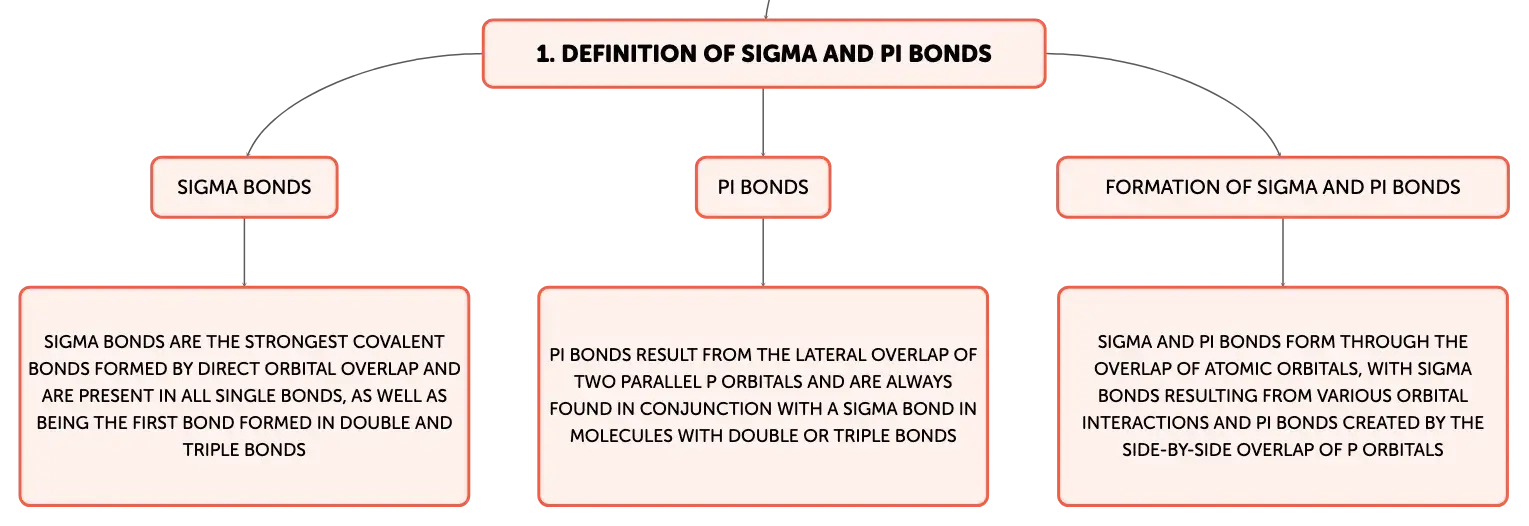

Definition of Sigma and Pi Bonds

Sigma Bonds

Pi Bonds

Formation of Sigma and Pi Bonds

Features and Properties of Sigma and Pi Bonds

Strength of Sigma and Pi Bonds

Influence on Molecular Geometry and Reactivity

Distribution of Sigma and Pi Bonds in Multiple Bonds

Examples of Sigma and Pi Bonds in Molecules

Hydrogen Molecule (H2)

Fluorine (F2)

Ethene (C2H4)

Counting Sigma and Pi Bonds in Molecules

Practice Problems
