Dipole moments in molecules arise from uneven electron distribution, leading to partial charges at opposite ends. Electronegativity plays a key role in dipole formation, with the vector nature of dipole moments indicating polarity and bond strength. Complex molecules like water have a net dipole moment determined by molecular geometry, while symmetrical molecules like CO2 may not. Dipole moments influence boiling points, solubility, and reactivity, with their calculation essential for understanding molecular behavior.

Summary

Outline

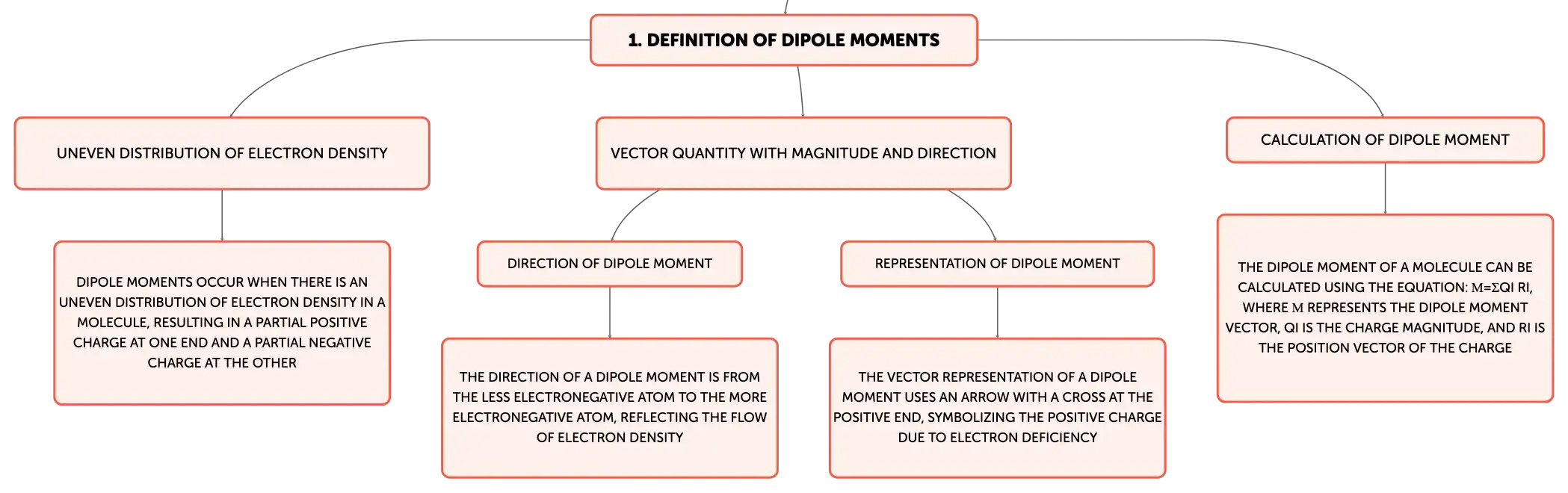

The Concept of Dipole Moments in Molecules

Dipole moments are essential for understanding molecular interactions and properties. They occur when there is an uneven distribution of electron density in a molecule, resulting in a partial positive charge (δ+) at one end and a partial negative charge (δ-) at the other. This separation of charge is due to the varying electronegativity of atoms, where the atom with higher electronegativity attracts more electron density. The dipole moment is a vector quantity with both magnitude and direction, pointing from the δ+ to the δ- end, and is measured in Debye units. It influences physical properties such as boiling point, solubility, and reactivity, making it a fundamental concept in the study of chemistry.

Glass flask with colored liquid on reflective surface, red and blue spherical magnets suspended above, blurred background.

Electronegativity's Role in Dipole Formation

Electronegativity is an atom's tendency to attract and retain electrons. Fluorine, the most electronegative element, serves as a reference for electronegativity scales. Atoms with higher electronegativity are typically found towards the top right of the periodic table, while those with lower electronegativity are towards the bottom left. In a chemical bond between atoms of different electronegativities, the more electronegative atom gains a partial negative charge (δ-), and the less electronegative atom gains a partial positive charge (δ+). This creates a dipole within the molecule, with the dipole moment indicating the polarity and strength of the bond.

Vector Characteristics of Dipole Moments

Dipole moments, as vectors, possess both magnitude and direction. The direction is from the less electronegative atom (positive end) to the more electronegative atom (negative end), reflecting the flow of electron density. In a hydrogen fluoride (HF) molecule, the dipole moment points from hydrogen to fluorine, the latter being more electronegative. The vector representation of a dipole moment uses an arrow with a cross at the positive end, symbolizing the positive charge due to electron deficiency.

Dipole Moments in Complex Molecules

In polyatomic molecules like water (H2O), the net dipole moment is the resultant of all individual bond dipoles, which may not align with any single bond but rather point towards the region of higher electronegativity. Conversely, in symmetrical molecules such as carbon dioxide (CO2), individual bond dipoles are equal and opposite, canceling each other out and resulting in a non-polar molecule. The presence of polar bonds does not necessarily mean the molecule has a net dipole moment; molecular geometry plays a crucial role in determining the overall polarity.

Methods for Calculating Dipole Moments

The dipole moment of a molecule can be calculated using the equation: $$\vec{\mu}=\Sigma_{i} q_{i} \vec{r_i}$$, where $\vec{\mu}$ represents the dipole moment vector, $q_{i}$ is the charge magnitude, and $\vec{r_i}$ is the position vector of the charge. For diatomic molecules, the calculation simplifies to: $$\mu_{diatomic}=Q*r$$, where Q is the charge and r is the bond length. Dipole moments are expressed in Debye units (D), with one Debye equal to 3.33564 x 10^-30 Coulomb meters, facilitating comparison between different molecules.

Influences on Dipole Moments and Their Consequences

The magnitude of a dipole moment is affected by bond length, the difference in electronegativity between bonded atoms, and molecular shape. Longer bond lengths and greater differences in electronegativity typically increase the dipole moment. However, these factors are interdependent, and their collective influence determines the dipole moment. For instance, in halogen compounds, increasing atomic size may increase bond length but decrease electronegativity difference, affecting the dipole moment. Dipole moments have profound effects on physical properties like solubility and boiling points, as well as chemical reactivity. Molecules with higher dipole moments usually exhibit stronger intermolecular forces, leading to higher boiling and melting points and greater solubility in polar solvents, while those with lower dipole moments tend to be more chemically stable and less reactive.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

Definition of Dipole Moment

Vector quantity representing charge separation in a molecule, points from partial positive to negative end.

01

Impact of Dipole Moments on Boiling Point

Molecules with higher dipole moments generally have higher boiling points due to stronger intermolecular attractions.

02

Dipole Moments and Solubility

Substances with similar dipole moments are more likely to be soluble in each other, following 'like dissolves like'.
