Subduction Zone Processes and Hazards

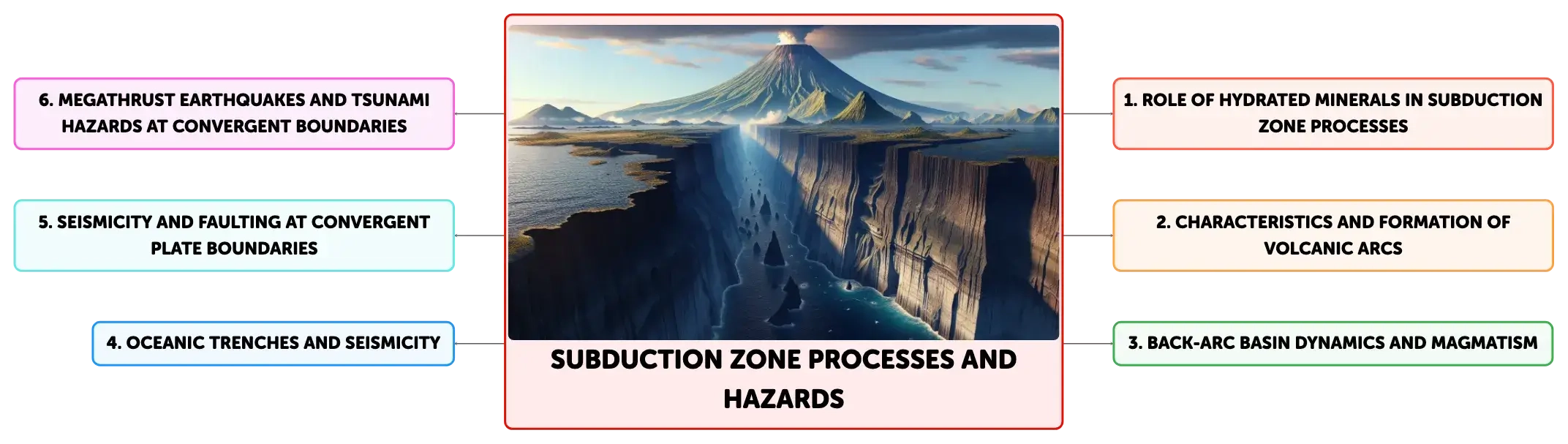

Concept Map
Exploring the significance of hydrated minerals in subduction zone processes, this overview delves into the formation of volcanic arcs, back-arc basin dynamics, oceanic trench structures, and the seismicity at convergent plate boundaries. It highlights how water release from minerals like amphibole and serpentine influences magma generation, leading to volcanic arcs and contributing to continental crust growth. The text also examines the formation of back-arc basins, the structure of oceanic trenches, and the potential for megathrust earthquakes and tsunamis at these geologically active sites.
Summary
Outline
The Role of Hydrated Minerals in Subduction Zone Processes
Subduction zones, where oceanic plates dive beneath continental plates or other oceanic plates, are characterized by the presence of hydrated minerals such as amphibole and serpentine in the oceanic crust. These minerals are formed by the introduction of water into the mantle at mid-ocean ridges. As the oceanic plate descends, increasing pressure and temperature cause these minerals to release water, which lowers the melting point of the overlying mantle wedge. This process leads to the generation of magma, which can rise to form volcanic arcs. The release of water from subducting slabs is a key factor in the creation of magmas that contribute to volcanic activity and the growth of continental crust.Characteristics and Formation of Volcanic Arcs
Volcanic arcs are curved chains of volcanoes that are typically located at a considerable distance from the trench associated with a subduction zone. They form as a result of the melting of the mantle wedge above the subducting plate, facilitated by fluids released from the descending slab. The composition of volcanic arc magmas varies, but they are generally classified into tholeiitic, calc-alkaline, and alkaline series, reflecting differences in their geochemical properties. The tholeiitic series is typically found in oceanic settings, while the calc-alkaline series is more common in continental arcs. The alkaline series is less common and is associated with more complex tectonic settings. The andesite line is a geographical marker that separates predominantly basaltic oceanic island arcs from the more andesitic continental margins.Back-Arc Basin Dynamics and Magmatism
Back-arc basins are regions of crustal extension located behind volcanic arcs. They form due to processes such as slab rollback, which creates a tensional environment allowing for the upwelling of asthenospheric material and the formation of new crust. The magmatism in back-arc basins is influenced by the subduction process, often resulting in magmas with higher water content and more varied compositions compared to mid-ocean ridge basalts. The study of back-arc basins provides insights into the interactions between subduction dynamics, crustal extension, and magmatism.Oceanic Trenches: Formation, Structure, and Sedimentation
Oceanic trenches are elongated depressions on the seafloor formed at convergent plate boundaries where one tectonic plate subducts beneath another. The depth of these trenches is influenced by factors such as the age and temperature of the subducting plate, with older, colder plates typically creating deeper trenches. Sedimentation in trenches is a complex process that involves the accumulation of sediments from various sources, including erosion from land and pelagic sedimentation. The Mariana Trench, with its Challenger Deep, is the deepest known trench and serves as a prime example of these geologic structures.Seismicity and Faulting at Convergent Plate Boundaries
Convergent plate boundaries are sites of intense seismic activity due to the stresses associated with plate interactions. Earthquakes in these regions can occur at various depths within the subducting slab, defining the Wadati-Benioff zone. The type of faulting observed at these boundaries depends on the direction of plate movement and the forces involved. Compressional or reverse faulting is common on the overriding plate near the trench, contributing to the uplift of accretionary wedges, while extensional or normal faulting can occur on the outer rise of the subducting plate due to bending stresses. Understanding these faulting mechanisms is crucial for assessing seismic hazards.Megathrust Earthquakes and Tsunami Hazards at Convergent Boundaries
Megathrust earthquakes are the most powerful type of earthquakes and occur at convergent plate boundaries where one plate is forced under another. These earthquakes can displace vast areas of the seafloor, triggering tsunamis with the potential for widespread destruction, as seen in the 2004 Indian Ocean and 2011 Tohoku events. The study of these earthquakes and their effects is vital for disaster preparedness and risk mitigation. It is important for coastal communities to have effective warning systems and evacuation plans in place to minimize the impact of such catastrophic events.
Show More
Role of Hydrated Minerals in Subduction Zone Processes
Formation of Hydrated Minerals
Hydrated minerals such as amphibole and serpentine are formed by the introduction of water into the mantle at mid-ocean ridges
Release of Water and Generation of Magma
Pressure and Temperature Effects
As the oceanic plate descends, increasing pressure and temperature cause hydrated minerals to release water, which lowers the melting point of the overlying mantle wedge and leads to the generation of magma
Contribution to Volcanic Activity and Continental Crust Growth
The release of water from subducting slabs is a key factor in the creation of magmas that contribute to volcanic activity and the growth of continental crust
Types of Hydrated Minerals and Their Geochemical Properties
Hydrated minerals in subduction zones are generally classified into tholeiitic, calc-alkaline, and alkaline series, reflecting differences in their geochemical properties

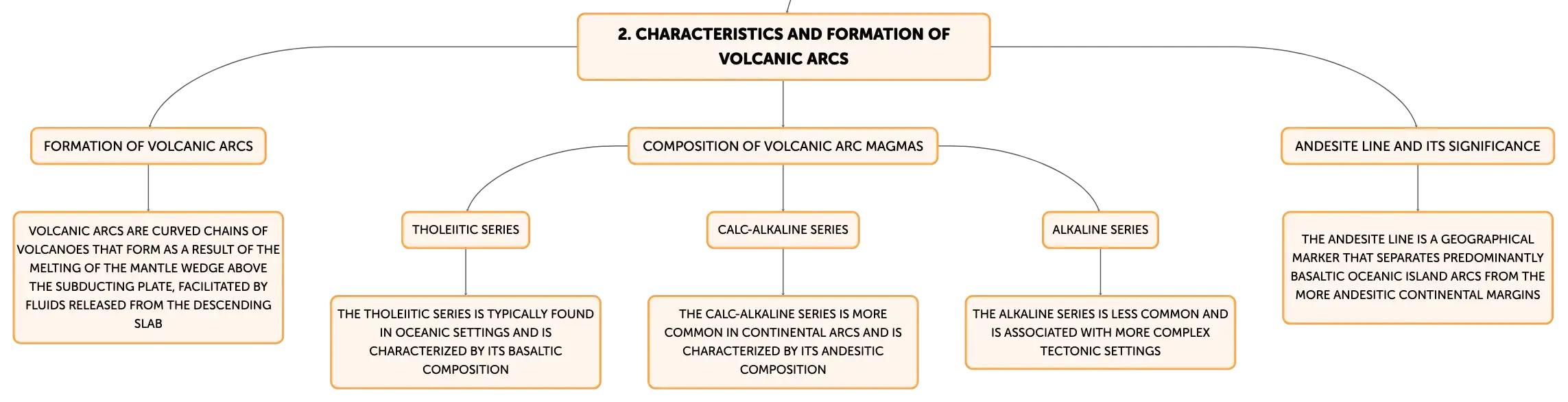

Characteristics and Formation of Volcanic Arcs
Formation of Volcanic Arcs
Volcanic arcs are curved chains of volcanoes that form as a result of the melting of the mantle wedge above the subducting plate, facilitated by fluids released from the descending slab
Composition of Volcanic Arc Magmas
Tholeiitic Series
The tholeiitic series is typically found in oceanic settings and is characterized by its basaltic composition
Calc-alkaline Series
The calc-alkaline series is more common in continental arcs and is characterized by its andesitic composition
Alkaline Series
The alkaline series is less common and is associated with more complex tectonic settings
Andesite Line and Its Significance
The andesite line is a geographical marker that separates predominantly basaltic oceanic island arcs from the more andesitic continental margins

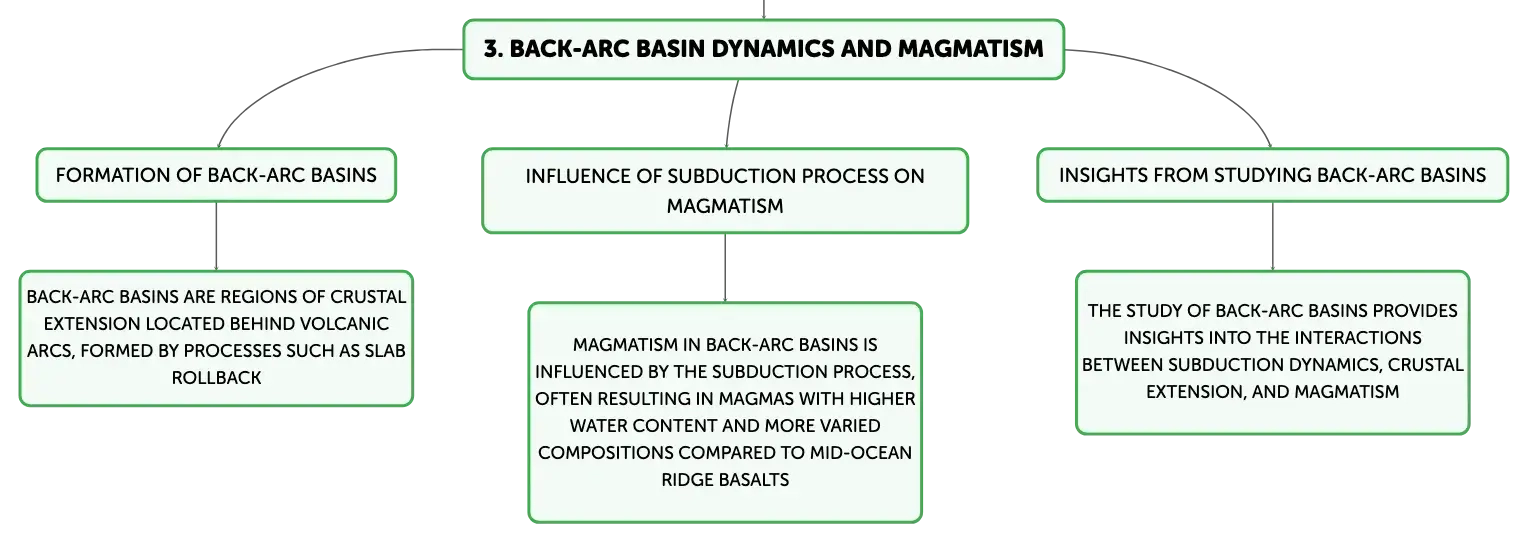

Back-Arc Basin Dynamics and Magmatism
Formation of Back-Arc Basins
Back-arc basins are regions of crustal extension located behind volcanic arcs, formed by processes such as slab rollback
Influence of Subduction Process on Magmatism
Magmatism in back-arc basins is influenced by the subduction process, often resulting in magmas with higher water content and more varied compositions compared to mid-ocean ridge basalts
Insights from Studying Back-Arc Basins
The study of back-arc basins provides insights into the interactions between subduction dynamics, crustal extension, and magmatism

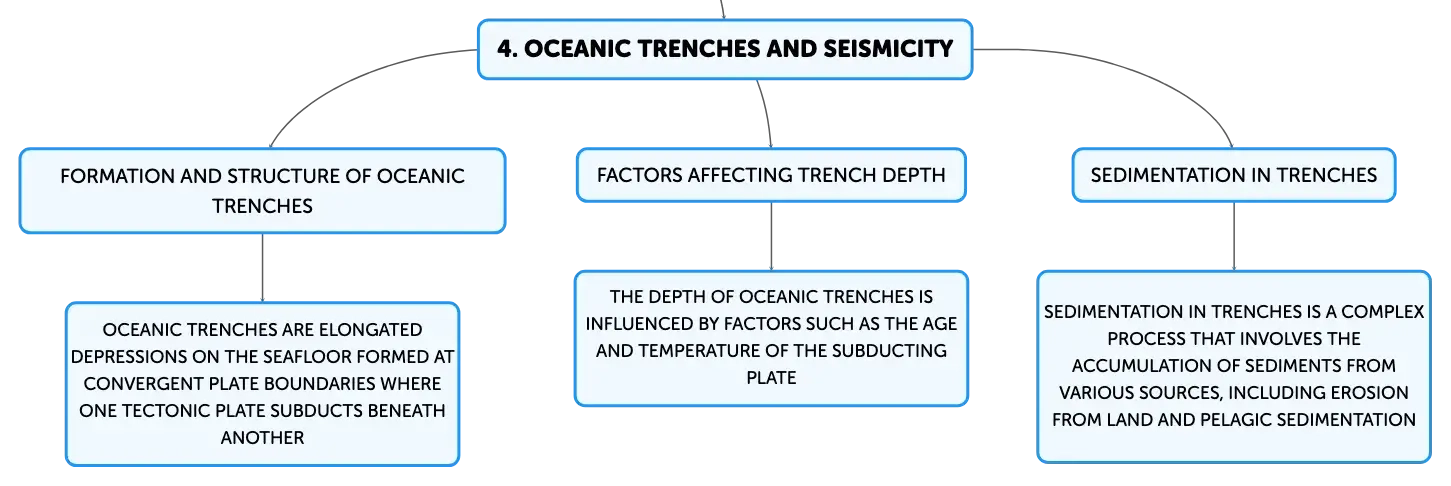

Oceanic Trenches and Seismicity
Formation and Structure of Oceanic Trenches
Oceanic trenches are elongated depressions on the seafloor formed at convergent plate boundaries where one tectonic plate subducts beneath another
Factors Affecting Trench Depth
The depth of oceanic trenches is influenced by factors such as the age and temperature of the subducting plate
Sedimentation in Trenches
Sedimentation in trenches is a complex process that involves the accumulation of sediments from various sources, including erosion from land and pelagic sedimentation

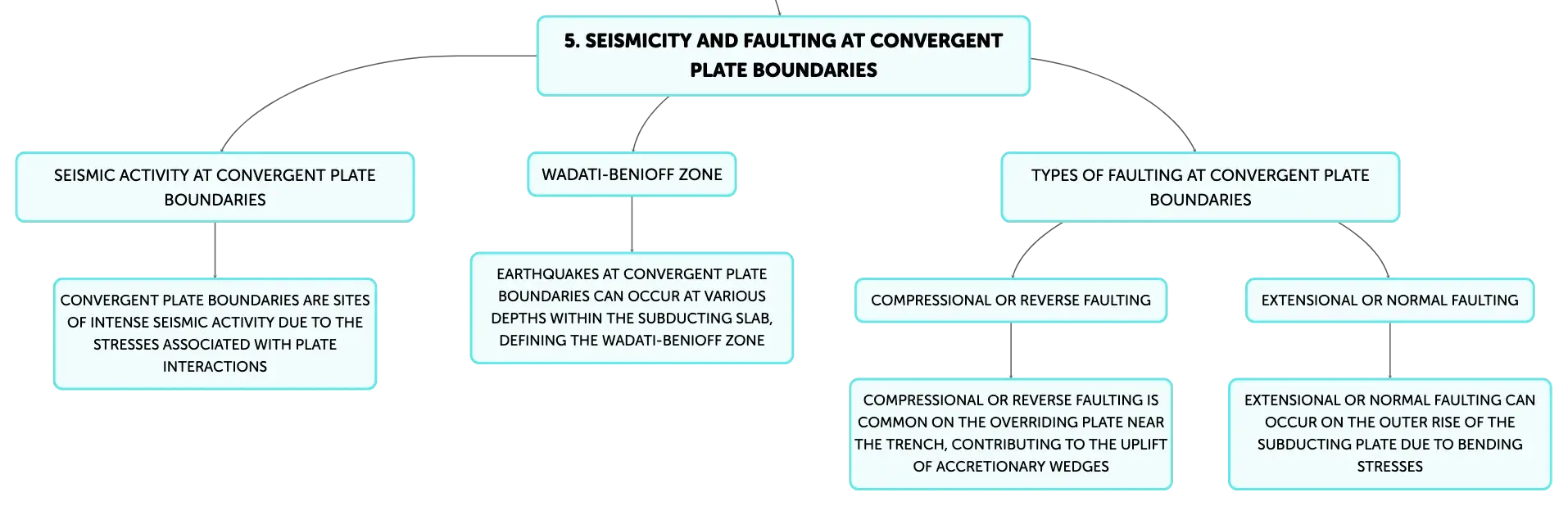

Seismicity and Faulting at Convergent Plate Boundaries
Seismic Activity at Convergent Plate Boundaries
Convergent plate boundaries are sites of intense seismic activity due to the stresses associated with plate interactions
Wadati-Benioff Zone
Earthquakes at convergent plate boundaries can occur at various depths within the subducting slab, defining the Wadati-Benioff zone
Types of Faulting at Convergent Plate Boundaries
Compressional or Reverse Faulting
Compressional or reverse faulting is common on the overriding plate near the trench, contributing to the uplift of accretionary wedges
Extensional or Normal Faulting
Extensional or normal faulting can occur on the outer rise of the subducting plate due to bending stresses

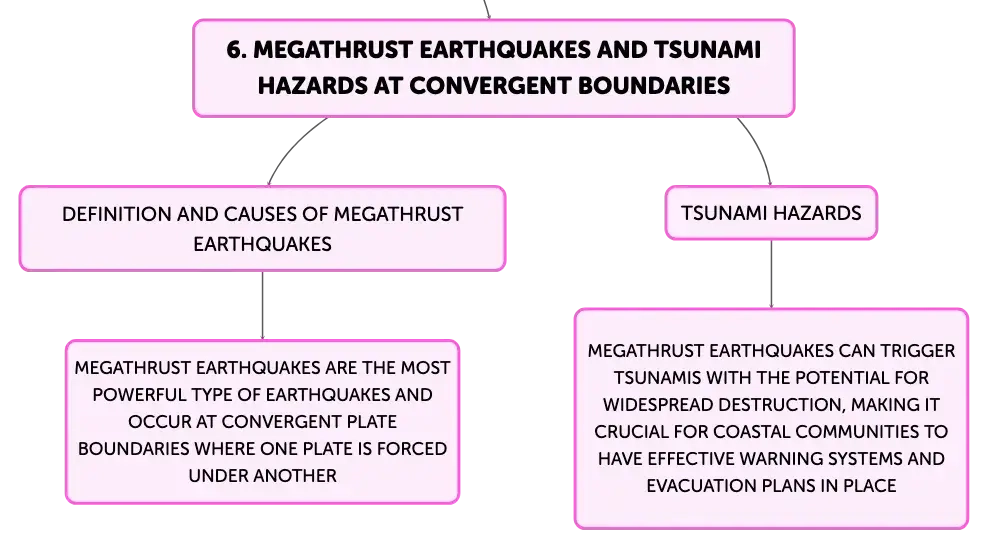

Megathrust Earthquakes and Tsunami Hazards at Convergent Boundaries
Definition and Causes of Megathrust Earthquakes
Megathrust earthquakes are the most powerful type of earthquakes and occur at convergent plate boundaries where one plate is forced under another
Tsunami Hazards
Megathrust earthquakes can trigger tsunamis with the potential for widespread destruction, making it crucial for coastal communities to have effective warning systems and evacuation plans in place
Subduction Zone Processes and Hazards
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In ______ zones, oceanic plates sink beneath continental or other oceanic plates, often carrying ______ and ______ in the crust.
Subduction
amphibole
serpentine
01
The presence of water in the mantle, introduced at ______, leads to the formation of hydrated minerals.
mid-ocean ridges
02
As an oceanic plate is subducted, it experiences higher ______ and ______, causing hydrated minerals to release water.
pressure
temperature
