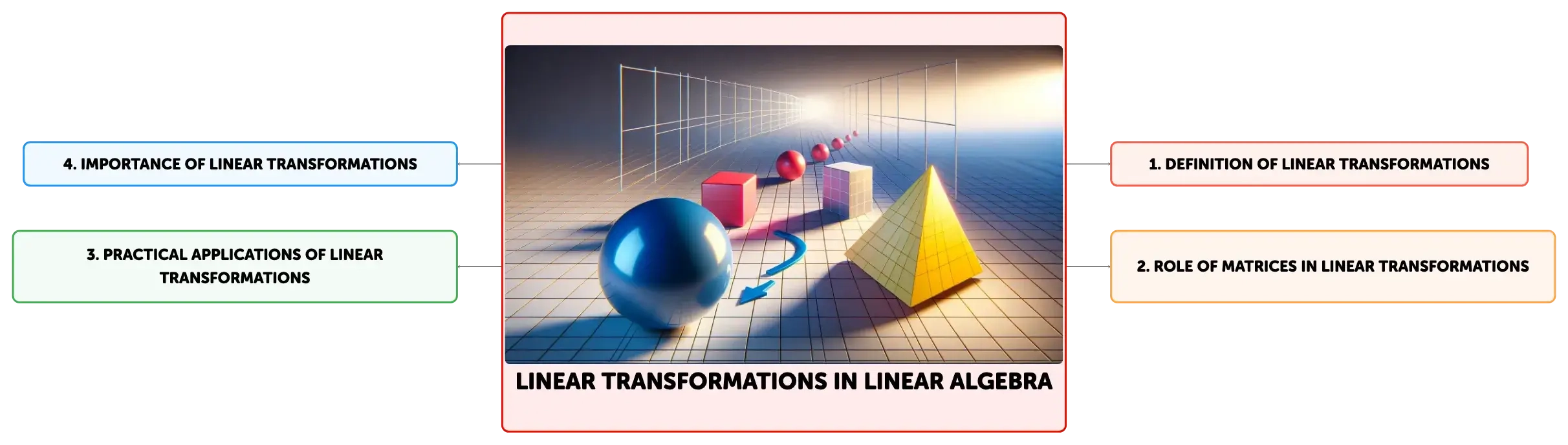

Linear Transformations in Linear Algebra
Concept Map
Linear transformations are pivotal in linear algebra, mapping vectors between spaces while preserving vector addition and scalar multiplication. Matrices are key, enabling operations like rotations and dilations. These concepts are not just theoretical but also practical, with applications in computer graphics, robotics, and engineering. Exercises enhance understanding of these transformations.
Summary
Outline
Fundamentals of Linear Transformations in Vector Spaces
Linear transformations are fundamental operations in linear algebra that map vectors from one vector space to another while preserving the operations of vector addition and scalar multiplication. These transformations are defined by two main properties: for any vectors u and v in a vector space V, and any scalar c from the underlying field F, a linear transformation T satisfies T(u + v) = T(u) + T(v) and T(cu) = cT(u). These properties ensure that the structure of the vector space is maintained under the transformation. Linear transformations are not only theoretical constructs but also have practical applications in various fields such as physics, engineering, and computer graphics, where they are used to model transformations and analyze systems.The Role of Matrices in Linear Transformations
Matrices play a crucial role in the implementation of linear transformations, serving as a compact representation of these operations. They facilitate the execution of transformations such as rotations, reflections, and dilations on vectors. When a matrix is multiplied by a vector, it results in a new vector that has been transformed according to the specifications of the matrix. For example, a matrix that rotates vectors by 90 degrees counter-clockwise in the plane is represented as \[\begin{pmatrix}0 & -1 \\ 1 & 0\end{pmatrix}\]. This matrix, when applied to a vector, rotates it by the desired angle. Matrices are thus essential tools that connect algebraic operations to geometric interpretations, enabling the systematic computation and analysis of transformations.Visualizing Linear Transformations with Examples
Visualizing linear transformations through examples is an effective way to comprehend the manipulation of vectors and spaces. Consider a matrix A defined as \[A = \begin{pmatrix}2 & 0 \\ 0 & 3\end{pmatrix}\], which, when applied to a vector v = (1, 1), results in A(v) = (2, 3). This transformation stretches the vector by a factor of 2 along the x-axis and by a factor of 3 along the y-axis. Graphical representations, such as plots or computer simulations, can vividly illustrate the effects of various linear transformations, making the abstract concepts more tangible and understandable.Linear Transformations in Practical Applications
Linear transformations extend beyond theoretical constructs and are integral to many practical applications. In the realm of computer graphics, operations such as scaling, rotating, and translating images are achieved through linear transformations applied to the coordinates of pixels. For instance, a rotation matrix \[R = \begin{pmatrix}0 & -1 \\ 1 & 0\end{pmatrix}\] can be used to rotate an image by 90 degrees. In robotics, linear transformations are employed to model and control the movement of robotic arms, with each joint's motion represented by a series of mathematical transformations. These real-world applications highlight the significance of linear transformations in the design and operation of various technologies.Interdisciplinary Applications of Linear Transformations
The use of linear transformations spans a wide range of disciplines, demonstrating their versatility in addressing complex problems. Engineers utilize these transformations for system design and analysis in areas such as signal processing and control systems. In computer graphics, linear transformations are foundational for rendering three-dimensional images and animations, with basic operations like rotation, scaling, and translation being based on matrix manipulations. The widespread application of linear transformations across different fields underscores their importance in both theoretical and practical problem-solving.Enhancing Understanding of Linear Transformations Through Exercises
Proficiency in linear transformations is best achieved through practice with targeted exercises. These exercises typically involve applying specific linear transformations to vectors or systems and interpreting the outcomes. For example, applying a transformation matrix \[A = \begin{pmatrix}3 & 5 \\ 0 & 2\end{pmatrix}\] to a vector \(v = \begin{pmatrix}1 \\ -1\end{pmatrix}\) helps students understand the effects of the transformation. Through such exercises, learners can reinforce their understanding of key concepts like matrix multiplication and vector space manipulation. Engaging in these practical applications is crucial for developing a deep and nuanced understanding of linear algebra.
Show More

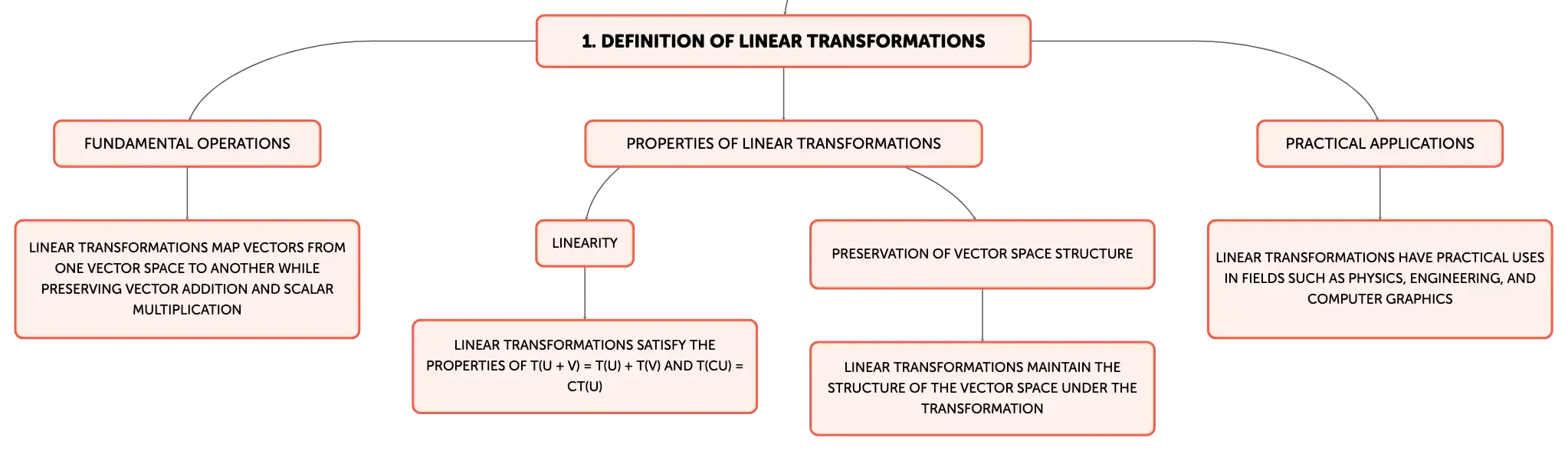

Definition of Linear Transformations
Fundamental Operations
Linear transformations map vectors from one vector space to another while preserving vector addition and scalar multiplication
Properties of Linear Transformations
Linearity
Linear transformations satisfy the properties of T(u + v) = T(u) + T(v) and T(cu) = cT(u)
Preservation of Vector Space Structure
Linear transformations maintain the structure of the vector space under the transformation
Practical Applications
Linear transformations have practical uses in fields such as physics, engineering, and computer graphics

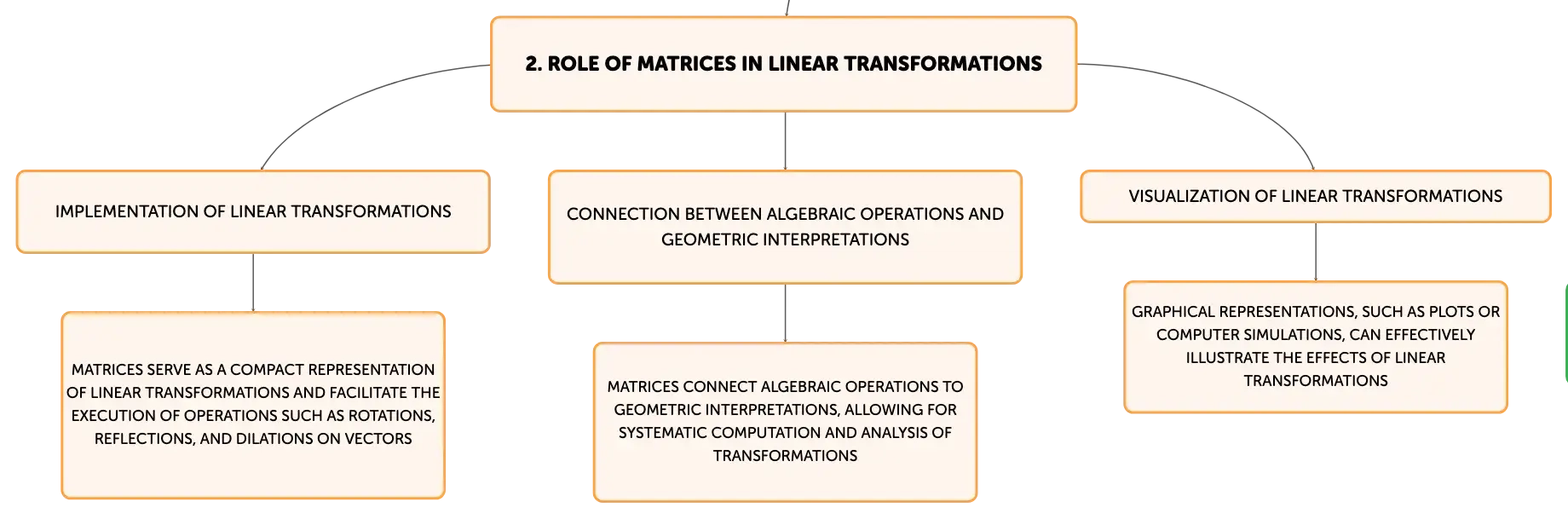

Role of Matrices in Linear Transformations
Implementation of Linear Transformations
Matrices serve as a compact representation of linear transformations and facilitate the execution of operations such as rotations, reflections, and dilations on vectors
Connection between Algebraic Operations and Geometric Interpretations
Matrices connect algebraic operations to geometric interpretations, allowing for systematic computation and analysis of transformations
Visualization of Linear Transformations
Graphical representations, such as plots or computer simulations, can effectively illustrate the effects of linear transformations

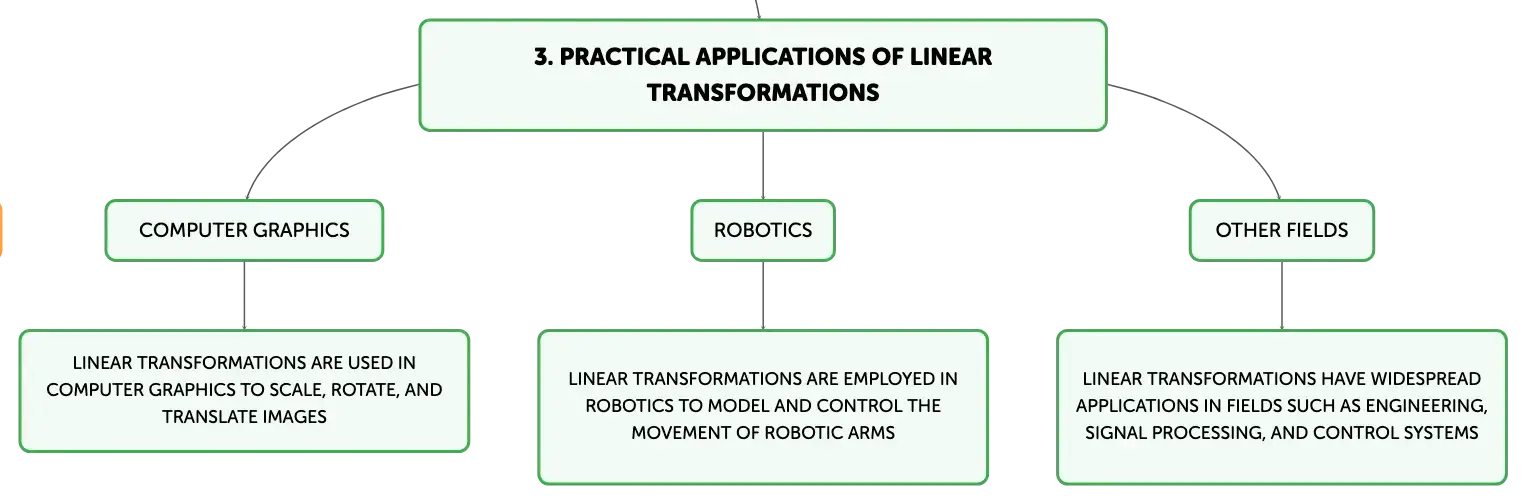

Practical Applications of Linear Transformations
Computer Graphics
Linear transformations are used in computer graphics to scale, rotate, and translate images
Robotics
Linear transformations are employed in robotics to model and control the movement of robotic arms
Other Fields
Linear transformations have widespread applications in fields such as engineering, signal processing, and control systems
Importance of Linear Transformations
Versatility in Problem-Solving
Linear transformations are used in a wide range of disciplines, demonstrating their versatility in addressing complex problems
Foundational Concepts
Linear transformations are foundational for various operations in linear algebra, such as matrix manipulations and vector space manipulation
Importance of Practice
Proficiency in linear transformations is best achieved through practice with targeted exercises, which help reinforce key concepts and deepen understanding
Linear Transformations in Linear Algebra
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Linear Transformation Vector Space Mapping
Maps vectors from one vector space to another, preserving vector addition and scalar multiplication.
01
Linear Transformation Structure Preservation
Maintains the structure of the vector space, ensuring operations and relations remain consistent.
02
Linear Transformation Practical Applications
Used in physics, engineering, computer graphics to model transformations, analyze systems.
