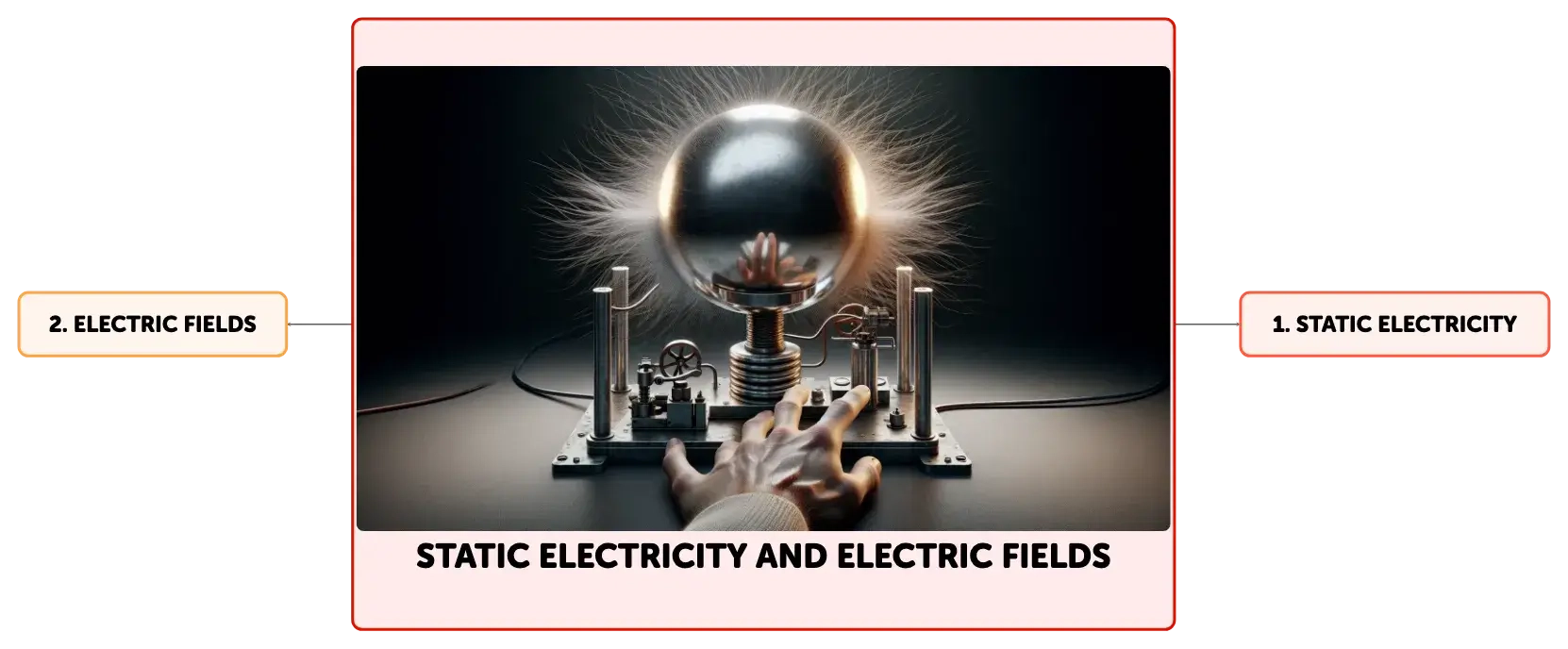

Concept Map

Static electricity and its underlying principles are demonstrated through balloon experiments. Learn about point charges, electric fields, superposition, dipoles, and electric potential energy. Understand how charges interact, the nature of electric fields, and the work done by electric forces in various charge configurations.

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

When a ______ is rubbed against human hair, it becomes ______ charged, while the hair becomes positively charged.

balloon

negatively

Electric field definition

Vector field representing force a charge would feel at any point.

Electric field strength and distance

Field strength from point charge decreases with square of distance.

Q&A

Here's a list of frequently asked questions on this topic

Static Electricity and Electric Fields

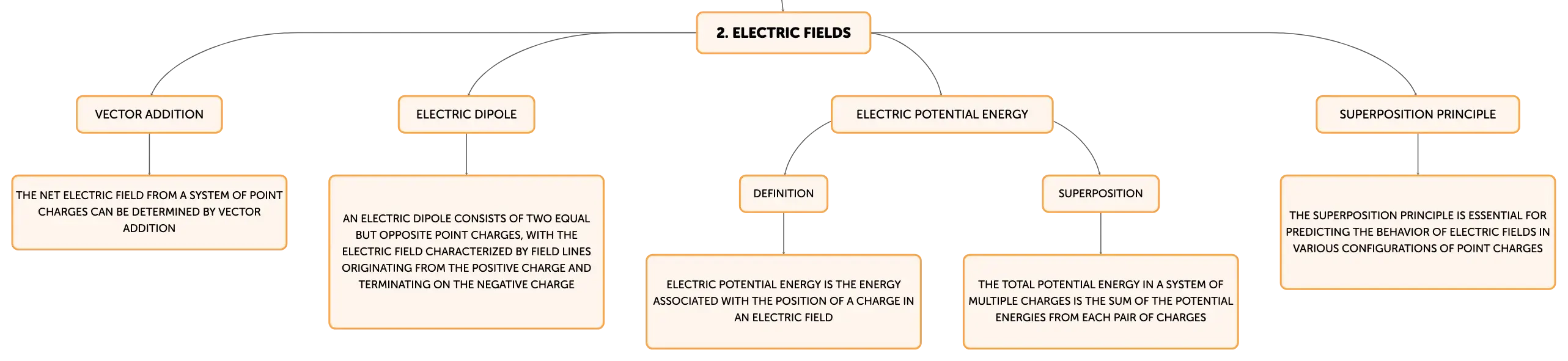

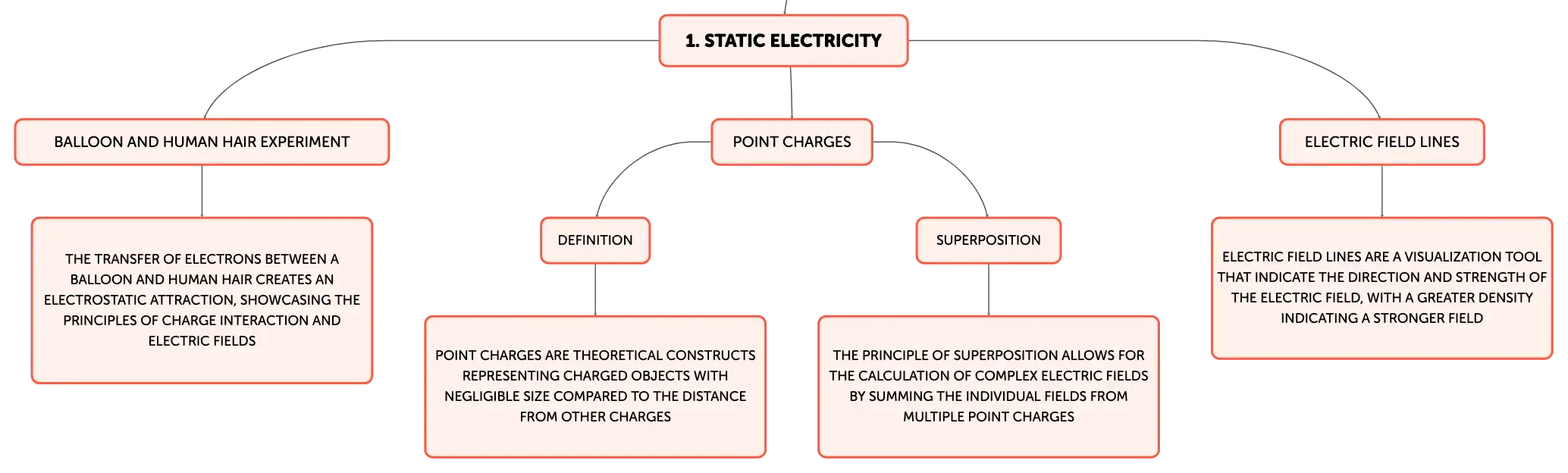

Concept Map

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

When a ______ is rubbed against human hair, it becomes ______ charged, while the hair becomes positively charged.

balloon

negatively

Electric field definition

Vector field representing force a charge would feel at any point.

Electric field strength and distance

Field strength from point charge decreases with square of distance.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Ripple tank experiment showing concentric circular water ripples from a dropped metal ball, with wave patterns projected as light and shadow.

Wave Equations and Their Applications

Laboratory laser apparatus with red coherent beam passing through multiple transparent lenses, demonstrating parallel light propagation in a scientific setting.

Parallel Beams in Physics

$Biconvex lens on white background refracting light into a spectrum, demonstrating light dispersion with a subtle rainbow effect and lens reflection.$

The Thick Lens Formula: A Cornerstone of Optical Science

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Exploring the Basics of Static Electricity with Balloons

Static electricity is a fascinating concept that can be demonstrated through a simple experiment involving a balloon and human hair. When a balloon is vigorously rubbed against hair, electrons are transferred from the hair to the balloon, leaving the hair positively charged and the balloon negatively charged. This separation of charge creates an electrostatic attraction, causing the hair to stand on end and be drawn towards the balloon. This interaction is a classic example of static electricity at work, showcasing the fundamental principles of charge interaction and the existence of electric fields that permeate the space around charged objects.

Van de Graaff generator with a hand reaching out, hair strands standing due to static electricity, and a blurred background for focus.

Point Charges and the Nature of Electric Fields

The electric field concept is central to understanding the forces between charged objects. A point charge is a theoretical construct representing a charged object whose size is negligible compared to the distance from other charges. Point charges can be positive or negative and exert forces on one another: like charges repel, while opposite charges attract. The electric field is a vector field that represents the force a charge would experience at any point in space. The strength of the field produced by a point charge diminishes with the square of the distance from the charge, and its direction is radially outward from a positive charge and inward towards a negative charge.

Superposition of Electric Fields from Multiple Charges

When multiple point charges are present, the total electric field at any point is the vector sum of the fields due to each individual charge. This principle, known as superposition, allows for the calculation of complex electric fields. Electric field lines are a useful visualization tool that indicates both the direction and relative magnitude of the field; they emanate from positive charges and terminate on negative charges. The density of these lines corresponds to the field's strength, with a greater density indicating a stronger field. It is important to note that electric field lines do not intersect, as each point in space has a unique electric field vector.

Calculating the Net Electric Field with Vector Addition

The mathematical framework for determining the net electric field from a system of point charges involves vector addition. For a single point charge, the electric field magnitude is given by Coulomb's law: $|\vec{E}|=\frac{1}{4\pi\epsilon_0}\frac{|q|}{r^2}$, where $q$ is the charge, $r$ is the distance from the charge, and $\epsilon_0$ is the vacuum permittivity. For multiple charges, the net electric field is the sum of the individual fields: $\vec{E}_\mathrm{net}=\sum_{i=1}^n\vec{E}_i$. In two dimensions, the net electric field's magnitude and direction can be determined by decomposing the individual electric fields into their $x$ and $y$ components and then applying vector addition.

Electric Fields and Dipoles

An electric dipole consists of two equal but opposite point charges separated by a small distance. The electric field of a dipole is characterized by field lines that originate from the positive charge and terminate on the negative charge. Contrary to what might be expected, the electric field at the midpoint between two equal and opposite charges is not zero. Instead, the fields from each charge add up because they are in the same direction at that point, resulting in a non-zero electric field with a magnitude that is twice that of the field from a single charge at the same distance.

Electric Potential Energy and Work

The concept of electric potential energy is crucial when discussing the work done by or against electric forces. As a charge moves within an electric field, work is done, which is independent of the path taken, indicating that the electric force is conservative. The electric potential energy of a charge in an electric field is given by $U=\frac{1}{4\pi\epsilon_0}\frac{qq_0}{r}$, where $q$ is the source charge, $q_0$ is the test charge, and $r$ is the separation between them. For a system of multiple charges, the total potential energy is the algebraic sum of the potential energies from each pair of charges. Unlike the electric field, which is a vector, electric potential energy is a scalar quantity, simplifying certain calculations.

Analyzing Electric Fields in Multiple Charge Configurations

The superposition principle is essential for analyzing the net electric field in systems with multiple charges. For instance, the electric field at the midpoint between two like charges of equal magnitude is zero because the fields from each charge cancel out. In a scenario with three point charges—two positive on the $x$-axis and one negative on the $y$-axis—the net electric field at the origin is determined by the negative charge, as the fields from the positive charges cancel each other. These examples illustrate the utility of the superposition principle in predicting the behavior of electric fields in various configurations of point charges.
