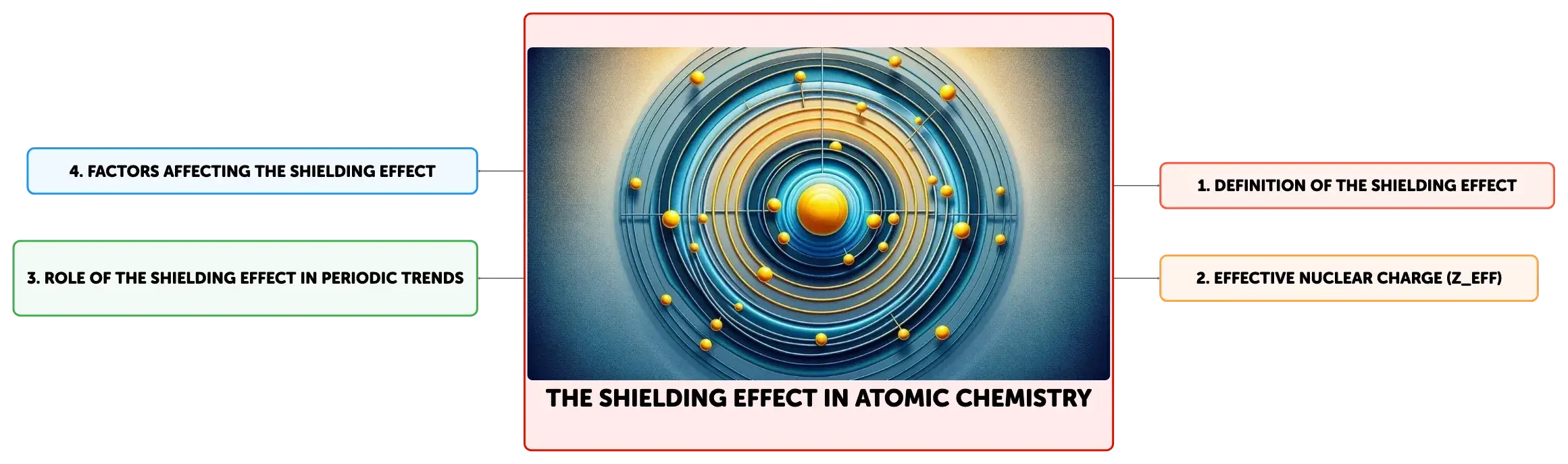

The Shielding Effect in Atomic Chemistry

Exploring the Shielding Effect in Atomic Structure

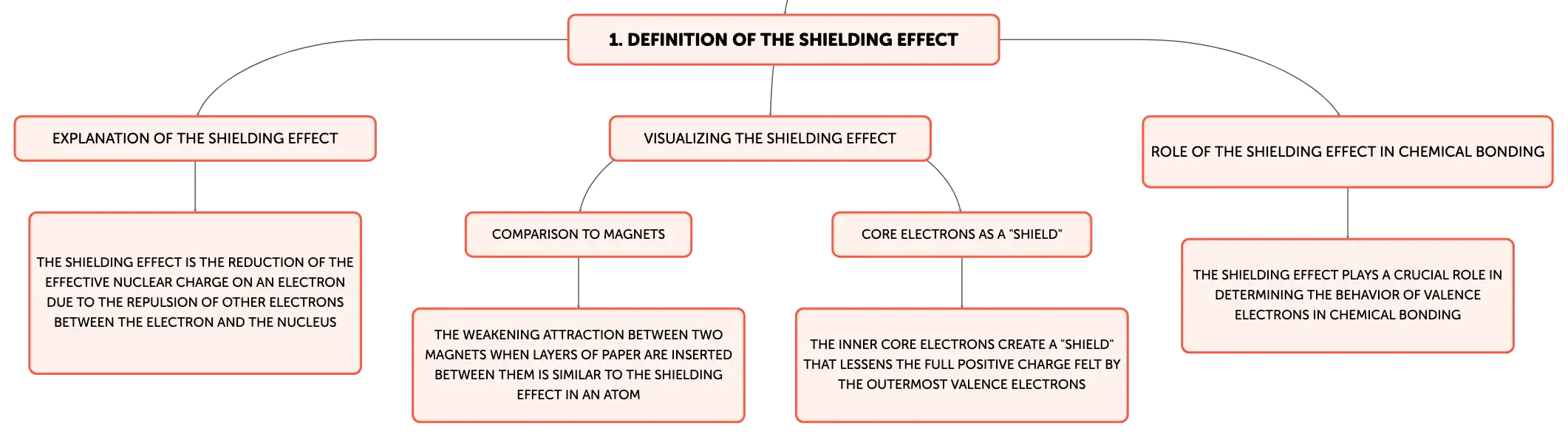

The shielding effect is an essential principle in atomic chemistry, illustrating how the effective nuclear charge on an electron is diminished by the repulsion of other electrons situated between the electron and the nucleus. This phenomenon can be visualized by imagining the weakening attraction between two magnets when layers of paper are inserted between them. In an atom, the inner electrons, or core electrons, create a "shield" that lessens the full positive charge felt by the outermost, or valence, electrons. These valence electrons are the ones primarily responsible for chemical bonding. The core electrons exert a repulsive force that partially negates the attractive force from the positively charged nucleus, creating a balance of forces akin to a game of tug-of-war.

Calculating Effective Nuclear Charge (Z_eff)

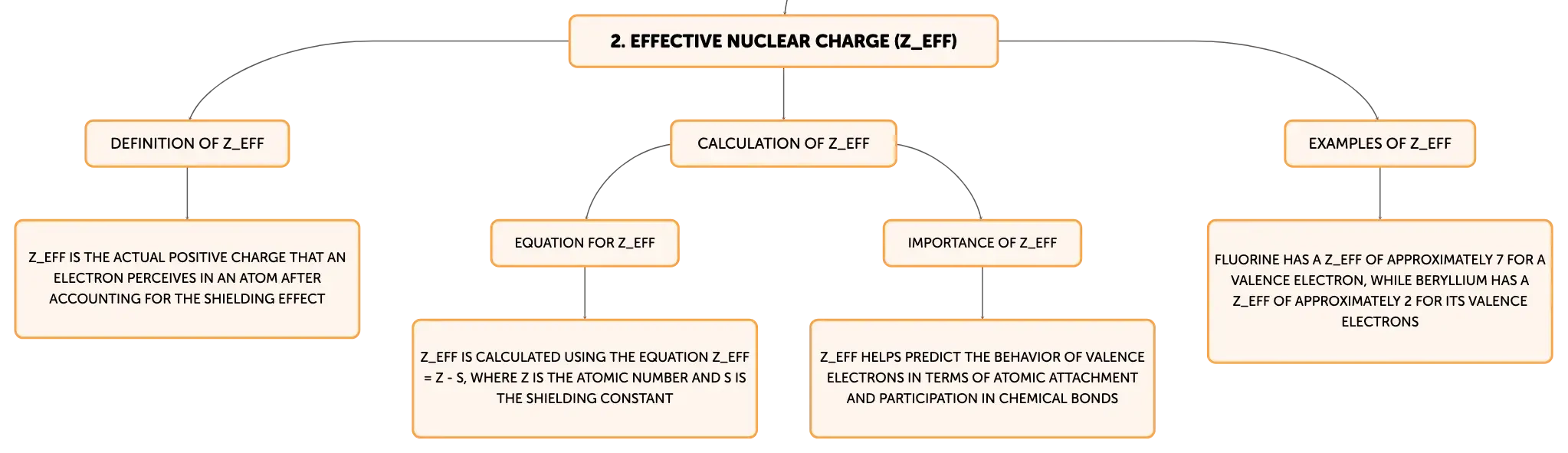

The effective nuclear charge (Z_eff) is the actual positive charge that an electron perceives in an atom, after accounting for the shielding effect. It is determined using the equation Z_eff = Z - S, where Z is the atomic number indicating the total number of protons in the nucleus, and S is the shielding constant, which approximates the average effect of electron repulsion. This calculation aids in assessing the nuclear attraction's intensity on the valence electrons. For example, fluorine, with an atomic number of 9 and 2 core electrons, has a Z_eff of approximately 7 for a valence electron. In contrast, beryllium, with an atomic number of 4 and 2 core electrons, has a Z_eff of approximately 2 for its valence electrons. These Z_eff values help predict the electrons' behavior in terms of their atomic attachment and participation in chemical bonds.

Periodic Trends Influenced by the Shielding Effect

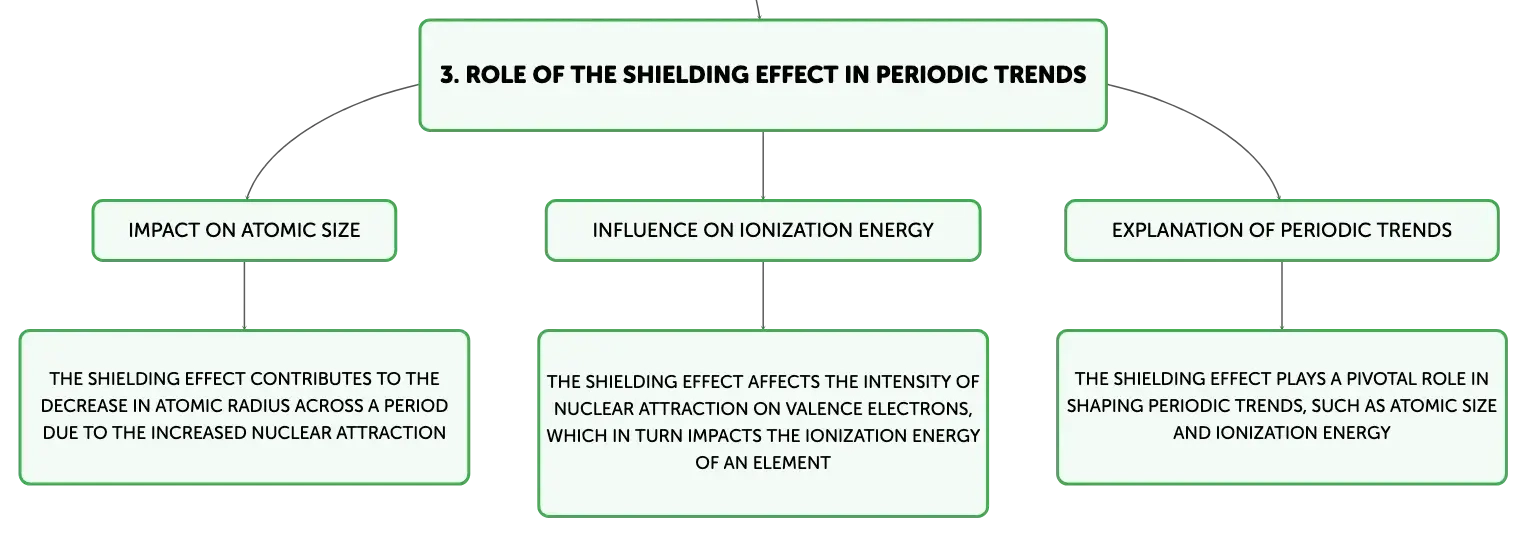

The shielding effect plays a pivotal role in shaping periodic trends, such as atomic size and ionization energy. Moving across a period, Z_eff tends to increase because the number of protons grows while the shielding by core electrons does not proportionally increase, resulting in a stronger pull on the valence electrons. This leads to a decrease in atomic radius across a period due to the increased nuclear attraction. In contrast, descending a group in the periodic table, the atomic radius expands as additional electron shells are added, which increases the electron-nucleus distance and enhances the shielding effect, thus weakening the effective nuclear pull on the outer electrons.

The Role of Electron Penetration in Shielding

Electron penetration refers to how closely an electron in a particular orbital approaches the nucleus, influencing its shielding capacity. Electrons in orbitals nearer to the nucleus, such as those in the 1s orbital, shield more effectively than those in orbitals farther away. The likelihood of locating an electron at various distances from the nucleus is dependent on the orbital type, with s orbitals generally exhibiting greater penetration than p, d, or f orbitals. This difference in penetration affects the actual Z_eff felt by electrons, which can deviate from simplified models that assume uniform shielding by all core electrons.

Utilizing Slater's Rules for Enhanced Z_eff Calculations

Slater's rules offer a refined approach for determining the shielding constant (S) and thus a more accurate Z_eff by considering the effects of electron penetration and distribution. According to these rules, electrons are assigned different shielding values based on their orbital type and energy level. For instance, within the same principal quantum number, s and p electrons contribute a shielding value of 0.35, while electrons in the n-1 shell contribute 0.85, and those in the n-2 shell or lower contribute 1.00. By applying Slater's rules, a more precise Z_eff is computed, often revealing a more substantial shielding effect than initially estimated with simpler methods.

Concluding Insights on the Shielding Effect

In conclusion, the shielding effect is a critical concept for comprehending electron behavior and the chemical properties of elements. It elucidates the variations in effective nuclear charge among different elements and within an element's orbitals. Z_eff increases across a period, leading to a smaller atomic radius, while the atomic radius grows down a group due to the addition of electron shells and the resulting increase in shielding. Electron penetration significantly influences the shielding effect, with electrons closer to the nucleus having a more pronounced effect. Slater's rules enable a nuanced calculation of Z_eff, accommodating the complexities of electron shielding and penetration, thus providing a more accurate depiction of atomic structure for educational purposes.
