Giant Covalent Structures

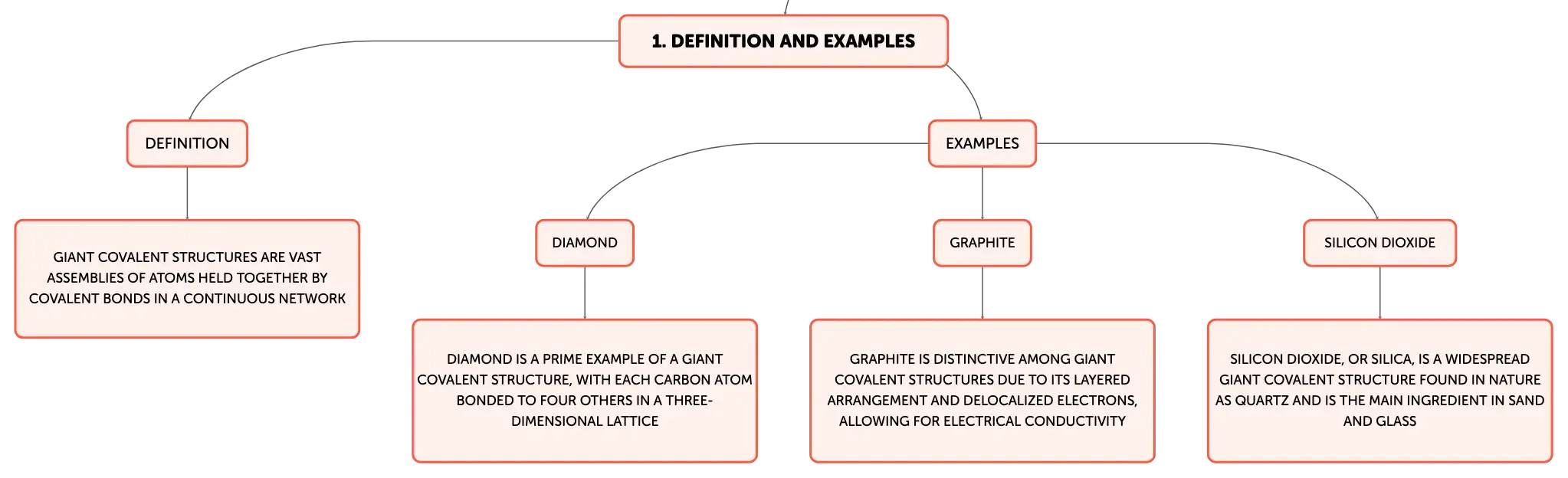

Exploring the Nature of Giant Covalent Structures

Giant covalent structures, also known as macromolecular or network covalent structures, are vast assemblies of atoms held together by covalent bonds in a continuous network extending throughout the material. These structures are not composed of individual molecules but rather a single, large molecule with a repeating pattern. Examples of substances with giant covalent structures include diamond, graphite, and silicon dioxide (SiO2), each possessing unique atomic arrangements that confer distinct physical properties and applications.

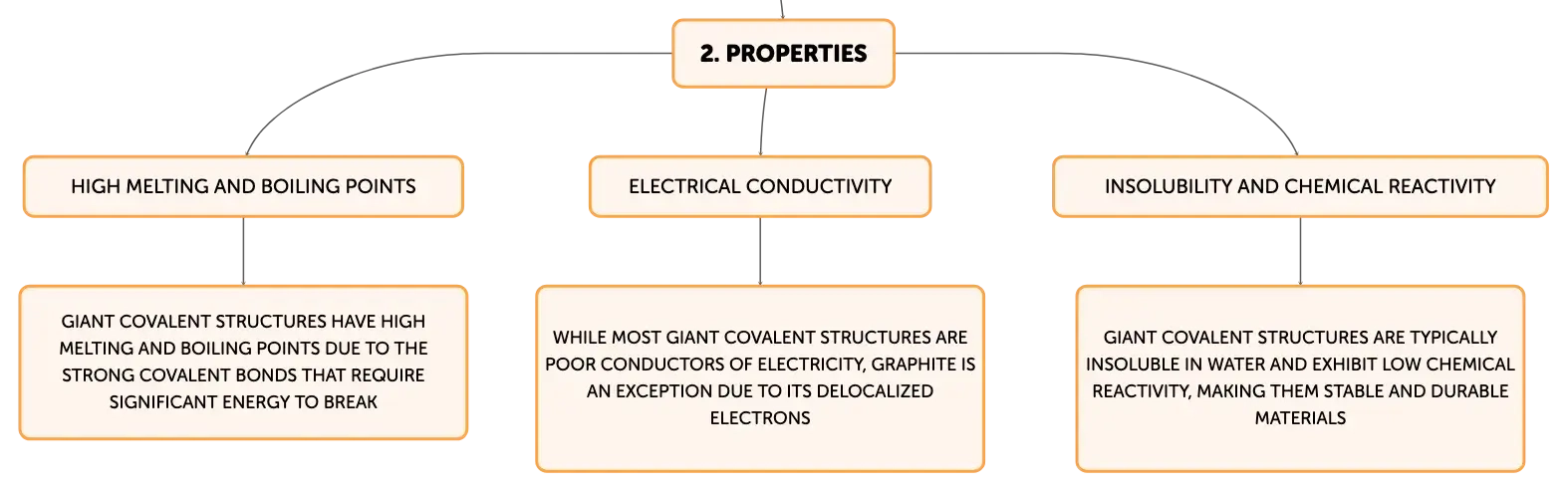

Characteristic Properties of Giant Covalent Structures

The properties of giant covalent structures are markedly different from those of simple molecular compounds. Their high melting and boiling points are a consequence of the strong covalent bonds that require significant energy to break. While most giant covalent structures are poor conductors of electricity due to the lack of free-moving charge carriers, graphite is an exception because it contains delocalized electrons that allow for electrical conductivity. These structures are typically insoluble in water and exhibit low chemical reactivity, making them stable and durable materials.

Diamond: A Paradigm of Giant Covalent Strength

Diamond, a form of carbon, is a prime example of a giant covalent structure. In diamond, each carbon atom is tetrahedrally bonded to four others, forming a three-dimensional lattice that is incredibly strong. This accounts for diamond's renowned hardness, making it the hardest known natural substance. Although an excellent conductor of heat, diamond does not conduct electricity under normal conditions due to its lack of free electrons. Its optical properties, including a wide transparency range, make it valuable in both ornamental and industrial applications.

Graphite: An Exceptional Giant Covalent Conductor

Graphite is distinctive among giant covalent structures due to its layered arrangement. Carbon atoms in graphite are bonded in flat hexagonal arrays with only three of the four potential covalent bonds satisfied, resulting in one delocalized electron per carbon atom. These layers are held together by van der Waals forces, which are weaker than covalent bonds, allowing them to slide over each other and giving graphite its lubricating properties. The delocalized electrons enable graphite to conduct electricity, making it useful in applications such as electrodes and batteries.

Silicon Dioxide (Silica): A Versatile Giant Covalent Material

Silicon dioxide, or silica, is a widespread giant covalent structure found in nature as quartz and is the main ingredient in sand and glass. Its structure consists of silicon atoms covalently bonded to four oxygen atoms in a tetrahedral shape, similar to the carbon atoms in diamond. This robust arrangement gives silica its high hardness and thermal stability. Insoluble in water and chemically inert, silica is essential in industries ranging from electronics, where it is used in semiconductor fabrication, to construction, where it is a key component of concrete and glass.

Concluding Insights on Giant Covalent Structures

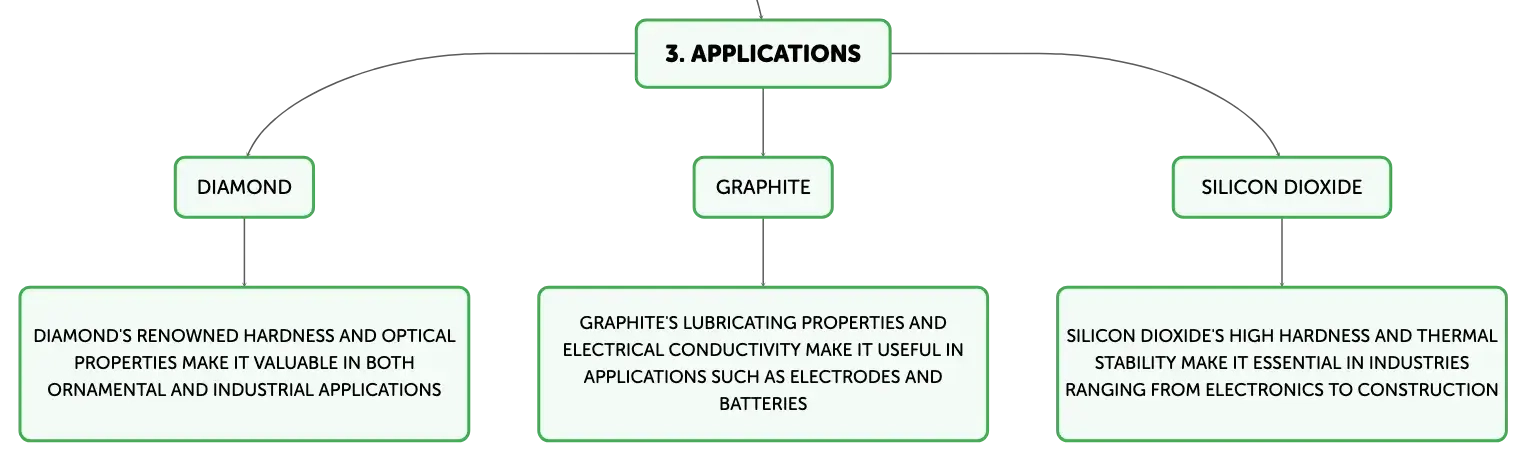

Giant covalent structures are characterized by their extensive covalent bonding, forming large, interconnected networks. They exhibit high melting and boiling points, variable electrical conductivity (with graphite as a notable conductor), and significant thermal stability. These structures are insoluble in water and demonstrate minimal chemical reactivity. Their diverse applications, from the hardness of diamond in cutting tools to the electrical properties of graphite in electronics, and the ubiquitous presence of silicon dioxide in materials science, underscore the importance of understanding their unique properties and roles in various technological and natural processes.
