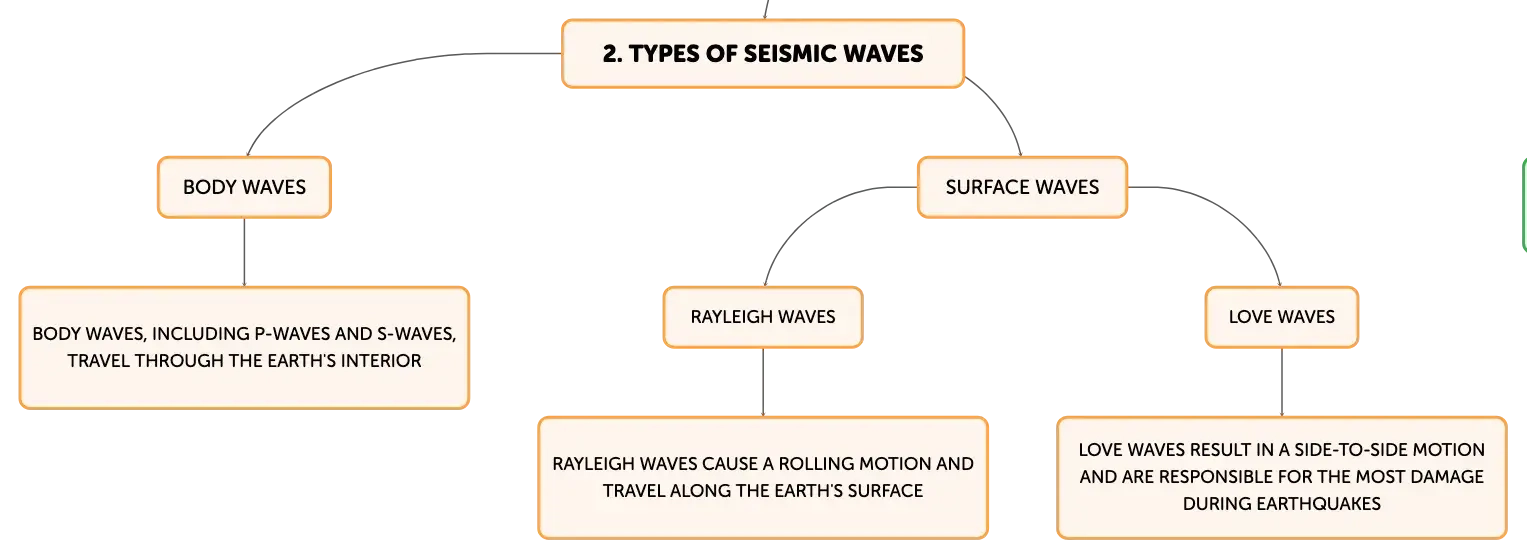

Classifying Seismic Waves

Seismic waves are classified into two main types: body waves and surface waves. Body waves travel through the Earth's interior and include P-waves (primary waves) and S-waves (secondary waves). P-waves are compressional waves that move in the same direction as the wave is traveling, while S-waves are shear waves that move perpendicular to the wave direction and cannot pass through fluids. Surface waves, which include Rayleigh and Love waves, travel along the Earth's surface. Rayleigh waves cause a rolling motion, and Love waves result in a side-to-side motion. Surface waves are typically responsible for the most damage during an earthquake due to their high amplitude and long duration.

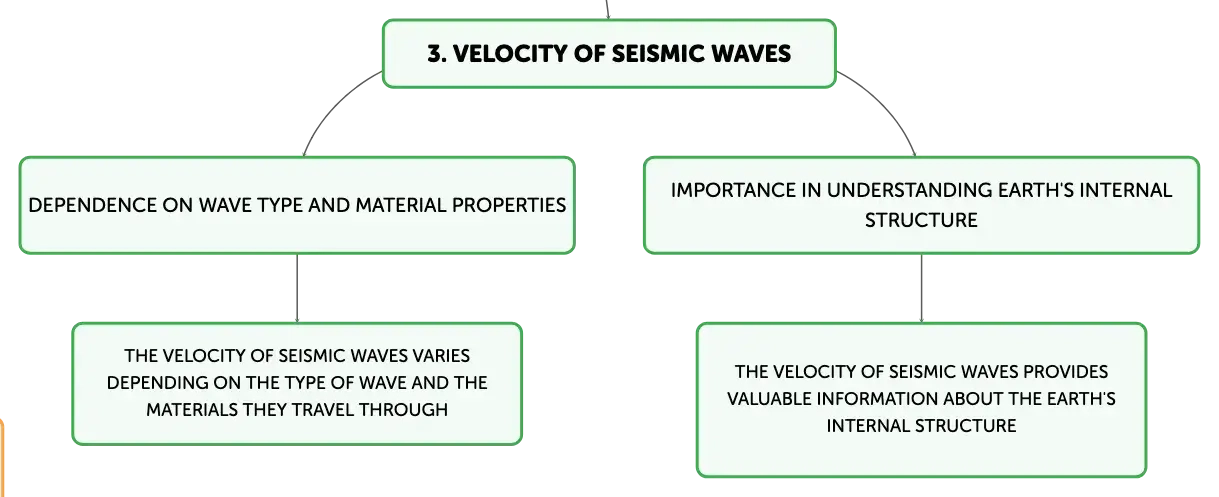

The Velocity of Seismic Waves

The velocity of seismic waves depends on the type of wave and the properties of the materials they travel through. P-waves are the fastest seismic waves, with speeds that can range from 5 to 14 kilometers per second in the Earth's crust. S-waves are slower, traveling at speeds of about 3 to 8 kilometers per second. Surface waves, including Rayleigh and Love waves, have lower speeds, typically in the range of 2 to 5 kilometers per second. The velocity of these waves provides important information about the Earth's internal structure.

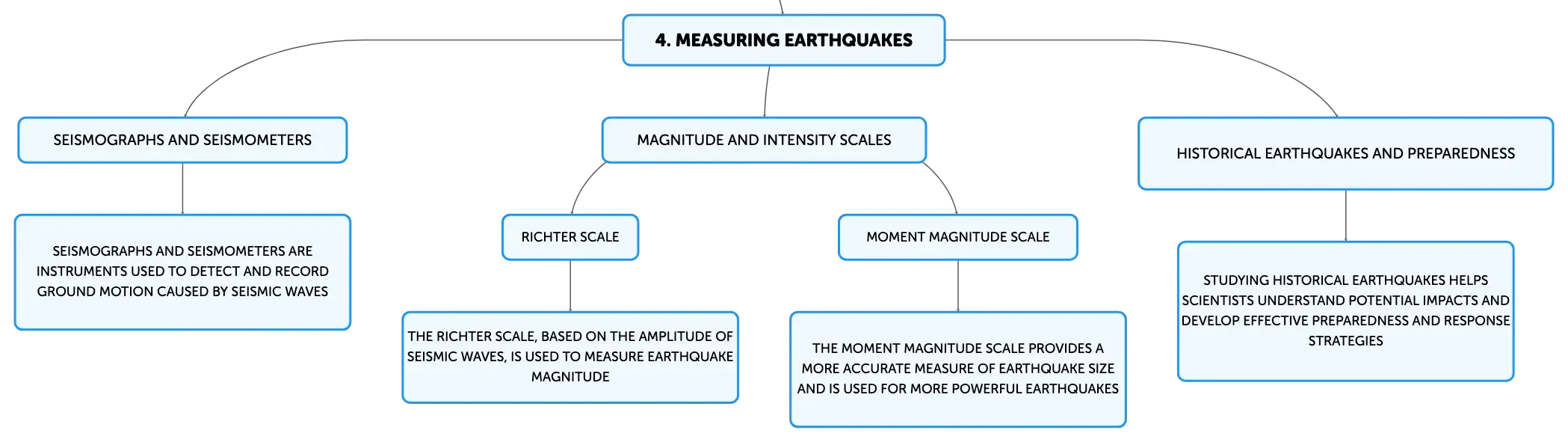

Measuring Earthquake Magnitude and Intensity

Earthquake magnitude and intensity are measured using instruments called seismographs, which include sensors known as seismometers. These instruments detect and record the ground motion caused by seismic waves. The magnitude of an earthquake is quantified using various scales, with the most commonly known being the Richter scale, which is logarithmic and based on the amplitude of the seismic waves. However, for more powerful earthquakes, the moment magnitude scale is often used as it provides a more accurate measure of the earthquake's size across a wider range of magnitudes.

Historical Earthquake Records

The most powerful earthquake ever recorded by modern instruments occurred in Valdivia, Chile, on May 22, 1960, with a moment magnitude of 9.5. This earthquake caused widespread destruction and generated a series of tsunamis that affected coastal areas around the Pacific Ocean. The speed of the tsunami waves reached up to 200 miles per hour. Studying historical earthquakes helps scientists understand the potential impacts of future seismic events and aids in the development of effective preparedness and response strategies.

Summary of Earthquake Seismic Waves

Seismic waves are the fundamental cause of the ground shaking associated with earthquakes. These waves are divided into body waves (P-waves and S-waves) and surface waves (Rayleigh and Love waves), each with distinct characteristics and propagation speeds. The study of seismic waves is essential for understanding the internal structure of the Earth and for measuring the magnitude and intensity of earthquakes. Seismographs and various magnitude scales provide critical data for assessing the energy and potential impact of seismic events, contributing to our preparedness for these natural disasters.

Seismic Waves and Earthquakes

Concept Map

Summary

Outline

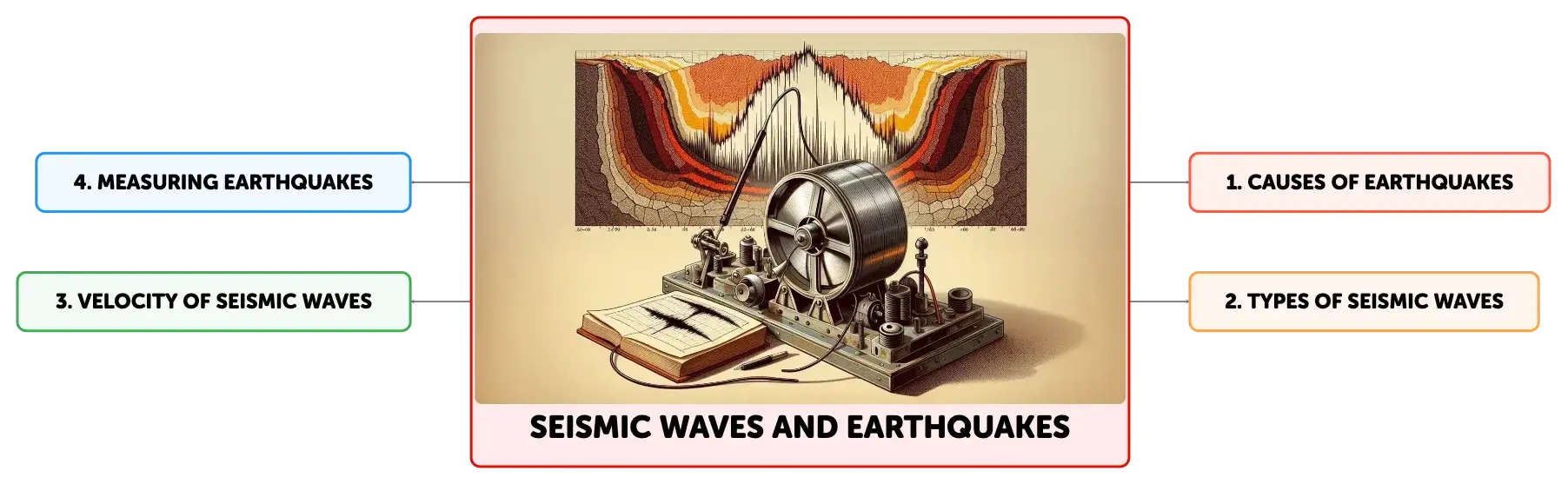

Seismic Waves and Earthquakes

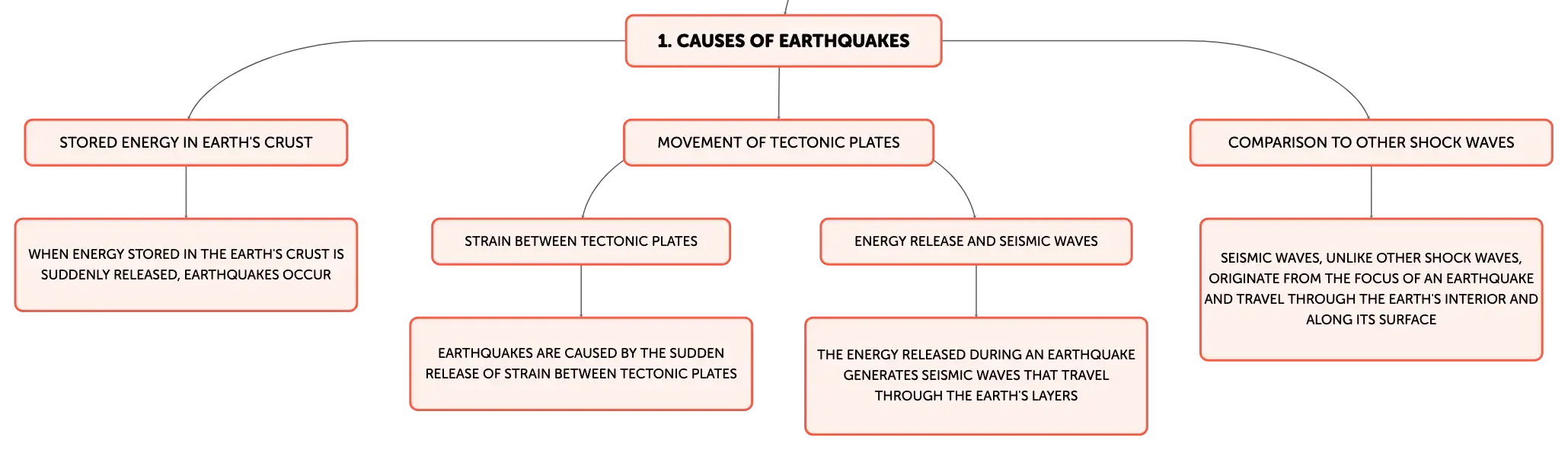

Causes of Earthquakes
