Chemical Equilibrium and RICE Tables

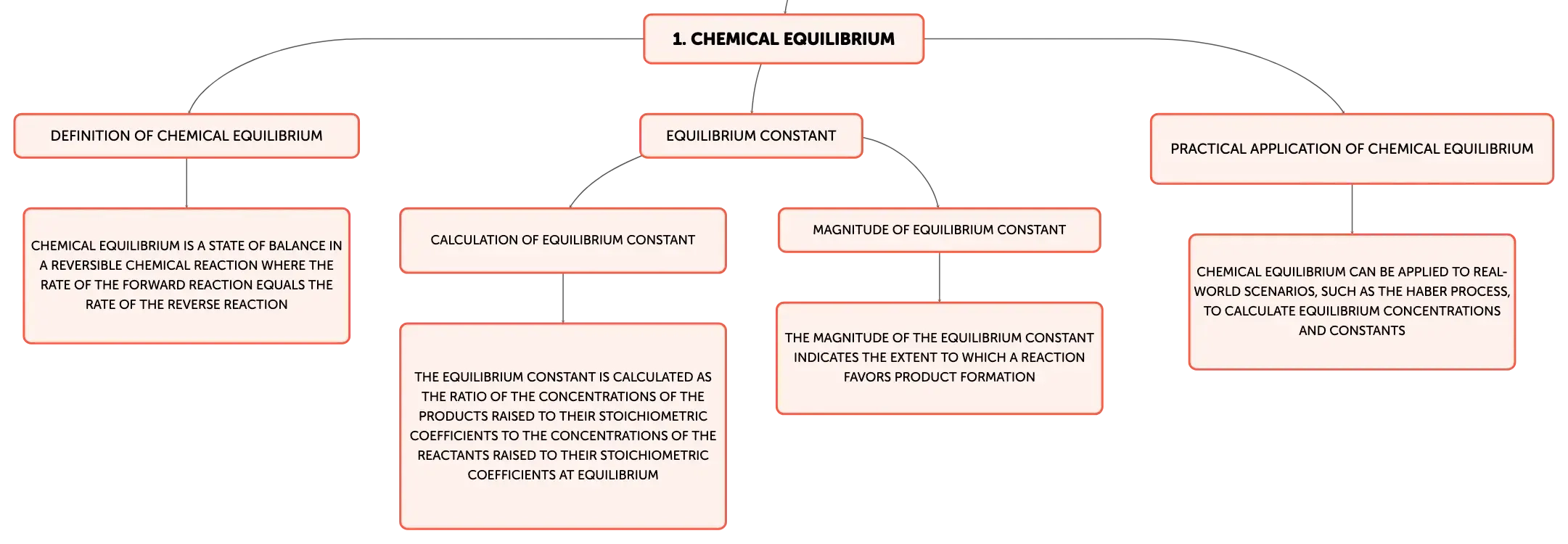

Exploring Chemical Equilibrium and the Equilibrium Constant

Chemical equilibrium is a state of balance in a reversible chemical reaction where the rate of the forward reaction equals the rate of the reverse reaction, resulting in no net change in the concentrations of reactants and products over time. It is important to note that the reactions continue to occur on both sides; however, their effects are balanced. The equilibrium constant (\( K_{eq} \)) is a numerical value that expresses this balance, calculated as the ratio of the concentrations of the products raised to their stoichiometric coefficients to the concentrations of the reactants raised to their stoichiometric coefficients at equilibrium. The magnitude of \( K_{eq} \) indicates the extent to which a reaction favors product formation. For instance, in the equilibrium \( aA + bB \rightleftharpoons cC + dD \), the equilibrium constant is given by \( K_{eq} = \frac{[C]^c[D]^d}{[A]^a[B]^b} \). If \( K_{eq} \) is significantly greater than 1, the equilibrium lies to the right, favoring products; if it is much less than 1, the equilibrium lies to the left, favoring reactants.

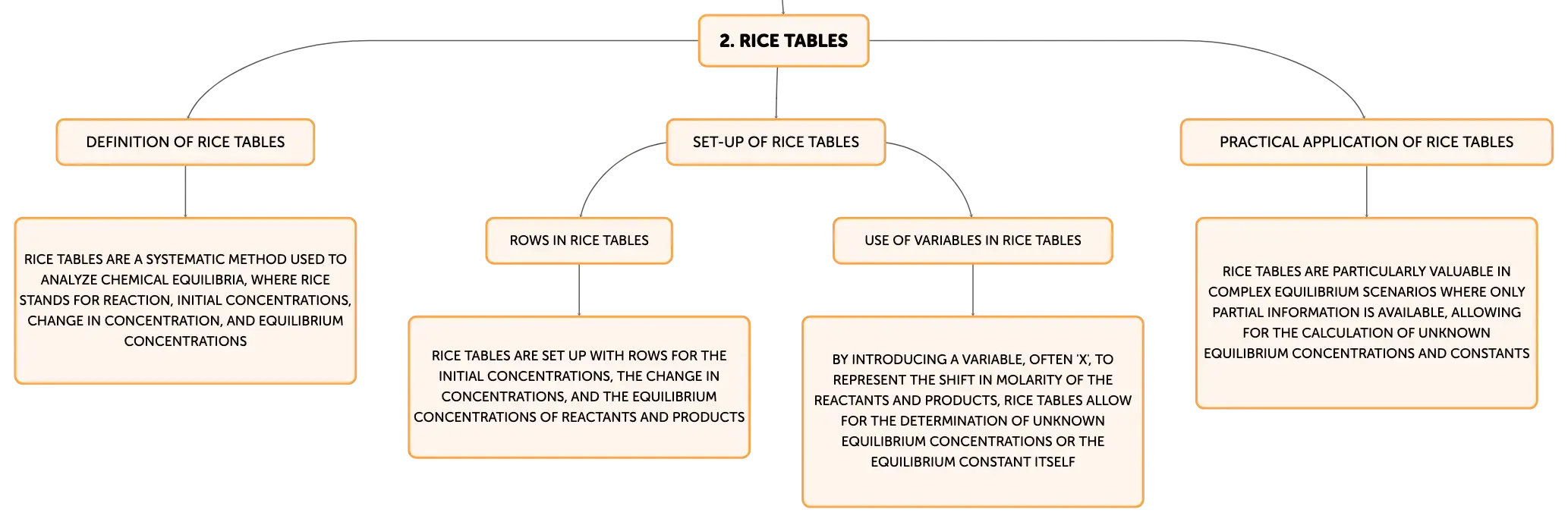

Understanding RICE Tables for Equilibrium Analysis

RICE tables are a systematic method used to analyze chemical equilibria, where RICE stands for Reaction, Initial concentrations, Change in concentration, and Equilibrium concentrations. This tabular approach helps chemists to visualize and calculate the changes in concentrations of reactants and products as a reaction approaches equilibrium. The table is set up with the balanced chemical equation at the top, followed by rows for the initial concentrations (I), the change in concentrations (C) that occurs as the reaction moves toward equilibrium, and the equilibrium concentrations (E). The 'R' represents the reaction itself and serves as a reference for the stoichiometry involved. By introducing a variable, often 'x', to represent the shift in molarity of the reactants and products, the RICE table allows for the determination of unknown equilibrium concentrations or the equilibrium constant itself.

Utilizing RICE Tables in Equilibrium Problem-Solving

The practical application of RICE tables can be demonstrated through the Haber process, where nitrogen gas (\( N_{2} \)) and hydrogen gas (\( H_{2} \)) react to form ammonia (\( NH_{3} \)). When given the initial concentrations of the reactants and the equilibrium concentration of the product, a RICE table can be used to calculate the equilibrium constant. For example, starting with 1.50 mol/L of \( N_{2} \) and 3.50 mol/L of \( H_{2} \), and finding 0.540 M of \( NH_{3} \) at equilibrium, the RICE table helps to determine the changes in concentrations of the reactants. The equilibrium expression for this reaction is \( K_{eq} = \frac{[NH_{3}]^2}{[N_{2}][H_{2}]^3} \), and by solving for 'x', the equilibrium constant can be found. This method is also applicable to gaseous reactions, where partial pressures are used, and the equilibrium constant is represented as \( K_{P} \).

Addressing Complex Equilibrium Problems with RICE Tables

RICE tables are particularly valuable in complex equilibrium scenarios where only partial information is available. For instance, in the reaction \( 2NO(g) \rightleftharpoons N_{2}(g) + O_{2}(g) \), if the initial amount of NO is known and the equilibrium amount of \( N_{2} \) is given, the RICE table can be used to calculate the unknown equilibrium concentrations of the reactants and products. By defining the change in concentration of NO as '2x' and using the stoichiometry of the reaction, the equilibrium concentrations of all species can be deduced. This structured approach simplifies the process of solving for unknowns in equilibrium reactions and is a powerful tool for chemists.

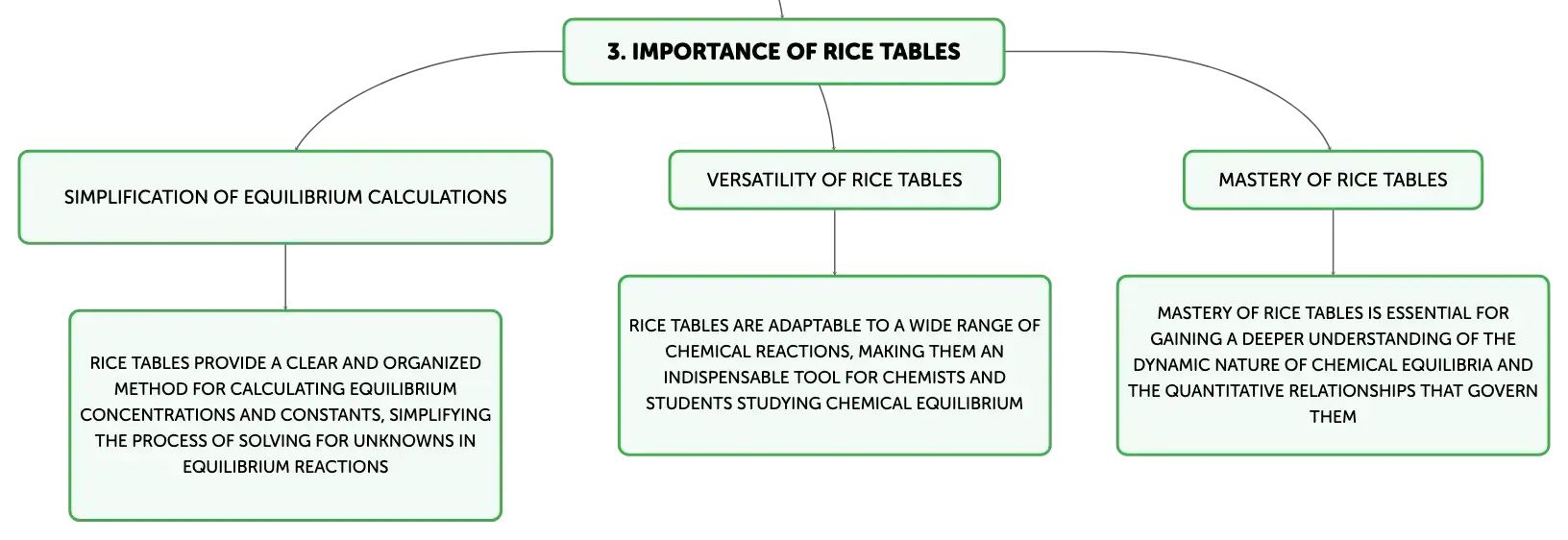

The Significance of RICE Tables in Chemical Equilibrium Studies

RICE tables are an indispensable tool for chemists and students alike in the study of chemical equilibrium. They provide a clear and organized method for calculating equilibrium concentrations and constants, and they are adaptable to a wide range of chemical reactions. By using RICE tables, one can systematically solve for unknowns in equilibrium processes, thereby enhancing their understanding and problem-solving abilities in chemistry. Mastery of RICE tables is essential for anyone seeking to gain a deeper insight into the dynamic nature of chemical equilibria and the quantitative relationships that govern them.
