Lewis Dot Structures: Understanding Molecular Bonding

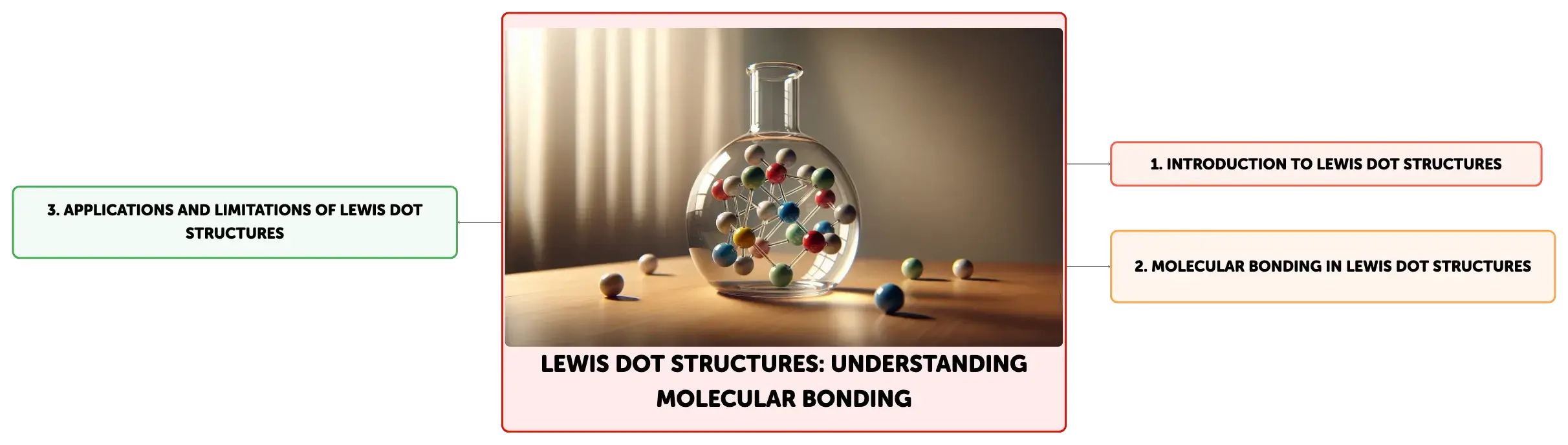

Concept Map
Lewis dot structures are visual representations that illustrate the bonding and electron arrangements in molecules. They highlight how atoms bond and the presence of lone electron pairs, adhering to the octet rule with some exceptions. These structures, while useful, do not show the three-dimensional shape of molecules, bond angles, or electron delocalization, such as in resonance. They also oversimplify electron orbitals and do not account for hybridizations or molecules that defy the octet rule, like BF3 or XeF6.
Summary
Outline
Exploring the Basics of Lewis Dot Structures
Lewis dot structures, named after Gilbert N. Lewis, are graphical representations that show the bonding between atoms of a molecule and the lone pairs of electrons that may exist. These structures are pivotal in understanding the arrangement of electrons in the outermost shell, known as the valence shell, of atoms in a molecule. Each dot in a Lewis structure signifies a valence electron, while lines represent shared pairs of electrons, or covalent bonds. The octet rule, which states that atoms are most stable when they have eight electrons in their valence shell, is a guiding principle for creating Lewis structures, although there are notable exceptions.Interpreting Lewis Dot Structures Through Examples
The Lewis structure for water (H2O) illustrates two hydrogen atoms each sharing a pair of electrons with an oxygen atom, forming two covalent bonds, with the oxygen also having two lone pairs of electrons. In the case of ozone (O3), the Lewis structure depicts a double bond and a single bond between the oxygen atoms, with a lone pair on each oxygen. This structure, however, is a simplified representation and does not capture the full essence of resonance, where the actual molecule is a blend of multiple contributing structures, reflecting a delocalization of electrons that cannot be shown by a single static Lewis diagram.Recognizing the Limitations of Lewis Structures
Lewis dot structures are limited in that they do not convey the three-dimensional shape of molecules, bond angles, or the spatial distribution of atoms. They also do not reflect the relative atomic sizes or bond lengths, such as the larger size of carbon compared to hydrogen or the shorter and stronger nature of double bonds relative to single bonds. These structures are two-dimensional and thus cannot illustrate the actual geometry of molecules like the bent shape of water or the trigonal pyramidal form of ammonia.The Simplification of Electron Orbitals and Resonance in Lewis Structures
Lewis structures simplify the complex nature of electron orbitals and do not distinguish between different hybridizations, such as sp2 or sp3 hybrid orbitals, which are crucial for understanding molecular geometry and bonding. They also inadequately represent resonance phenomena, where electrons are shared among more than two atoms, leading to structures with intermediate bond orders that are not accurately depicted in a single Lewis structure. This simplification can lead to misunderstandings about the distribution of electrons in molecules with delocalized bonding.The Octet Rule Exceptions in Lewis Dot Structures
While the octet rule is a helpful heuristic in predicting the electron configuration of most molecules, there are exceptions. Molecules like boron trifluoride (BF3), with an incomplete octet on the central boron atom, and compounds of noble gases such as xenon hexafluoride (XeF6), demonstrate that the octet rule is not universally applicable. These exceptions underscore the importance of understanding that Lewis structures are a starting point for predicting molecular structure and that additional theories and concepts are necessary to fully grasp the complexities of chemical bonding.Weighing the Pros and Cons of Lewis Structures
Lewis structures are a fundamental tool in chemistry for visualizing electron distribution and predicting molecular properties such as bonding patterns, bond order, and polarity. They are particularly useful for teaching basic concepts of molecular structure and bonding. However, they are a simplified model that assumes electrons are localized to specific atoms or bonds, which is not always the case. They also do not account for the three-dimensional nature of molecules. As such, while Lewis structures are invaluable for introductory chemistry education, they must be complemented with other models and theories to provide a comprehensive understanding of molecular behavior and properties.
Show More

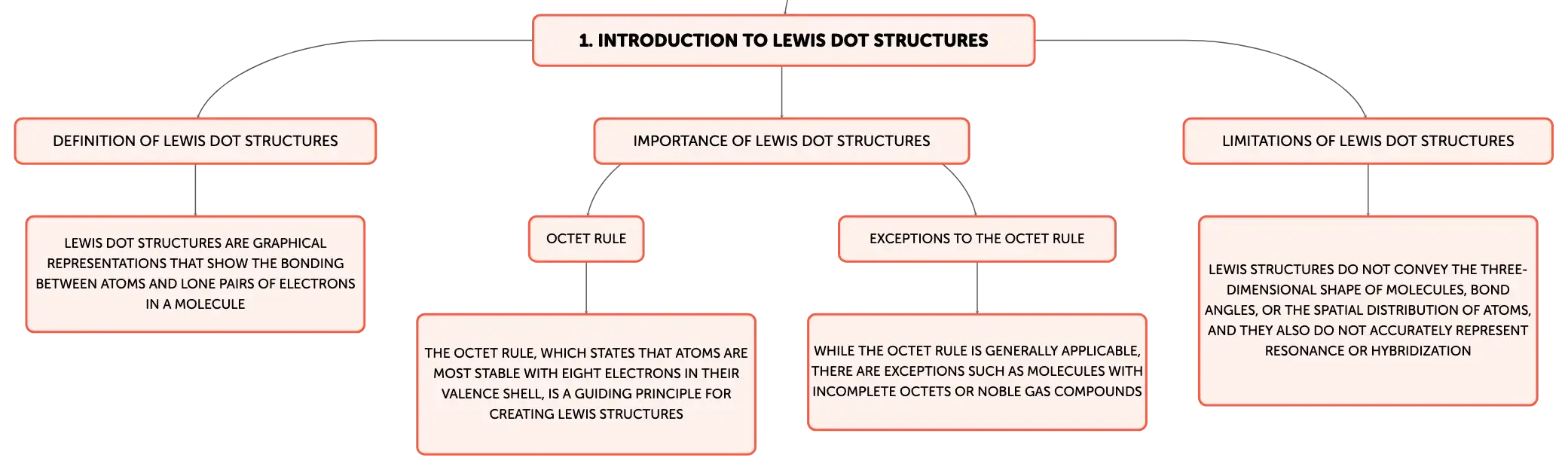

Introduction to Lewis Dot Structures
Definition of Lewis Dot Structures
Lewis dot structures are graphical representations that show the bonding between atoms and lone pairs of electrons in a molecule
Importance of Lewis Dot Structures
Octet Rule
The octet rule, which states that atoms are most stable with eight electrons in their valence shell, is a guiding principle for creating Lewis structures
Exceptions to the Octet Rule
While the octet rule is generally applicable, there are exceptions such as molecules with incomplete octets or noble gas compounds
Limitations of Lewis Dot Structures
Lewis structures do not convey the three-dimensional shape of molecules, bond angles, or the spatial distribution of atoms, and they also do not accurately represent resonance or hybridization

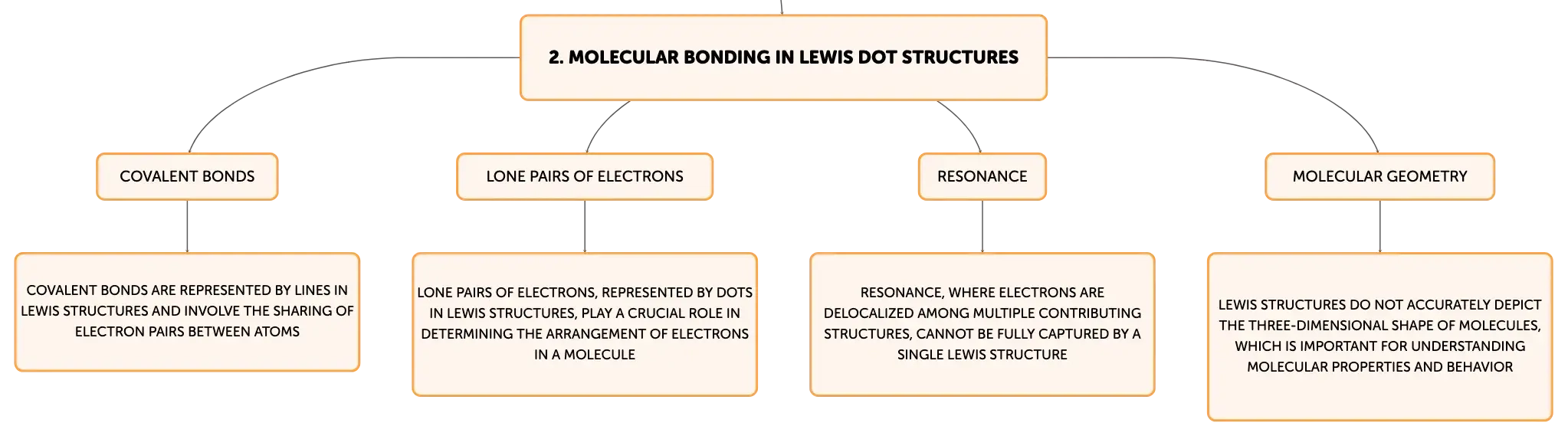

Molecular Bonding in Lewis Dot Structures
Covalent Bonds
Covalent bonds are represented by lines in Lewis structures and involve the sharing of electron pairs between atoms
Lone Pairs of Electrons
Lone pairs of electrons, represented by dots in Lewis structures, play a crucial role in determining the arrangement of electrons in a molecule
Resonance
Resonance, where electrons are delocalized among multiple contributing structures, cannot be fully captured by a single Lewis structure
Molecular Geometry
Lewis structures do not accurately depict the three-dimensional shape of molecules, which is important for understanding molecular properties and behavior

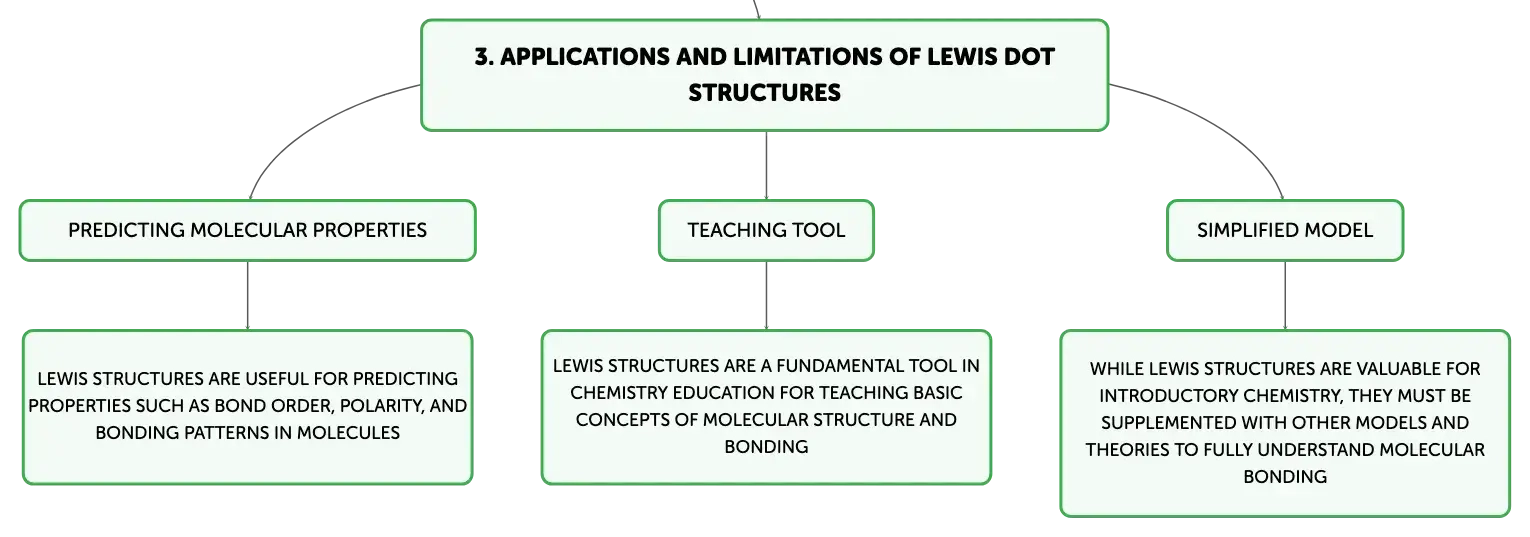

Applications and Limitations of Lewis Dot Structures
Predicting Molecular Properties
Lewis structures are useful for predicting properties such as bond order, polarity, and bonding patterns in molecules
Teaching Tool
Lewis structures are a fundamental tool in chemistry education for teaching basic concepts of molecular structure and bonding
Simplified Model
While Lewis structures are valuable for introductory chemistry, they must be supplemented with other models and theories to fully understand molecular bonding
Lewis Dot Structures: Understanding Molecular Bonding
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
______ diagrams, created by ______ ______, depict the electron bonding and lone pairs in molecules.
Lewis dot structures
Gilbert N.
01
Lewis structure of water
Shows 2 hydrogen atoms each sharing an electron pair with oxygen, forming covalent bonds; oxygen has 2 lone pairs.
02
Electron sharing in H2O molecule
Each hydrogen atom shares a pair of electrons with oxygen, resulting in two single covalent bonds.
