Volumes by Slicing
Understanding volumes by slicing is essential in geometry and calculus for determining the volume of three-dimensional solids. This method slices a solid into infinitesimal cross-sections, whose areas are known, and integrates these to find the total volume. It's used to derive formulas for cones, cylinders, prisms, pyramids, and spheres, revealing the constants in these equations and providing a systematic approach for solids with non-constant cross-sections.
See more1
4

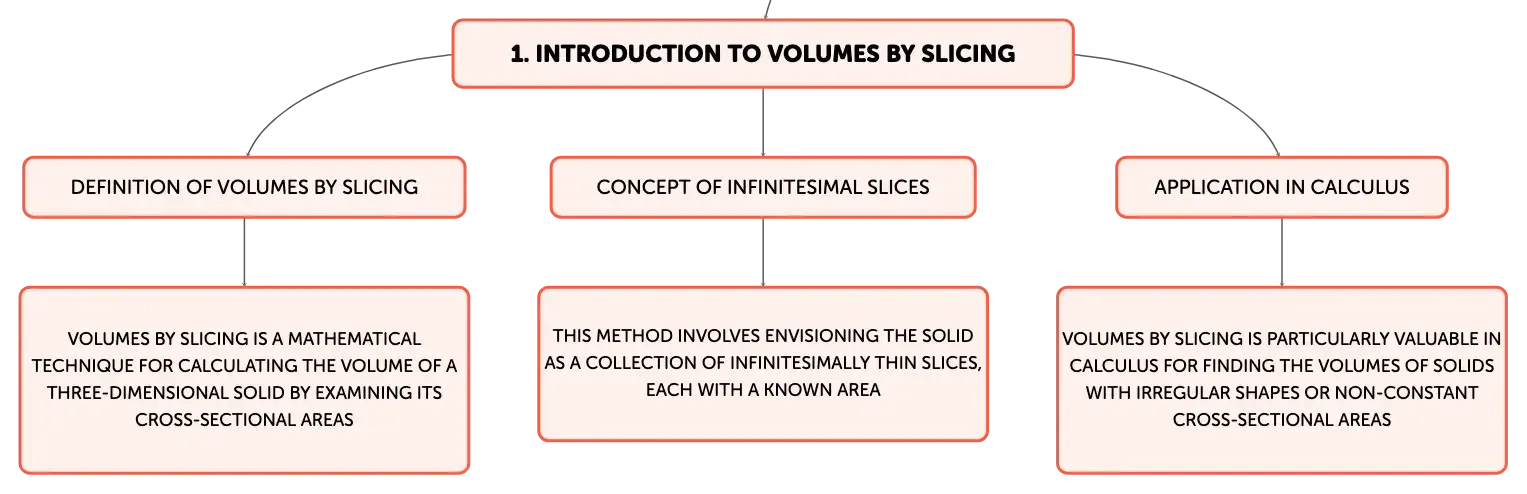

Understanding the Concept of Volumes by Slicing
Volumes by slicing is a mathematical technique that calculates the volume of a three-dimensional solid by examining its cross-sectional areas. This method involves envisioning the solid as a collection of infinitesimally thin slices, each with a known area. By summing the volumes of these slices, typically through the process of integration, the total volume of the solid can be determined. This concept is akin to slicing a loaf of bread into individual pieces; while the pieces are separate, their combined volume is equal to that of the whole loaf. This technique is particularly valuable in calculus for finding the volumes of solids with irregular shapes or non-constant cross-sectional areas.The Origin of Volume Formulas for Geometric Solids
The volume formulas for standard geometric solids, such as cones, cylinders, and pyramids, originate from the application of the slicing method. For example, the volume of a cone is expressed as \( V_{\text{cone}} = \frac{1}{3}\pi r^2 h \), a formula derived by considering the cone's circular cross-sections. When a cone is sliced parallel to its base, the areas of these cross-sections are calculated using the formula \( A_{\text{circle}} = \pi r^2 \). Integrating these areas along the height of the cone leads to the volume formula, with the factor \( \frac{1}{3} \) emerging from the integration of the areas of the decreasing circles from the base to the apex.Applying the Slicing Method to Rectangular Prisms and Cylinders
The slicing method is equally applicable to prisms and cylinders, which have constant cross-sectional areas. For a rectangular prism, slicing it parallel to the base produces identical rectangular cross-sections, each with an area of \( A_{\text{rectangle}} = \ell w \). The volume is then the product of one cross-sectional area and the height of the prism, yielding \( V_{\text{prism}} = \ell w h \). In the case of a cylinder, the volume is found by multiplying the area of the circular base, \( A_{\text{circle}} = \pi r^2 \), by the height of the cylinder, resulting in \( V_{\text{cylinder}} = \pi r^2 h \).Determining Volumes of Cones and Pyramids Through Integration

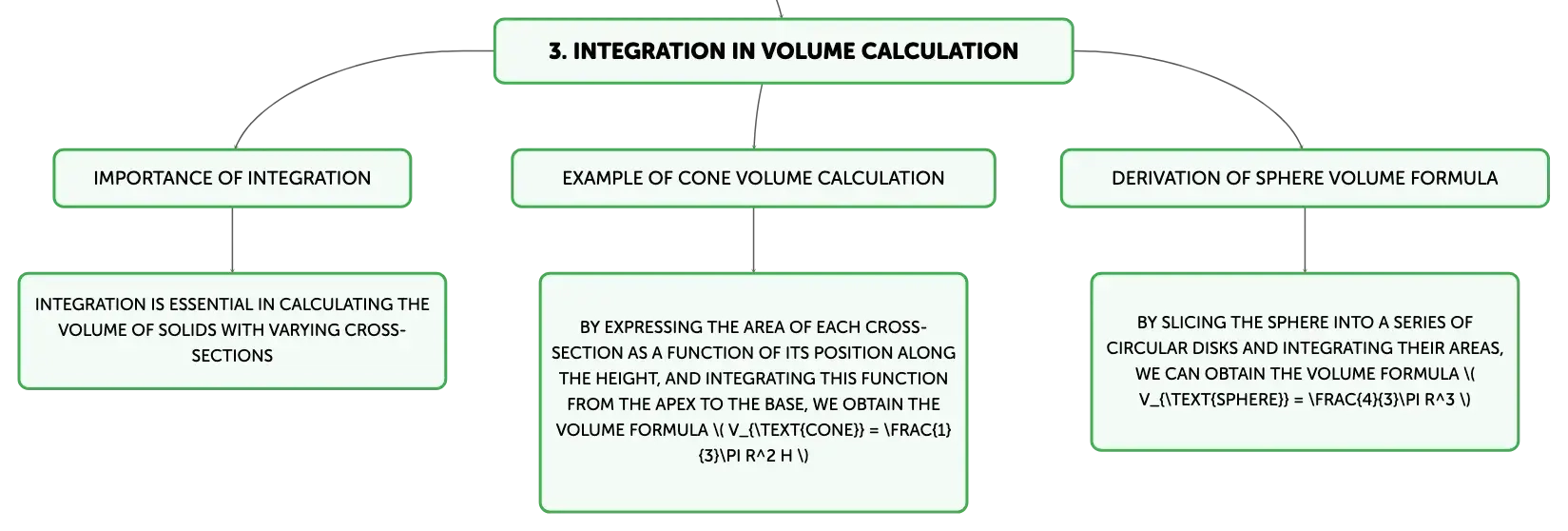

For cones and pyramids, whose cross-sections change in size, integration is essential to calculate volume. Consider a cone with a base radius \( R \) and height \( h \). The radius of each cross-section changes with its distance from the base, and this relationship can be modeled using similar triangles. By expressing the area of each cross-section as a function of its position along the height, and integrating this function from the apex to the base, we obtain the volume formula \( V_{\text{cone}} = \frac{1}{3}\pi R^2 h \). This method is similarly applied to pyramids, resulting in the volume formula \( V_{\text{pyramid}} = \frac{1}{3}A h \), where \( A \) is the area of the base.Exploring the Volume of Spheres Using Slicing
The slicing method can also be used to derive the volume of a sphere. By slicing the sphere into a series of circular disks and placing it in a coordinate system, we can observe that the radii of these disks vary according to their distance from the center of the sphere. This variation is determined by the Pythagorean theorem. Integrating the area of these disks across the entire diameter of the sphere gives us the volume formula \( V_{\text{sphere}} = \frac{4}{3}\pi R^3 \), which includes the factor \( \frac{4}{3} \) as a result of the integration process.Key Takeaways in Determining Volumes by Slicing
Determining volumes by slicing is a fundamental concept in geometry and calculus, offering a clear understanding of how volume formulas for various solids are derived. This technique involves conceptualizing a solid as a stack of infinitesimal cross-sectional areas and summing their volumes, often through integration. It not only elucidates the constants in volume formulas but also provides a systematic approach for calculating the volumes of solids with varying cross-sections. Mastery of this technique is crucial for students engaged in the study of advanced mathematics, as it lays the groundwork for more intricate methods of volume calculation, such as those involving solids of revolution.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Application of Volumes by Slicing
Click to check the answer
2
Cross-Sectional Area Significance
Click to check the answer
3
Integration in Volumes by Slicing
Click to check the answer
4
Volume formula for a rectangular prism
Click to check the answer
5
Cross-section of a rectangular prism when sliced parallel to base
Click to check the answer
6
Volume formula for a cylinder
Click to check the answer
7
Sphere slicing: coordinate system relevance
Click to check the answer
8
Disk radii variation: determining factor
Click to check the answer
9
Sphere volume formula derivation: integration role
Click to check the answer
10
To calculate the volume of solids with ______ cross-sections, summing up infinitesimal areas through integration is a systematic approach.
Click to check the answer
