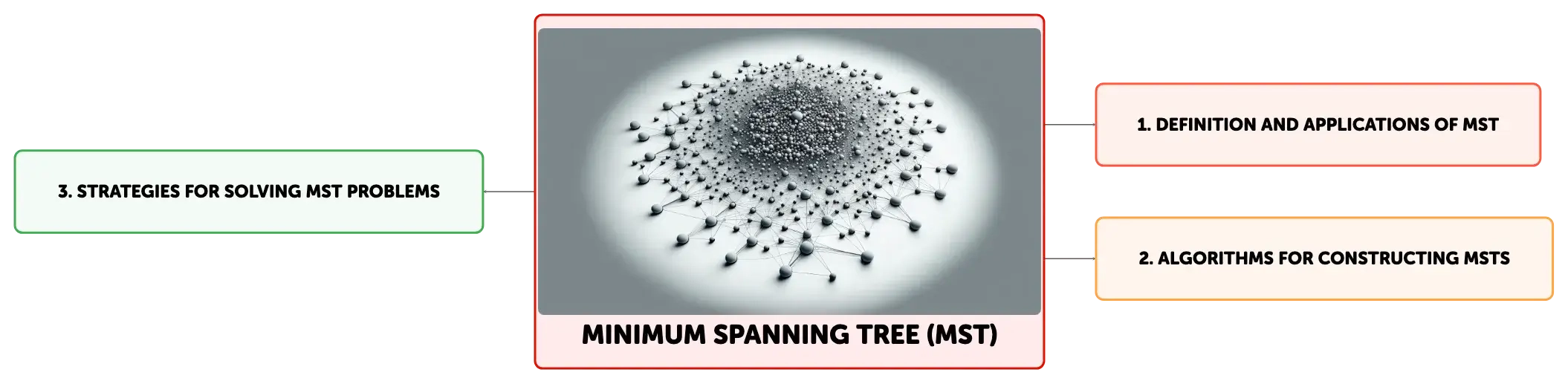

Minimum Spanning Tree (MST)

Minimum Spanning Trees (MST) are pivotal in graph theory, used for optimizing connections in networks, transportation, and data clustering. MSTs ensure all vertices in a graph are connected with the least total edge weight, without cycles. Kruskal's and Prim's algorithms are key for constructing MSTs efficiently, with applications across various industries, from telecommunications to power grid design.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Characteristics of MST

Click to check the answer

Connects all vertices with minimum weight sum, no cycles, one less edge than vertices.

2

Uniqueness of MST Total Weight

Click to check the answer

Multiple MSTs possible, but all have the same total weight.

3

MST Practical Utility

Click to check the answer

Used in network design to connect nodes at minimal cost.

4

______'s Algorithm expands by adding the smallest edge that links two separate trees, while ______'s Algorithm grows from a single vertex using the lowest-weight edge.

Click to check the answer

Kruskal Prim

5

MST Visualization Techniques

Click to check the answer

Graphical representation with vertices/edges, highlight MST edges, use adjacency lists/matrices.

6

MST Textual Representation

Click to check the answer

Utilize adjacency lists or matrices to depict graph connections in a non-graphical format.

7

MST Simulation Tools

Click to check the answer

Software/online platforms that demonstrate MST construction step-by-step for educational purposes.

8

In ______ design, the MST methodology is crucial for minimizing the total wiring length needed for ______ and ______ networks.

Click to check the answer

network telecommunications computer

9

MSTs assist electrical companies in creating power grids that reduce the ______ of ______ distribution.

Click to check the answer

cost electricity

10

Greedy algorithms used in MST

Click to check the answer

Kruskal's and Prim's algorithms apply a greedy approach to find a minimum spanning tree efficiently.

11

Time complexity of MST algorithms

Click to check the answer

Kruskal's and Prim's algorithms have polynomial time complexity, making them practical for large problems.

12

Reliability of MST solutions

Click to check the answer

Despite multiple possible MSTs for a given graph, the total weight is consistent, ensuring dependable optimization.

13

To illustrate Prim's Algorithm, consider a ______ with vertices labeled from ______ to ______.

Click to check the answer

graph A E

14

In MST challenges, it's vital to choose the right ______, avoid ______, and confirm the ______ solution.

Click to check the answer

algorithm cycles final

15

Definition: Minimum Spanning Tree (MST) Method

Click to check the answer

An algorithmic approach to connect all points in a graph minimizing total edge weight without forming cycles.

16

Key MST Algorithms: Kruskal's vs Prim's

Click to check the answer

Kruskal's algorithm builds MST by adding lowest-weight edges avoiding cycles; Prim's starts from a vertex, growing the MST one edge at a time.

17

MST Applications: Network Design & Data Clustering

Click to check the answer

MST is used in designing efficient networks with minimal wiring costs and in clustering data to identify natural groupings.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Big Data and its Applications

Computer Science

Discriminant Analysis

Computer Science

Principal Component Analysis (PCA)

Computer Science

Machine Learning and Deep Learning

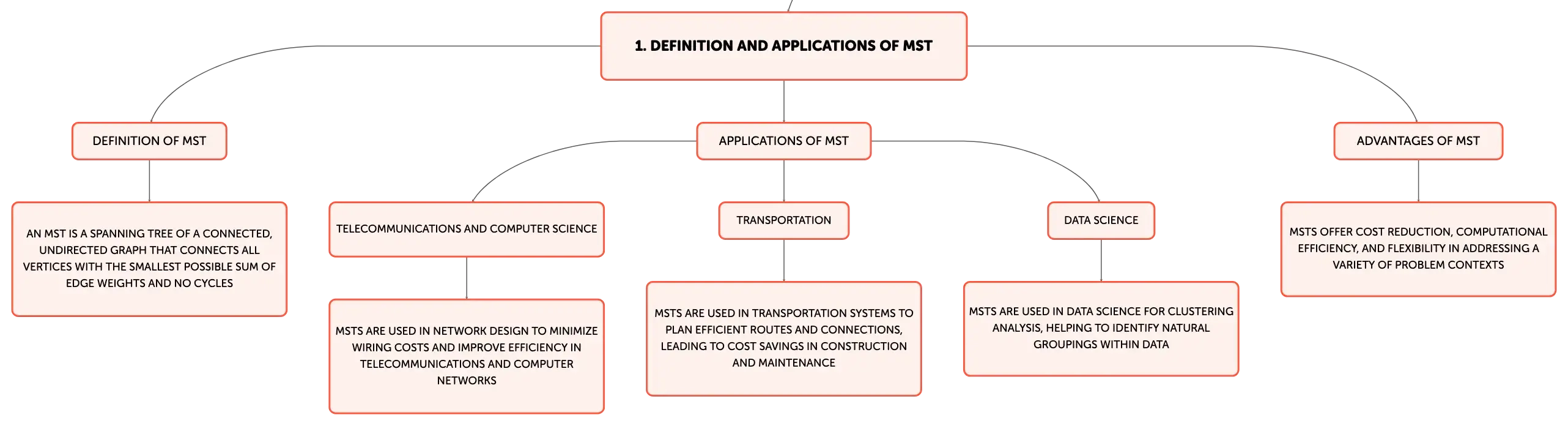

Exploring the Fundamentals of Minimum Spanning Trees

A Minimum Spanning Tree (MST) is an essential concept in graph theory, with applications spanning computer science, telecommunications, and transportation. It is a spanning tree of a connected, undirected graph that connects all the vertices together with the smallest possible sum of edge weights, and it does not contain any cycles. An MST has exactly one less edge than the number of vertices in the graph. Although a graph may have several MSTs, each with a different shape, they all possess the same total weight. The MST is particularly useful in designing efficient networks by connecting various nodes or devices at minimal cost.
Network of gray nodes interconnected by blue lines on a white background, with a central group of red nodes joined by green lines without closed loops.

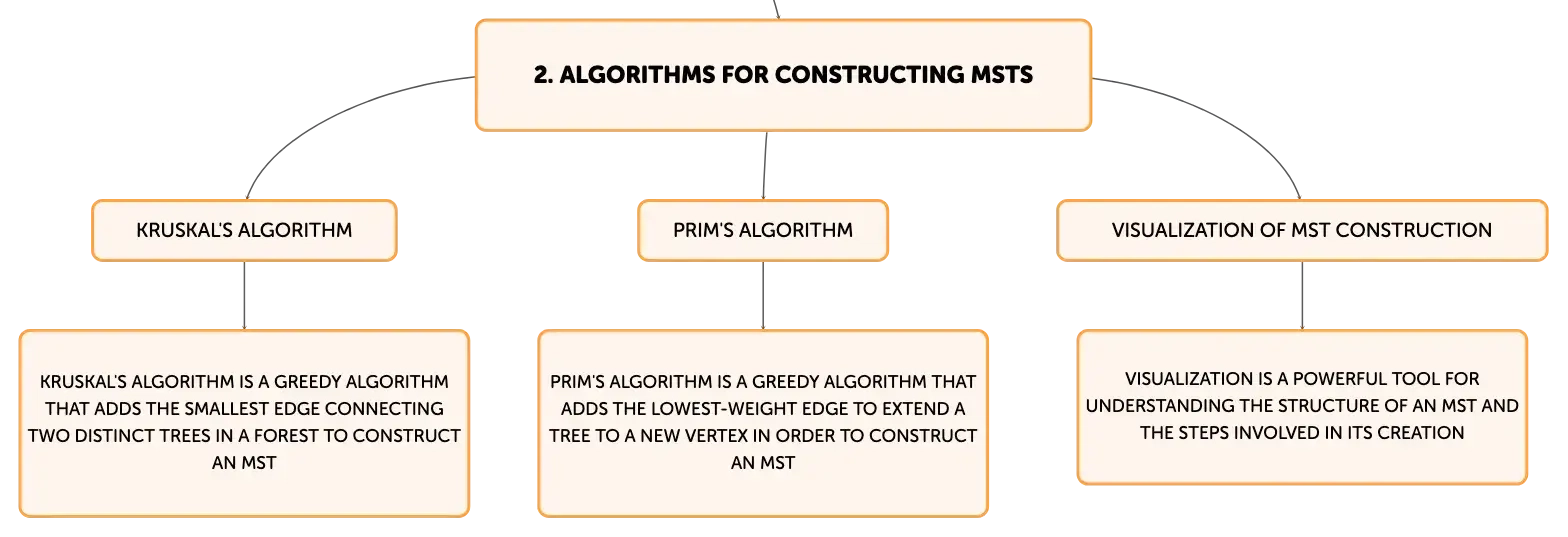

Essential Algorithms for Constructing Minimum Spanning Trees

The construction of an MST can be achieved through various algorithms, with Kruskal's and Prim's algorithms being the most widely used due to their efficiency and simplicity. Kruskal's Algorithm starts with a forest of trees (initially, the vertices are individual trees) and repeatedly adds the smallest edge that connects two distinct trees. Prim's Algorithm begins with a single vertex and continuously adds the lowest-weight edge that extends the tree to a new vertex. Both algorithms are greedy, meaning they make the best local choice at each step with the aim of finding a global optimum. They are highly effective for large graphs, providing a practical approach to MST construction.

Visualizing the Minimum Spanning Tree for Better Understanding

Visualization is a powerful tool for understanding the structure of an MST and the steps involved in its creation. This can be done by graphically representing the graph with vertices and weighted edges, highlighting the edges of the MST to distinguish them from the rest of the graph. Adjacency lists or matrices can offer a textual representation of the graph's connections. Software tools and online platforms can simulate the construction of an MST, allowing users to see the algorithm in action and better grasp its operation. Such visual aids are invaluable for students and practitioners alike, providing clarity on the MST's formation.

The Versatile Applications of Minimum Spanning Trees in Various Industries

The MST methodology finds practical use in numerous sectors due to its optimization capabilities. In network design, it is instrumental in reducing the total length of wiring required for telecommunications and computer networks. Transportation systems benefit from MSTs for planning efficient routes and connections, leading to lower construction and maintenance costs. Electrical companies use MSTs to design power grids that minimize the cost of electricity distribution. In the realm of data science, MSTs are used for clustering analysis, which is a key component in exploratory data analysis and unsupervised machine learning, helping to identify natural groupings within data.

The Benefits of Implementing the Minimum Spanning Tree Approach

Utilizing the MST approach offers numerous advantages, such as the optimization of connection costs, which translates to economic savings and more efficient use of resources. Greedy algorithms like Kruskal's and Prim's provide a straightforward and fast means to reach a globally optimal solution through a series of locally optimal decisions. These algorithms are characterized by their polynomial time complexity, making them suitable for tackling large-scale problems. The consistency in the total weight of MSTs, despite the potential for multiple solutions, ensures reliability in optimization outcomes. The availability of different algorithms also provides flexibility to address a variety of problem contexts.

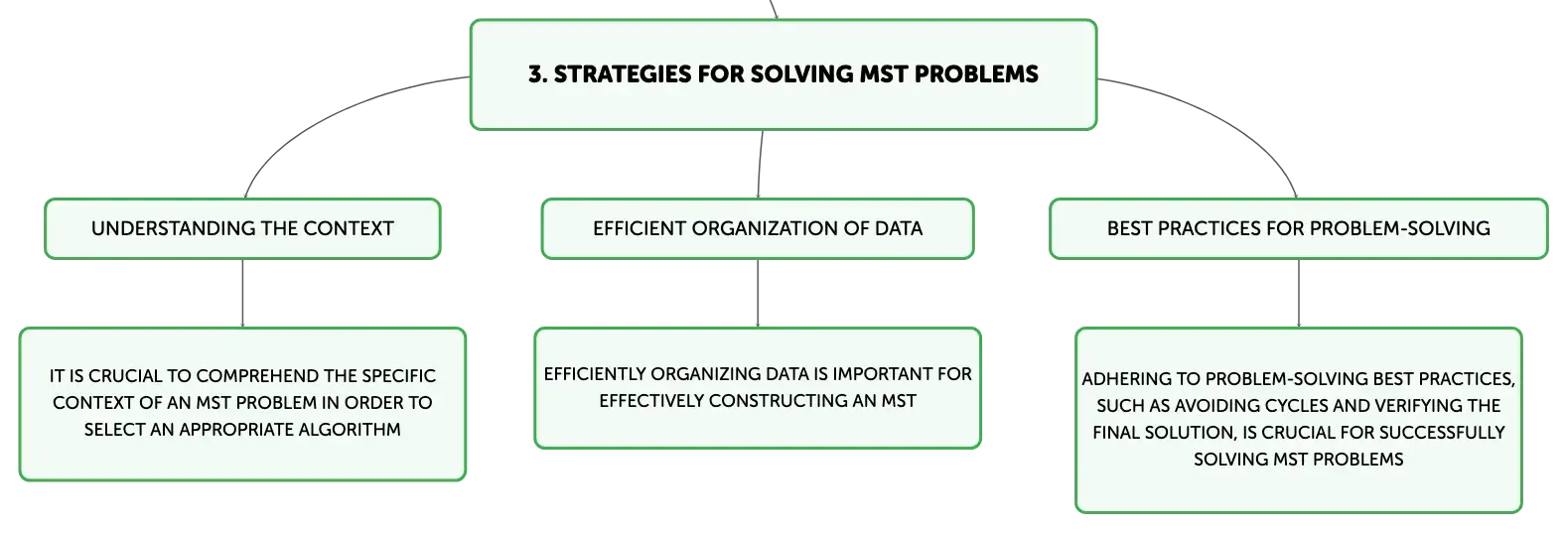

Demonstrating the Minimum Spanning Tree Method with a Practical Example

Consider a graph with vertices labeled A through E to demonstrate the application of Prim's Algorithm. The algorithm begins at an arbitrary vertex and adds the smallest connecting edge to a vertex not yet in the tree, progressively including all vertices. When tackling MST problems, it is crucial to comprehend the specific context, select an appropriate algorithm, efficiently organize data, monitor the development of the MST, employ graph visualization, avoid cycles, verify the final solution, and practice with diverse problem sets. Mastery of these strategies ensures a deep understanding of MST concepts and an effective approach to problem-solving.

Concluding Insights on the Minimum Spanning Tree Method

The Minimum Spanning Tree Method stands out as an efficient strategy for connecting points in a graph with the least total edge weight, avoiding cycles. Its applications are widespread, from network design to data clustering, and it offers significant benefits, including cost reduction and computational efficiency. Mastery of MST algorithms such as Kruskal's and Prim's, coupled with visualization techniques and adherence to problem-solving best practices, is crucial for harnessing this method's potential in a variety of practical scenarios. Understanding the MST method is therefore indispensable for students and professionals who deal with network optimization and related fields.
