Nuclear Magnetic Resonance (NMR) Spectroscopy
Carbon-13 NMR spectroscopy is a powerful tool for determining the structure of organic compounds. It utilizes the unique chemical shifts of carbon-13 isotopes to reveal the molecular architecture. By examining the distinct carbon environments and interpreting the chemical shifts, chemists can deduce the arrangement of atoms and types of bonds in a molecule. This technique is essential in pharmaceutical research and biomolecule studies.
See moreFundamentals of NMR Spectroscopy
Nuclear Magnetic Resonance (NMR) spectroscopy is a sophisticated analytical method utilized to elucidate the molecular structure and composition of chemical compounds. This technique is based on the magnetic properties of atomic nuclei. Nuclei with an odd number of protons or neutrons possess a property called spin. When subjected to an external magnetic field, these nuclei can align in one of two energy states: lower (parallel to the field) or higher (antiparallel). The phenomenon of a nucleus absorbing energy to flip from the lower to the higher energy state is termed resonance. This occurs at a specific frequency unique to each type of nucleus, influenced by the magnetic environment created by the electrons surrounding the nucleus. The resulting NMR spectrum provides detailed information about the molecular structure by displaying the resonance frequencies of different nuclei within the sample.The Concept of Chemical Shift in NMR
The chemical shift is a pivotal concept in NMR spectroscopy, representing the variation in resonance frequency of a nucleus compared to a standard reference, typically tetramethylsilane (TMS). Measured in parts per million (ppm), the chemical shift is indicative of the electronic environment surrounding a nucleus. Electrons can shield the nucleus from the external magnetic field, and the degree of this shielding affects the resonance frequency. Nuclei in different chemical environments will experience different levels of shielding, leading to a range of chemical shift values. By analyzing these shifts, chemists can infer the types of chemical bonds and the arrangement of atoms within the molecule.Exploring Carbon-13 NMR Spectroscopy

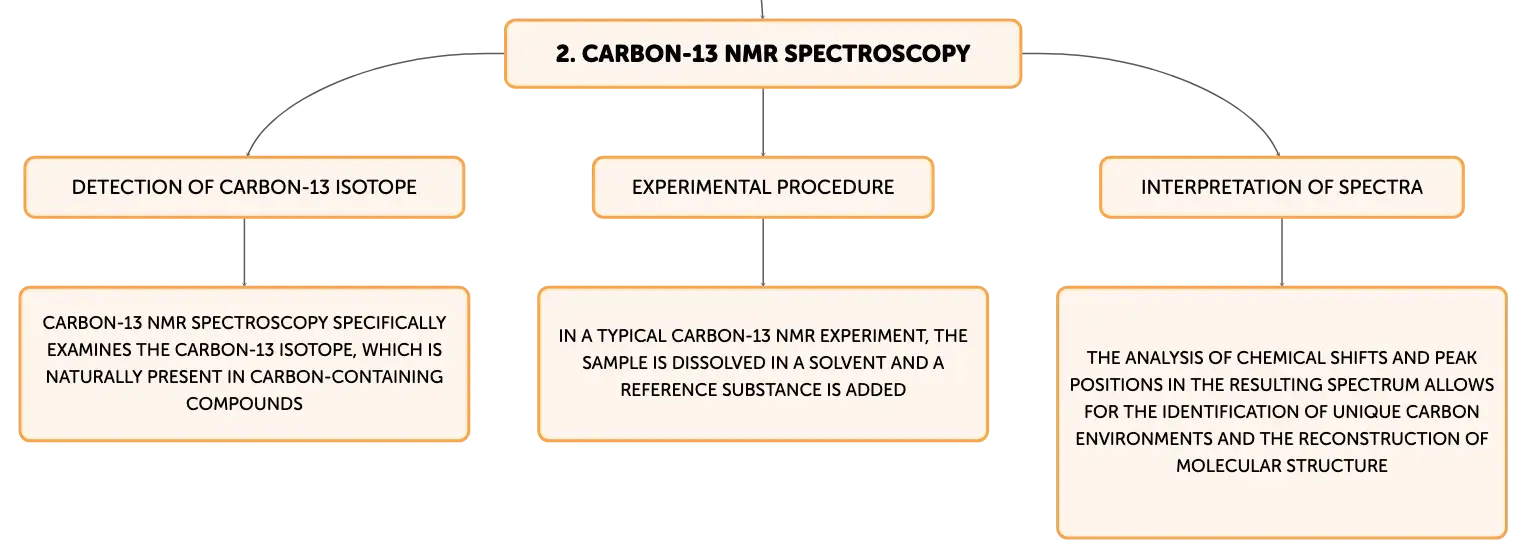

Carbon-13 NMR spectroscopy specifically examines the carbon-13 isotope, which is naturally present at about 1.1% abundance in carbon-containing compounds. Despite its low natural abundance, carbon-13's nuclear spin makes it detectable by NMR. In a typical carbon-13 NMR experiment, the sample is dissolved in a suitable solvent, and a reference substance, such as TMS, is added. The resulting spectrum, which plots the absorbed energy against the chemical shift, reveals the distinct environments of carbon atoms within the molecule, providing insights into the molecular structure.Deciphering Carbon-13 NMR Spectra
Interpreting carbon-13 NMR spectra requires the identification of unique carbon environments, which manifest as discrete peaks on the spectrum. Each peak's chemical shift can be cross-referenced with established data to determine the carbon's structural context. For instance, chemical shifts near 190 ppm are characteristic of carbonyl carbons, while shifts in the range of 10-40 ppm are typically associated with carbons in aliphatic chains, such as those in methyl or methylene groups. By correlating the observed chemical shifts with known values, chemists can piece together the molecular architecture.Significance of Carbon Environments in NMR Analysis

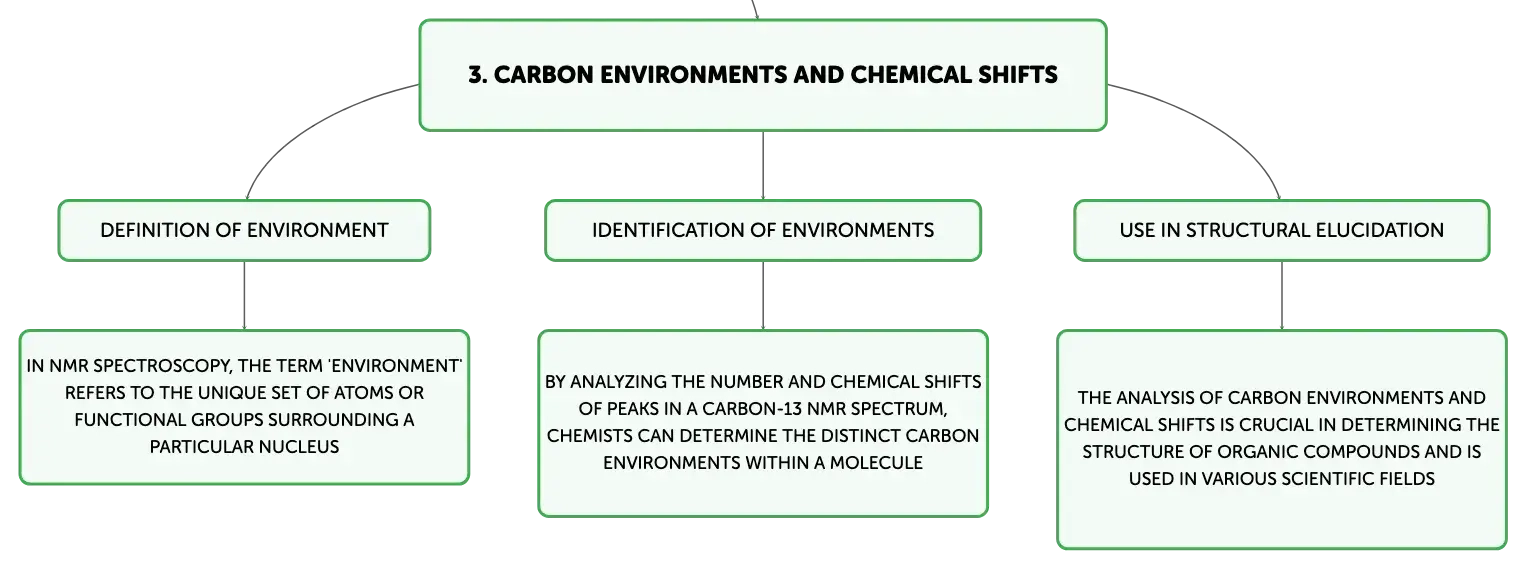

In NMR spectroscopy, the term 'environment' refers to the unique set of atoms or functional groups surrounding a particular nucleus, influencing its chemical shift. Carbon atoms in identical environments yield the same chemical shift, while those in different environments produce distinct shifts. This characteristic is particularly useful for identifying symmetrical molecules, which will exhibit fewer unique environments and, consequently, fewer peaks in their NMR spectra. The analysis of the number and chemical shifts of these peaks enables chemists to determine the distinct carbon environments within a molecule, facilitating the reconstruction of its structure.Key Insights from Carbon-13 NMR Spectroscopy
Carbon-13 NMR spectroscopy is an invaluable technique for the structural determination of organic compounds. It capitalizes on the unique chemical shift values of the carbon-13 isotope, which result from the magnetic properties of its nuclear spin. The method employs TMS as a reference standard for chemical shifts and interprets the resulting spectrum to infer the molecular structure based on the carbon environments present. Although the intensity of the peaks does not directly indicate the quantity of carbon atoms in each environment, the position and number of peaks provide essential clues for structural elucidation. This non-destructive analytical approach is crucial in various scientific domains, including pharmaceutical research and the investigation of biomolecules.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
NMR active nuclei characteristics
Click to check the answer
2
NMR energy states in magnetic field
Click to check the answer
3
Resonance frequency's dependency
Click to check the answer
4
In NMR spectroscopy, the ______ ______ is the difference in ______ ______ of a nucleus relative to a standard, often ______ (______).
Click to check the answer
5
Natural abundance of Carbon-13
Click to check the answer
6
Carbon-13 detectability in NMR
Click to check the answer
7
Reference substance in Carbon-13 NMR
Click to check the answer
8
In carbon-13 NMR analysis, peaks around ______ ppm indicate the presence of carbonyl carbons.
Click to check the answer
9
Chemical shifts between ______ ppm in carbon-13 NMR spectra usually signify carbons found in aliphatic chains.
Click to check the answer
10
Definition of 'environment' in NMR spectroscopy
Click to check the answer
11
Impact of molecular symmetry on NMR spectra
Click to check the answer
12
Role of chemical shift analysis in NMR
Click to check the answer
13
In ______ research and biomolecule investigation, the non-destructive technique of ______ NMR spectroscopy is of great importance.
Click to check the answer
