The Haworth Projection: A Tool for Understanding Carbohydrate Chemistry

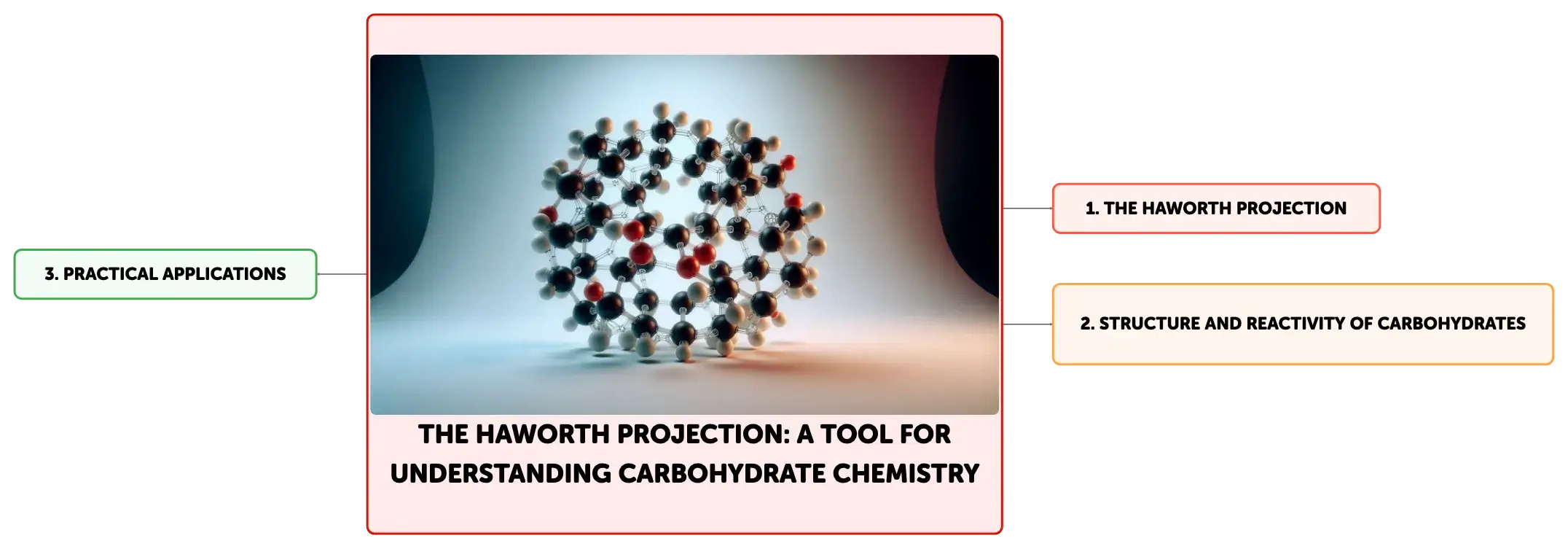

Concept Map
The Haworth Projection is a key concept in carbohydrate chemistry, allowing for the two-dimensional representation of sugars' three-dimensional cyclic structures. It distinguishes between alpha and beta anomers, particularly in monosaccharides like fructose, galactose, and glucose. This projection method is crucial for understanding the stereochemistry of the anomeric carbon and the behavior of sugars in solution, such as mutarotation in D-Glucose. Practical examples, including lactose, highlight the importance of mastering Haworth Projections for comprehending the complex structures and stereochemical aspects of carbohydrates.
Summary
Outline
Exploring the Haworth Projection in Carbohydrate Chemistry
The Haworth Projection is a fundamental concept in carbohydrate chemistry, providing a method for depicting the three-dimensional cyclic structures of sugars in a two-dimensional form. Named after the chemist Sir Walter Norman Haworth, this schematic representation is particularly useful for illustrating the ring forms of monosaccharides. It allows chemists to easily identify the orientation of substituents around the ring, distinguishing between the alpha and beta anomers based on the position of the hydroxyl group on the anomeric carbon. Understanding the Haworth Projection is crucial for comprehending the structure and reactivity of carbohydrates.Fischer vs. Haworth Projections: A Comparative Overview
Fischer and Haworth Projections are two distinct methods for representing the spatial configuration of molecules. The Fischer Projection, developed by Emil Fischer, is a cross-shaped diagram that represents chiral centers and their relative configurations in a straightforward manner, with horizontal lines indicating bonds projecting out of the plane towards the observer, and vertical lines for bonds extending behind the plane. The Haworth Projection, on the other hand, is tailored for cyclic structures, using angled lines to depict substituents above or below the plane of the ring. While Fischer Projections focus on the absolute configuration of chiral centers, Haworth Projections emphasize the conformation of cyclic molecules and the stereochemistry at the anomeric center.Illustrative Examples of Haworth Projections in Monosaccharides
Detailed examples of Haworth Projections can be found in the study of common monosaccharides such as fructose, galactose, and glucose. Fructose, when in its cyclic form, is typically shown as a five-membered furanose ring in the Haworth Projection. Galactose, an epimer of glucose at the fourth carbon, is represented in both its alpha and beta configurations. The comparison between Alpha-D-Glucose and its enantiomer L-Glucose in the Haworth Projection underscores the mirror-image relationship and the reversal of stereochemistry at all chiral centers in L-Glucose. These examples are instrumental in teaching students the nuances of sugar stereochemistry and ring formation.The Haworth Projection of D-Glucose: An In-Depth Analysis
D-Glucose, an important aldohexose in biochemistry, is frequently depicted in the Haworth Projection to visualize its pyranose ring form. This diagrammatic representation distinguishes between the alpha-D-Glucopyranose and beta-D-Glucopyranose anomers by the orientation of the hydroxyl group on the anomeric carbon (C-1). The Haworth Projection is essential for understanding the behavior of D-Glucose in solution, including the process of mutarotation, where the alpha and beta anomers interconvert through the open-chain aldehyde form, altering the configuration of the hydroxyl group at the anomeric center upon ring closure.Mastering Haworth Projections with Practical Carbohydrate Examples
Practical examples involving carbohydrates such as glucose, fructose, and galactose are invaluable for mastering the concept of Haworth Projections. These sugars are not only relevant to human nutrition but also serve as excellent models for understanding the stereochemistry of the anomeric carbon. For instance, the Haworth Projection of lactose, a disaccharide composed of galactose and glucose units, illustrates the formation of a glycosidic linkage and the resulting fixed configuration at the anomeric carbon of the glucose moiety. Such examples provide students with a tangible context for learning about the complex structures and stereochemical aspects of carbohydrates.Key Insights from the Haworth Projection in Organic Chemistry
The Haworth Projection is an invaluable representation in organic chemistry for elucidating the structure of cyclic sugars and their chemical properties. It simplifies the depiction of complex three-dimensional molecular structures, focusing on the anomeric configuration and the overall ring conformation. By comparing different projection methods and delving into specific examples such as D-Glucose, students can deepen their understanding of molecular structures and stereochemistry. The use of practical examples further aids in the comprehension of these concepts, making the Haworth Projection a central tool in the study of carbohydrates and their transformations.
Show More

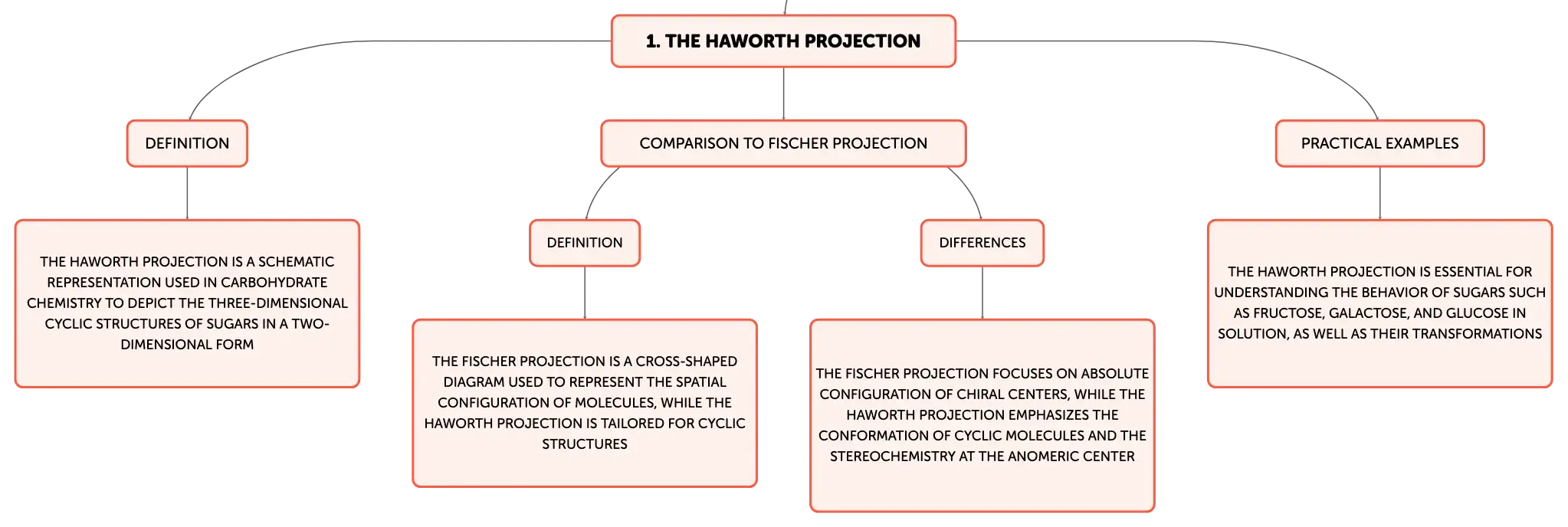

The Haworth Projection
Definition
The Haworth Projection is a schematic representation used in carbohydrate chemistry to depict the three-dimensional cyclic structures of sugars in a two-dimensional form
Comparison to Fischer Projection
Definition
The Fischer Projection is a cross-shaped diagram used to represent the spatial configuration of molecules, while the Haworth Projection is tailored for cyclic structures
Differences
The Fischer Projection focuses on absolute configuration of chiral centers, while the Haworth Projection emphasizes the conformation of cyclic molecules and the stereochemistry at the anomeric center
Practical Examples
The Haworth Projection is essential for understanding the behavior of sugars such as fructose, galactose, and glucose in solution, as well as their transformations

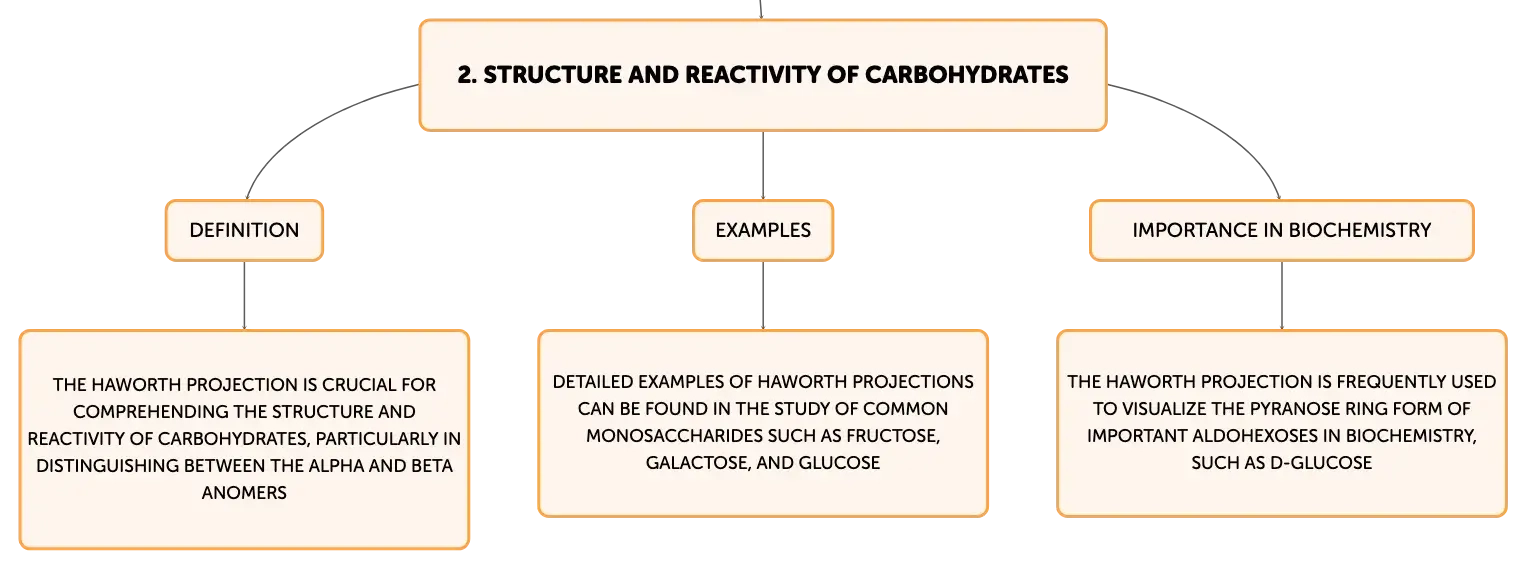

Structure and Reactivity of Carbohydrates
Definition
The Haworth Projection is crucial for comprehending the structure and reactivity of carbohydrates, particularly in distinguishing between the alpha and beta anomers
Examples
Detailed examples of Haworth Projections can be found in the study of common monosaccharides such as fructose, galactose, and glucose
Importance in Biochemistry
The Haworth Projection is frequently used to visualize the pyranose ring form of important aldohexoses in biochemistry, such as D-Glucose

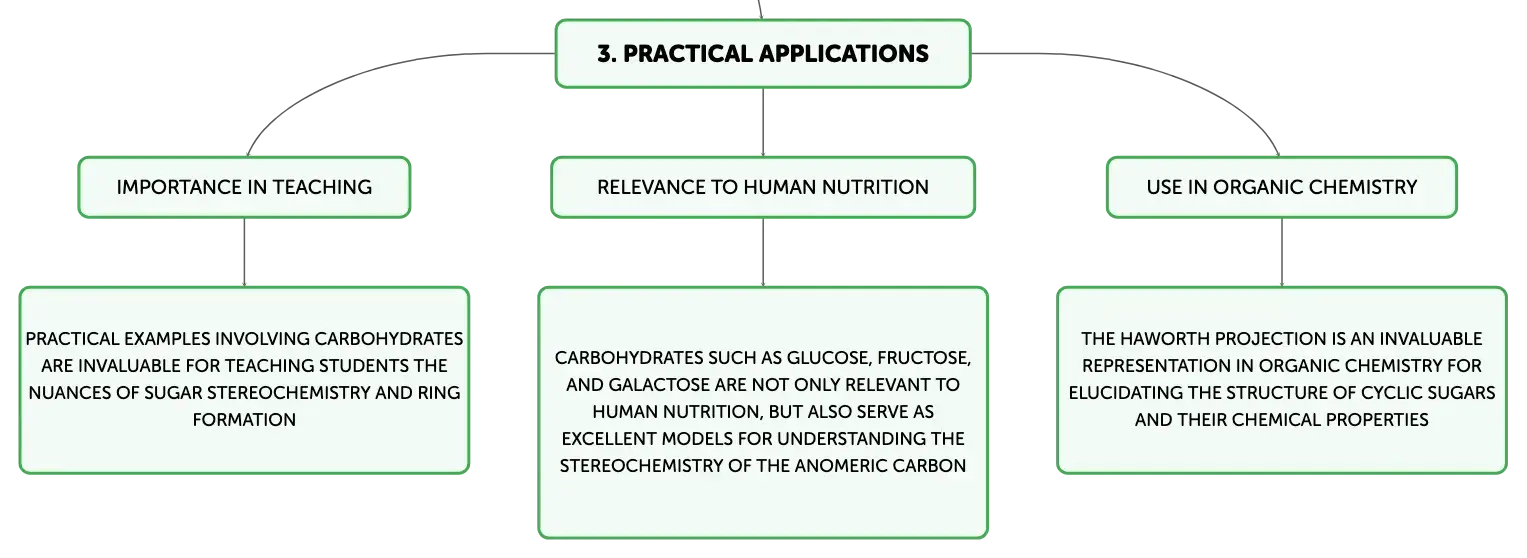

Practical Applications
Importance in Teaching
Practical examples involving carbohydrates are invaluable for teaching students the nuances of sugar stereochemistry and ring formation
Relevance to Human Nutrition
Carbohydrates such as glucose, fructose, and galactose are not only relevant to human nutrition, but also serve as excellent models for understanding the stereochemistry of the anomeric carbon
Use in Organic Chemistry
The Haworth Projection is an invaluable representation in organic chemistry for elucidating the structure of cyclic sugars and their chemical properties
The Haworth Projection: A Tool for Understanding Carbohydrate Chemistry
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Named after Sir Walter Norman ______, the representation helps distinguish alpha and beta anomers in monosaccharides.
Haworth
01
Purpose of Fischer Projections
Represents chiral centers and their configurations; uses cross-shaped diagram for 3D spatial understanding.
02
Interpretation of horizontal and vertical lines in Fischer Projections
Horizontal lines represent bonds towards observer; vertical lines indicate bonds behind the plane.
